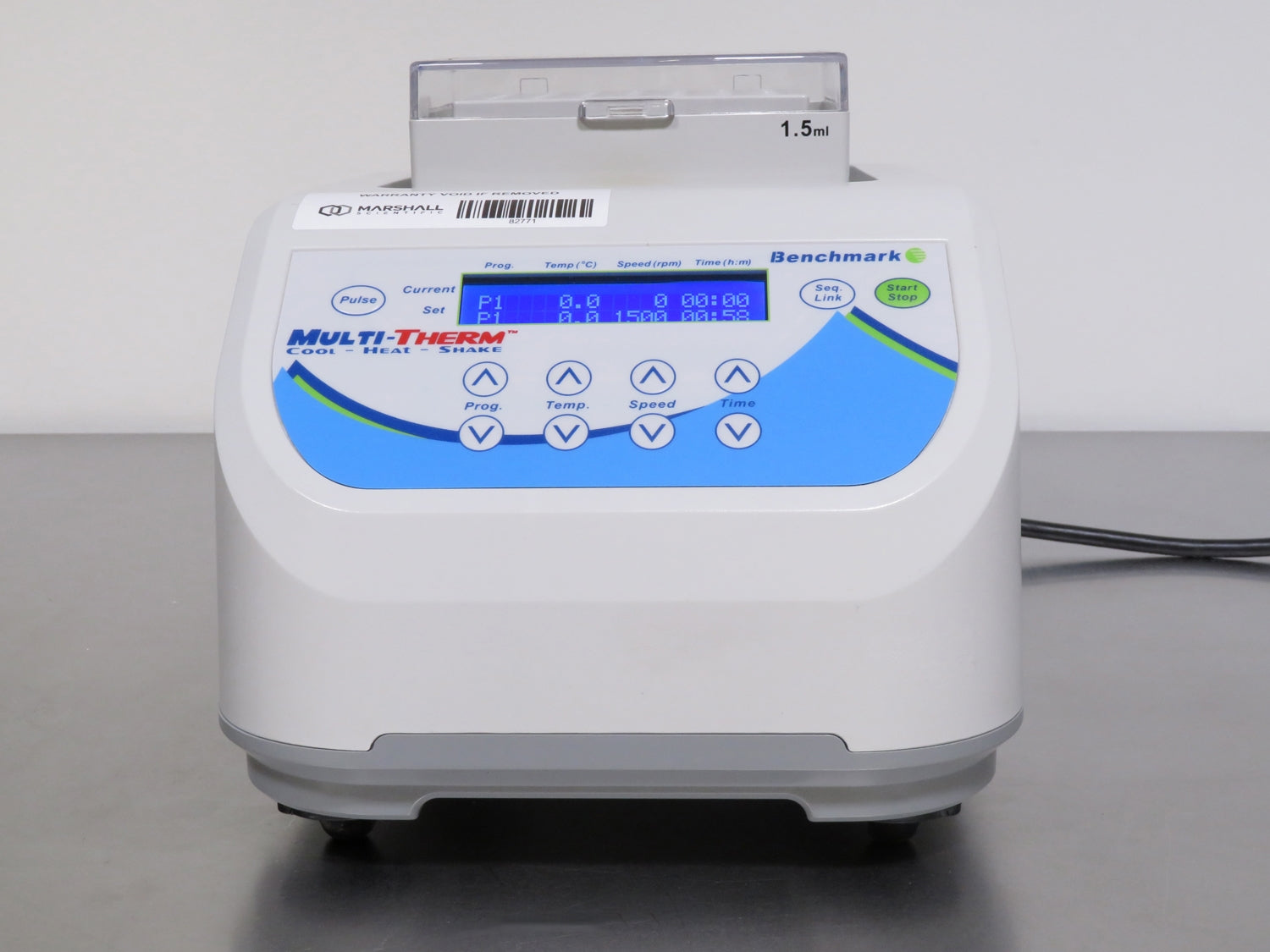

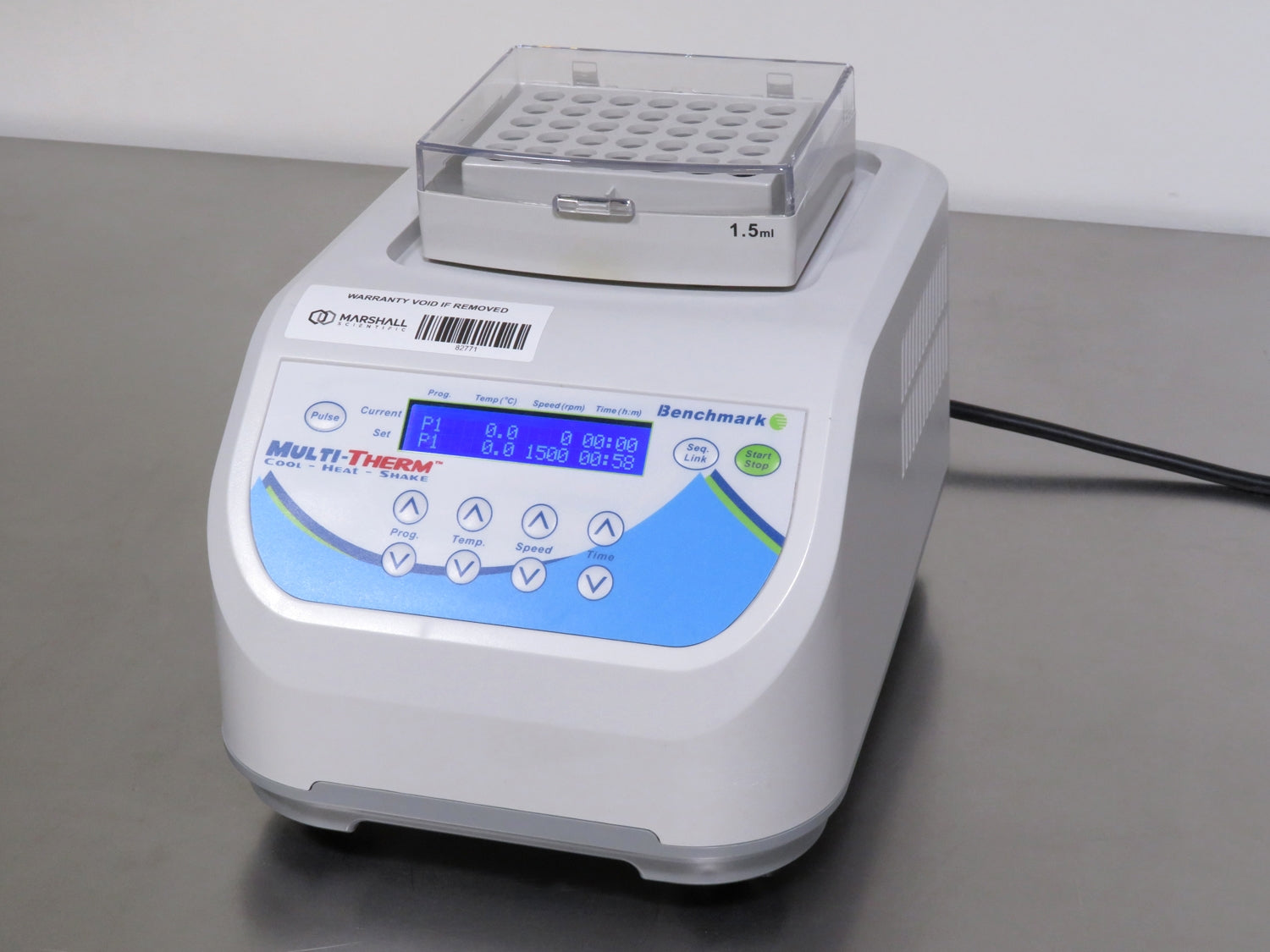

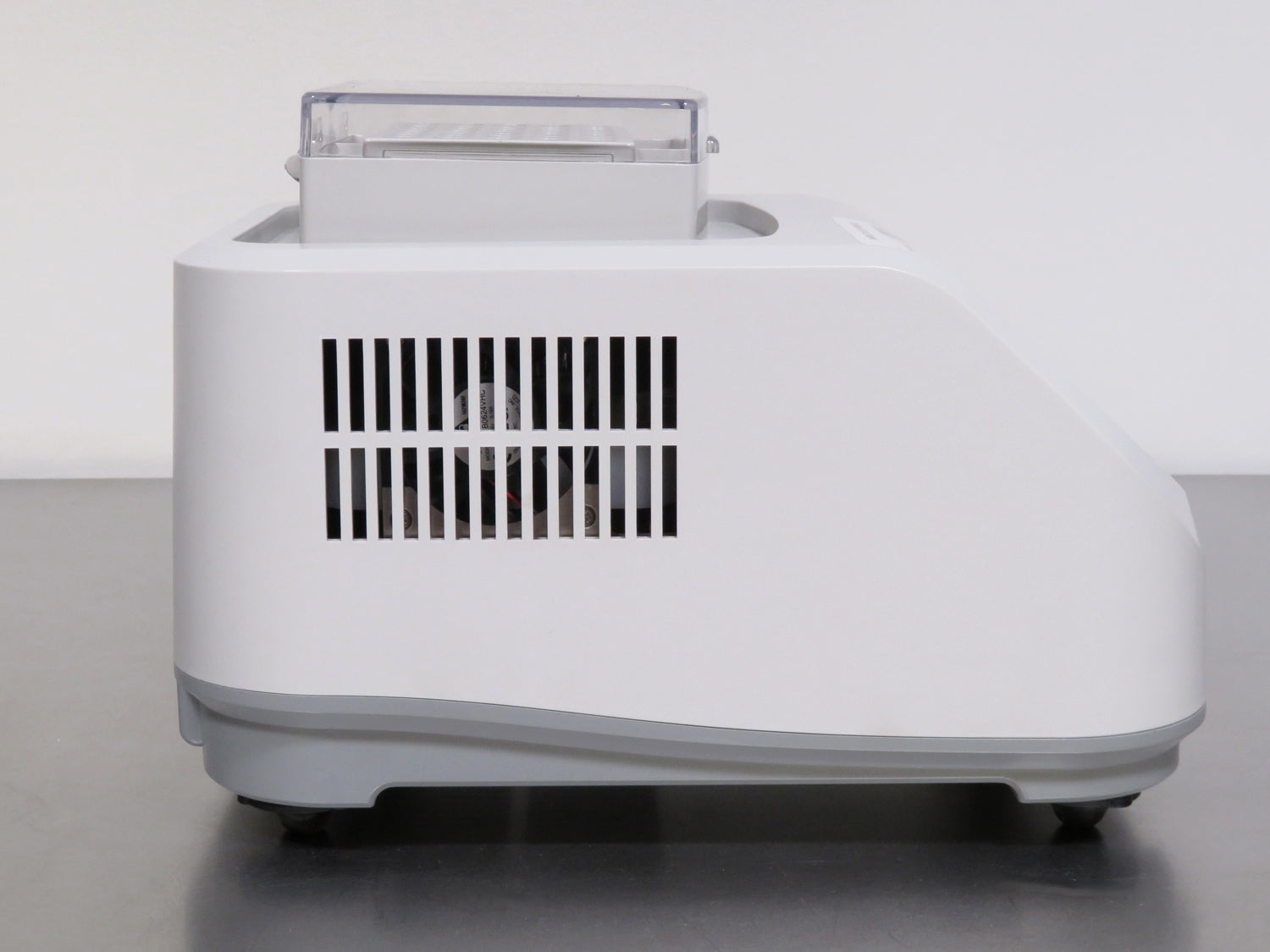

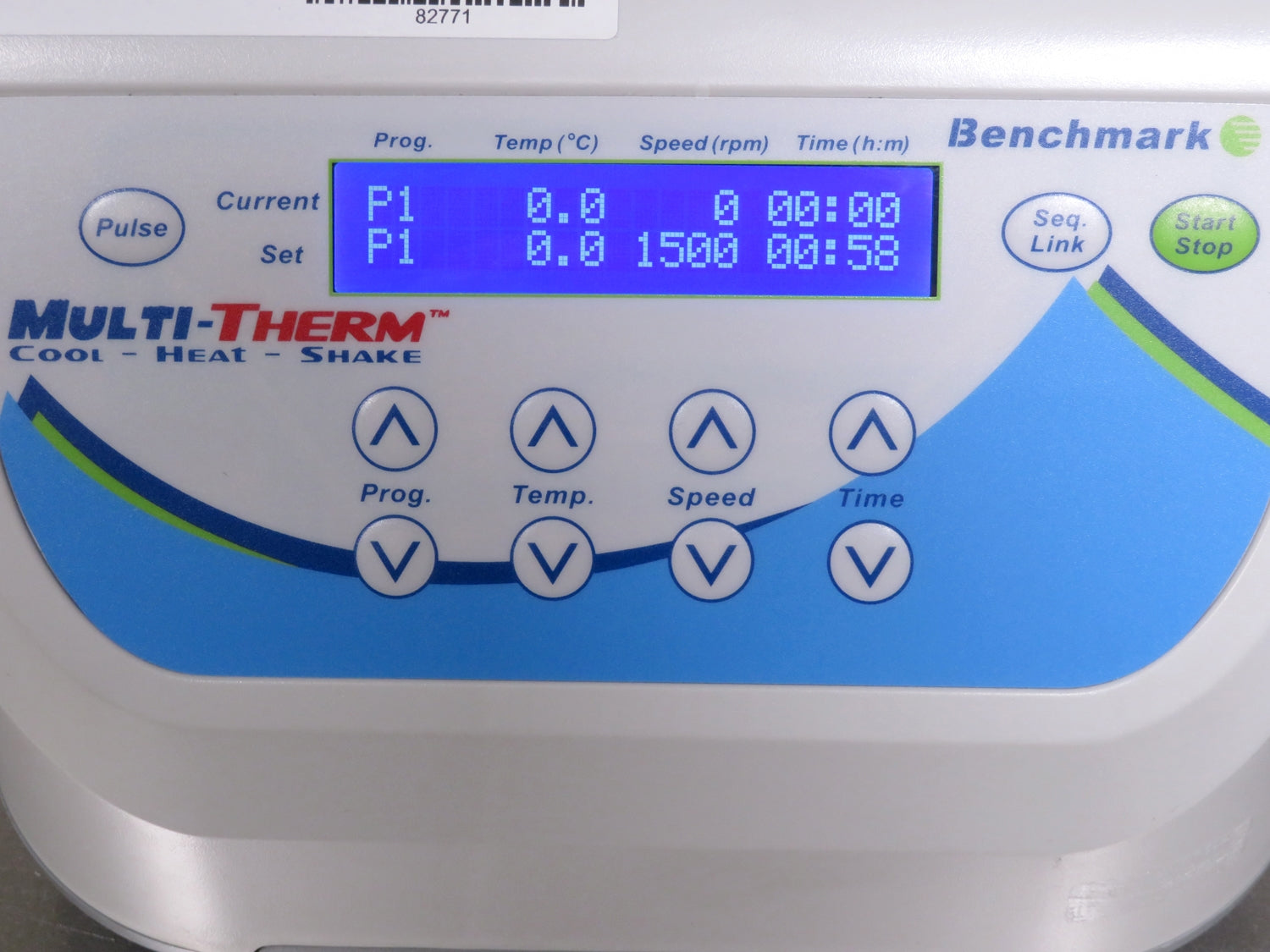

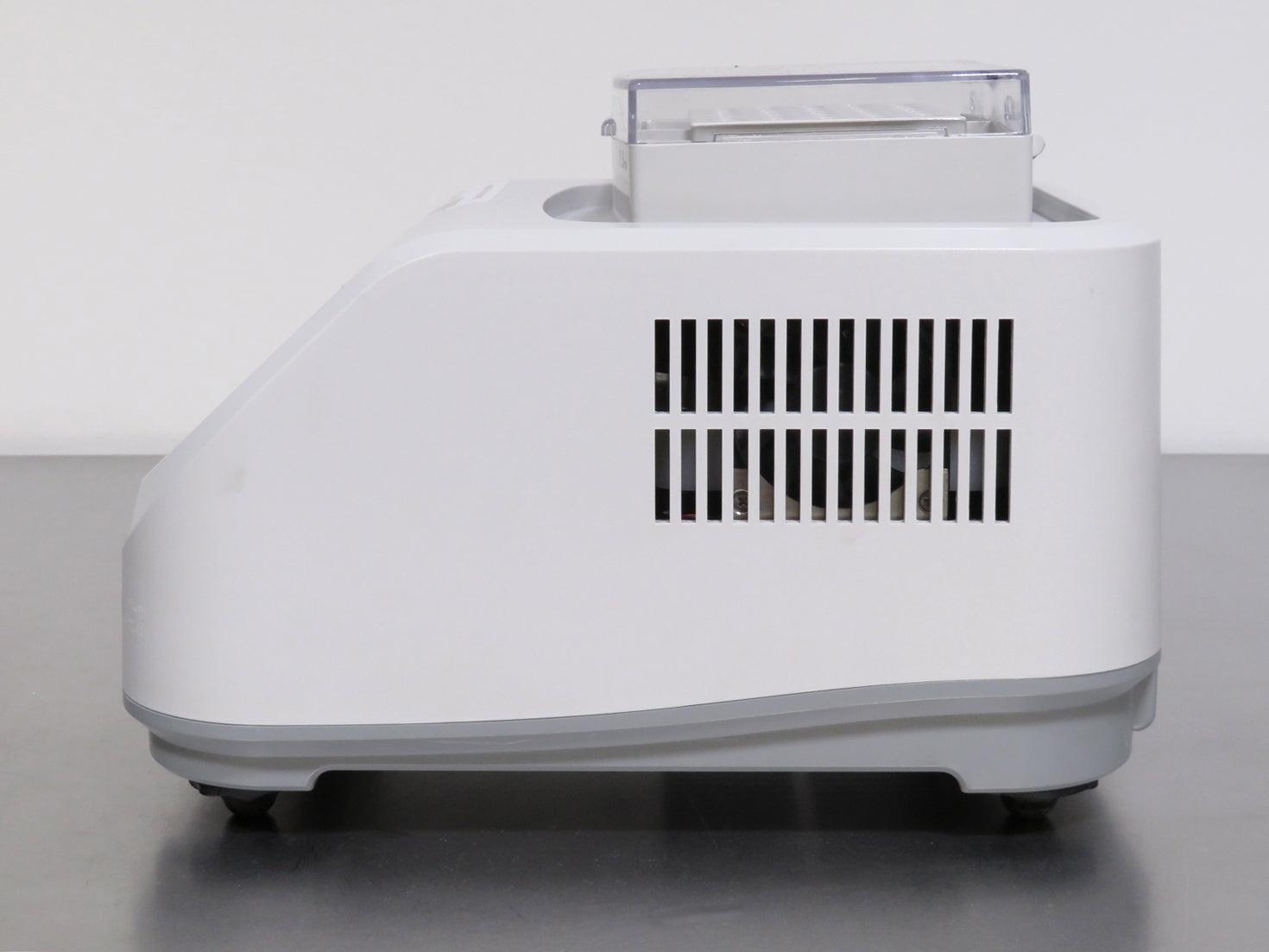

Benchmark MultiTherm Heating and Cooling Shaker w/ 1.5ml Block
Speed Range
200 to 1,500 RPM
Temperature Range
Ambient –20C to 100C
Maximum Capacity
6 x 50ml
Features
- Temperature control from Ambient -20 to 100C

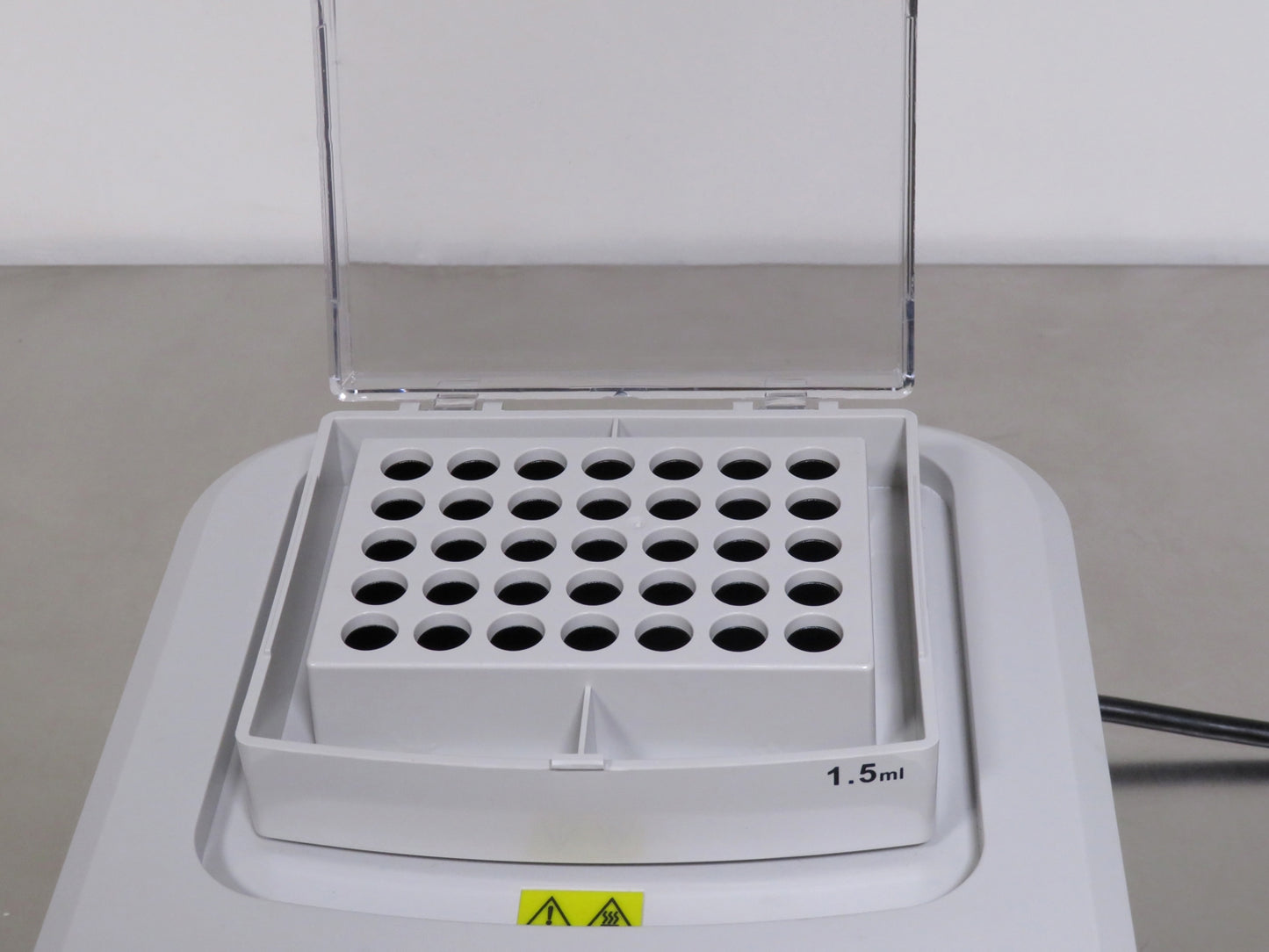

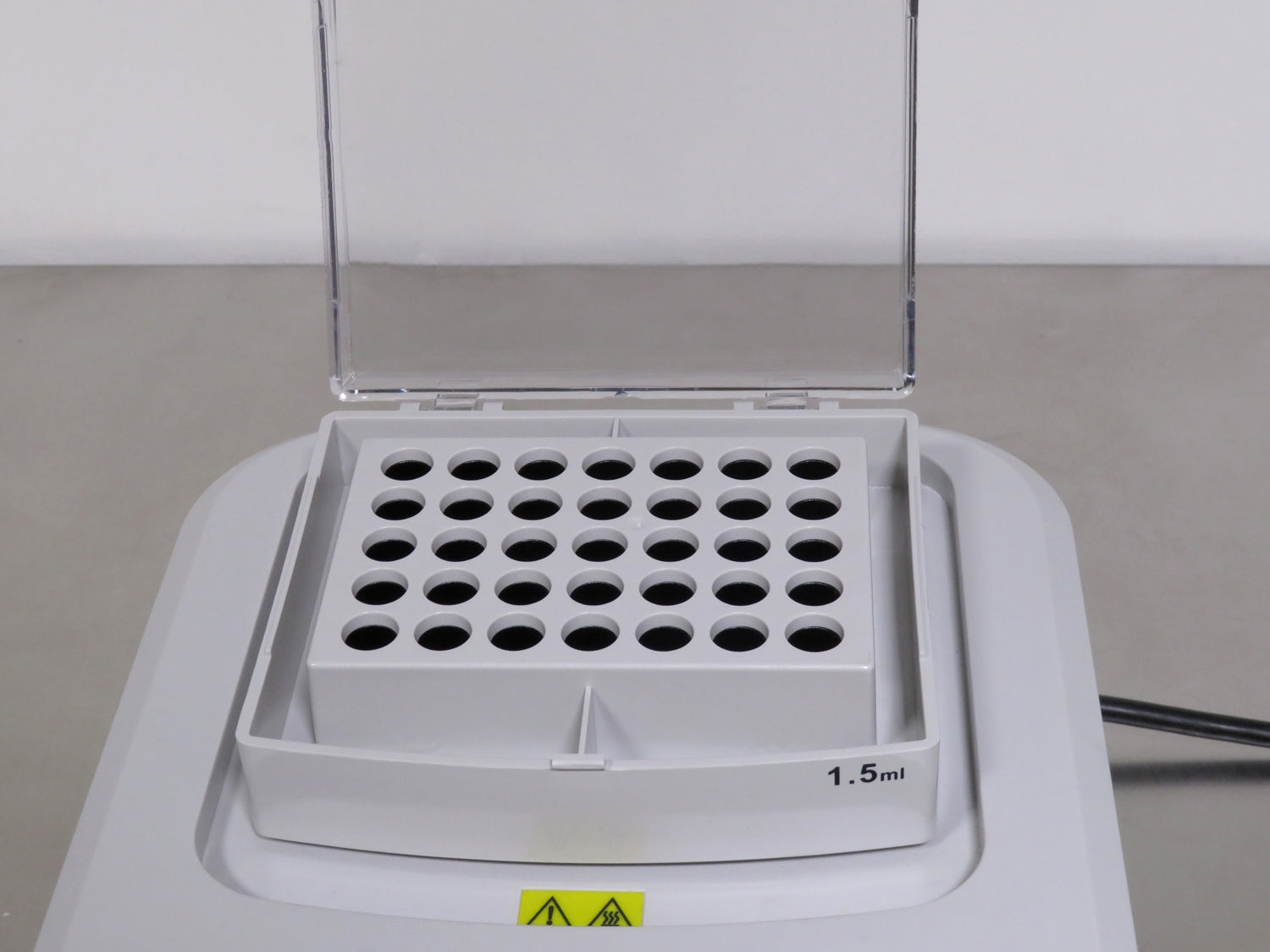

- Exchangeable blocks, for tube sizes 0.2 to 50 ml
- Precision contoured wells for uniform thermal transfer
- Sequence link function for linking or repeating programs
- Compatible with a variety of applications including denaturation of DNA, RNA and proteins, as well as lipid extractions
- Compact 8 x 11 in. footprint for efficient use of laboratory space
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Benchmark MultiTherm Heating and Cooling Shaker w/ 1.5ml Block includes:
The Benchmark MultiTherm Heating and Cooling Shaker w/ 1.5ml Block includes:
- > Brand-New 1.5ml Block
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Benchmark MultiTherm Heating and Cooling Shaker w/ 1.5ml Block Specifications
| Speed Range | 200 to 1,500 RPM |
| Speed Increments | ± 10 RPM |
| Temperature Range | Ambient -20C to 100C |
| Temperature Accuracy |
± 1.0C |
| Temperature Increments |
± 0.1C |
| Heating Rate |
Heating 5°C/minute |
| Timer | 1 minute to 99 hours 99 minutes, or continuous |
| Orbit | 2mm (0.078 in.) |
| Dimensions (W x D x H) | 8.25 x 11.5 x 8.25 in. (21 x 29 x 21 cm) |
| Weight | 18 lb. (8 kg.) |

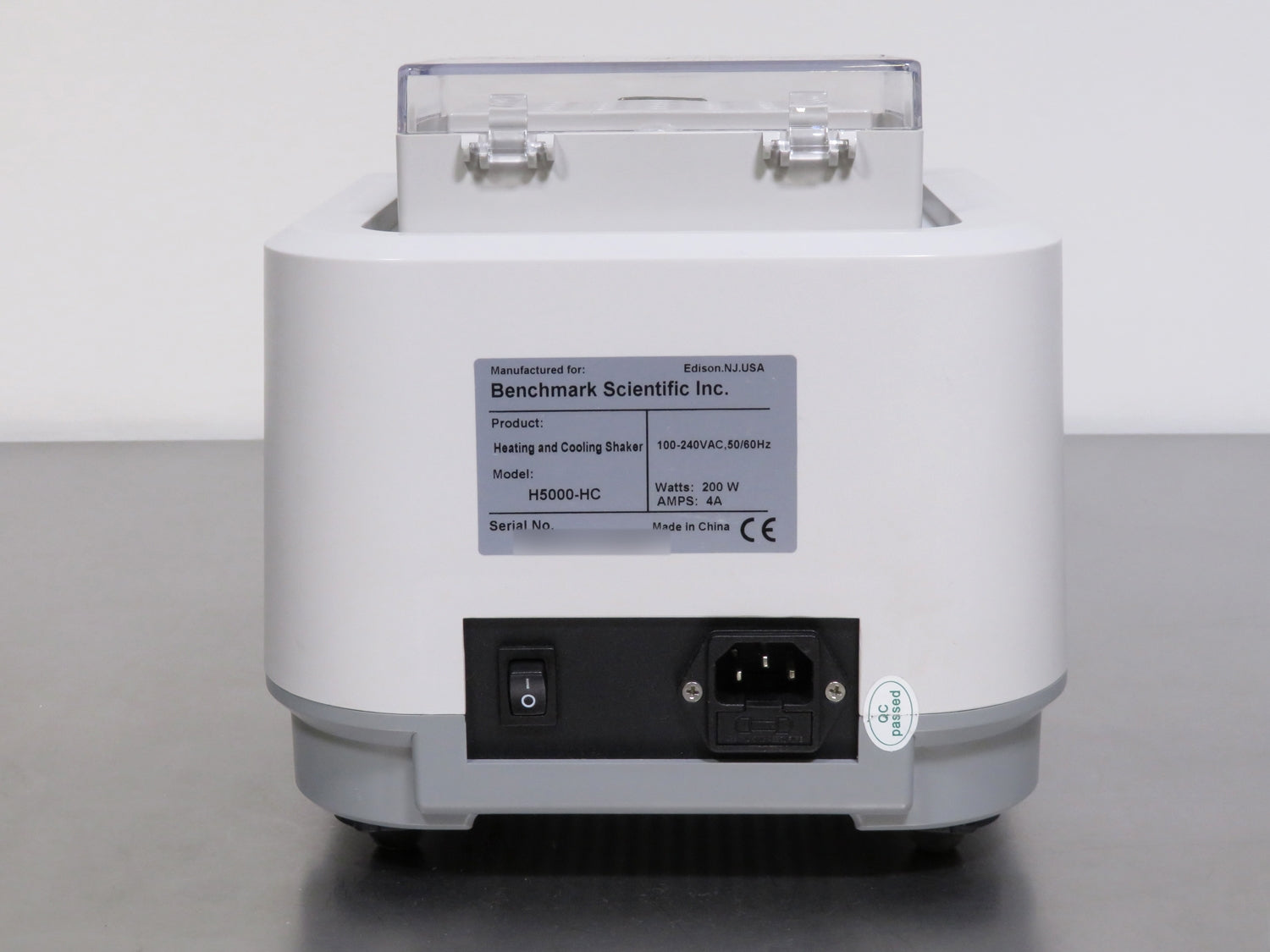

| Electrical Requirements | 115V, 60Hz, 4A, 200W |
Thermo Mixer Inspection and Recertification Checklist
- Confirm stability and accuracy of power supply and PCB voltage outputs
- Inspect display integrity, ensuring pixel clarity and replacing any degraded or non-functional elements
- Verify complete functionality and responsiveness of all control buttons, switches, and knobs
- Conduct thorough inspection of internal wiring and all electrical connections for continuity; replace or secure any degraded or substandard components
- Examine block holder platform for alignment, obstructions, or error-inducing irregularities
- Perform detailed inspection of motor bearings, assessing for wear or misalignment, and replace if performance deviates from specifications
- Calibrate rotational speed precisely using a NIST-traceable tachometer for compliance with operational standards
- Calibrate temperature accuracy using a NIST-traceable temperature probe, validating readings across the operational range
- Ensure timer precision by validating functionality and consistency against set parameters
- Conduct a comprehensive cosmetic inspection, verifying all surfaces and external components meet quality standards
Technician Inspection and Recertification Checklist: Thermo Mixer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm stability and accuracy of power supply and PCB voltage outputs | Completed | |
| Inspect display integrity, ensuring pixel clarity and replacing any degraded elements | Completed | |
| Verify functionality and responsiveness of all control buttons, switches, and knobs | Completed | |
| Inspect internal wiring and connections for continuity, replacing or securing degraded components | Completed | |
| Examine block holder platform for alignment, obstructions, or irregularities | Completed | |
| Inspect motor bearings for wear or misalignment, replacing if necessary | Completed | |
| Calibrate rotational speed using an NIST-traceable tachometer | Completed | |
| Calibrate temperature with an NIST-traceable probe, validating accuracy | Completed | |
| Ensure timer precision by validating against set parameters | Completed | |
| Conduct cosmetic inspection for quality standard compliance | Completed |
