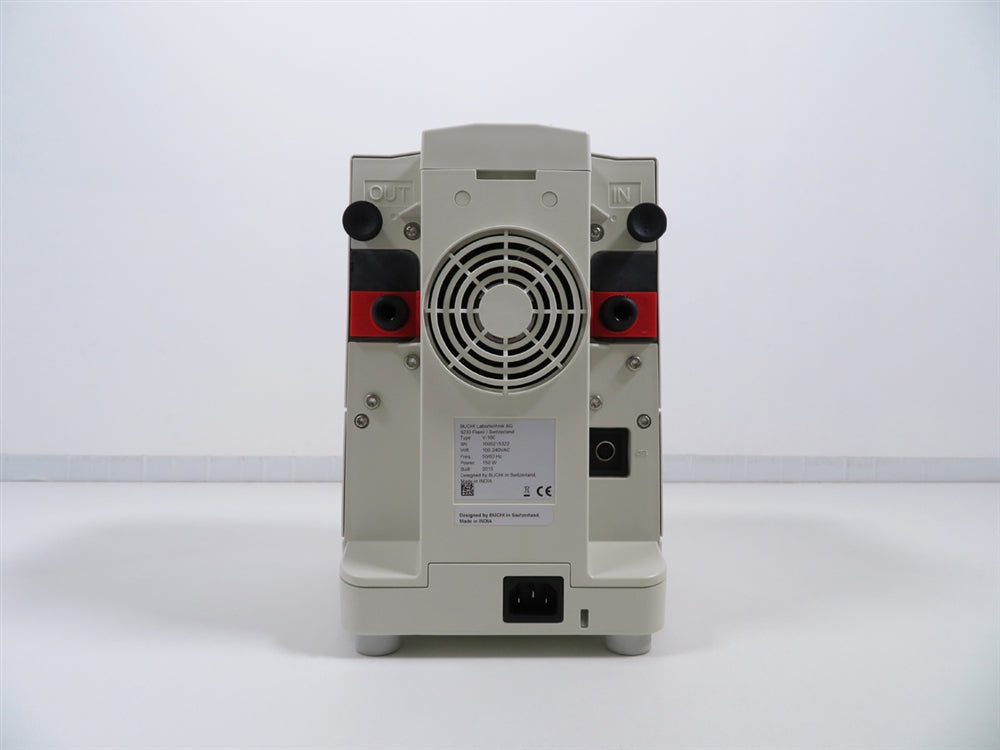

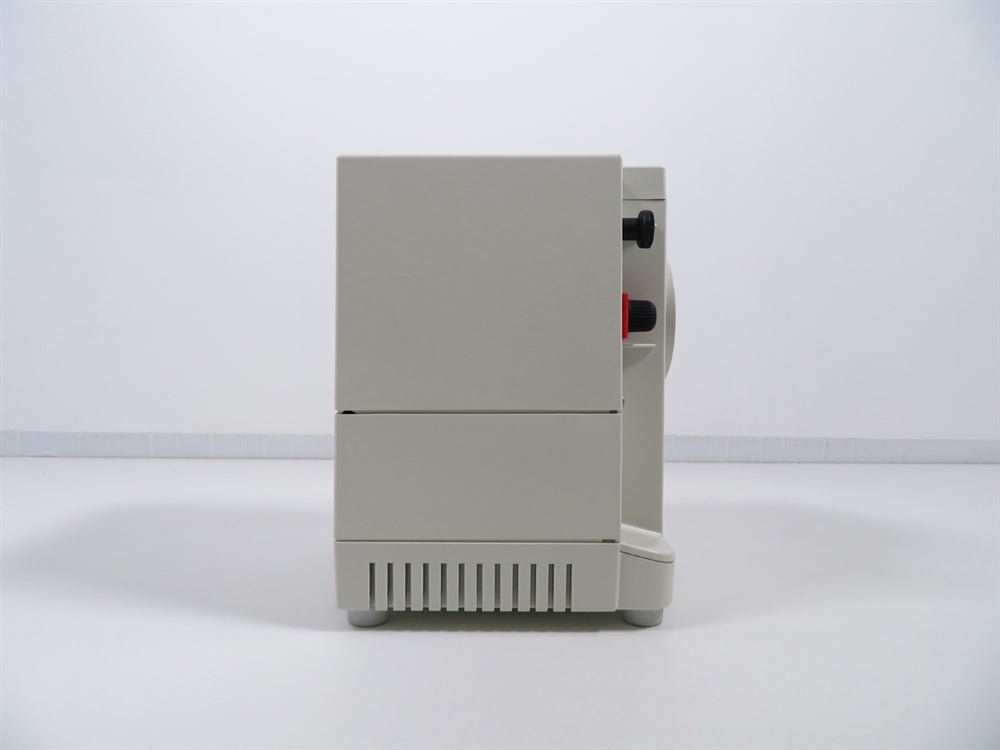

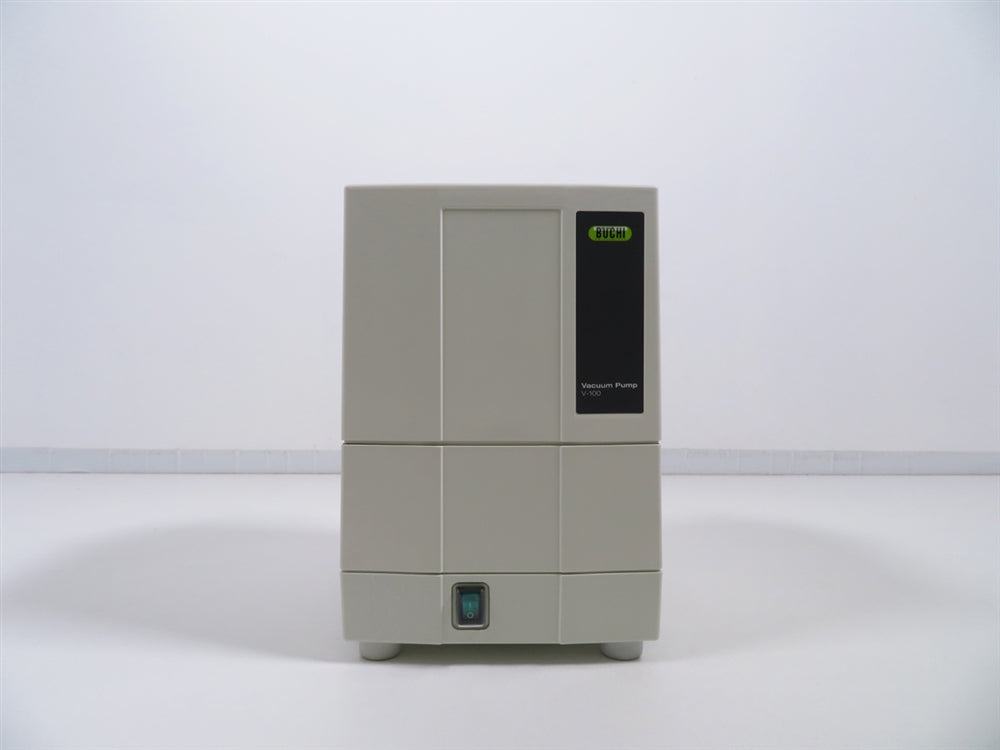

Buchi V-100 Vacuum Pump
Suction Capacity
1.5 m3/h*
Final Vacuum
10 mbar
Number of Steps (Heads)
2 (2)
- Ideal companion vacuum pump for Buchi R-100 evaporator systems
- Constructed with chemically resistant PTFE, FEP, FFKM, and PPS materials
- Operates with a quiet sound level ranging from 32 to 57 dB(A)
- Brushless DC motor provides consistent, low-maintenance performance
- Compact footprint ensures efficient use of laboratory space
- Can be used standalone or integrated into complete vacuum systems
The Buchi V-100 Vacuum Pump is a reliable pump for Buchi evaporator systems, constructed with highly resistant materials for long-lasting durability. The V-100 delivers a pumping volume of 1.5mᶟ/h with a final vacuum of 10 mbar. The pump can be used individually to create a vacuum or can be expanded to create a complete vacuum system with condensers, controllers, etc. (The V-100 is for use with and included in evaporating systems R-100.)
This vacuum pump is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
The Buchi V-100 Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Buchi V-100 Vacuum Pump Specifications
|
Suction
Capacity
|
1.5 m3/h*
|
|
Number of Steps
(heads)
|
2 (2)
|
|
Final Vacuum
|
10 mbar
|
|
Connections
|
GL14
|
|
Power
Consumption
|
150 W
|
|
Electrical
Requirements
|
100 – 240 V,
50/60 Hz
|
|
Pump Motor
|
DC, brushless
|
|
Nominal Speed
|
max. 1280 rpm
|
|
Sound Level
|
32 – 57 dB(A)
57 dB(A) with
100 % load
|
|
Material in
Contact
|
PTFE, FEP,
FFKM, PPS
|
|
Dimensions (W
x H x D)
|
340 x 630 x
340 mm
|
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
