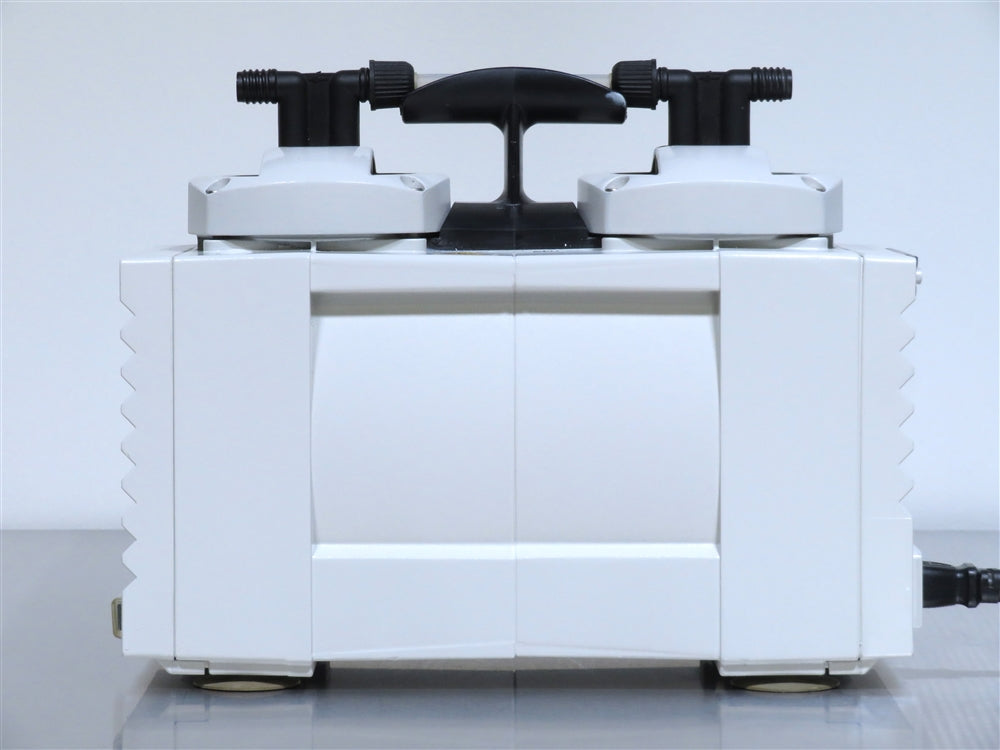

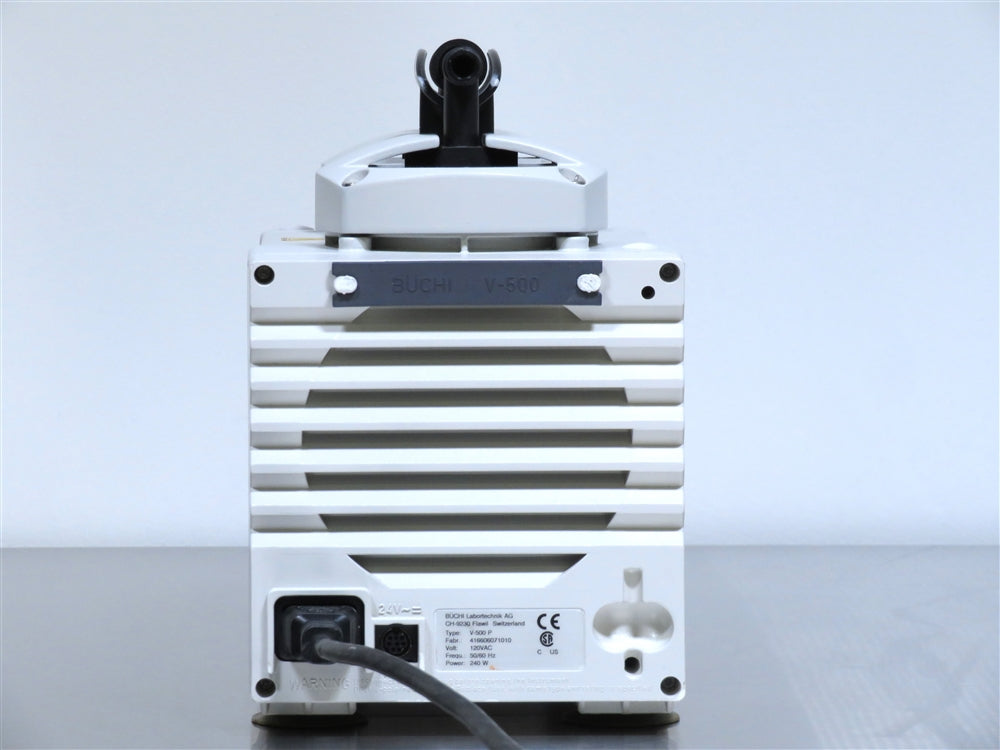

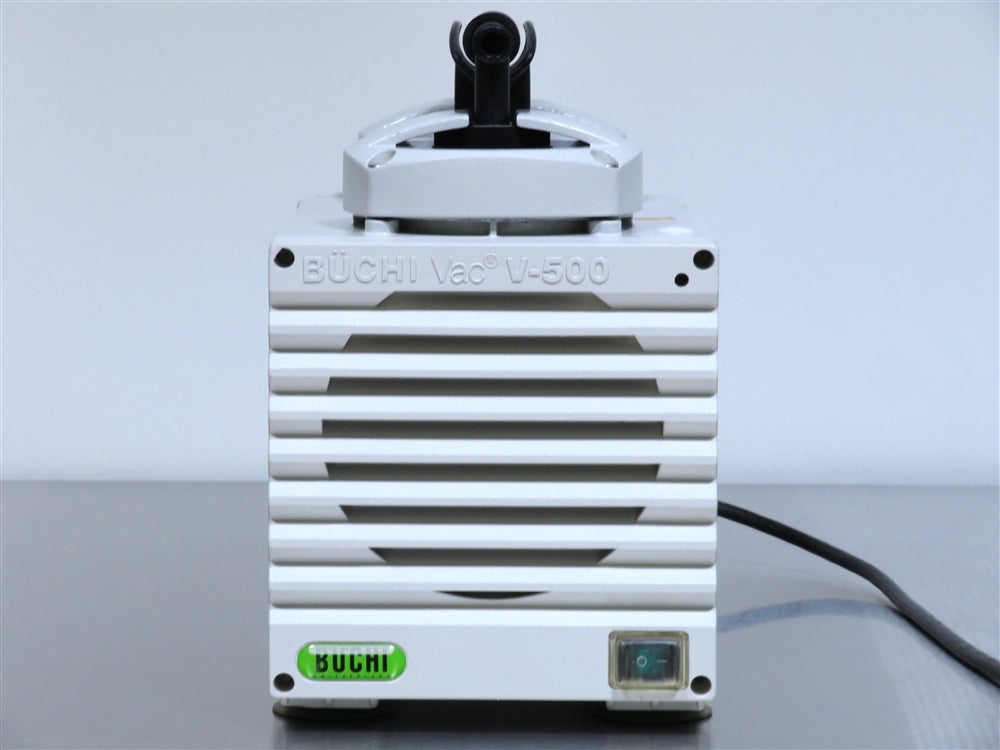

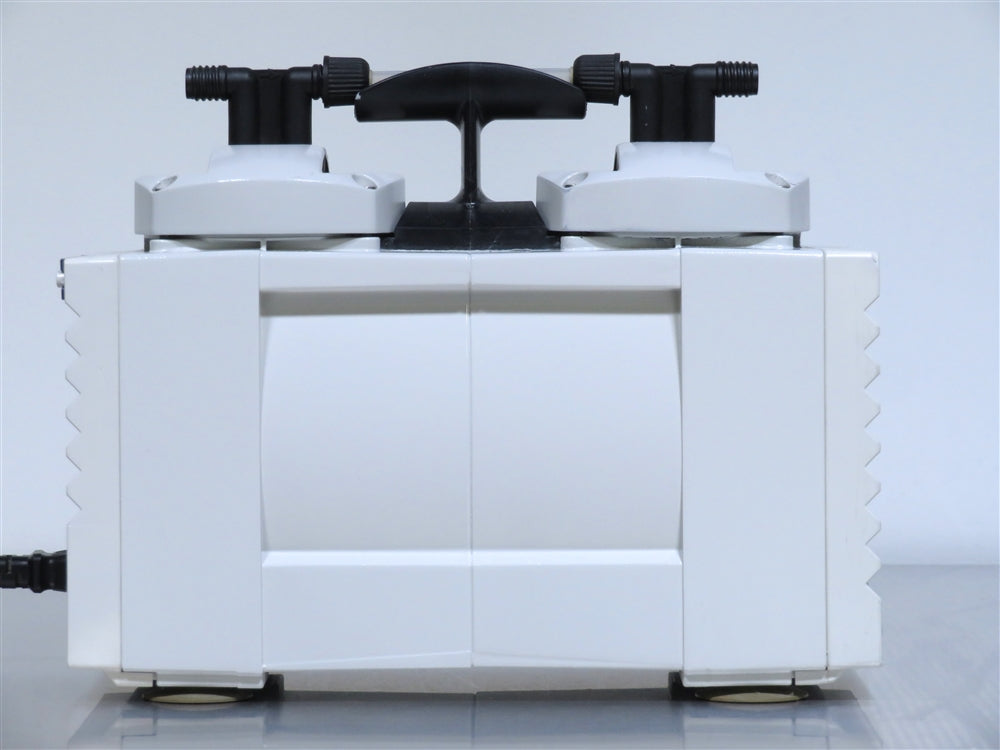

Buchi V-500 Vacuum Pump
Final Vacuum
< 10 mbar
Suction Capacity
1.6 mᶟ/h
Power Consumption
240W
Features
- Specifically designed for compatibility with Buchi evaporator systems R-200, R-205, R-210, and R-215
- Delivers a substantial pumping volume of 1.6 m³/h for efficient vacuum creation
- Achieves a final vacuum of less than 10 mbar, suitable for precise laboratory applications
- Constructed with highly resistant materials, ensuring long-lasting durability and reliability
- Can function independently or as part of a complete vacuum system
- Includes options for expansion with condensers and controllers for broader applications
- Low power consumption of 240 watts, making it an energy-efficient choice for laboratories
- Ideal for a range of scientific and research tasks requiring a reliable vacuum source
This vacuum pump is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Buchi V-500 Vacuum Pump includes:
The Buchi V-500 Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Buchi V-500 Vacuum Pump Specifications
|
Final Vacuum Possible |
< 10 mbar |
|
Pumping Volume |
1.6mᶟ/h |
|
Power Consumption |
240W |
|
Electrical Supply |
120 VAC, 50/60 Hz |
|
Surrounding Temperature |
5°C to 40°C |
|
Dimensions (L x B x H) |
150 x 294 x 236 mm |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Buchi V-500 Vacuum Pump Manual
Click Here to View all the Technical Specs for the V-500
Click Here to View the Technical Specs for the V-500
