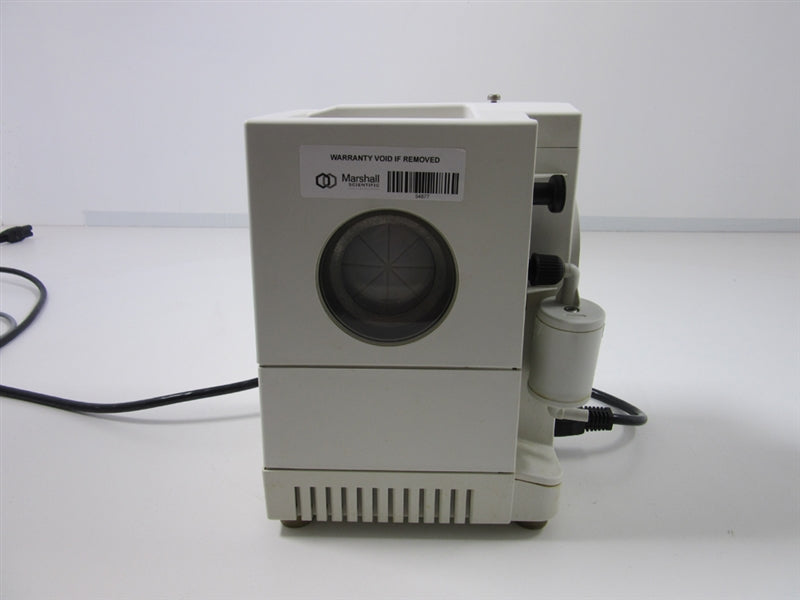

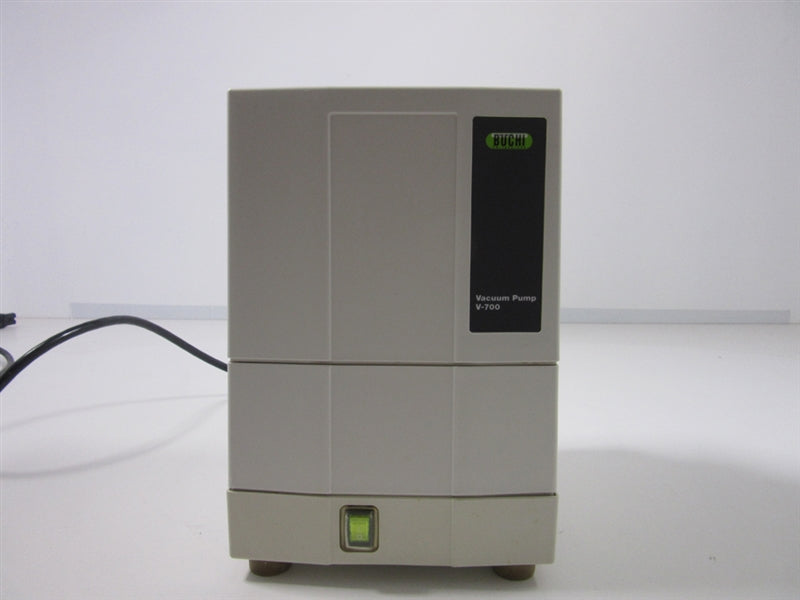

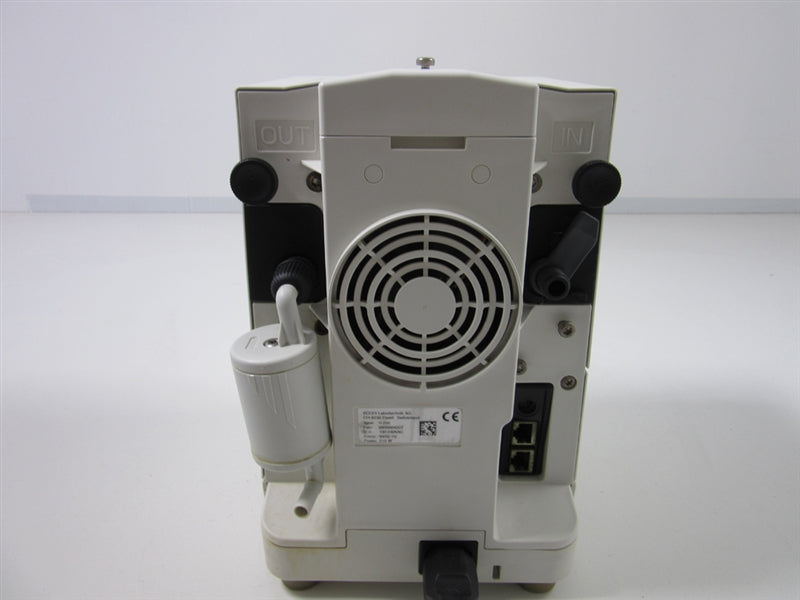

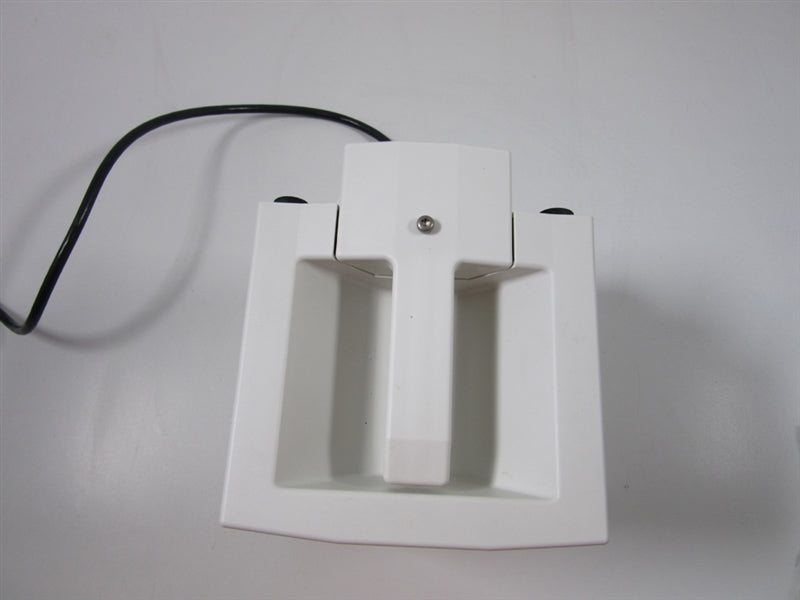

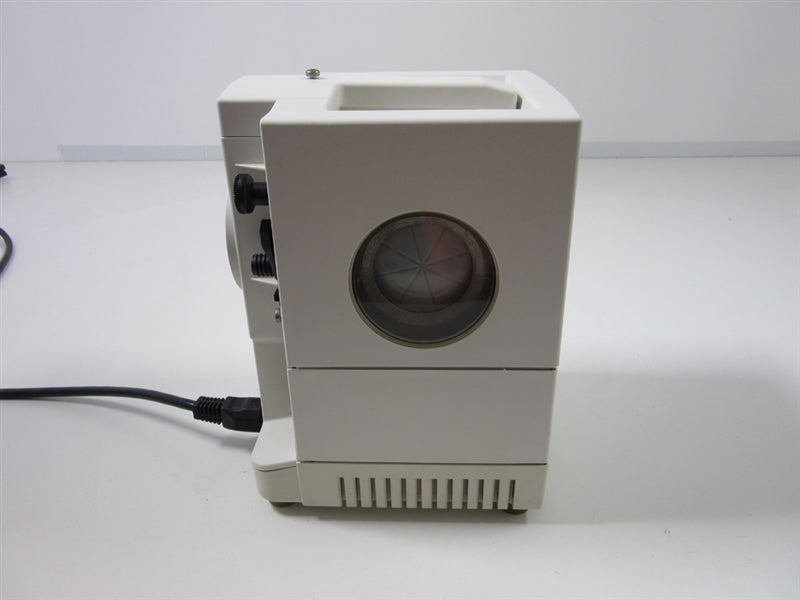

Buchi V-700 Vacuum Pump
Final Vacuum
< 10 mbar
Suction Capacity
1.8 m³/h
Number of Steps (Heads)
2 (2)
Features
- Designed specifically for compatibility with Buchi evaporator systems R-210 and R-215
- Highly durable construction using resistant materials for long-term reliability
- Ensures stable and precise vacuum performance for efficient evaporation processes
- Can function independently or be expanded into a complete vacuum system with additional components
- DC brushless motor ensures reliable performance with minimal maintenance
- Low power consumption of 210 watts, making it energy-efficient
- Operates quietly with a sound level between 40 to 52 dBa, minimizing laboratory noise disturbance
This vacuum pump is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Buchi V-700 Vacuum Pump includes:
The Buchi V-700 Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Buchi V-700 Vacuum Pump Specifications
|
Capacity |
1.8 m3 /h* |
|
Number of steps (heads) |
2 (2) |
|
Final Vacuum (Absolute) |
<10mbar |
|
Final vacuum with gas ballast |
24mbar |
|
Connection |
GL14 |
|
Power Consumption |
210 watts |
|
Electrical requirements |
100-240V 50/60Hz |
|
Pump motor |
DC brushless |
|
Nominal speed |
Max. 1600 min -1 |
|
Sound Level |
40—52dbA |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Click Here to View the Technical Specs for the V-700
