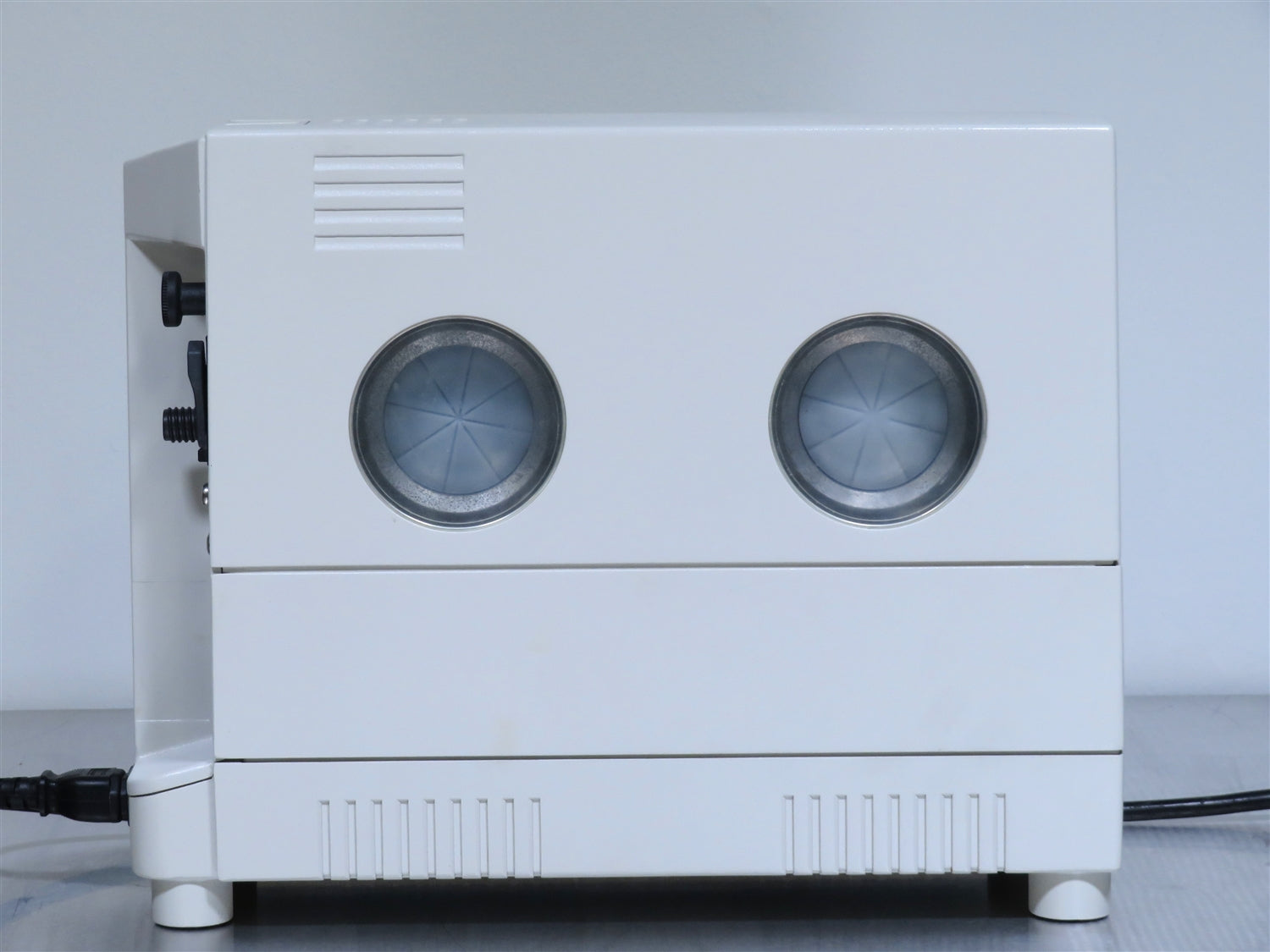

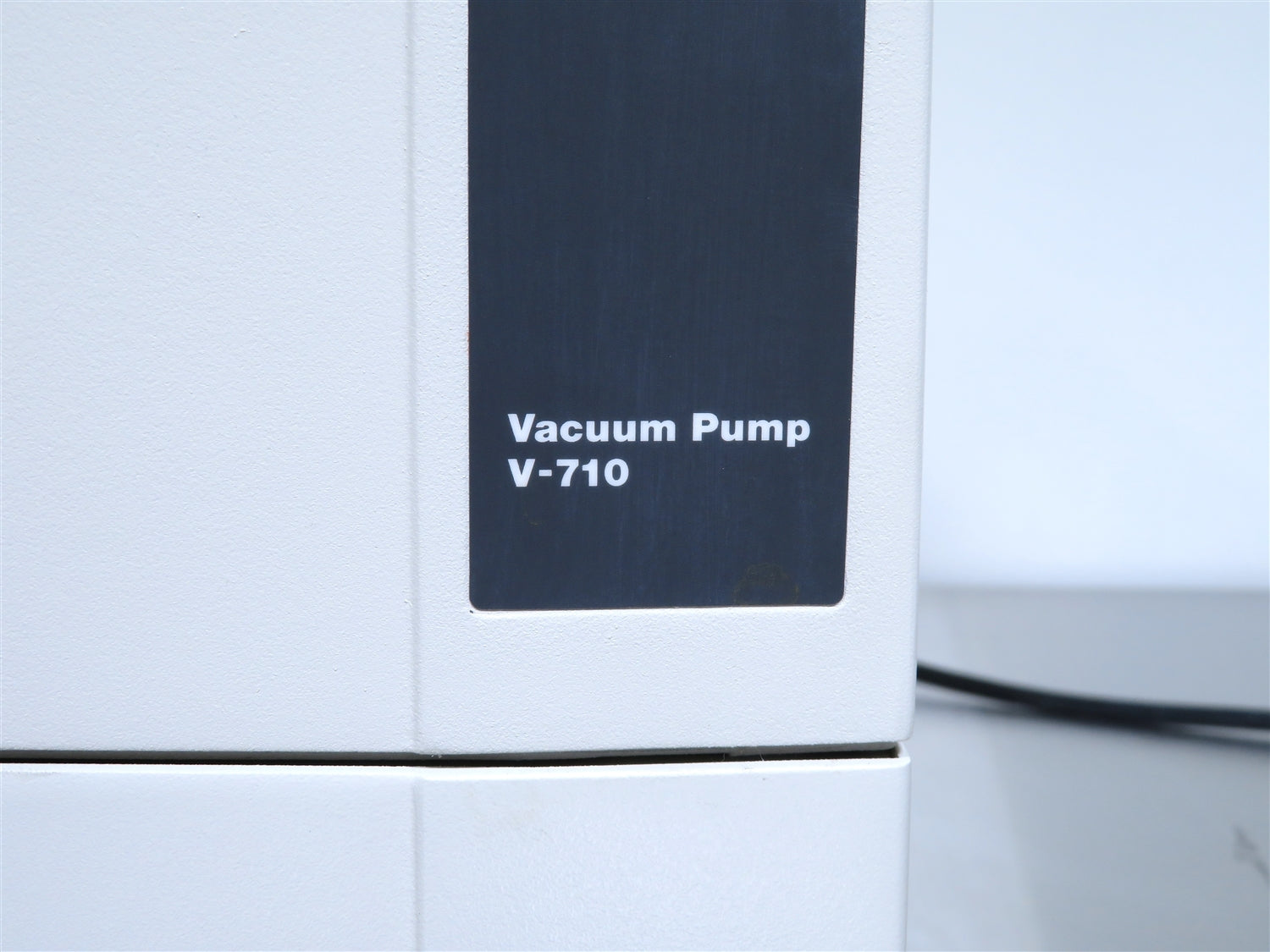

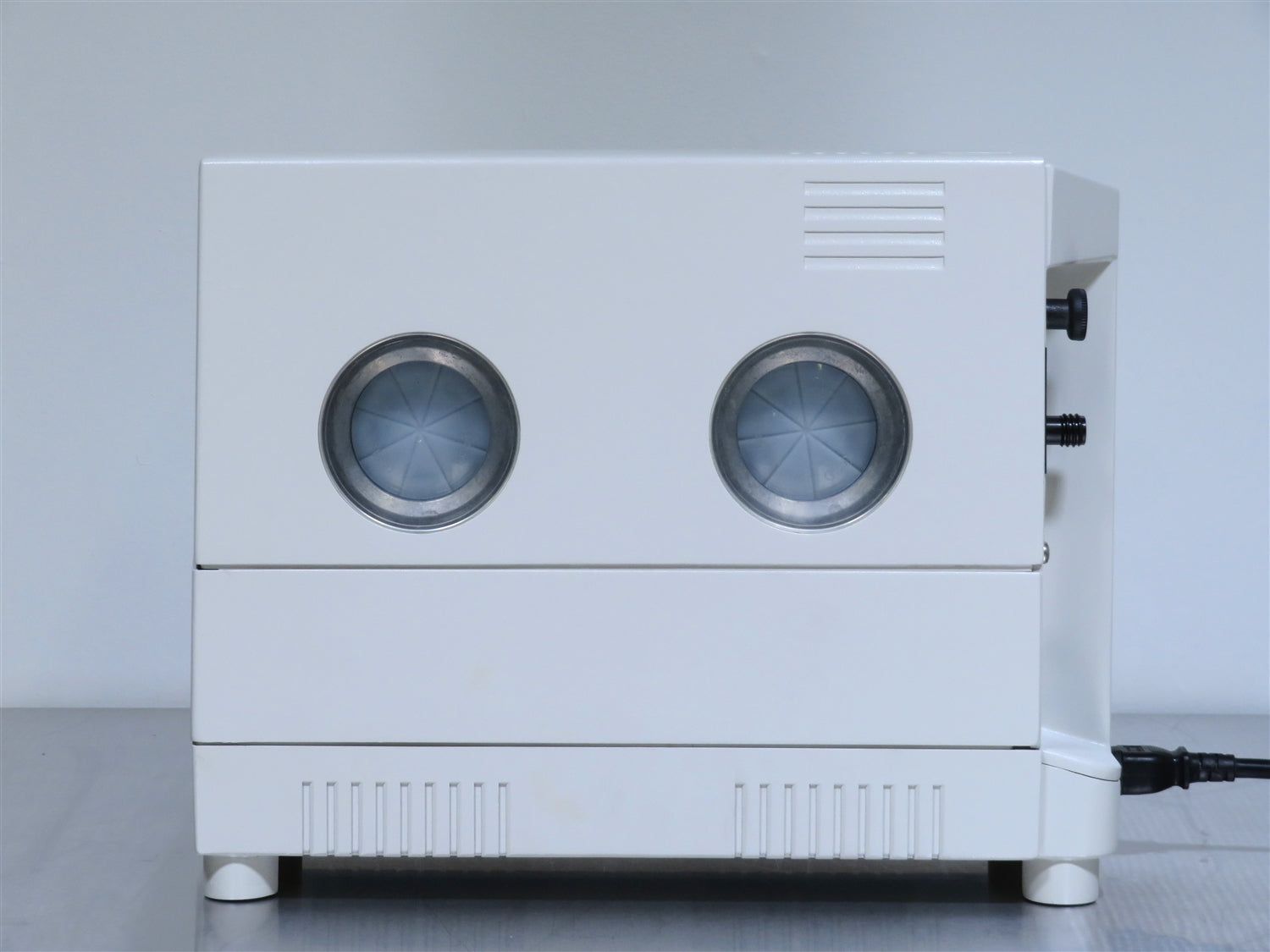

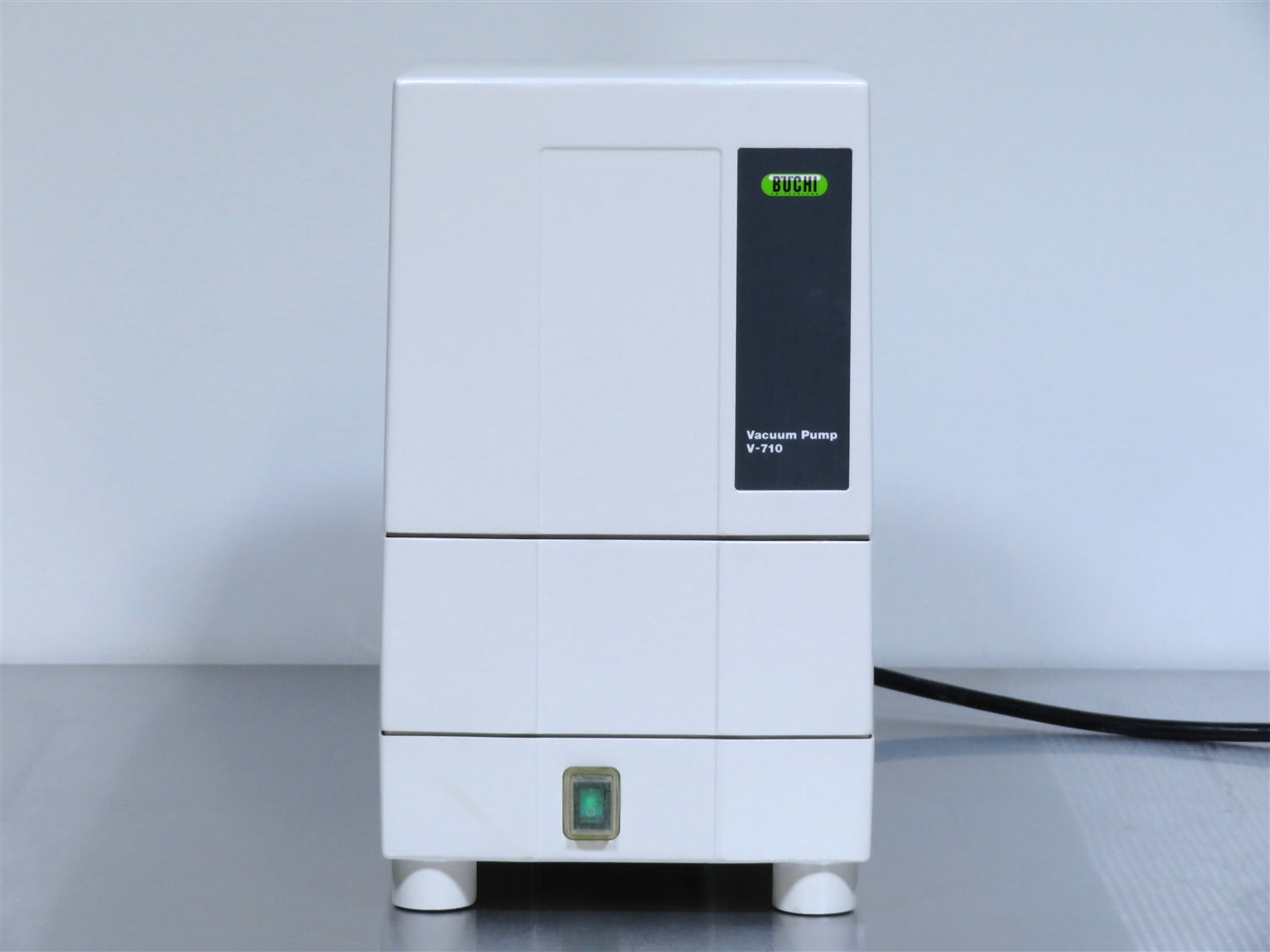

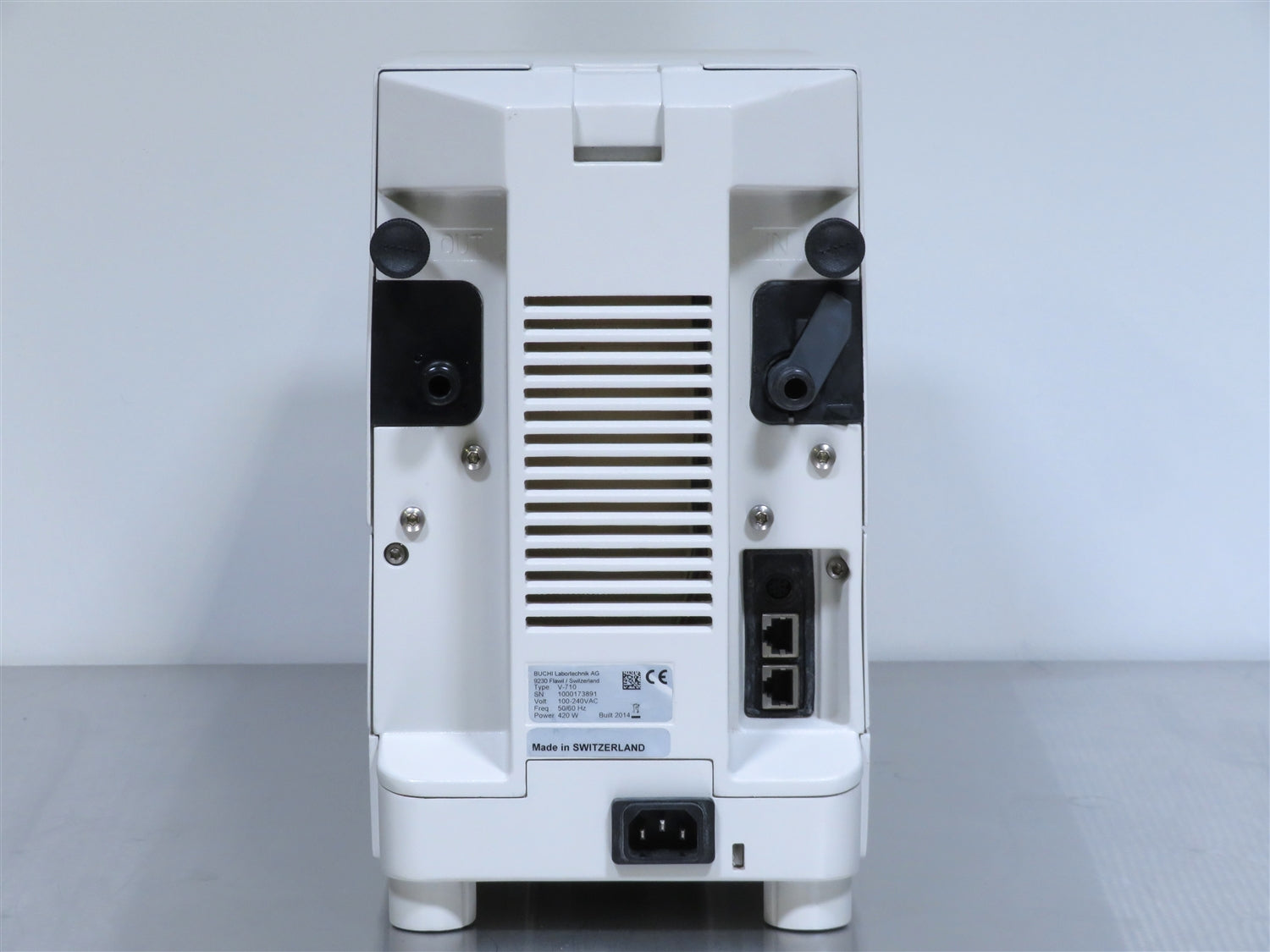

Buchi V-710 Vacuum Pump
Capacity
3.1 m3/h*
Final Vacuum (Absolute)
2 mbar
Connection
GL14
Features
- Constructed with highly resistant materials for exceptional durability
- Operates with a quiet sound level of 40—55 dBA for minimal noise disruption
- DC brushless motor ensures reliable and low-maintenance performance
- Compatible with GL14 connections for easy integration into setups
- Runs on versatile electrical requirements of 100-240V 50/60Hz
- Nominal speed of up to 1600 min⁻¹ for consistent operation
- Expandable to create a complete vacuum system with additional accessories
The Buchi V-710 Vacuum Pump is a reliable pump for Buchi evaporator systems, constructed with highly resistant materials for long-lasting durability. The V-710 delivers a pumping volume of 3.1mᶟ/h with a final vacuum of 2 mbar. The pump can be used individually to create a vacuum or can be expanded to create a complete vacuum system with secondary condenser, controllers, etc. (The V-710 is for use with and included in evaporating systems R-210 and R-215 with chillers.)
This vacuum pump is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Buchi V-710 Vacuum Pump includes:
The Buchi V-710 Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Buchi V-710 Vacuum Pump Specifications
|
Capacity |
3.1 m3 /h* |
|
Number of steps (heads) |
2 (2) |
|
Final Vacuum (Absolute) |
2 mbar |
|
Final vacuum with gas ballast |
8 mbar |
|
Connection |
GL14 |
|
Power Consumption |
370 watts |
|
Electrical requirements |
100-240V 50/60Hz |
|
Pump motor |
DC brushless |
|
Nominal speed |
Max. 1600 min -1 |
|
Sound Level |
40—55 dbA |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Click Here to View the Technical Specs for the V-710
