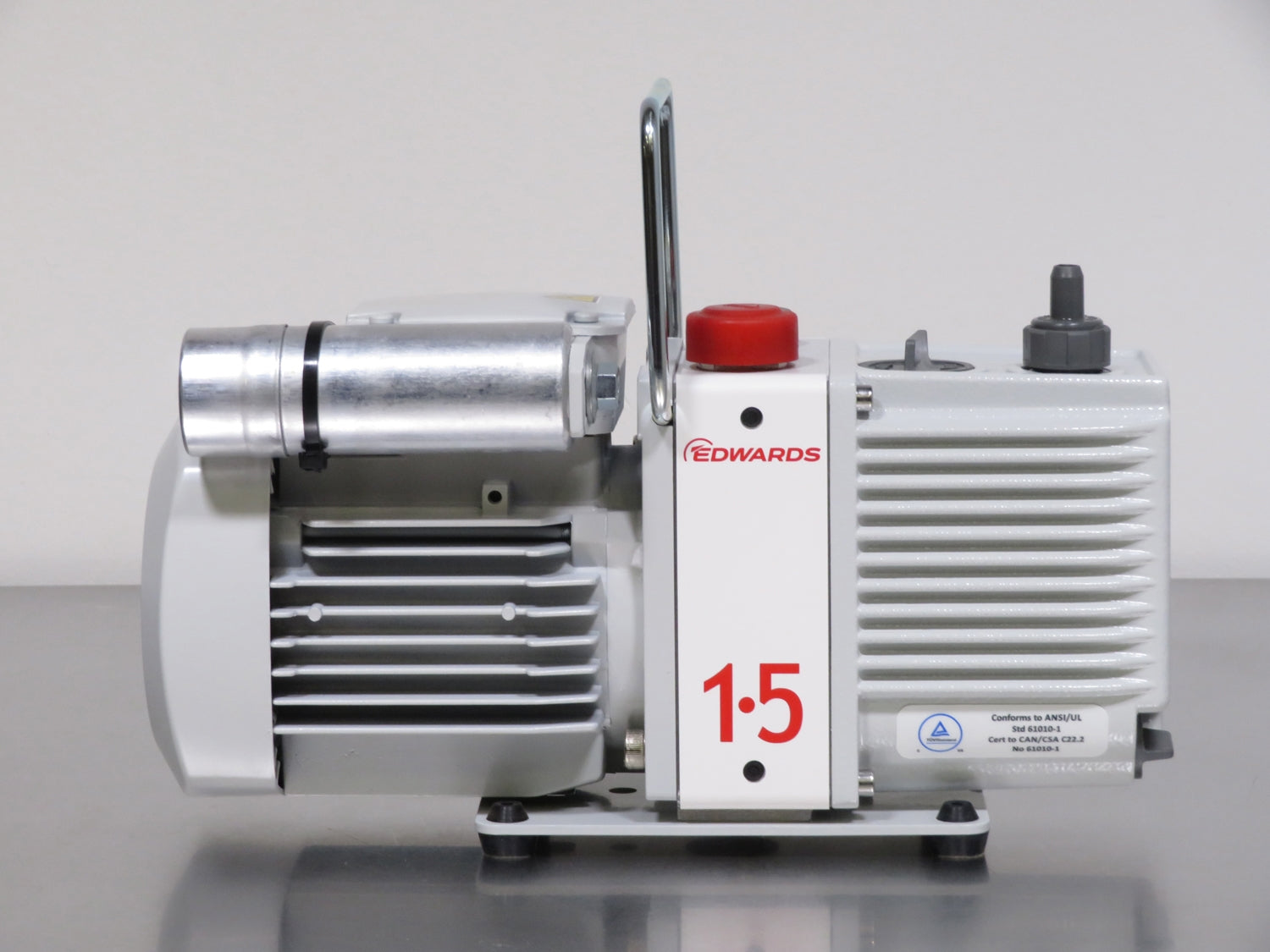

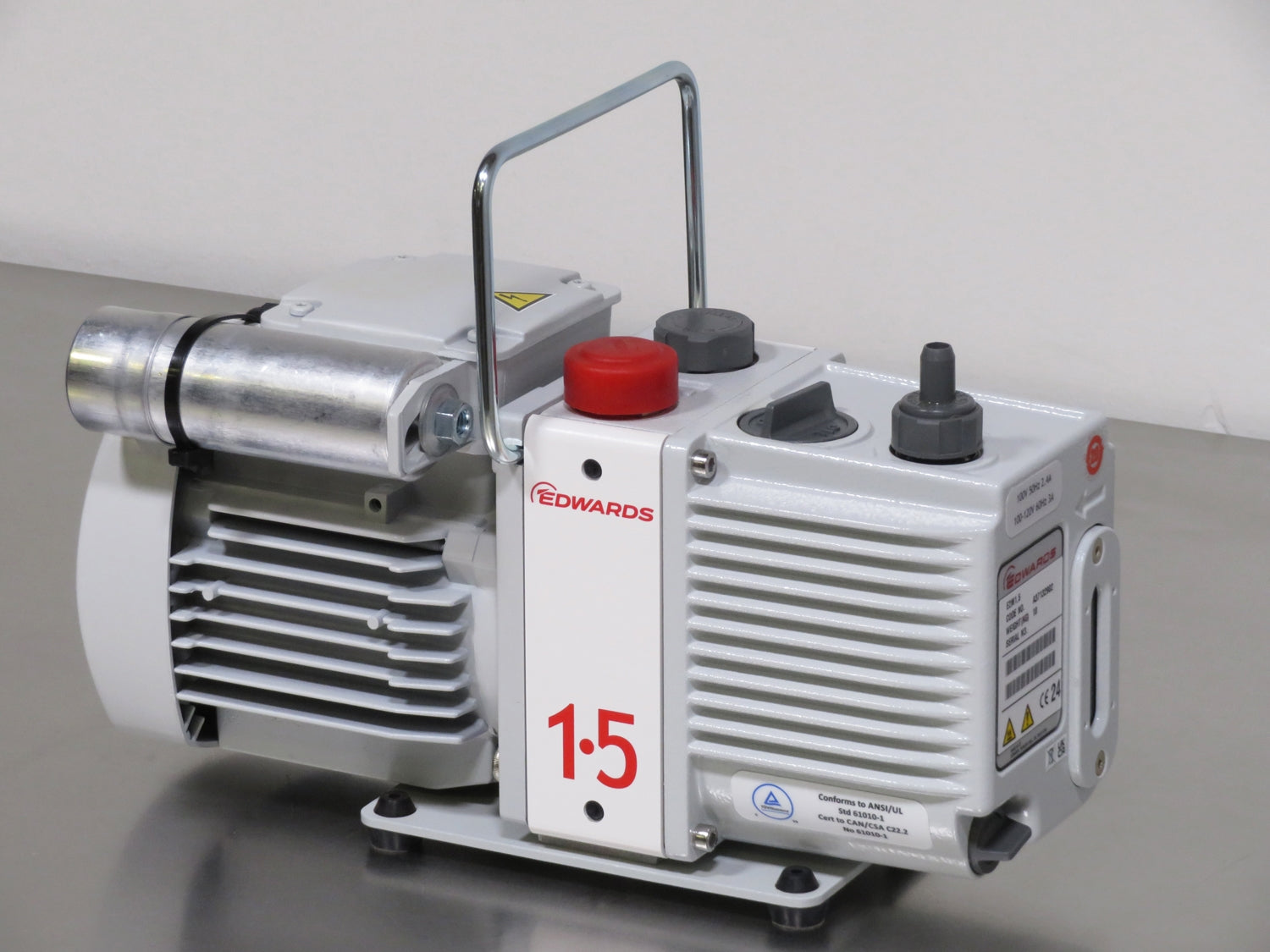

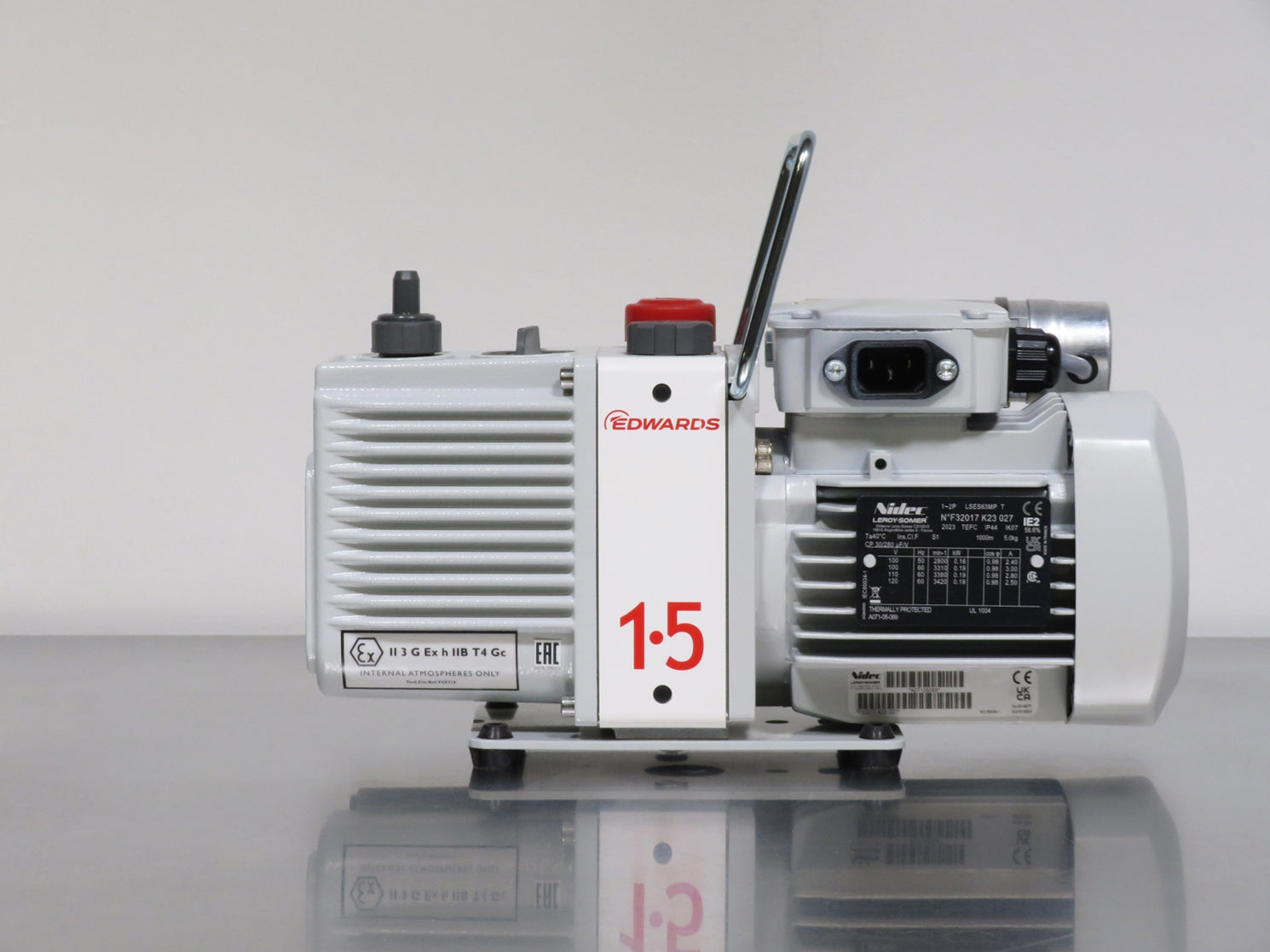

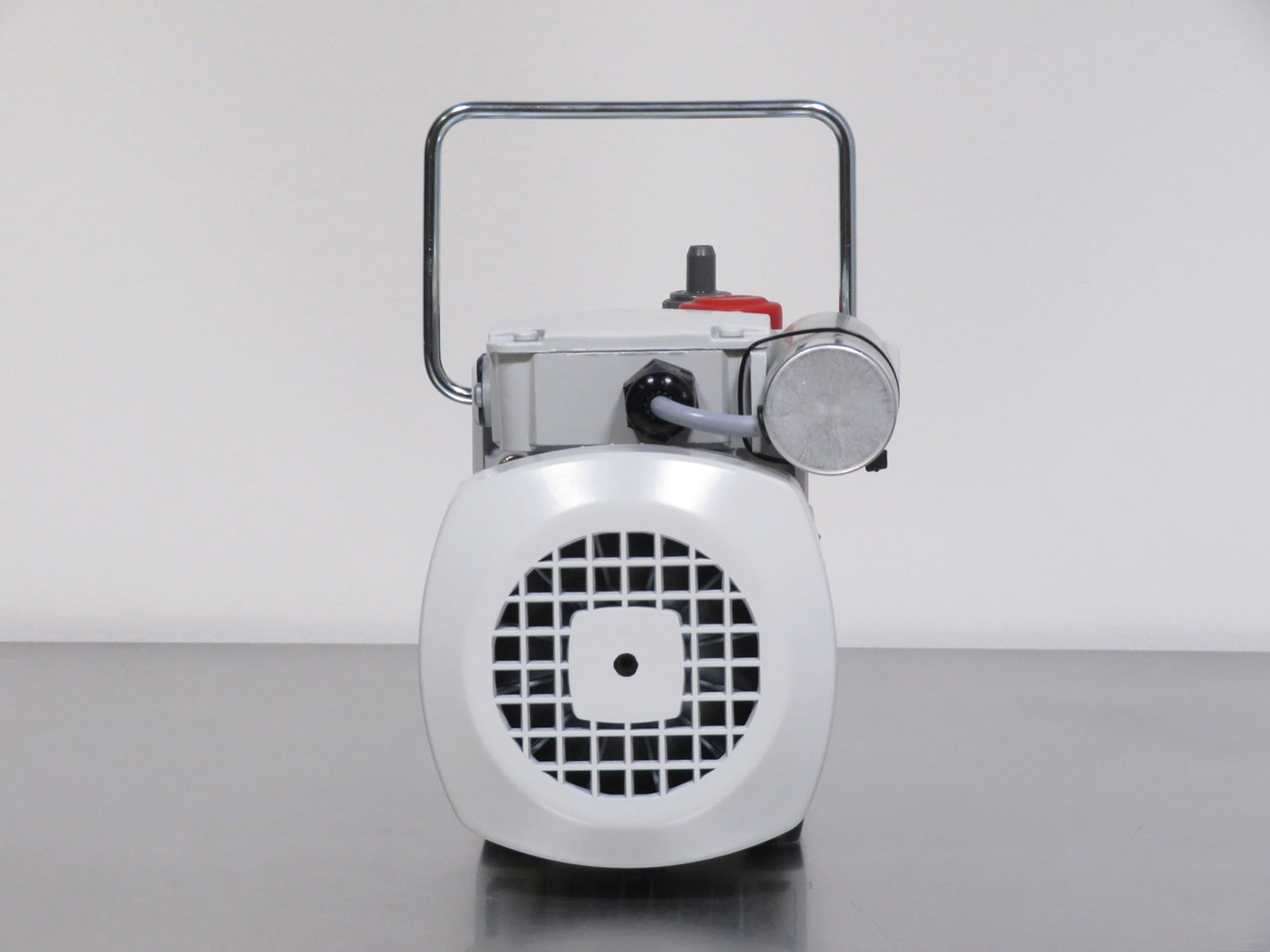

Edwards E2M1.5 Rotary Vane Vacuum Pump
Ultimate Vacuum
3 x 10-3 mbar / 2.3 x 10-3 Torr
Inlet Connection
NW10 flange
Displacement
2.2 m3h-1 / 1.3 ft3min-1
Features
- High ultimate vacuum and rapid pumping speed ensure efficient operation across a wide range of laboratory and industrial applications
- Quiet operation provides a comfortable working environment, reducing noise in sensitive areas
- Features a pressurized oil system that lubricates pump shaft bearings and rotor sealing faces for reliable performance

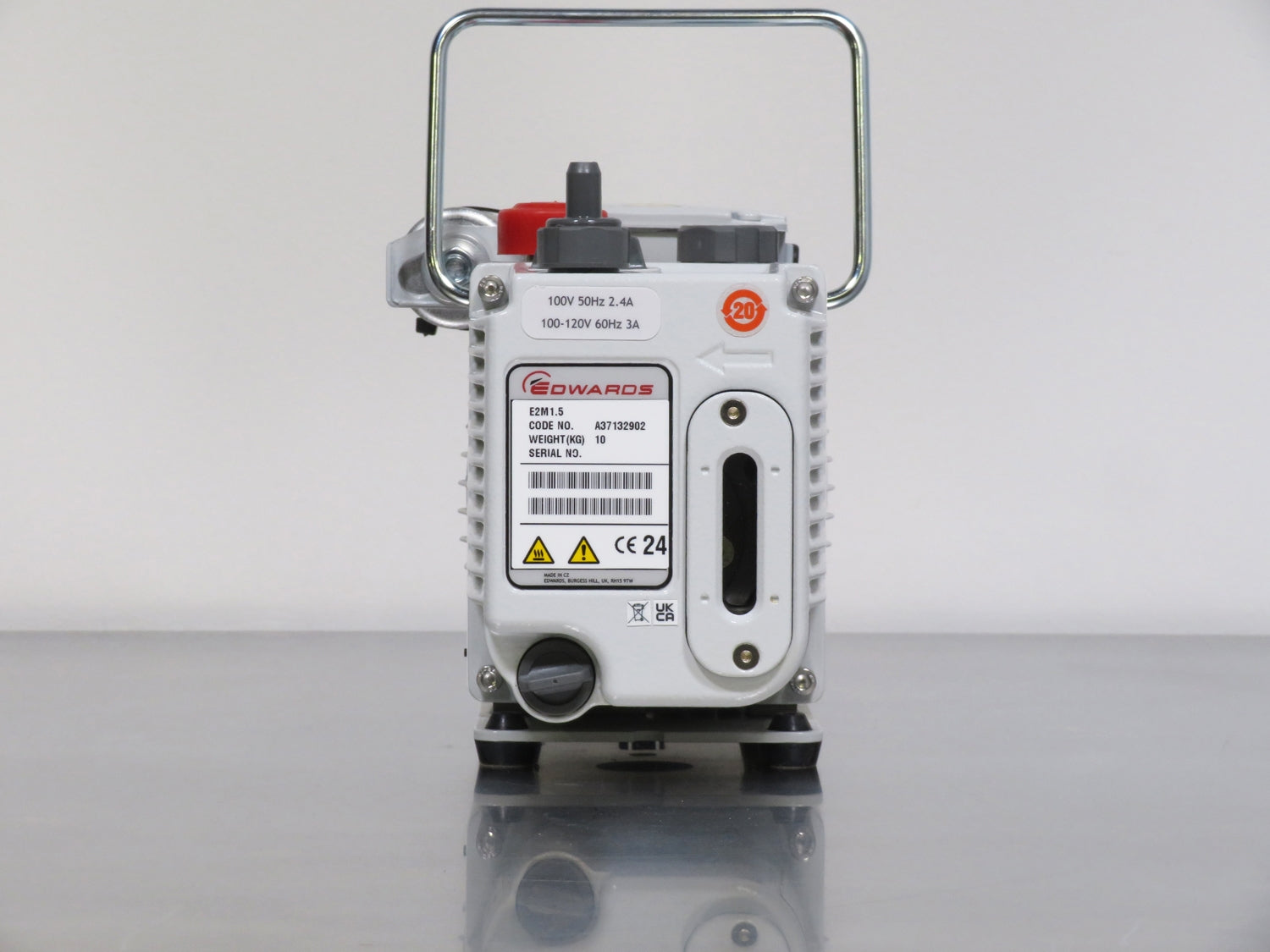

- Maintenance is simplified with an oil sight-glass for easy monitoring of oil levels and conditions at a glance
- Facilitates easy oil changes with an oil drain plug that allows either gravity or pressure oil drainage for convenience
- Compact, freestanding design allows flexible use without the need for additional support structures
- Ideal for use with analytical instruments, leak detectors, helium research, and for backing turbomolecular pumps, showcasing its versatility
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Edwards E2M1.5 Rotary Vane Vacuum Pump includes:
The Edwards E2M1.5 Rotary Vane Vacuum Pump includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Edwards E2M1.5 Rotary Vane Vacuum Pump Specifications
| Maximum Pumping Speed (60Hz) | 2.2 m3h-1 / 1.3 ft3min-1 |
| Maximum Pumping Speed (50Hz) | 1.8 m3h-1 / 1 ft3min-1 |
| Ultimate Vacuum (Without Gas Ballast) | 3 x 10-3 mbar / 2.3 x 10-3 Torr |
| Ultimate Vacuum (With Gas Ballast) | 2.5 x 10-2 mbar / 1.9 x 10-2 Torr |
| Maximum Inlet Pressure For Water Vapor | 15 mbar / 11 Torr |
| Maximum Permissible Outlet Pressure | 0.5 bar gauge / 7 psig |
| Inlet Connection | NW10 flange |
| Outlet Connection | Nozzle 11 mm external diameter removable from 3/8 inch BSP tapped hole |
| Nominal rotation speed 50/60Hz | 2,800 / 3,400 rpm |
| Motor power 50/60 Hz (IP54) | 0.16 kW |
| Sound Level | 54 dB (A) @ 50 Hz |
| Dimensions (W x D x H) | 5.59 x 12.7 x 8.9 in. (14.2 x 32.3 x 22.7 cm) |
| Weight | 22 lb. (10 kg) |
| Electrical Requirements | 100-120V, 50/60Hz |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
