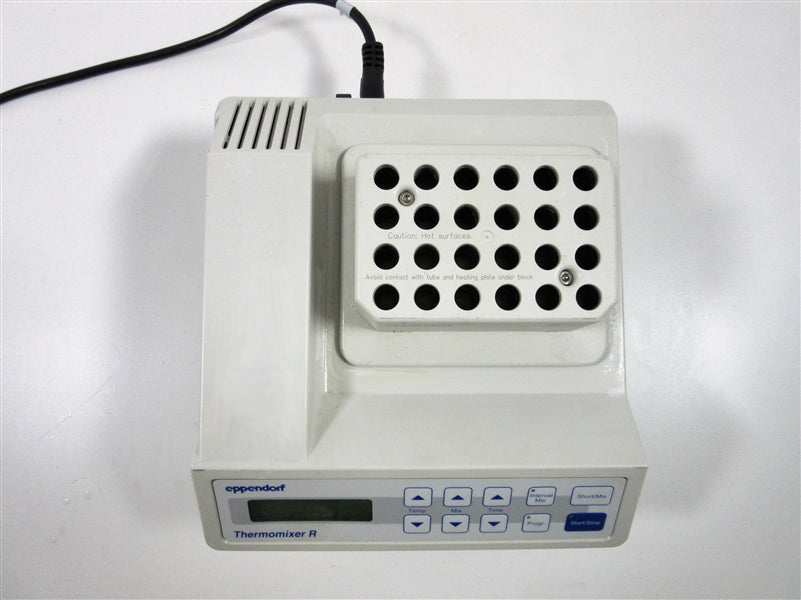

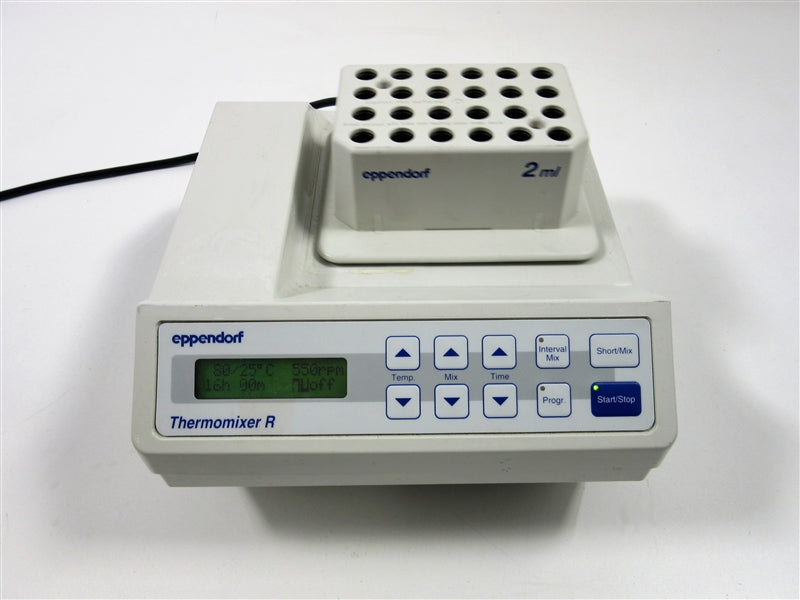

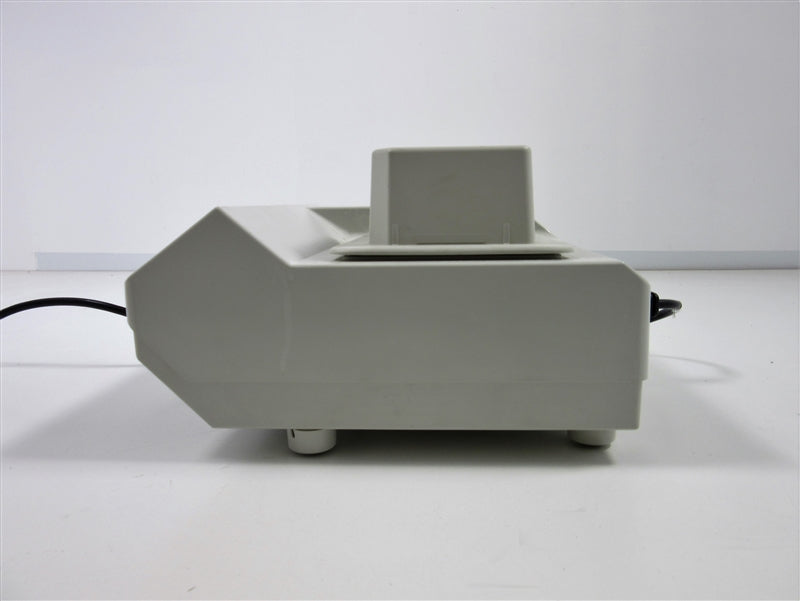

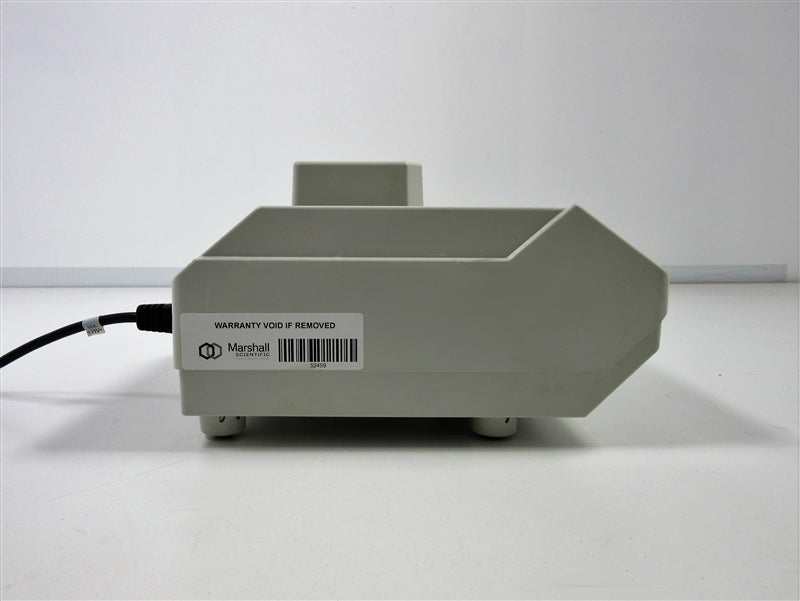

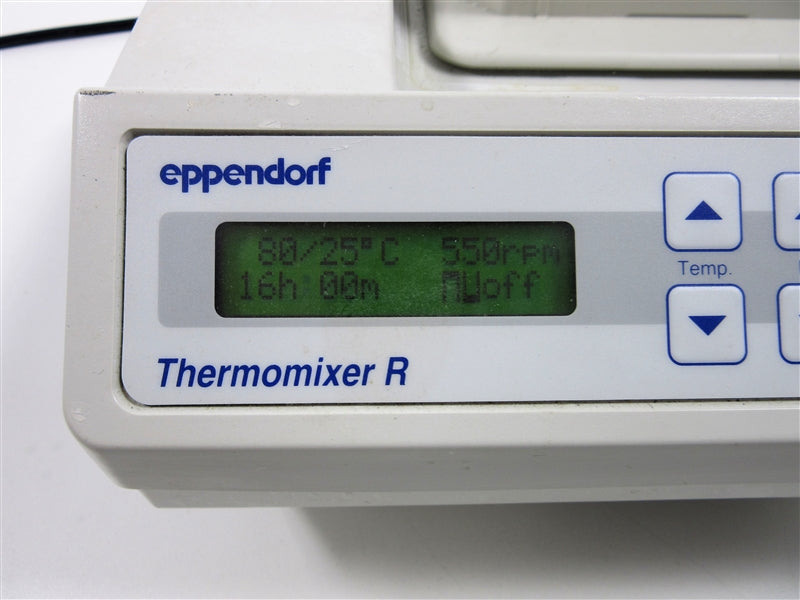

Eppendorf Thermomixer R Mixer Catalog # 5355
Temperature Control Range
10°C below ambient to 99°C
Heating Rate
5°C / min
Mixing Stroke
3 mm
Features
- Interval Mixing allows for continuous alternation between mixing phase and standstill for optimal control of mixing frequency, duration, and pause functions
- Program Mode allows for consecutive mixing and temperature control runs to be freely programmed
- In exchangeable thermoblocks, liquids can be simultaneously mixed and temperature-controlled
- Cooling down the samples to 10°C below room temperature is achieved by Peltier cooling
- Chemical resistant plastic housing and keypad
The Thermomixer is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Eppendorf Thermomixer R Mixer includes:
The Eppendorf Thermomixer R Mixer includes:
- > Selected Block Above
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Eppendorf Thermomixer R Mixer 5355 Specifications
| Speed Range | 300 to 1,400 RPM |
| Temperature Control Range | 10°C below ambient to 99°C |
| Temperature Accuracy |
± 0.5°C at nominal values between 20°C and 45°C ± 2°C at nominal values <20°C and >45°C |
| Heating Rate | approx. 5°C/min |
| Cooling Rate | approx. 2 to 3°C/min (0.5 to 1°C/min from ambient to 13°C below) |
| Mixing Stroke | 3 mm |
| Weight | 7.1 lb. (3.2 kg) |
| Dimensions (W x D x H) | 8.7 x 9.8 x 4.9 in. (22 x 25 x 12.5 cm) |
| Electrical Requirements | 100-240V, 50-60Hz, 90W |
Thermo Mixer Inspection and Recertification Checklist
- Confirm stability and accuracy of power supply and PCB voltage outputs
- Inspect display integrity, ensuring pixel clarity and replacing any degraded or non-functional elements
- Verify complete functionality and responsiveness of all control buttons, switches, and knobs
- Conduct thorough inspection of internal wiring and all electrical connections for continuity; replace or secure any degraded or substandard components
- Examine block holder platform for alignment, obstructions, or error-inducing irregularities
- Perform detailed inspection of motor bearings, assessing for wear or misalignment, and replace if performance deviates from specifications
- Calibrate rotational speed precisely using a NIST-traceable tachometer for compliance with operational standards
- Calibrate temperature accuracy using a NIST-traceable temperature probe, validating readings across the operational range
- Ensure timer precision by validating functionality and consistency against set parameters
- Conduct a comprehensive cosmetic inspection, verifying all surfaces and external components meet quality standards
Technician Inspection and Recertification Checklist: Thermo Mixer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm stability and accuracy of power supply and PCB voltage outputs | Completed | |
| Inspect display integrity, ensuring pixel clarity and replacing any degraded elements | Completed | |
| Verify functionality and responsiveness of all control buttons, switches, and knobs | Completed | |
| Inspect internal wiring and connections for continuity, replacing or securing degraded components | Completed | |
| Examine block holder platform for alignment, obstructions, or irregularities | Completed | |
| Inspect motor bearings for wear or misalignment, replacing if necessary | Completed | |
| Calibrate rotational speed using an NIST-traceable tachometer | Completed | |
| Calibrate temperature with an NIST-traceable probe, validating accuracy | Completed | |
| Ensure timer precision by validating against set parameters | Completed | |
| Conduct cosmetic inspection for quality standard compliance | Completed |
