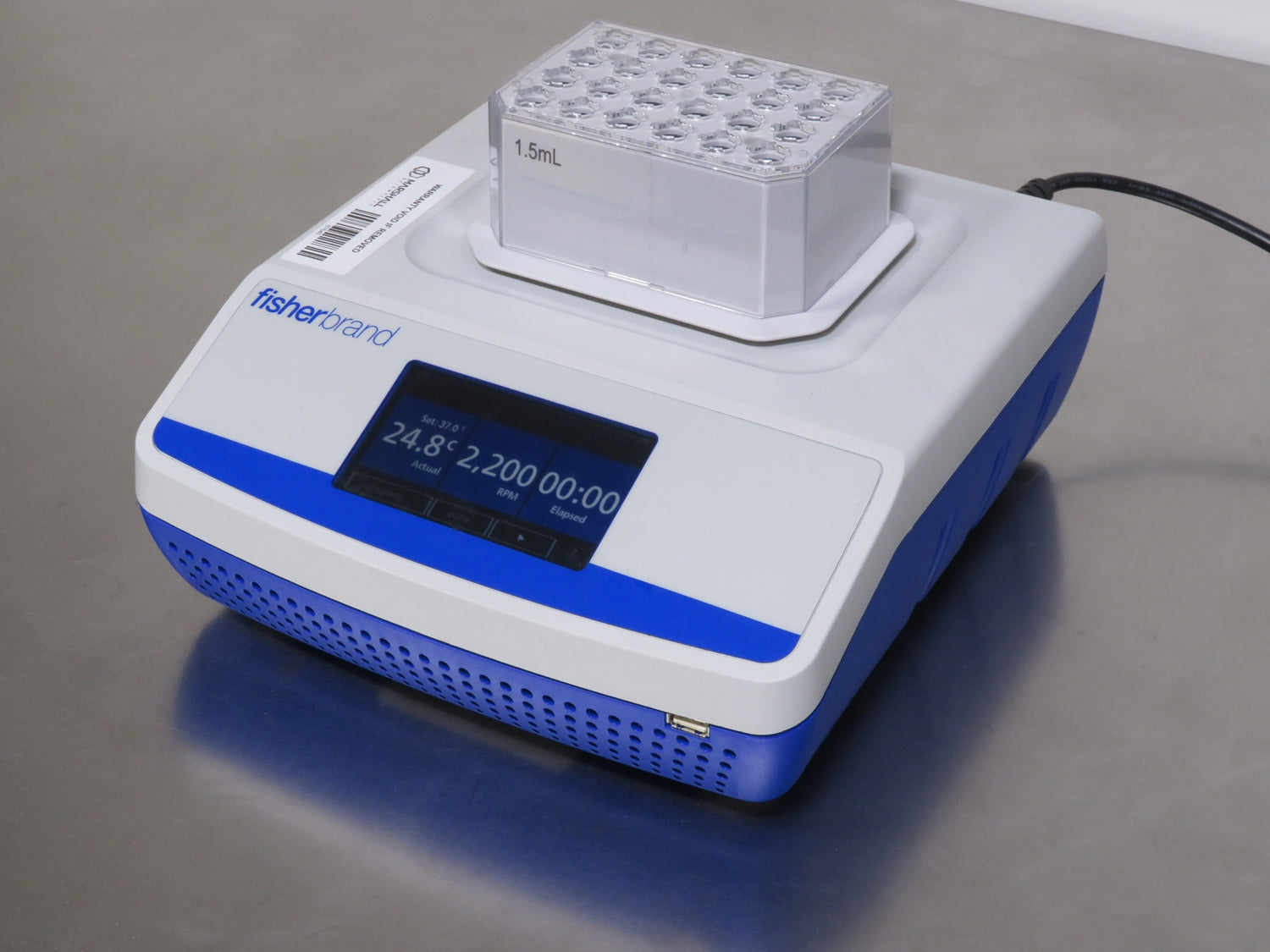

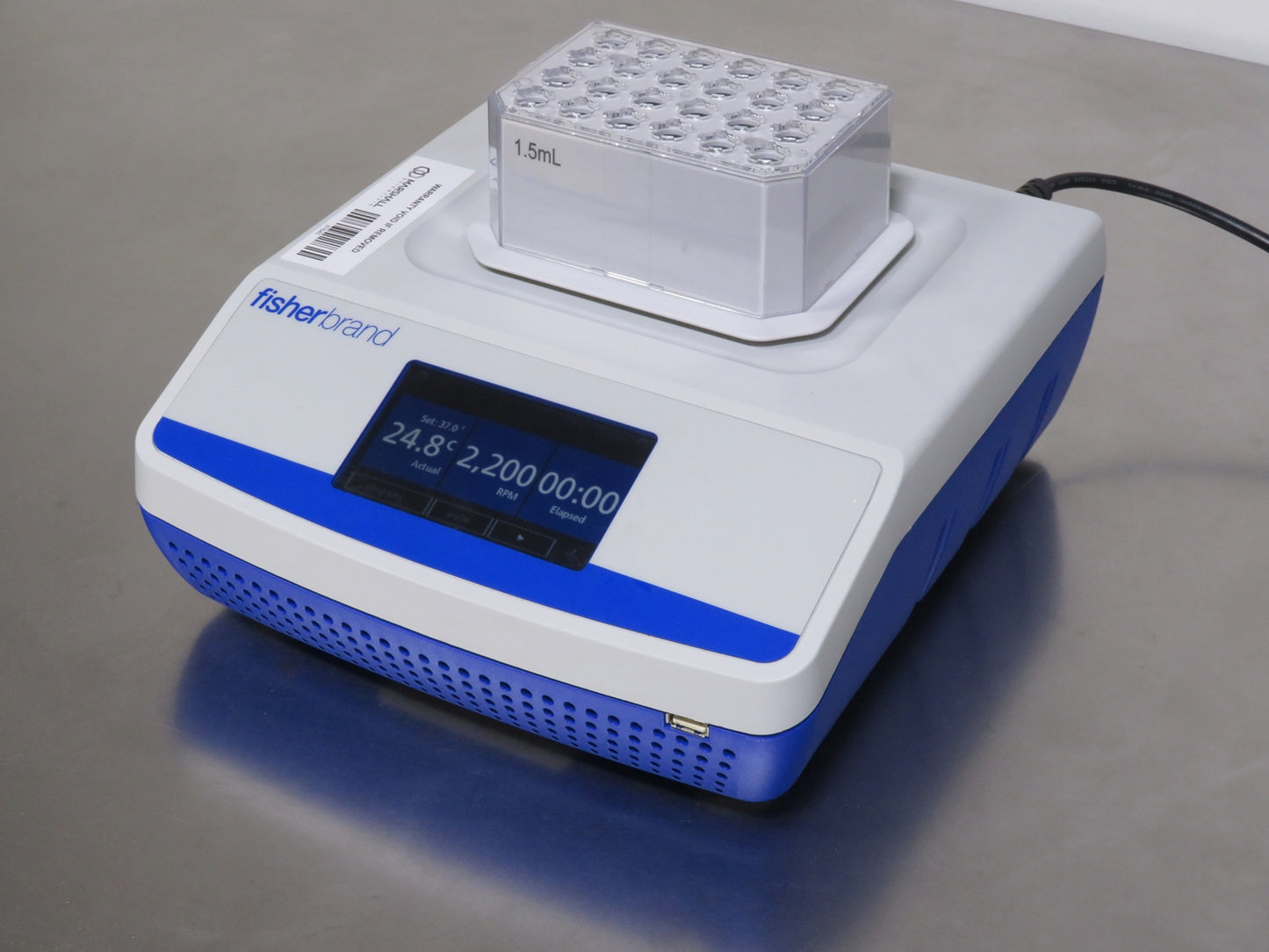

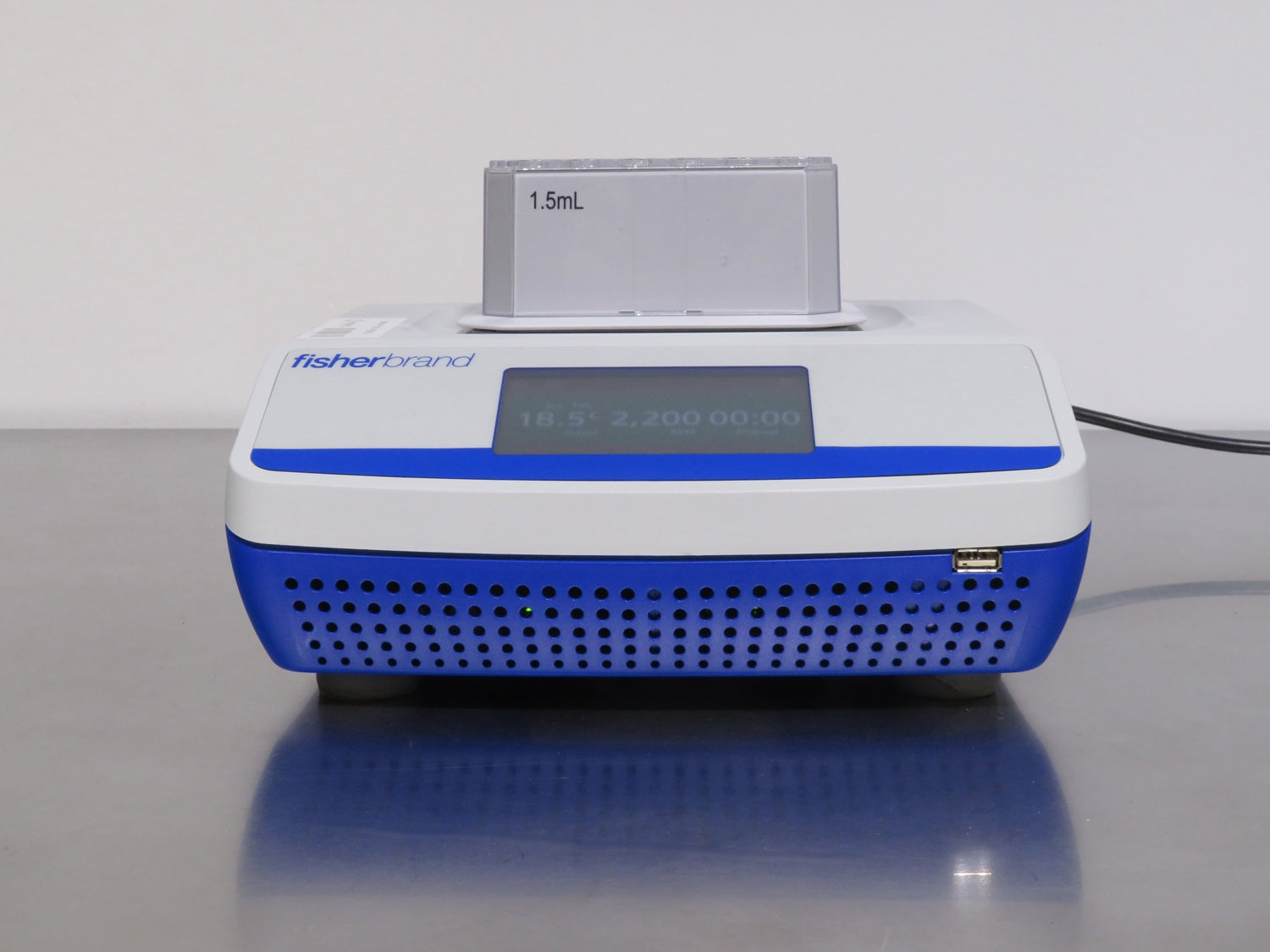

Fisherbrand Isotemp Cooling Thermal Shake Touch, Cat. #: 02217737

The Fisherbrand Isotemp Cooling Thermal Shake Touch, Cat. #: 02217737 is designed for reliability and precise control within consistent workflows. It sets the standard for thermal shakers with a wide speed range from 300 to 3,000 RPM and fast heating rate of 5°C per minute. The PID Temperature controller additionally ensures accurate temperature control within the units wide range of -17°C to 100°C while a temperature limiting function safeguards samples in adhering to user defined temperature parameters.

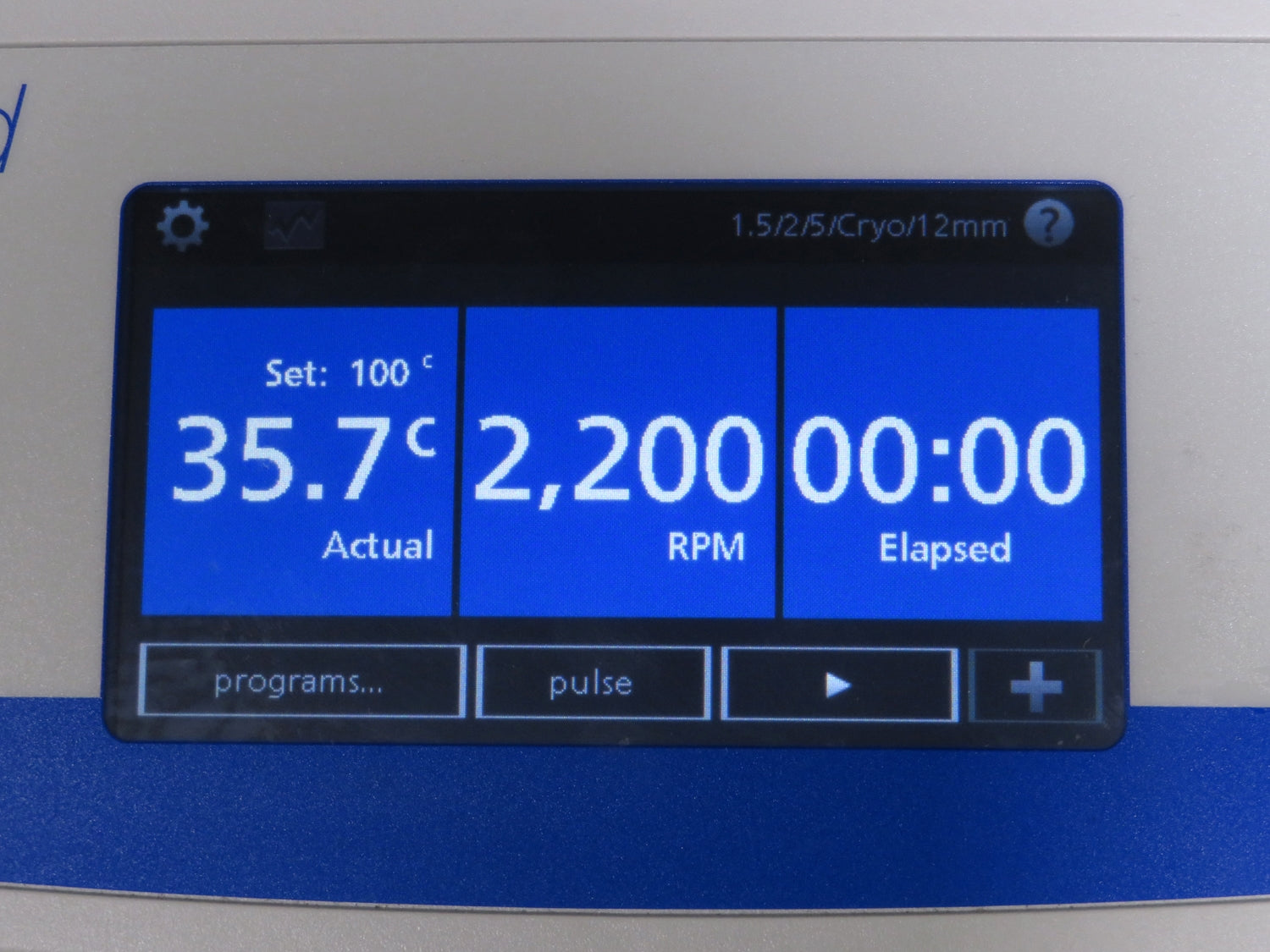

Equipped with a simple touchscreen display providing control of up to 5 programs at five steps each, the Fisherbrand 02217737 Thermal Shake touch is an incredible option for labs requiring a thermal shaker with advanced application tailored operation. Its LCD touch screen is additionally equipped with operational tips and and on-screen help topics, guaranteeing accessibility to experienced and new users alike. These features, along with a single point calibration procedure for up to 6 temperature levels, give users the efficiency needed for high throughput processing without compromising precise control in sensitive applications.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Fisherbrand Isotemp Cooling Thermal Shake Touch, Cat. #: 02217737 Specifications

Speed Range	300 to 3,000 RPM (300 to 2,200 RPM with Included Block)
Speed Accuracy	± 2%
Temperature Range	Ambient -17°C to 100°C
Temperature Accuracy	± 0.5°C between 20°C and 45°C ± 2°C below 20°C and above 45°C
Heating Rate	5°C/minute
Cooling Rate	Above Ambient: 2 to 3°C/minute Below Ambient: 0.5 to 1°C/minute
Timer	1 minute to 99 hours, 59 minutes
Orbit	3mm (0.12 in.)
Dimensions (W x D x H)	9.75 x 10.25 x 5.2 in. (24.77 x 26.04 x 13.2 cm)
Weight	11.5 lb. (5.2 kg)
Electrical Requirements	120V, 1.8A, 215W
