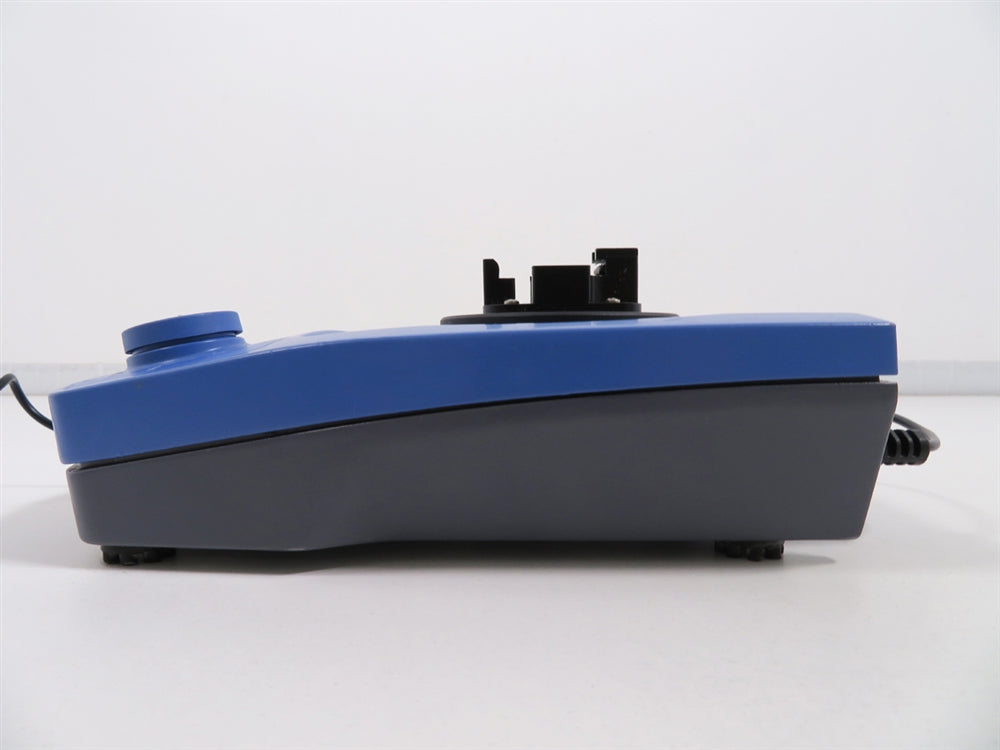

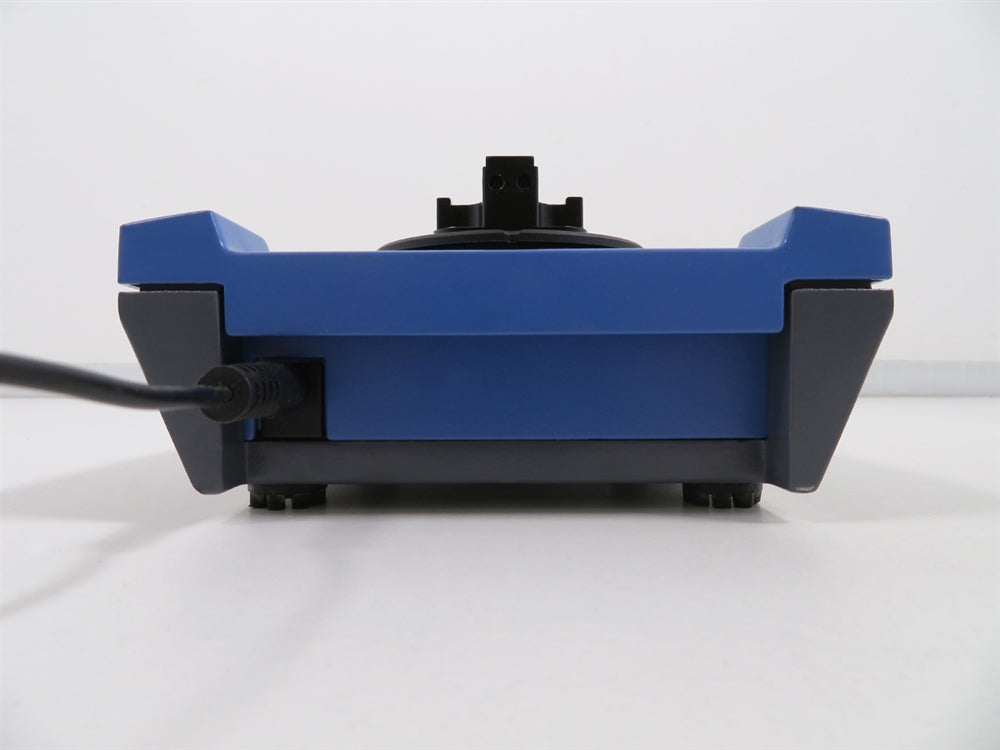

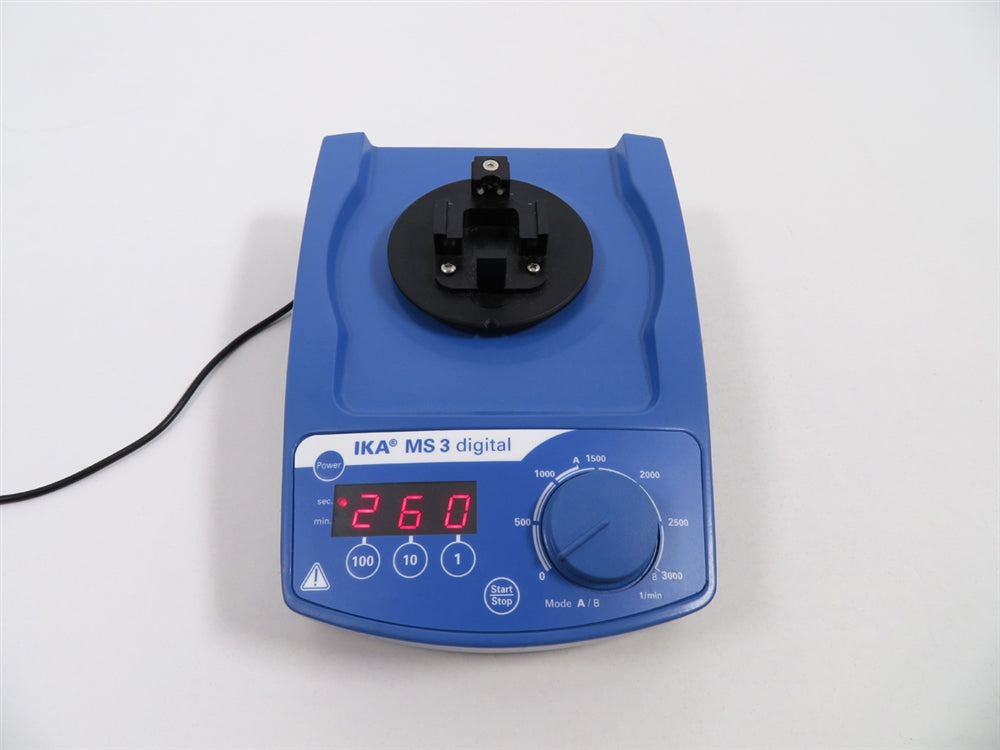

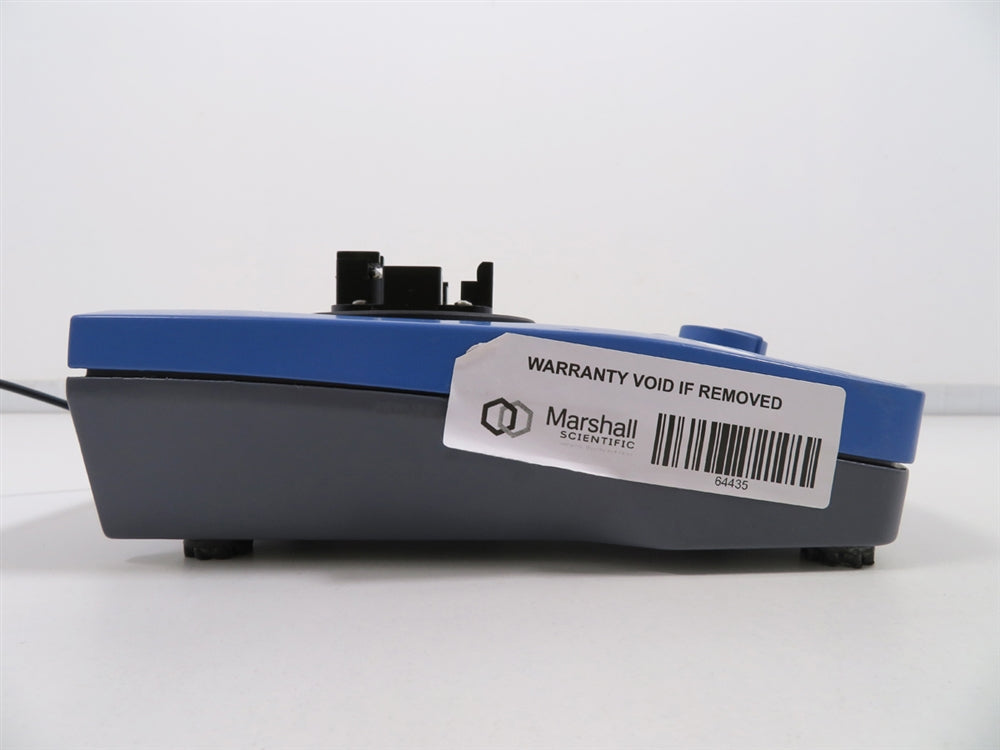

IKA MS 3 Digital Vortexer
The IKA MS 3 Digital Vortexer is a compact, universal vortexer that is suitable for shaking tasks with all small vessels and microtiter plates. The MS 3 basic can support a wide range of attachments, features attachment detection, operates in either continuous or touch operation, and is stable in all speed ranges. Even if the surface material weight changes (increases), the electronic motor control holds the set speed constant.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The IKA MS 3 Digital Vortexer includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
IKA MS 3 Digital Vortexer Specifications
|
Type of movement
|
Orbital
|
|
Shaker diameter
|
4.5 mm
|
|
Permissible shaking weight (incl. attachment)
|
0.5 kg
|
|
Motor rating input
|
10 W
|
|
Motor rating output
|
8 W
|
|
Permissible ON time
|
100 %
|
|
Speed min (adjustable)
|
200 rpm
|
|
Speed range
|
0 - 3000 rpm
|
|
Speed display
|
Scale
|
|
Timer
|
Yes
|
|
Timer display
|
7 segment LED
|
|
Time setting range
|
1/60 - 999 min
|
|
Operating mode
|
Timer and continuous operation
|
|
Touch function
|
Yes
|
|
Working with microtiter plates
|
Yes
|
|
Number of microtiter plates
|
1
|
|
Dimensions (W x H x D)
|
148 x 63 x 205 mm
|
|
Weight
|
2.9 kg
|
|
Protection class according to DIN EN 60529
|
IP 21
|
|
Electrical Requirements
|
100 - 240 V, 50/60Hz, 20W
|
|
DC Voltage
|
24 V=
|
|
Current consumption
|
800 mA
|
- Verify power supply and PCB output correct, stable voltages across all required circuits
- Confirm the correct platform head is installed according to specifications
- Inspect the display for dim or dead pixels, replacing any compromised sections to maintain clear visibility
- Confirm full functionality of all buttons and knobs, ensuring accurate input response
- Verify that touch, pulse, and continuous modes operate fully and as intended
- Inspect all internal wiring for breakages, tears, or wear, replacing any underperforming components to ensure reliability
- Disassemble and thoroughly clean the internal casing to remove any accumulated debris
- Check that the feet are intact and confirm the vortexer is properly balanced on a flat surface
- Conduct a comprehensive cosmetic inspection to ensure all exterior surfaces meet quality standards
Technician Inspection and Recertification Checklist: Vortexer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB output stable, correct voltages across circuits | Completed | |
| Confirm correct platform head is installed according to specifications | Completed | |
| Inspect display for dim or dead pixels; replace compromised sections for clarity | Completed | |
| Confirm functionality of all buttons and knobs for accurate input response | Completed | |
| Verify full operation of touch, pulse, and continuous modes as intended | Completed | |
| Inspect internal wiring for damage; replace underperforming components for reliability | Completed | |
| Disassemble and clean internal casing to remove accumulated debris | Completed | |
| Check feet for integrity and confirm vortexer is balanced on flat surface | Completed | |
| Conduct comprehensive cosmetic inspection to ensure quality of exterior surfaces | Completed |
