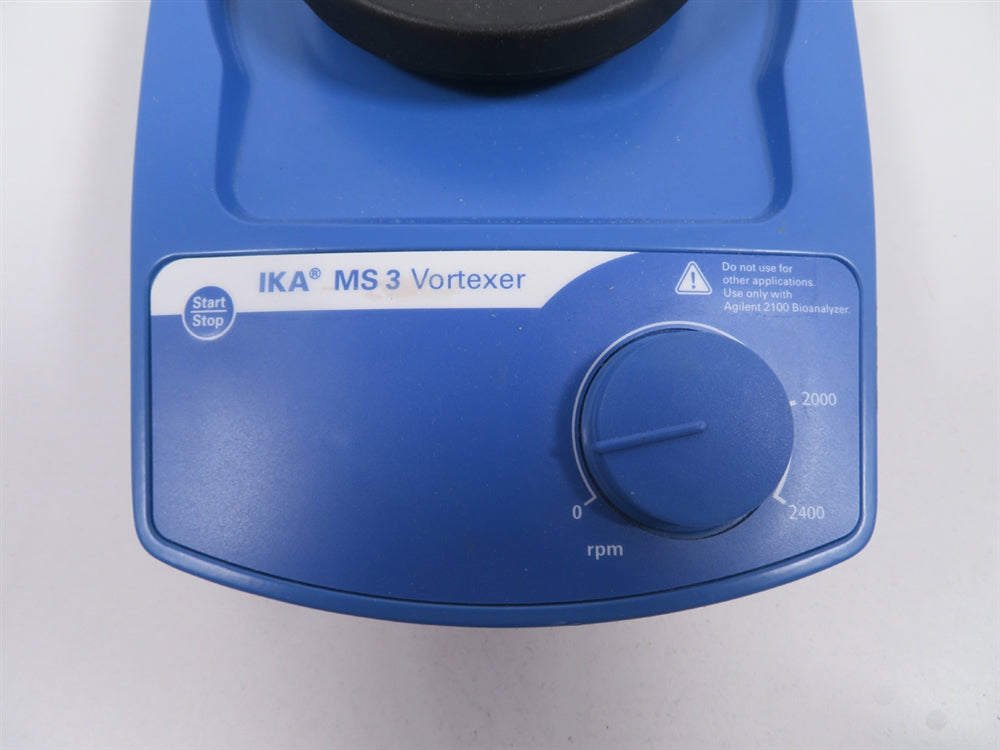

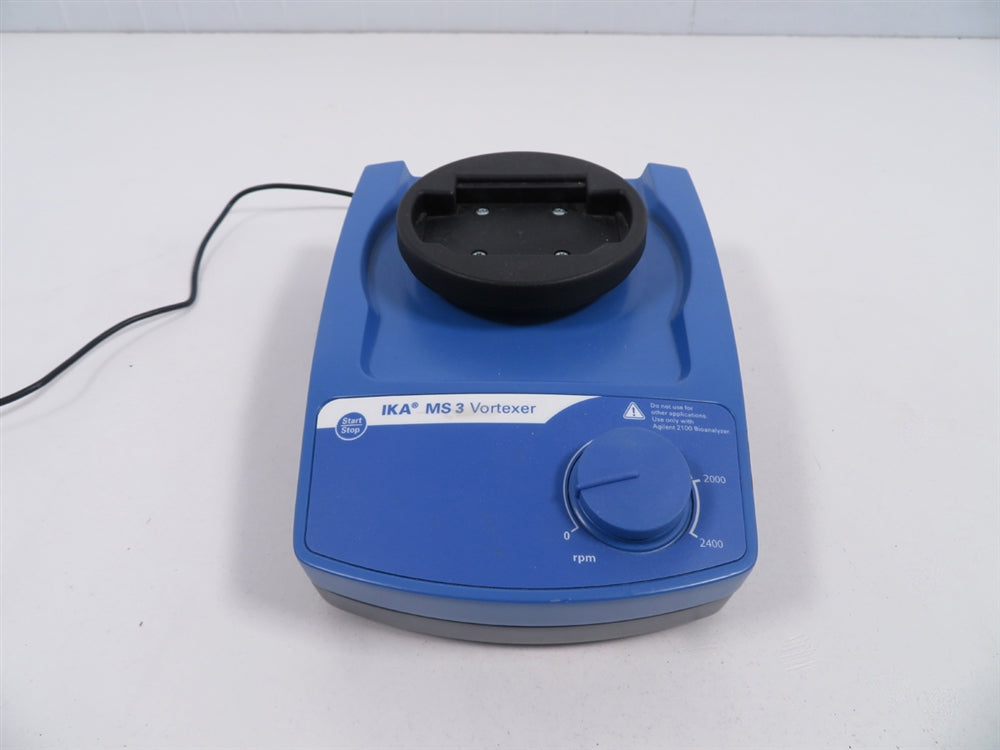

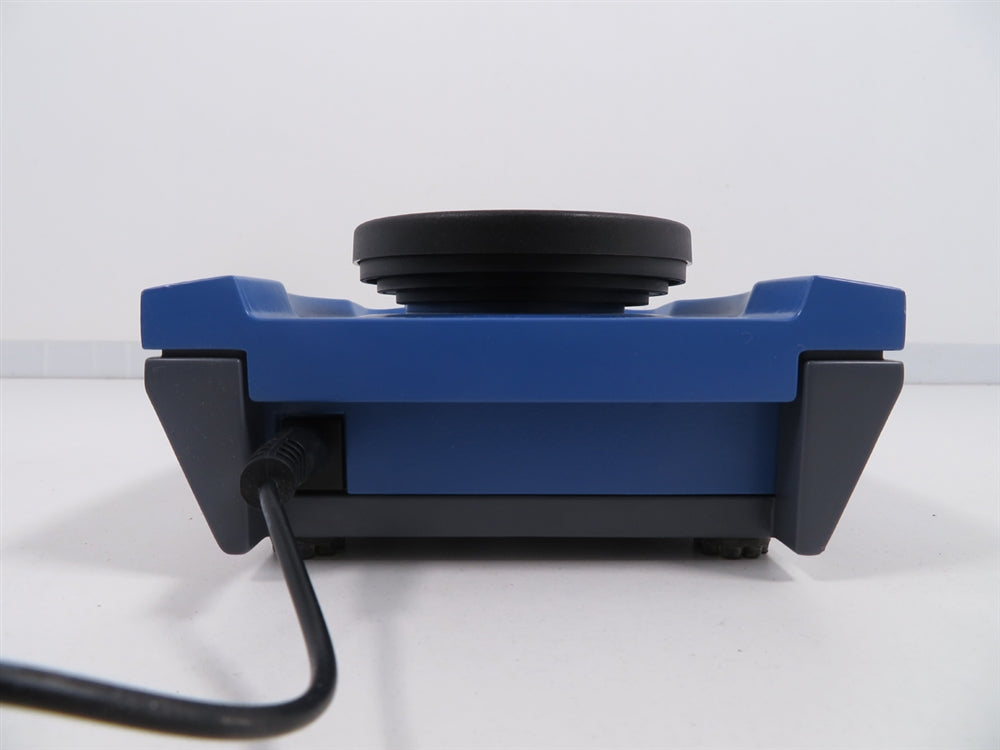

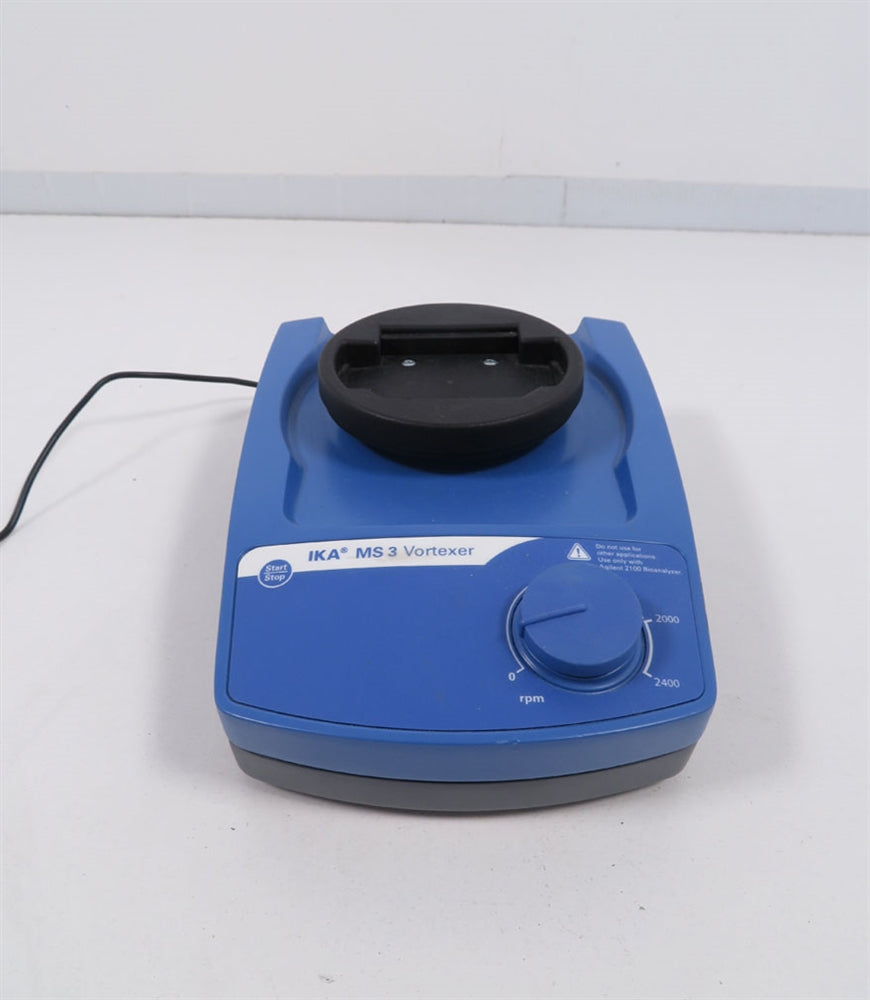

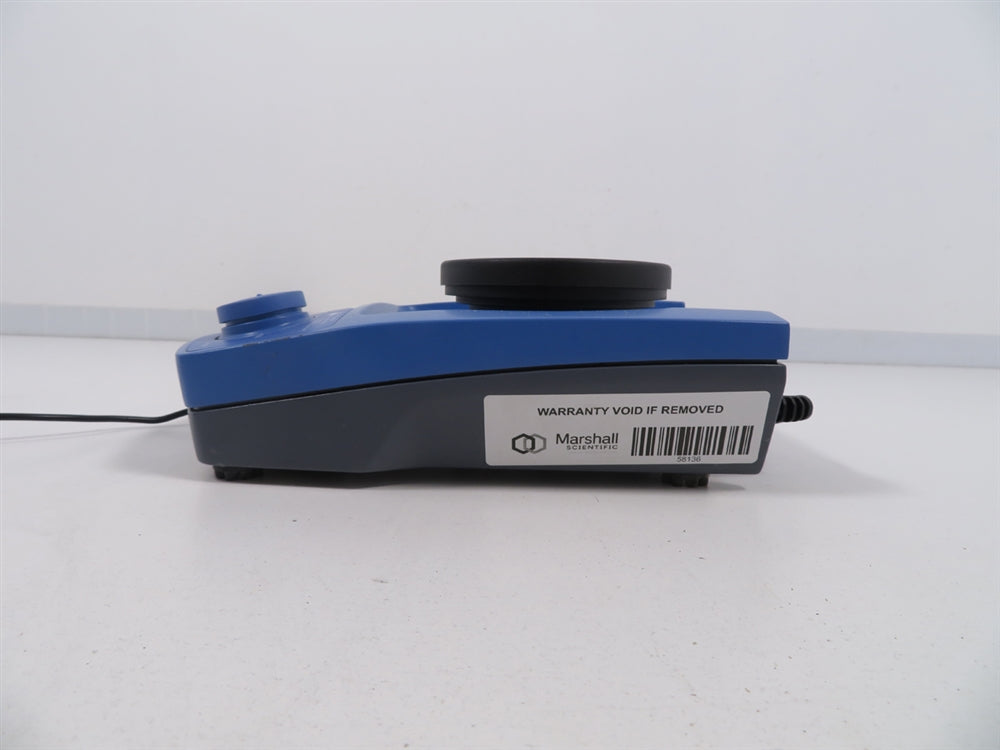

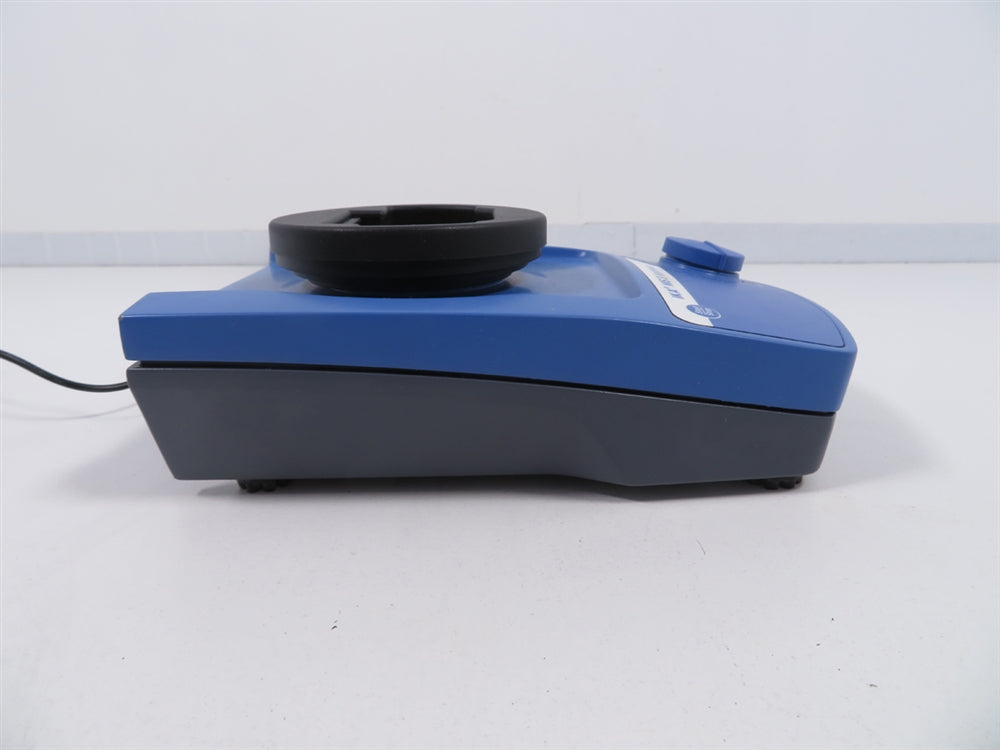

IKA MS 3 Vortexer
Speed Range
200 to 3,000 RPM
Orbit
4.5 mm
Timer
1 sec. to 999 minutes
- Compact, universal vortexer designed for shaking tasks with small vessels and microtiter plates
- Supports a wide range of attachments and features attachment detection for versatility
- Offers both continuous and touch operation modes to suit different laboratory needs
- Capable of handling a permissible shaking weight, including attachment, of up to 0.5 kg
- Features orbital movement with a shaker diameter of 4.5 mm for effective mixing
- Adjustable speed range from 200 to 2400 rpm with electronic motor control for consistent speed
- Equipped with a scale for speed display, ensuring precise control
- Suitable for working with microtiter plates, accommodating up to 1 plate at a time
All of our equipment is fully tested to perform at factory specifications before being shipped.
The IKA MS 3 Vortexer includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
IKA MS 3 Vortexer Specifications
|
Type of movement |
Orbital |
|
Shaker diameter |
4.5 mm |
|
Permissible shaking weight (incl. attachment) |
0.5 kg |
|
Motor rating input |
10 W |
|
Motor rating output |
8 W |
|
Permissible ON time |
100 % |
|
Speed min (adjustable) |
200 rpm |
|
Speed range |
0 - 2400 rpm |
|
Speed display |
Scale |
|
Operating mode |
Continuous operation |
|
Touch function |
Yes |
|
Working with microtiter plates |
Yes |
|
Number of microtiter plates |
1 |
|
Dimensions (W x H x D) |
148 x 63 x 205 mm |
|
Weight |
2.9 kg |
|
Permissible ambient temperature |
5 - 40 C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
100 - 240 V |
|
Frequency |
50/60 Hz |
|
Power input |
20 W |
|
DC Voltage |
24 V= |
|
Current consumption |
800 mA |
- Verify power supply and PCB output correct, stable voltages across all required circuits
- Confirm the correct platform head is installed according to specifications
- Inspect the display for dim or dead pixels, replacing any compromised sections to maintain clear visibility
- Confirm full functionality of all buttons and knobs, ensuring accurate input response
- Verify that touch, pulse, and continuous modes operate fully and as intended
- Inspect all internal wiring for breakages, tears, or wear, replacing any underperforming components to ensure reliability
- Disassemble and thoroughly clean the internal casing to remove any accumulated debris
- Check that the feet are intact and confirm the vortexer is properly balanced on a flat surface
- Conduct a comprehensive cosmetic inspection to ensure all exterior surfaces meet quality standards
Technician Inspection and Recertification Checklist: Vortexer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB output stable, correct voltages across circuits | Completed | |
| Confirm correct platform head is installed according to specifications | Completed | |
| Inspect display for dim or dead pixels; replace compromised sections for clarity | Completed | |
| Confirm functionality of all buttons and knobs for accurate input response | Completed | |
| Verify full operation of touch, pulse, and continuous modes as intended | Completed | |
| Inspect internal wiring for damage; replace underperforming components for reliability | Completed | |
| Disassemble and clean internal casing to remove accumulated debris | Completed | |
| Check feet for integrity and confirm vortexer is balanced on flat surface | Completed | |
| Conduct comprehensive cosmetic inspection to ensure quality of exterior surfaces | Completed |
