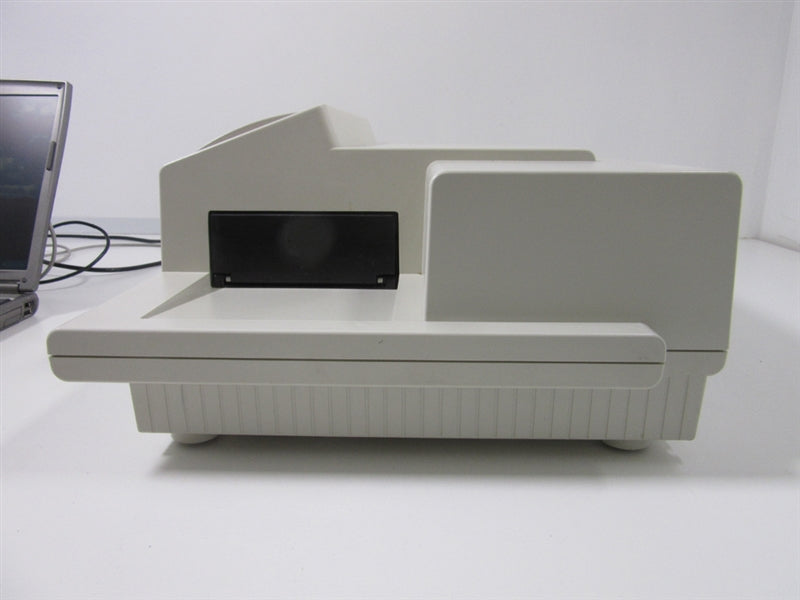

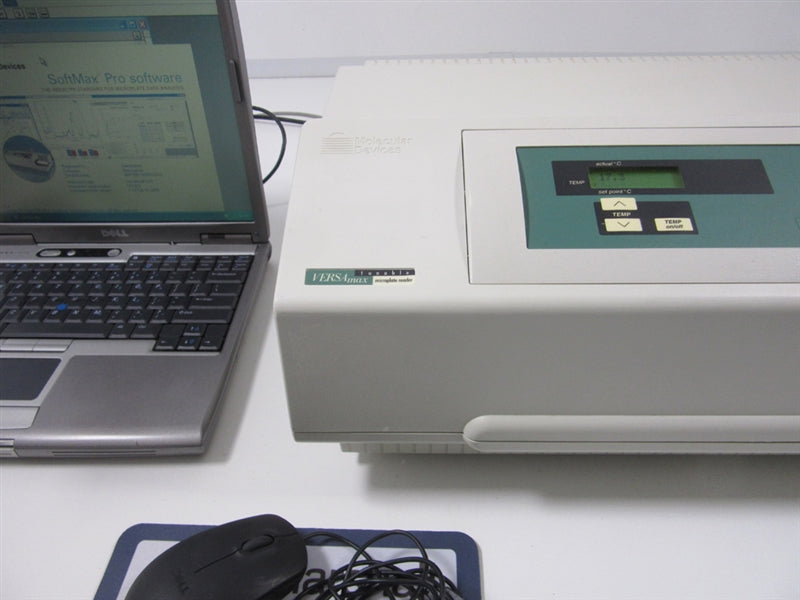

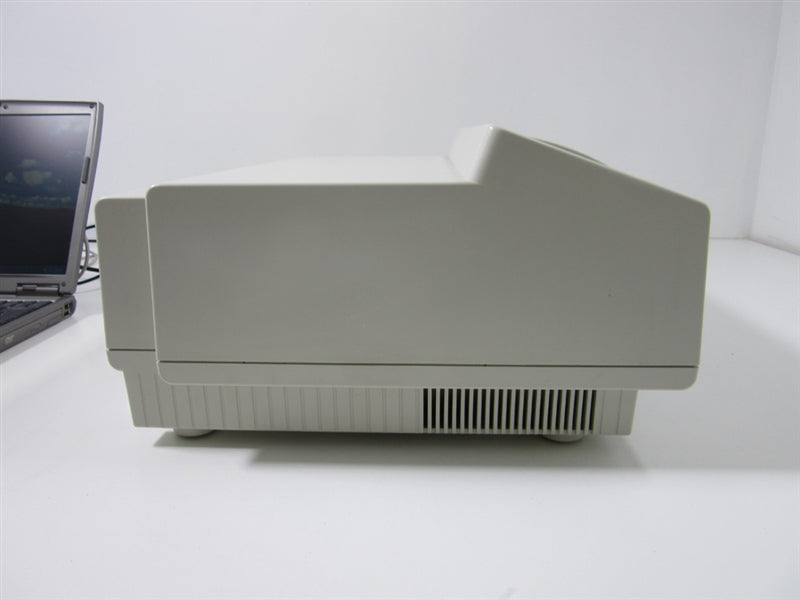

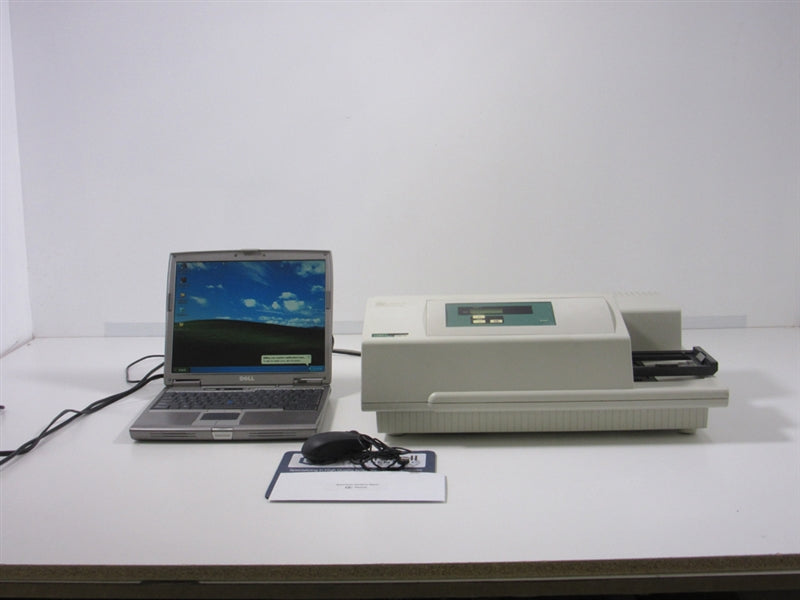

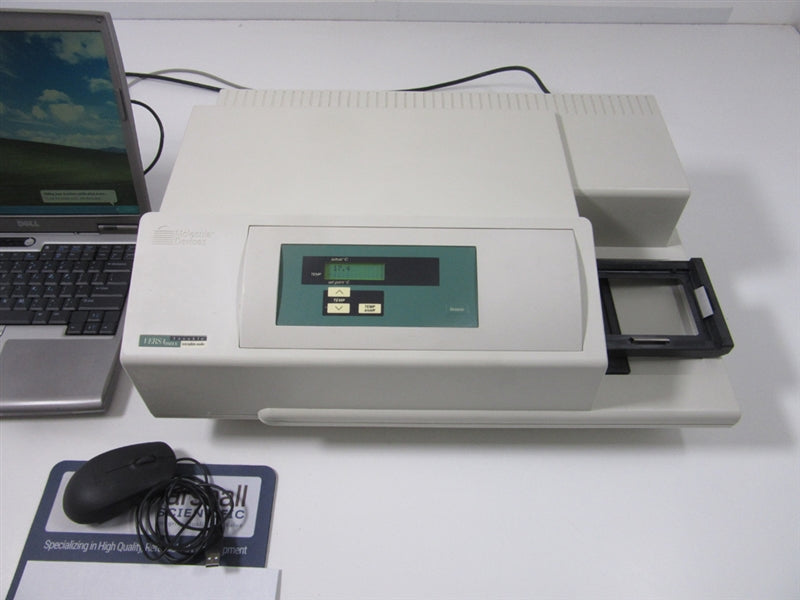

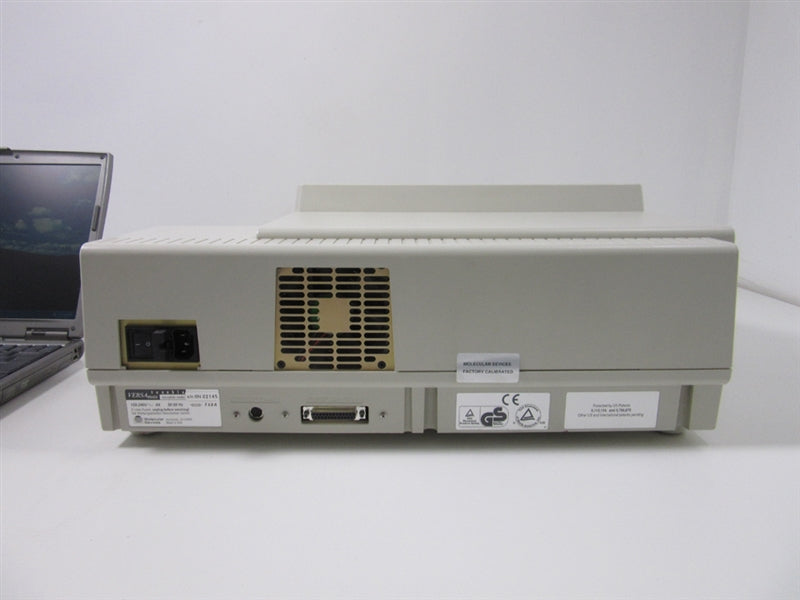

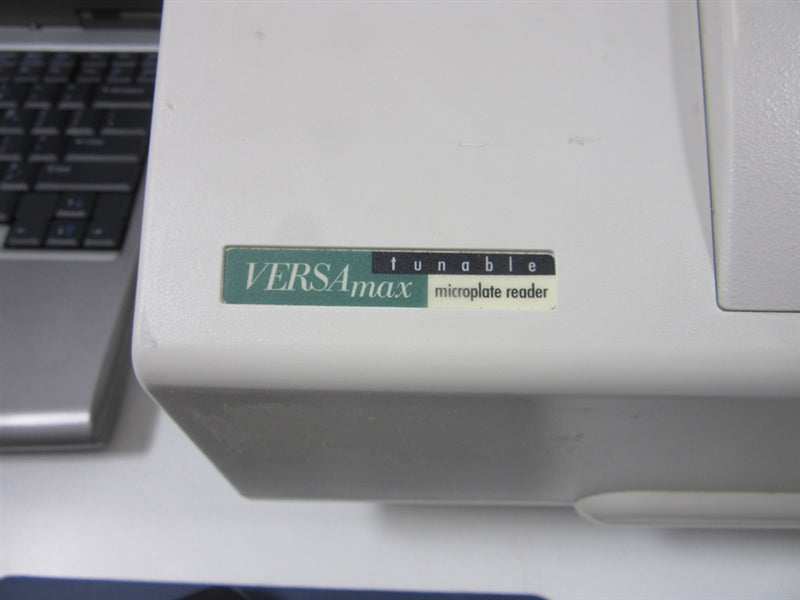

Molecular Devices VersaMax Microplate Reader
The Molecular Devices VersaMax ELISA Microplate Reader enables precise and accurate detection at wavelengths in the visible spectrum without the use of filters, providing consequence-free assay flexibility. The Versamax Microplate Reader is built around a grating monochromator. The VersaMax Absorbance Microplate Reader allows for selection of up to two wavelengths at a time for absorbance detection in the visible wavelength range (340 nm - 850 nm). Narrow bandwidths deliver increased accuracy and enhanced peak resolution. Temperature sensitive samples and reactions are kept safe with consistent temperature regulation from ambient to 45C. Mix samples thoroughly in microplate wells with user-programmable Automix feature.
All of our equipment is fully tested to perform at factory specifications before being shipped.

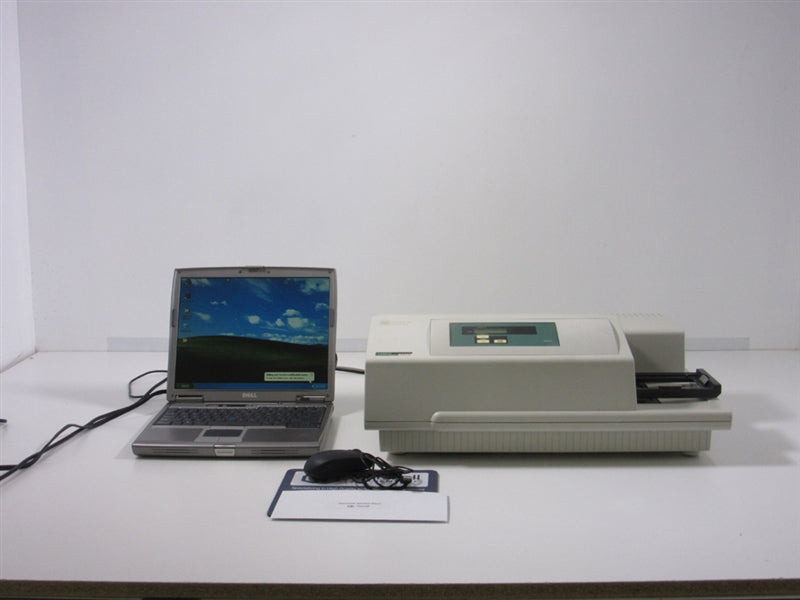

The Molecular Devices Versamax Microplate Reader

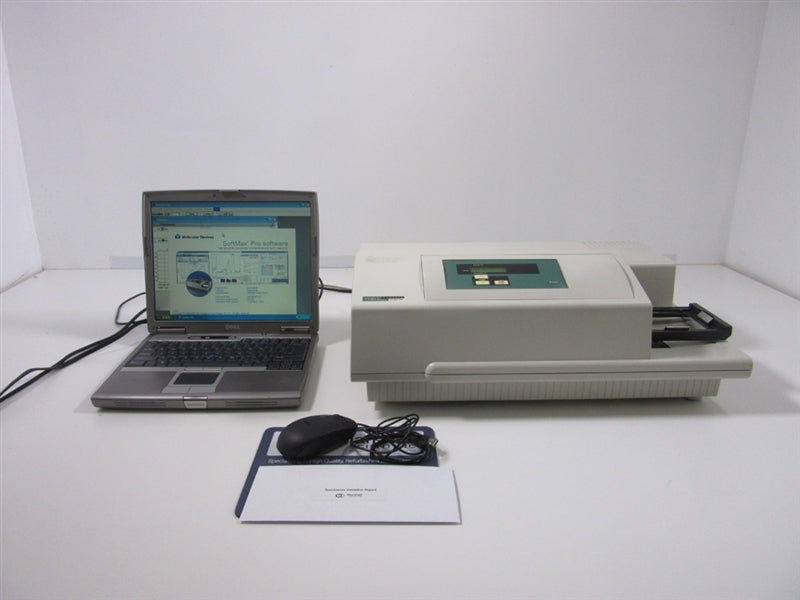

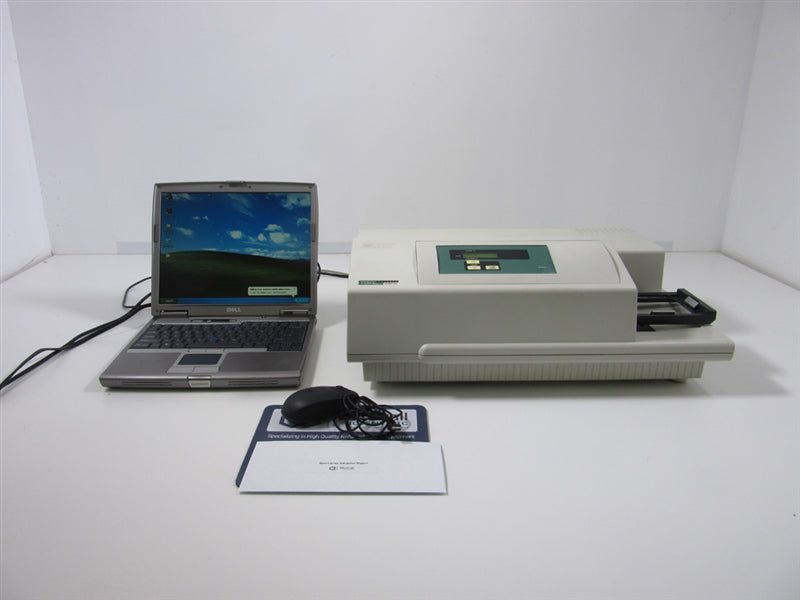

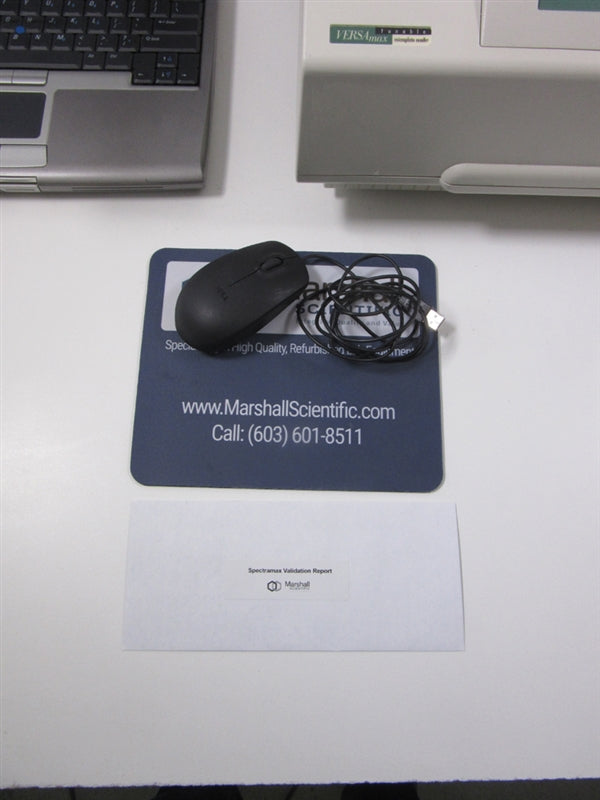

The Molecular Devices VersaMax Microplate Reader includes:

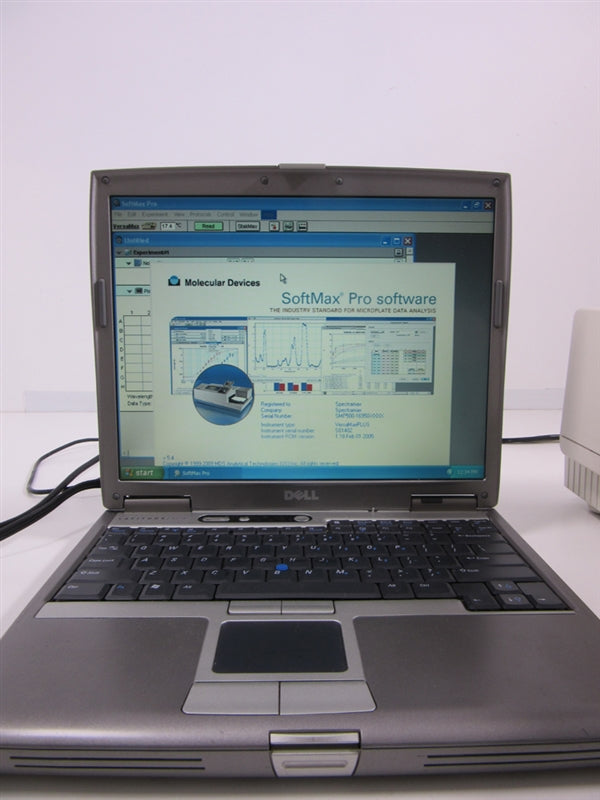

- > Windows 10 Data Station with preloaded SoftMax Pro Software 5.4
- > Interface Cable
- > Molecular Devices Absorbance Validation Report
- > Operator's Guide
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Molecular Devices VersaMax Microplate Reader Specifications
|
Wavelength Range
|
340-850 nm
|
|
Wavelength Selection
|
Monochromator, tunable in 1-nm increments
|
|
Wavelength Bandwidth
|
≤ 2.0 nm full width half maximum
|
|
Wavelength Accuracy
|
± 1.0 nm across wavelength range
|
|
Wavelength Repeatability
|
± 0.2 nm across all optical channels
|
|
Photometric Range
|
0.000 to 4.000 OD
|
|
Photometric Resolution
|
0.001 OD
|
|
Photometric Accuracy/Linearity
|
< ± 1.0% and ± 0.006 OD, 0.0-2.0 OD
|
|
Photometric Precision
|
< ± 1.0% and ± 0.003 OD, 0.0-2.0 OD
|
|
Stray Light
|
< 0.05% @ 340 nm
|
|
Light Source
|
Xenon Flash Lamp
|
|
Microplate Read Time Endpoint
|
9 seconds
|
|
Microplate Read Time Kinetic
|
9-second minimum interval
|
|
Temperature Range
|
Ambient + 4C to 45C
|
|
Temperature Uniformity
|
± 0.5C @ 37C well-to-well |
|
Computer Specifications |
|
|
Processor |
Intel I5-7500U CPU |
|
Ram |
16.0 GB |
|
Brand |
Hewlett-Packard |
|
Hard drive |
240GB Solid State Drive |
|
Operating System |
Windows 10 64-Bit |
- Confirm the power supply and PCB output correct, stable voltages across all required connections
- Inspect the display for any dim or dead pixels; replace affected components to maintain full visual clarity and operational accuracy
- Verify full functionality of all buttons, ensuring precise and responsive input control
- Check the XY assembly for proper movement and alignment; thoroughly clean all railings, removing any debris or contaminants
- Confirm stable software communication and connection between the instrument and PC, addressing any connectivity issues
- Inspect and clean or replace all filters as required to ensure optimal airflow and performance
- Examine internal wiring and electrical connections for any breaks, disconnections, or tears; replace or secure any compromised wiring
- Test the lamp’s full functionality, replacing it if any performance issues, dimming, or faults are detected
- Execute the necessary validation protocol, documenting completion with a date on a calibration/verification certificate
- Perform and verify appropriate updates to the PC operating system for compatibility and security
- Conduct a thorough cosmetic inspection, ensuring all external components meet quality and aesthetic standards
Technician Inspection and Recertification Checklist: Instruments
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm stable, correct voltage outputs from power supply and PCB | Completed | |
| Inspect display for dim or dead pixels; replace as needed | Completed | |
| Verify functionality of all buttons for precise, responsive control | Completed | |
| Check XY assembly for proper movement; clean railings to remove debris | Completed | |
| Confirm stable software communication between instrument and PC | Completed | |
| Inspect and clean or replace filters to maintain optimal performance | Completed | |
| Examine internal wiring for damage; replace or secure compromised connections | Completed | |
| Test lamp functionality; replace if dimming or faults are detected | Completed | |
| Execute validation protocol and document on calibration/verification certificate | Completed | |
| Update PC operating system for compatibility and security | Completed | |
| Conduct cosmetic inspection to ensure quality of external components | Completed |
