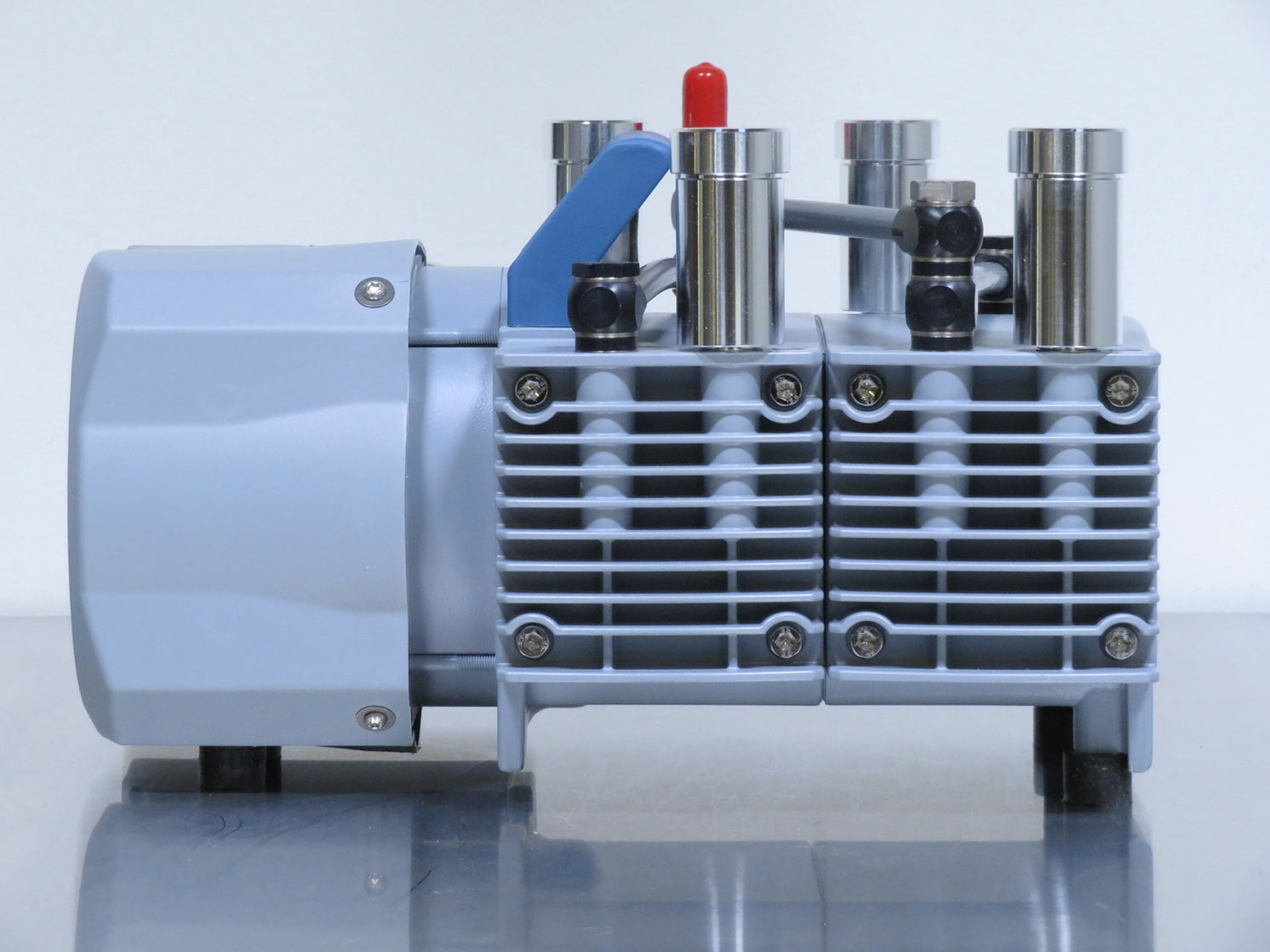

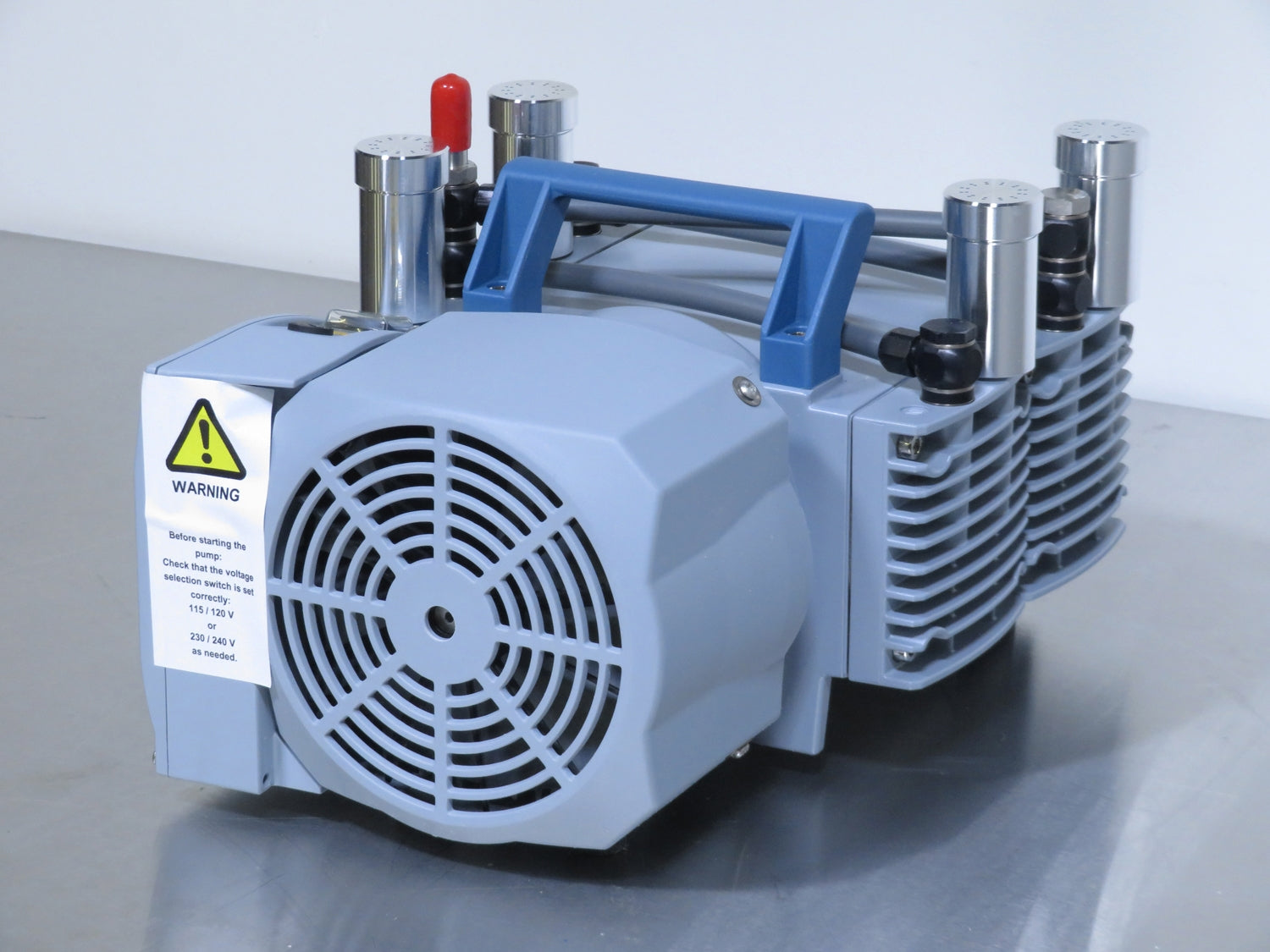

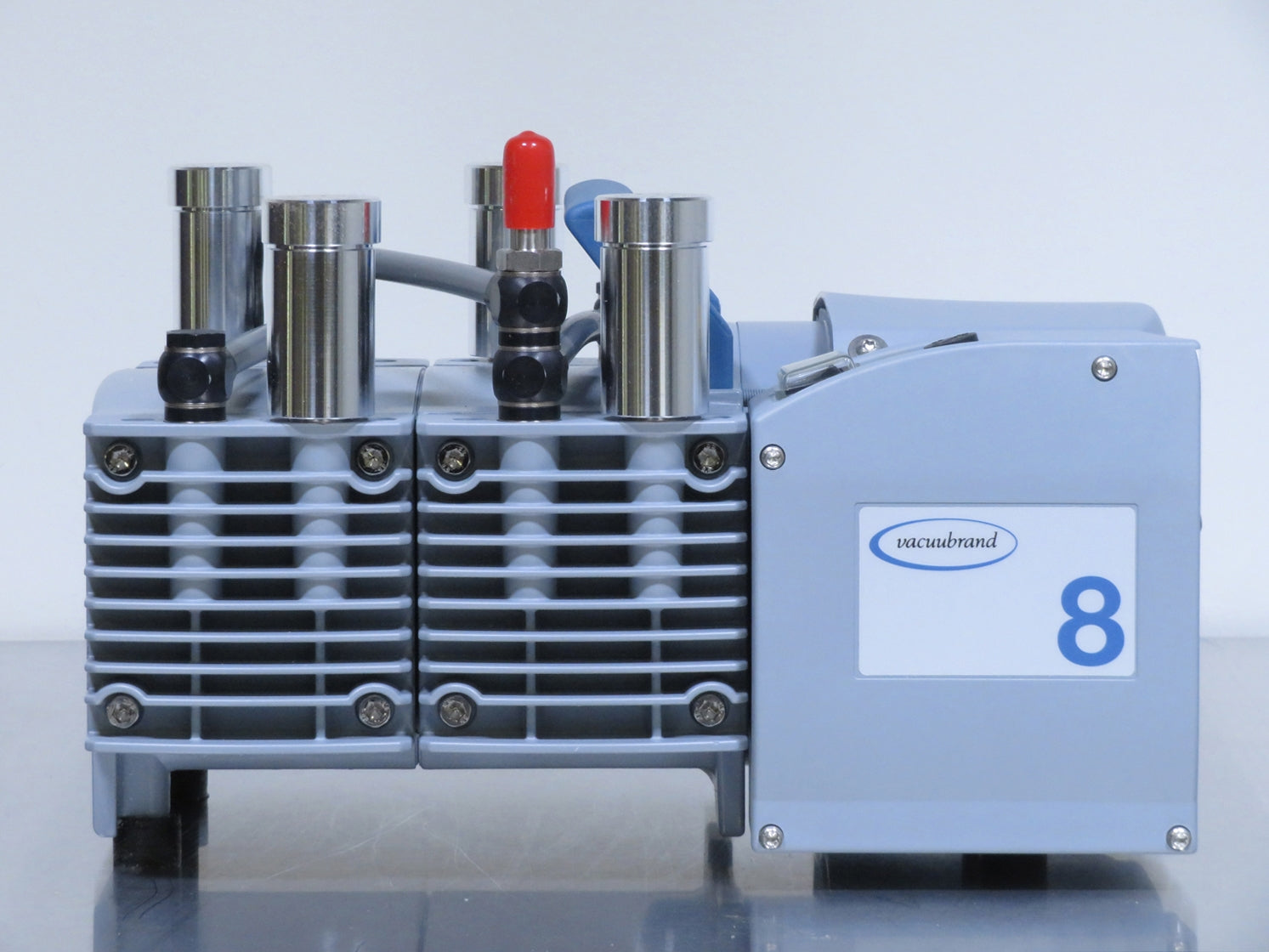

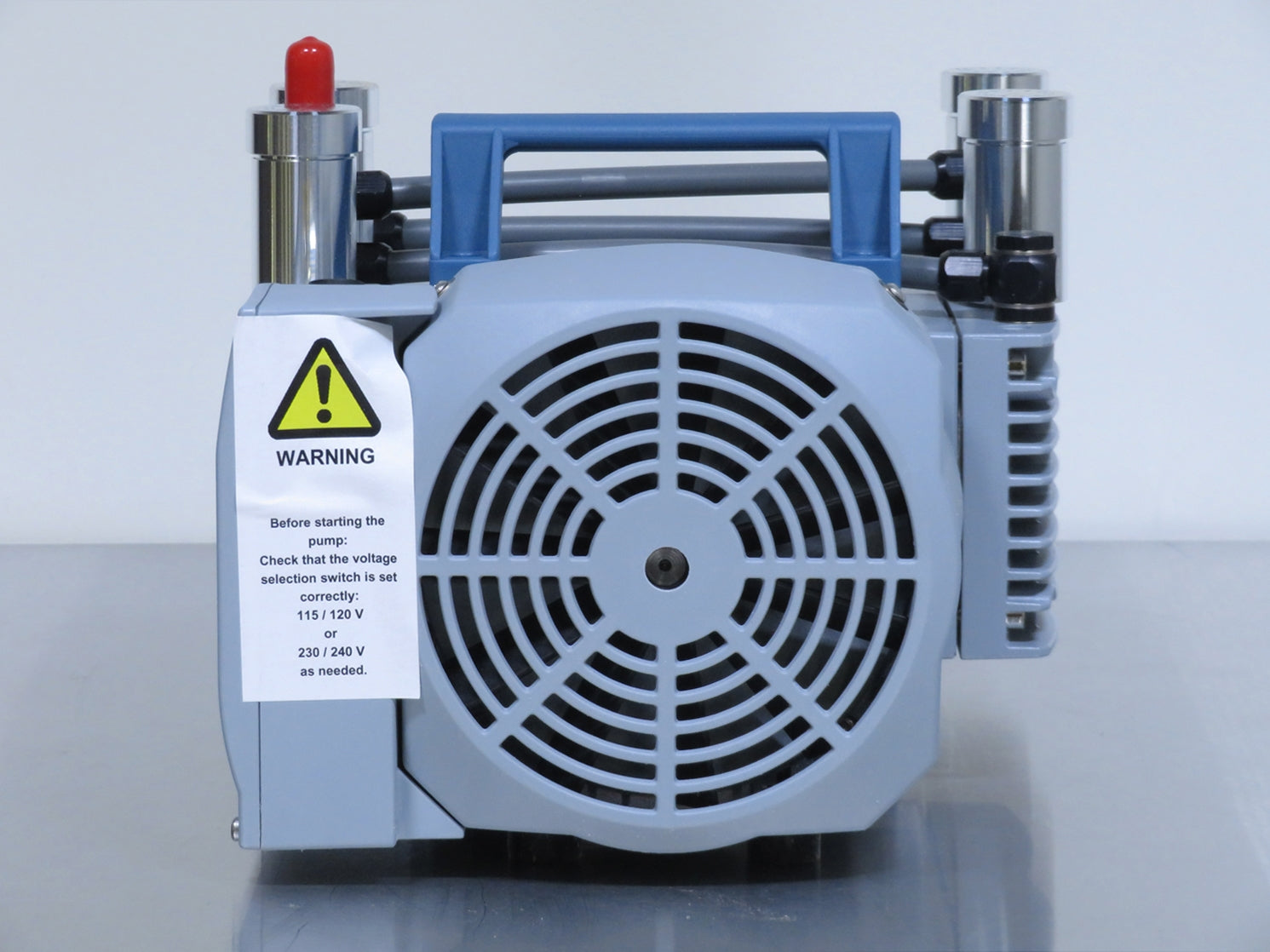

Vacuubrand ME 8 NT Diaphragm Vacuum Pump
The Vacuubrand ME 8 NT Diaphragm Vacuum Pump is an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and specially selected plastics to allow for a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FPM is ideal for extended operating life. The NT series from Vacuubrand features a performance boost of approximately 10% over its predecessors, providing a maximum pumping speed of 4.8 CFM (8.1 m^3/h) and an ultimate vacuum of 70 mbar (52 Torr). A very low leak rate is due to enhanced leak-tight tubing connections, resulting in consistent performance even after many years of operation. This pump also features a whisper quiet compact drive with a patented motor drive system making it ideal for sensitive analytical equipment.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Vacuubrand ME 8 NT Diaphragm Vacuum Pump includes:
The Vacuubrand ME 8 NT Diaphragm Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Vacuubrand ME 8 NT Diaphragm Vacuum Pump Specifications
| Maximum Pumping Speed (60Hz) | 4.8 CFM (8.1 m^3/h) |
| Maximum Pumping Speed (50Hz) | 4.3 CFM (7.3 m^3/h) |
| Ultimate Vacuum | 70 mbar (52 Torr) |
| Number of Heads | 4 |
| Number of Stages | 1 |
| Maximum Permissible Inlet Pressure | 1.1 bar (16 psi) |
| Maximum Permissible Outlet Pressure | 2 bar (29 psi) |
| Inlet Connection | Hose nozzle DN 8-10 mm |
| Outlet Connection | 2x thread G1/4" |
| Maximum Motor Speed | 1,800 RPM |
| Rated Motor Power | 0.25 kW |
| Sound Level | 45 dBA |
| Dimensions (L x W x H) | 12.9 x 9.4 x 7.8 in. (32.8 x 23.9 x 19.8 cm) |
| Weight | 36.2 lb. (16.4 kg) |
| Electrical Requirements | 120V, 50/60Hz |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
