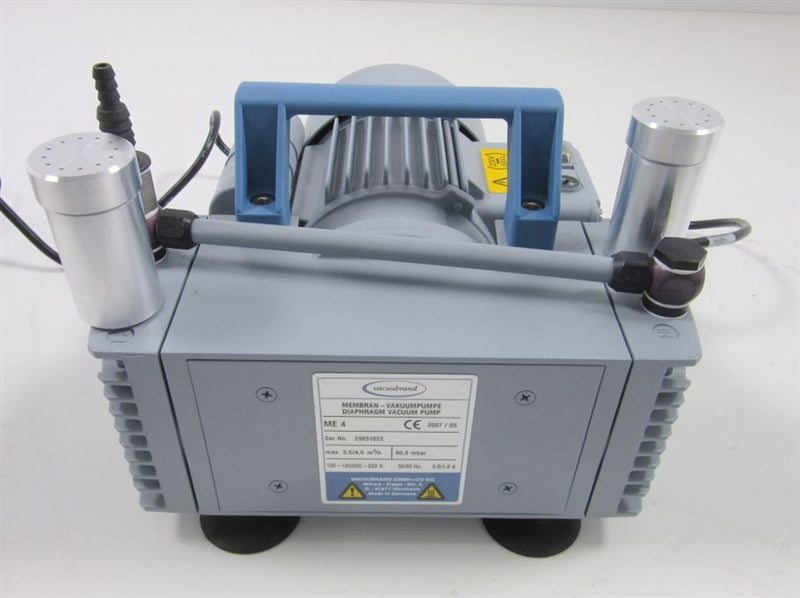

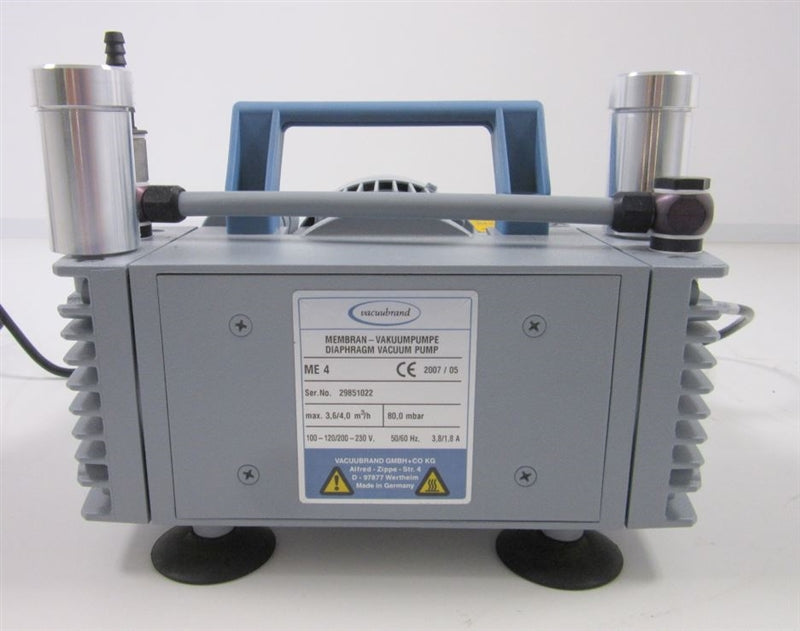

Vacuubrand ME4 Diaphragm Vacuum Pump
The Vacuubrand ME4 Diaphragm Vacuum Pump offers oil-free operation with high flow rates at working vacuum for higher throughput. Vacuubrand's diaphragm pumps can withstand up to 15,000 hours of use before needing service with quick calibration once required.
Laboratory and process-plant applications include gas transfer, backing Turbopumps, and vacuum filtration.
The Vacuubrand ME4 is in excellent condition. All of our equipment is fully tested to perform at factory specifications before being shipped.
> Operator's Guide
> Power Cord
> Full 180 Day Parts and Labor Warranty

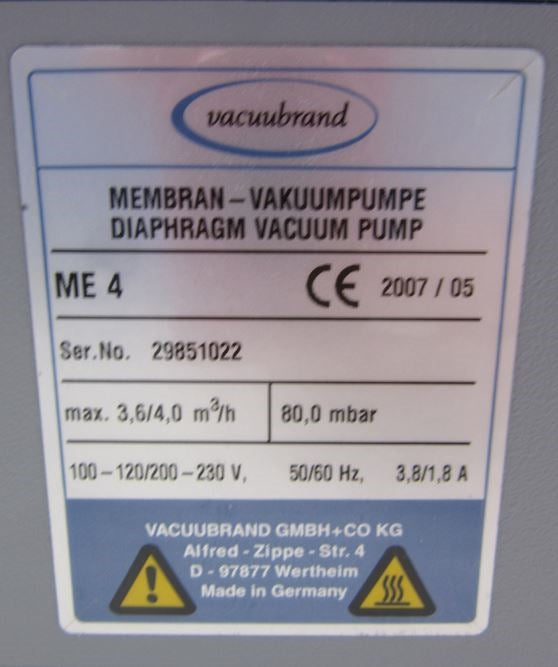

Vacuubrand ME 4 Diaphragm Vacuum Pump Specifications
|
Pumping Speed (m3/h) |
3.6 / 4.0 maximum |
|
Ultimate Vacuum |
< 80 mbar |
|
Max Permitted Outlet Pressure |
4 bar |
|
Max Permitted Difference Pressure between Inlet and Outlet |
2 bar |
|
Inlet |
Hose nozzle DN G 1/4" |
|
Outlet |
Silencer |
|
Dimensions (L x W x H) |
254 x 235 x 177 mm |
|
Electrical Requirements |
100-120/200-230 V, 50/60 Hz, 3.8/1.8 A |
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
