Popular Alternative Choice
VACUUBRAND ME 8 NT Diaphragm Pump
- Delivers an ultimate vacuum of 70 mbar with a high maximum pumping speed of 4.8 cfm at 60Hz, designed for efficient handling of large volumes of gases
- Features four heads and one stage for high flow rates
- Equipped with a maintenance-free drive system
- 2 Year Manufacturer's Warranty
Brand New!

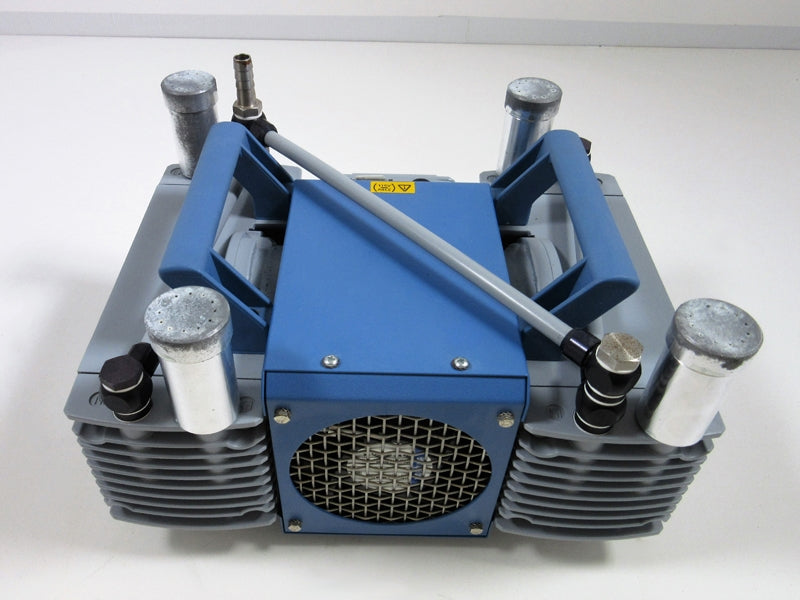

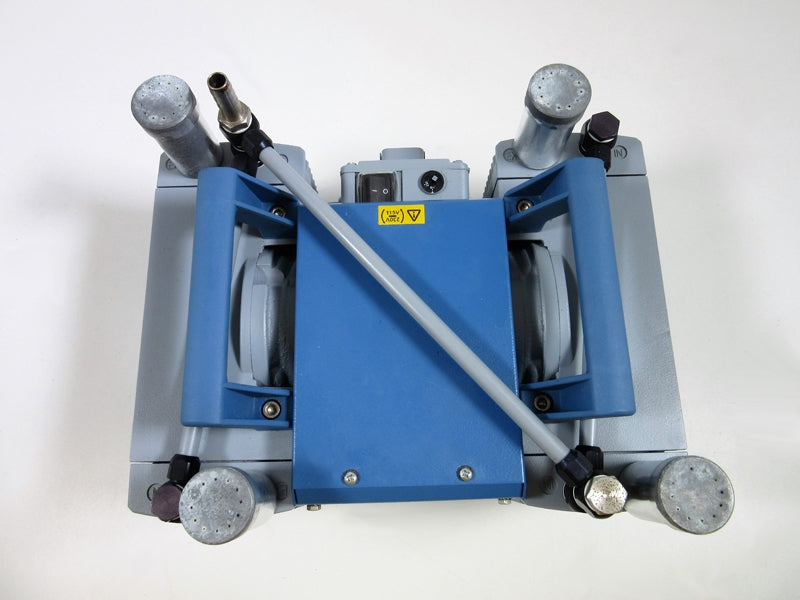

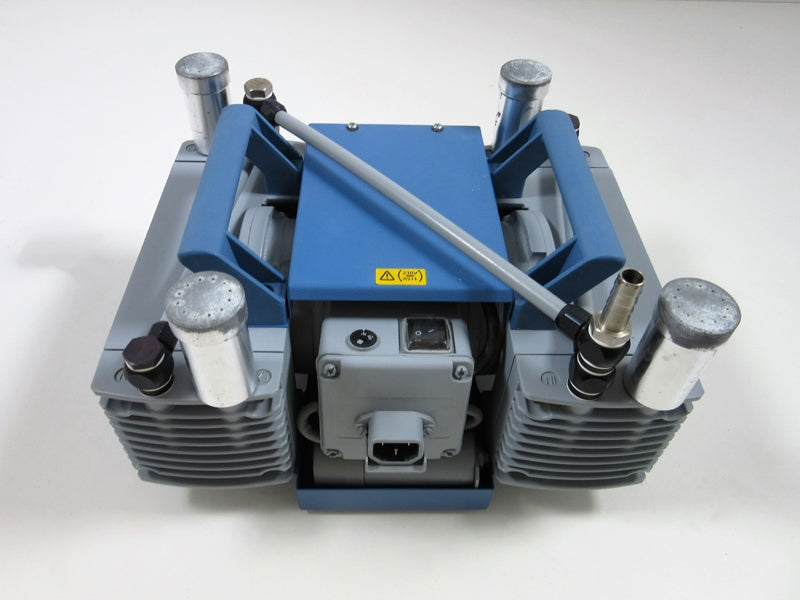

Vacuubrand ME8 Diaphragm Vacuum Pump
The Vacuubrand ME8 Diaphragm Vacuum Pump offers oil-free operation with high flow rates at working vacuum for higher throughput. The ME8 features contamination-free pumping and evacuation, very high flow rate even near ultimate vacuum, quiet operation, very low vibration, and exceptionally long diaphragm life with maintenance-free drive system for low lifetime costs. Vacuubrand's diaphragm pumps can withstand up to 15,000 hours of use before needing service with quick calibration once required.
Laboratory and process-plant applications include gas transfer, backing Turbopumps, and vacuum filtration.
The Vacuubrand ME8 is in excellent condition. All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Vacuubrand ME8 Diaphragm Vacuum Pump includes:
The Vacuubrand ME8 Diaphragm Vacuum Pump includes:
- > Operator's Guide
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Vacuubrand ME 8 Diaphragm Vacuum Pump Specifications
|
Number of heads / stages |
4 / 1 |
|
Max pumping speed |
50Hz: 7.3 m3/h (4.3 cfm) 60Hz: 8.1 m3/h (4.8 cfm) |
|
Ultimate vacuum |
70 mbar (52 torr) |
|
Max back pressure |
2 bar |
|
Inlet Connection |
Hose nozzle DN 8-10mm |
|
Outlet Connection |
2 x silencer / G1/4" |
|
Rated motor power |
0.25 kW |
|
Rated motor speed |
50Hz: 1500 min-1 60Hz: 1800 min-1 |
|
Dimensions (L x W x H) |
325 x 239 x 198 mm |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Vacuubrand ME8 Pump Manual
