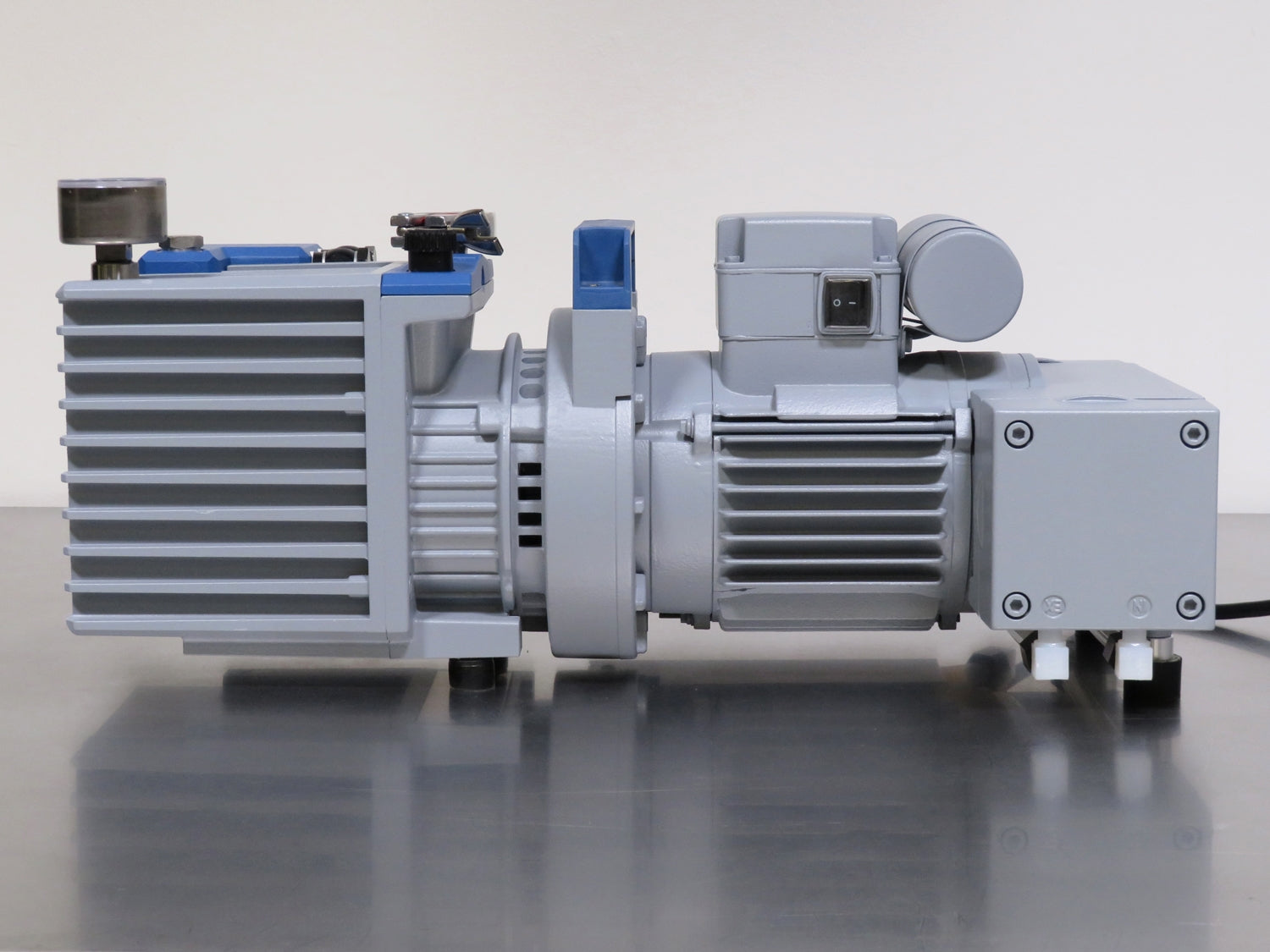

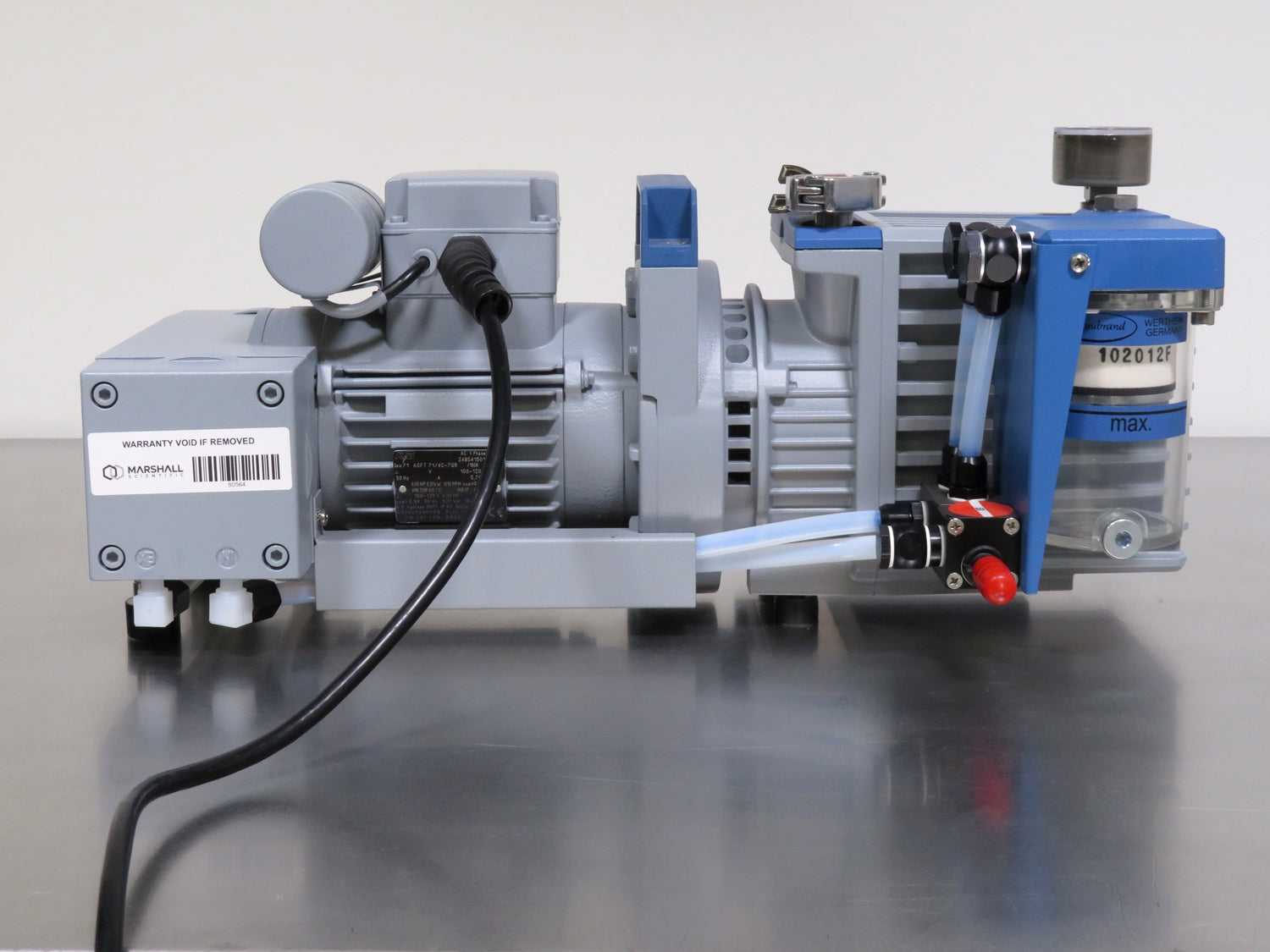

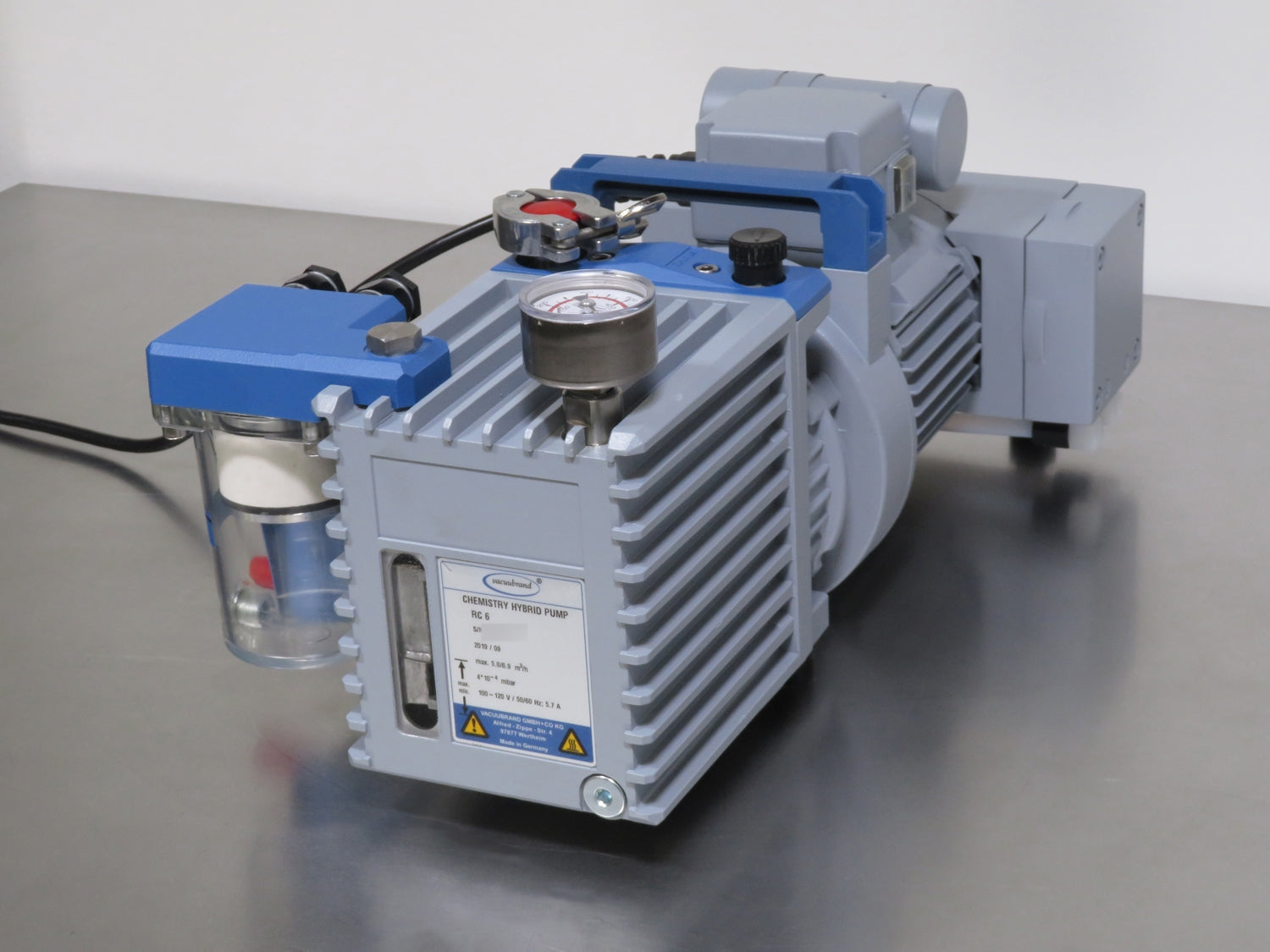

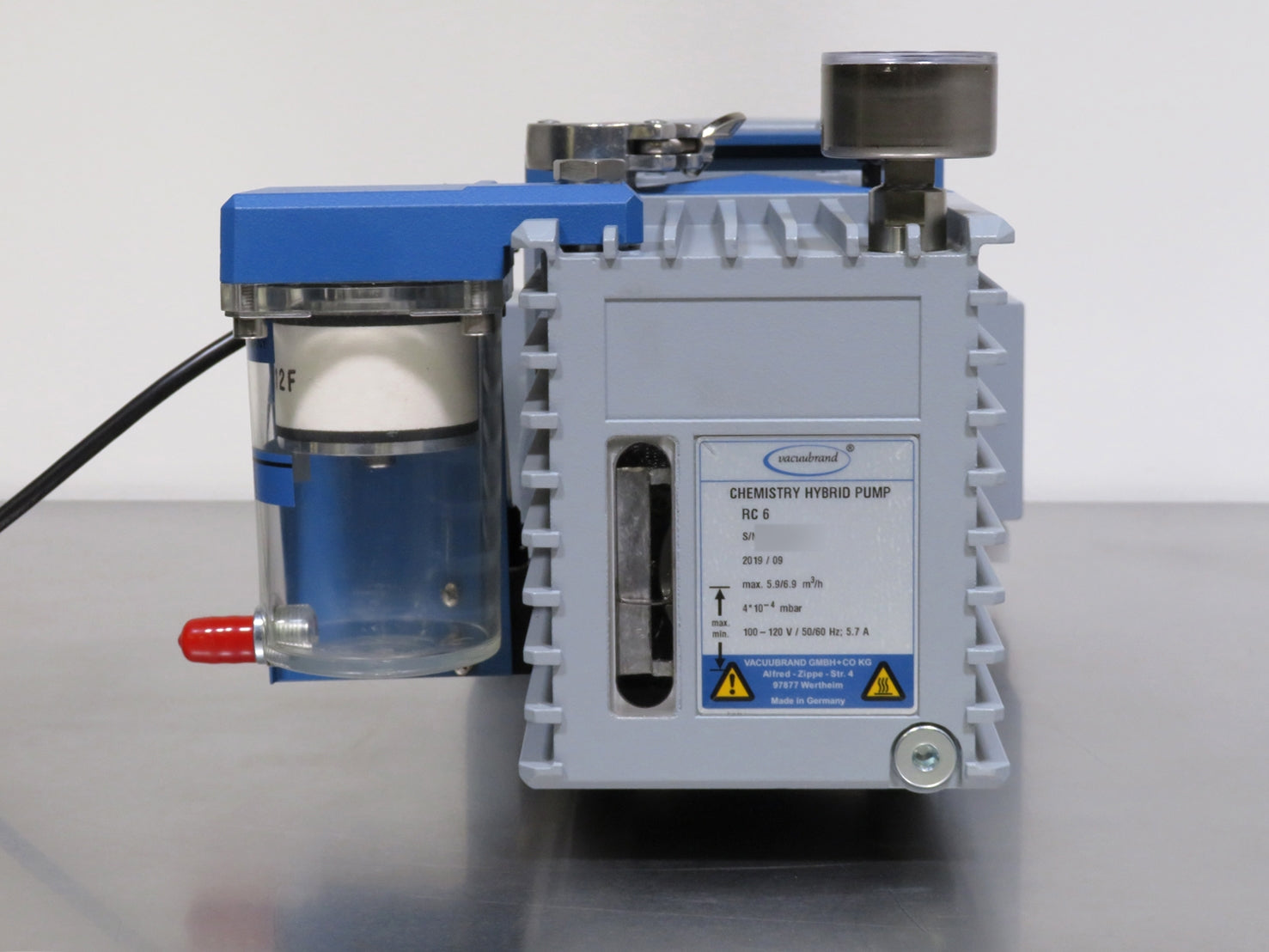

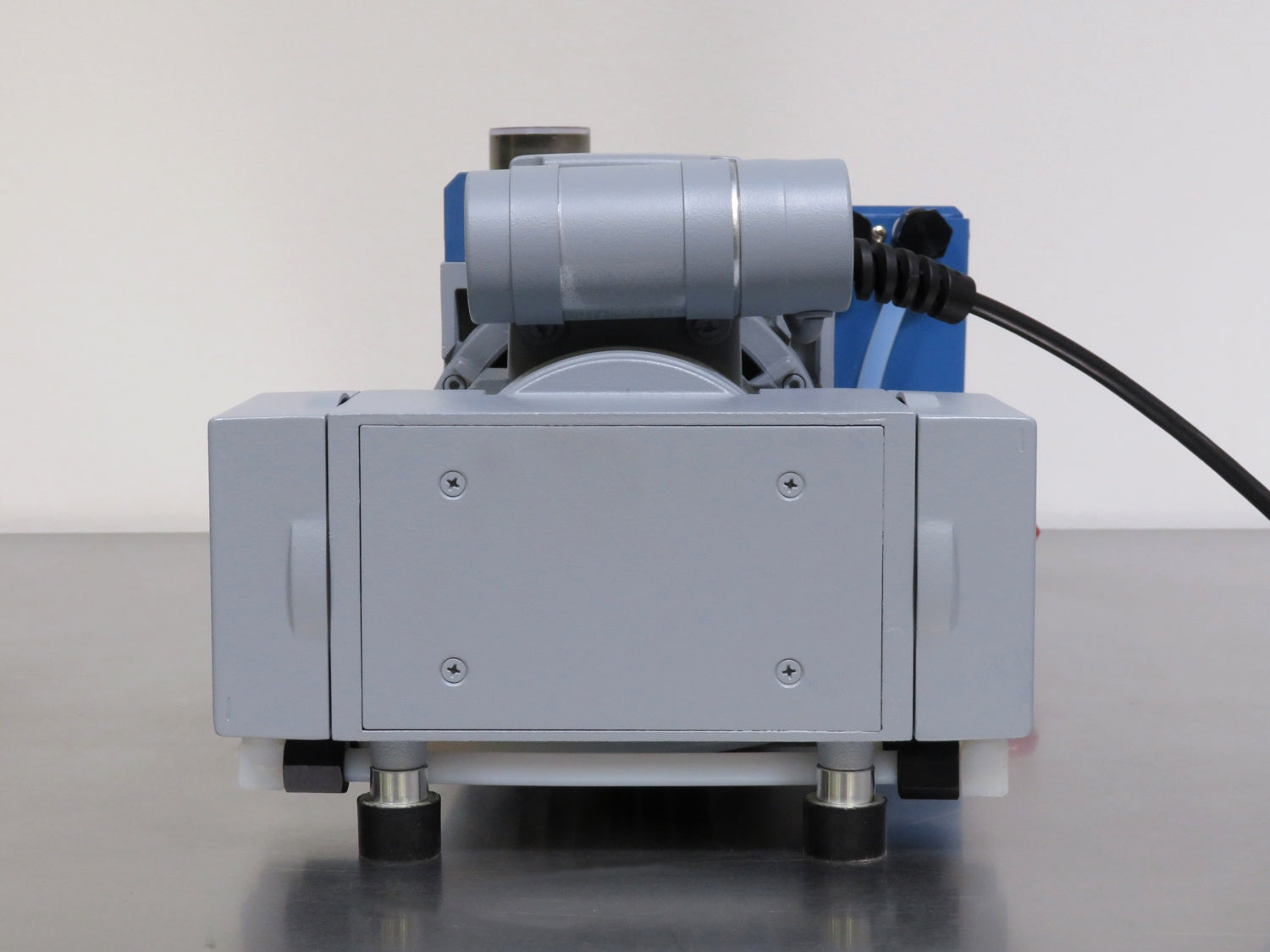

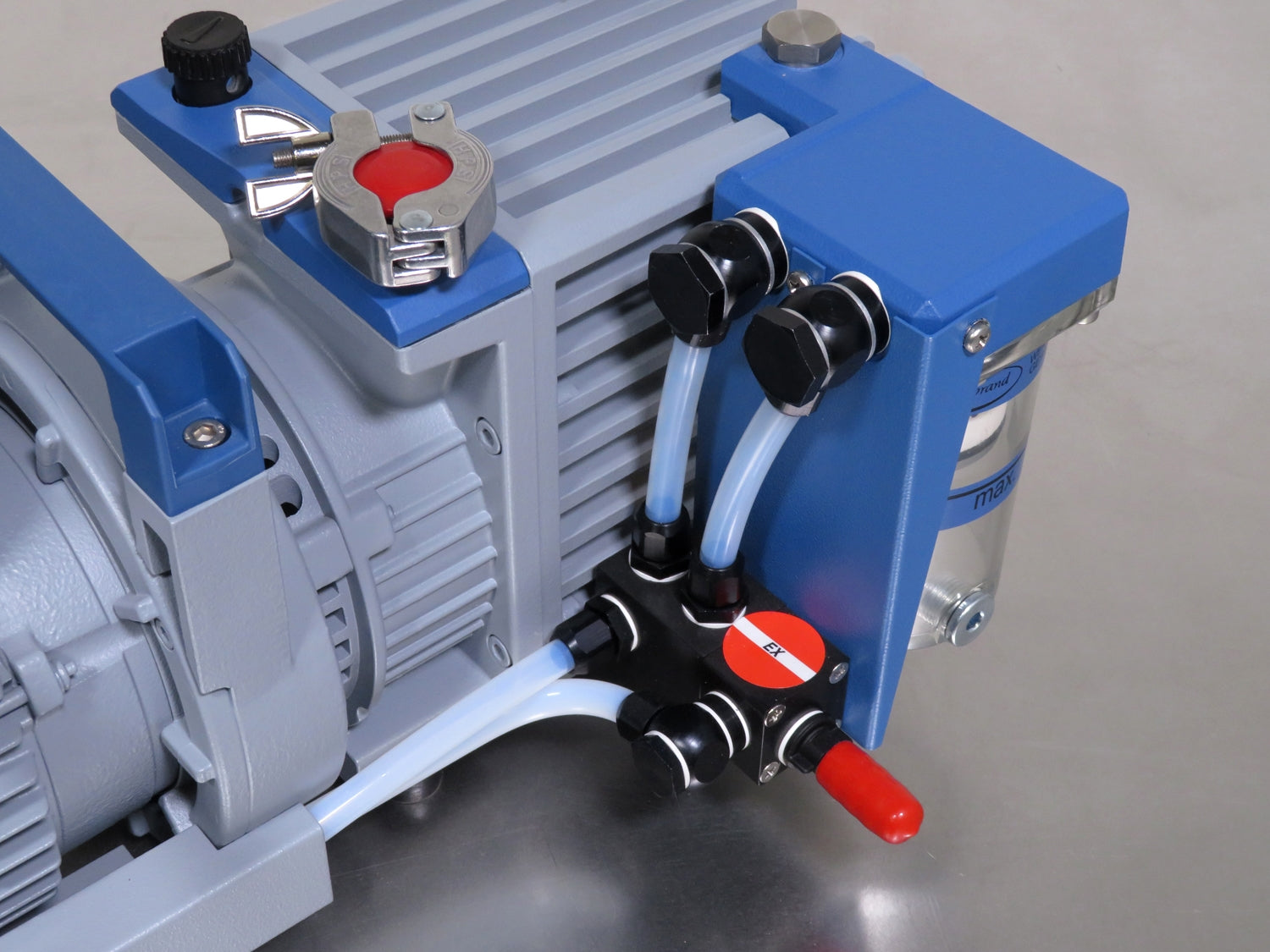

Vacuubrand RC6 Chemistry Hybrid Pump

The Vacuubrand RC6 Chemistry Hybrid Pump is a combination two-stage rotary vane pump and two-stage chemistry diaphragm pump. In order to keep partial pressures of solvent vapors below condensation points and reduce oxygen and corrosive gas concentration, the diaphragm pump keeps the oil reservoir under vacuum. This allows the RC6 a higher solvent vapor pumping capability while also being resistant to aggressive gases that typical rotary vane pumps cannot handle. Efficient solvent recovery and eliminated need for a cold trap make this pump an environmental and cost-effective option.

This pump is in excellent condition and is fully tested to perform at factory specifications before being shipped.

Vacuubrand RC6 Chemistry Hybrid Pump Specifications

Number of Stages	2 + 2
Max Pumping Speed at 50/60Hz	5.9m3/hr (3.5 cfm) / 6.9m3/hr (4.1 cfm)
Ultimate Partial Vacuum	2 x 10-4 mbar
Ultimate Vacuum	2 x 10-3 mbar (1.5 x 10-3 torr)
Ultimate Vacuum with Gas Ballast	1 x 10-2 mbar (0.75 x 10-2 torr)
Water Vapor Tolerance with Gas Ballast	> 40 mbar
Oil Capacity	0.34 L to 0.53 L
Max Back Pressure	1.1 bar
Inlet Connection	Small flange KF DN 16
Outlet Connection	Hose nozzle DN 8-10 mm
Rated Motor Power	0.37 kW
Rated Motor Speed at 50/60Hz	1500 min-1 / 1800 min-1
Dimensions (L x W x H)	510 x 305 x 230 mm
Electrical Requirements	100-120 V, 50/60 Hz, 5.7 A
