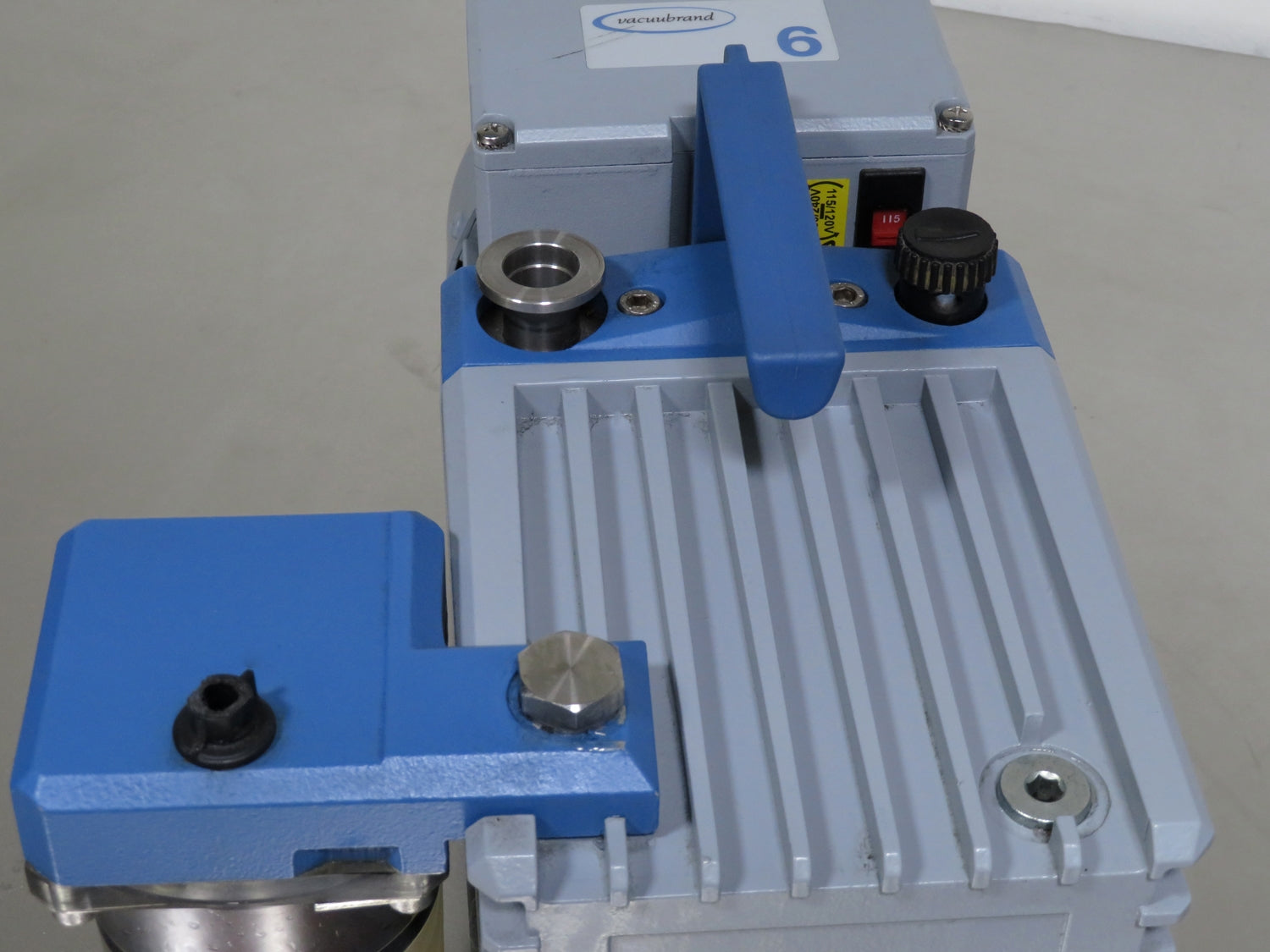

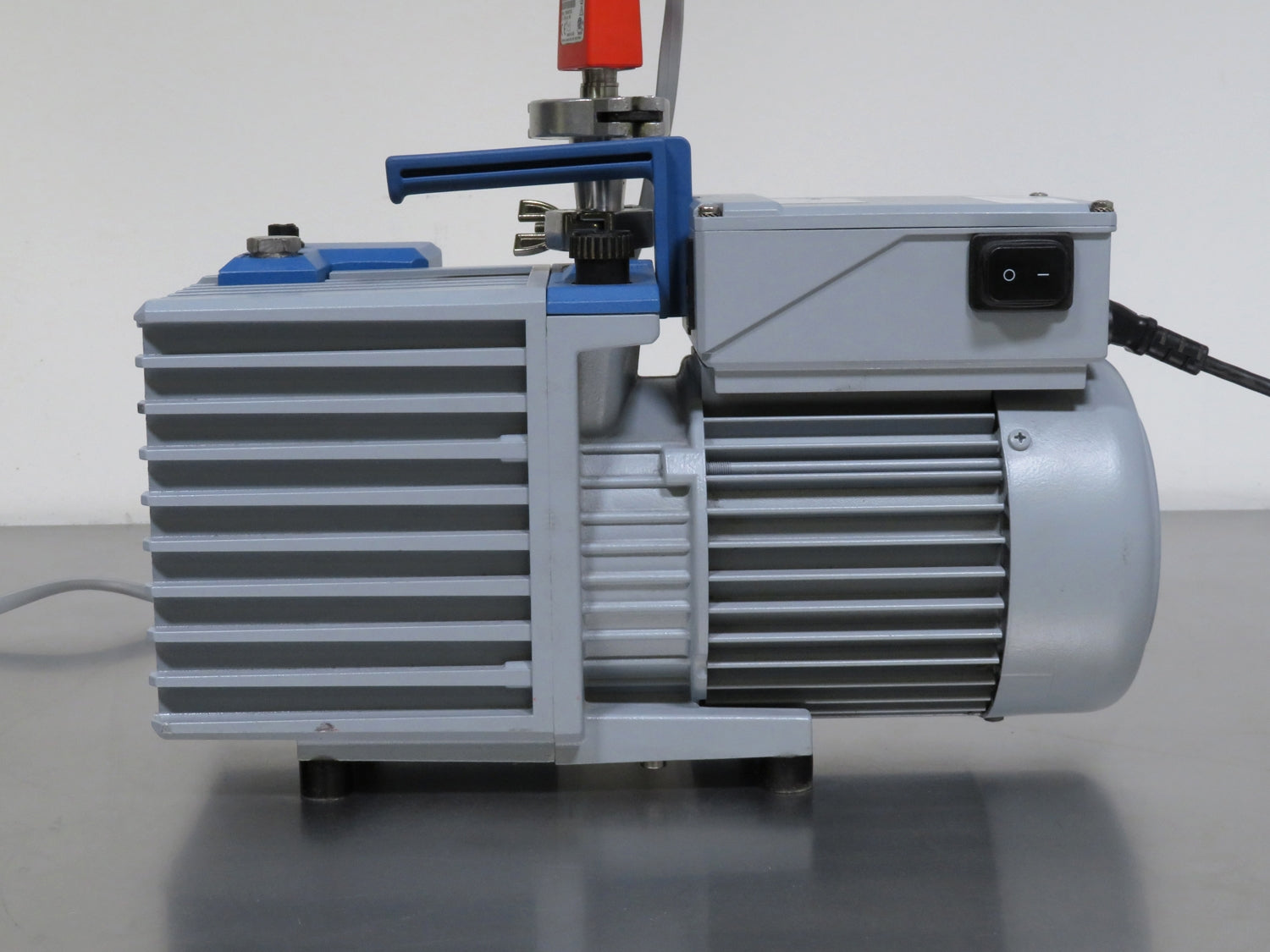

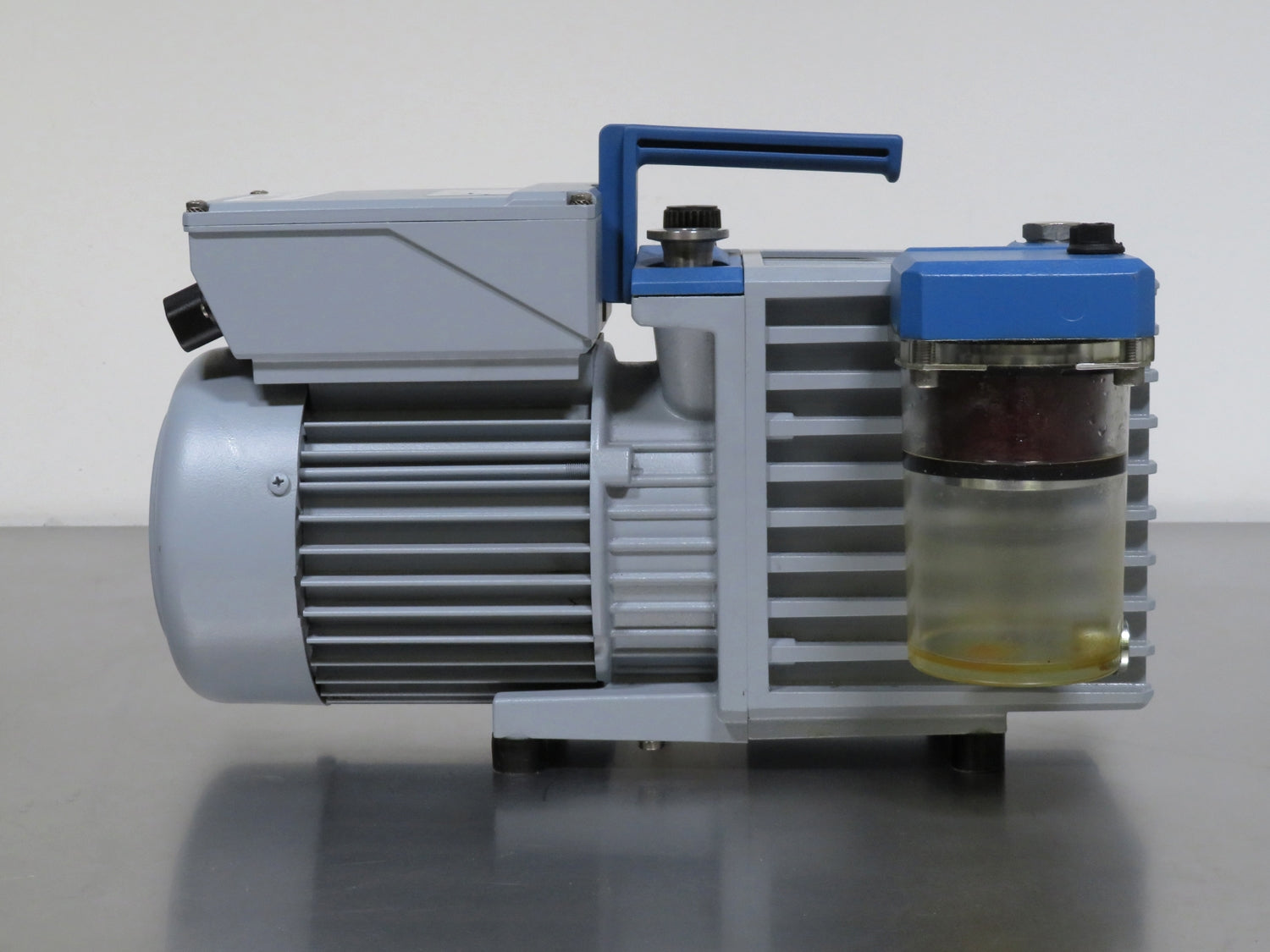

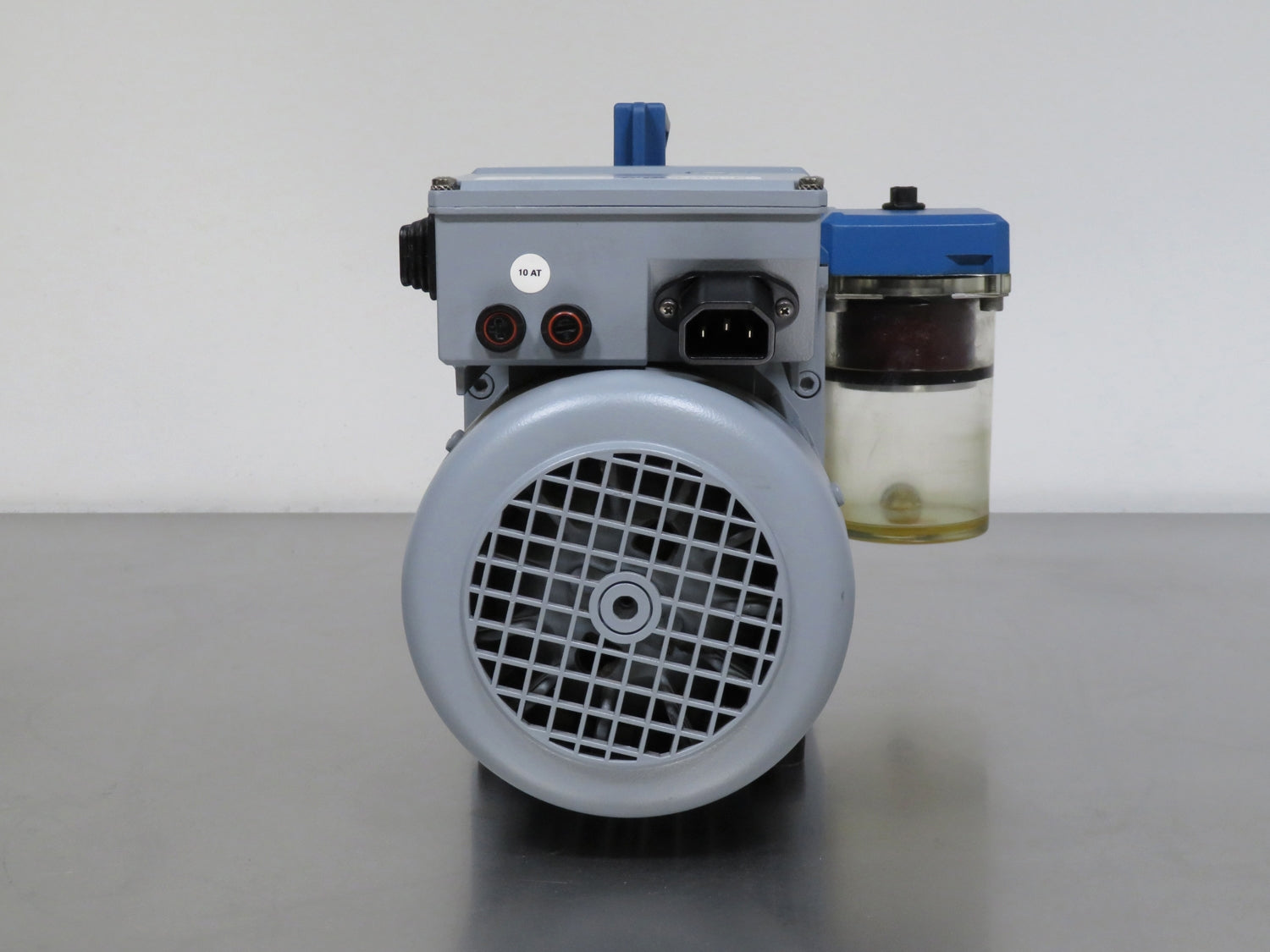

Vacuubrand RE 6W Rotary Vane Vacuum Pump
Maximum Pumping Speed (60Hz)
4.0 CFM (6.8 m^3/h)
Ultimate Vacuum
0.1 mbar (0.075 Torr)
Water Vapor Tolerance
40 mbar (30 Torr)
Features
- Compact and lightweight rotary vane design ideal for lab and process applications
- Handles medium to high gas flow rates with consistent performance
- Vacuum-tight at switch-off without the need for an anti-suck back valve
- Large oil volume reduces frequency of oil changes
- Telescopic design allows for easy maintenance access
- Operates quietly with a low 50 dBA sound level
- Durable construction with KF DN 16 inlet and 3/8" hose nozzle outlet
- Recommended for degassing, lyophilization, fine vacuum distillation, and drying chambers
The Vacuubrand RE 6W Rotary Vane Vacuum Pump is a powerful, compact, and lightweight solution for various laboratory and process applications requiring low ultimate vacuum at medium to high gas flow rates. The RE 6W is ideal for applications such as degassing, lyophilization, fine vacuum distillation, and drying chambers, achieving a maximum pumping speed of 4.0 CFM (6.8 m³/h) at 60Hz and 3.4 CFM (5.7 m³/h) at 50Hz, with an ultimate vacuum of 0.1 mbar (0.075 Torr). It delivers high flow rates even at vacuum levels nearing the ultimate vacuum and has a high water vapor tolerance due to its efficient gas ballast. This pump achieves an excellent ultimate vacuum, even with gas ballast, and remains vacuum-tight at switch-off, eliminating the need for an external anti-suck back valve. The large oil volume extends intervals between oil changes, and its telescopic design ensures ease of maintenance.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Vacuubrand RE 6W Rotary Vane Vacuum Pump includes:
The Vacuubrand RE 6W Rotary Vane Vacuum Pump includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Vacuubrand RE 6W Rotary Vane Vacuum Pump Specifications
| Maximum Pumping Speed (60Hz) | 4.0 CFM (6.8 m^3/h) |
| Maximum Pumping Speed (50Hz) | 3.4 CFM (5.7 m^3/h) |
| Ultimate Vacuum | 0.1 mbar (0.075 Torr) |
| Water Vapor Tolerance | 40 mbar (30 Torr) |
| Maximum Permissible Inlet Pressure | 1.1 bar (16 psi) |
| Maximum Permissible Outlet Pressure | 1.1 bar (16 psi) |
| Inlet Connection | Small flange KF DN 16 |
| Outlet Connection | Hoze nozzle for tubing I.D 3/8" (hoze nozzle DN 10 mm) |
| Maximum Motor Speed | 1,800 RPM |
| Rated Motor Power | 0.4 hp (0.3 kW) |
| Sound Level | 50 dBA |
| Maximum Oil Capacity | 930 ml |
| Recommended Oil | Vacuubrand B-oil |
| Dimensions (L x W x H) | 14.6 x 5.6 x 8.1 in. (37 x 14.2 x 20.7 cm) |
| Weight | 34.8 lb. (15.8 kg) |
| Electrical Requirements |
100-120V, 50/60Hz, 5.4A 127V, 60Hz, 4A 200-240V, 50/60Hz, 2.7A |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
