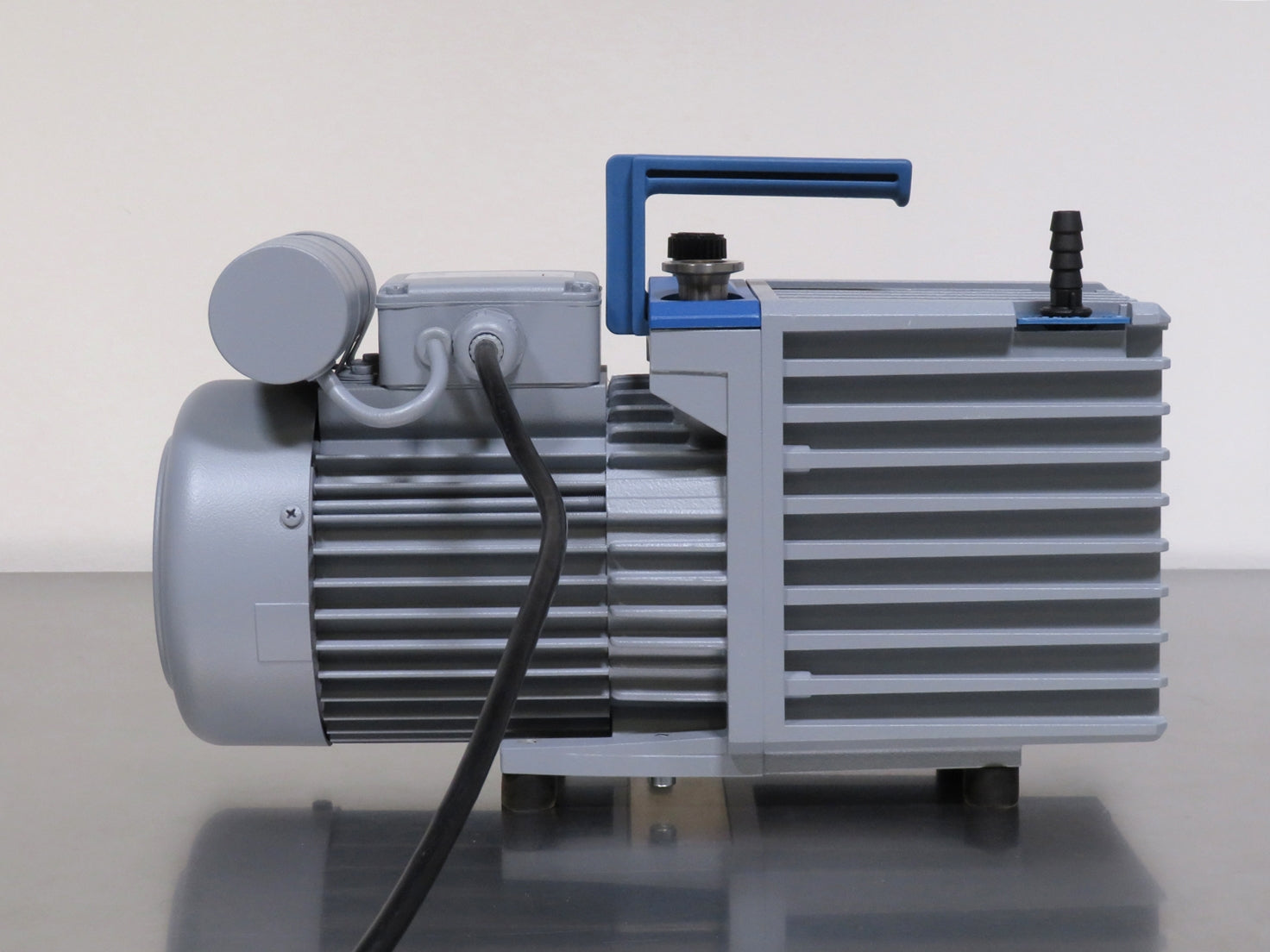

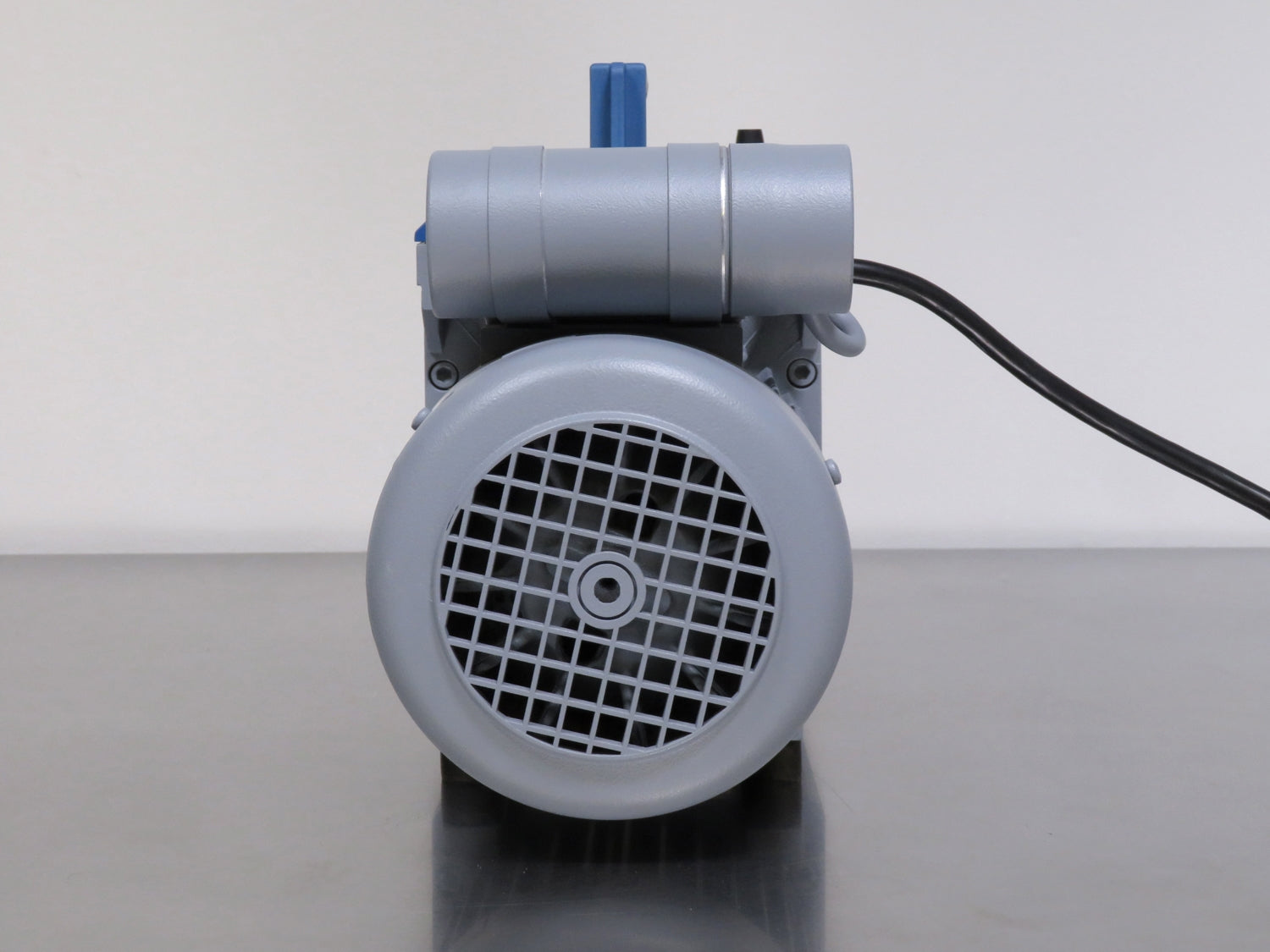

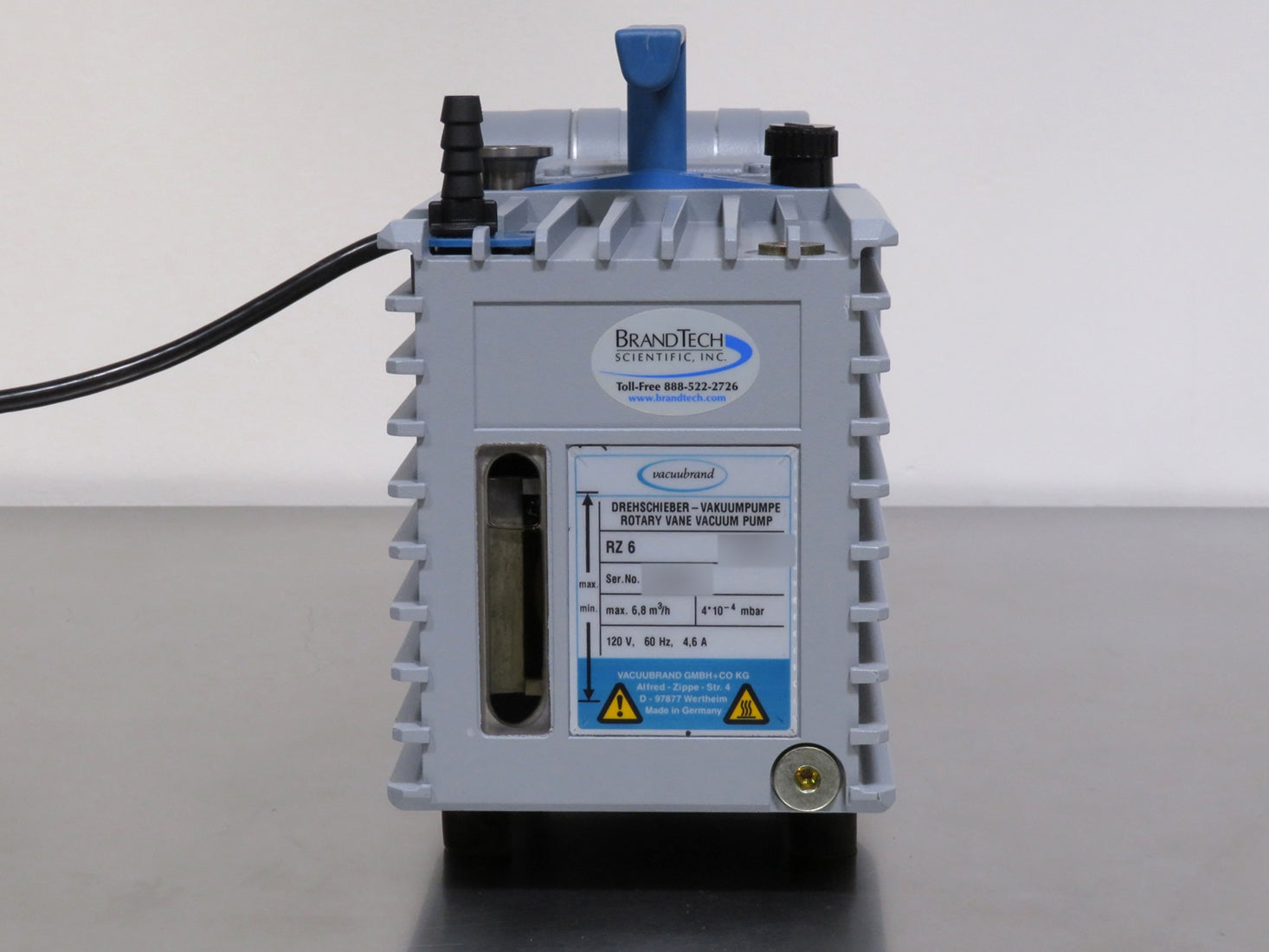

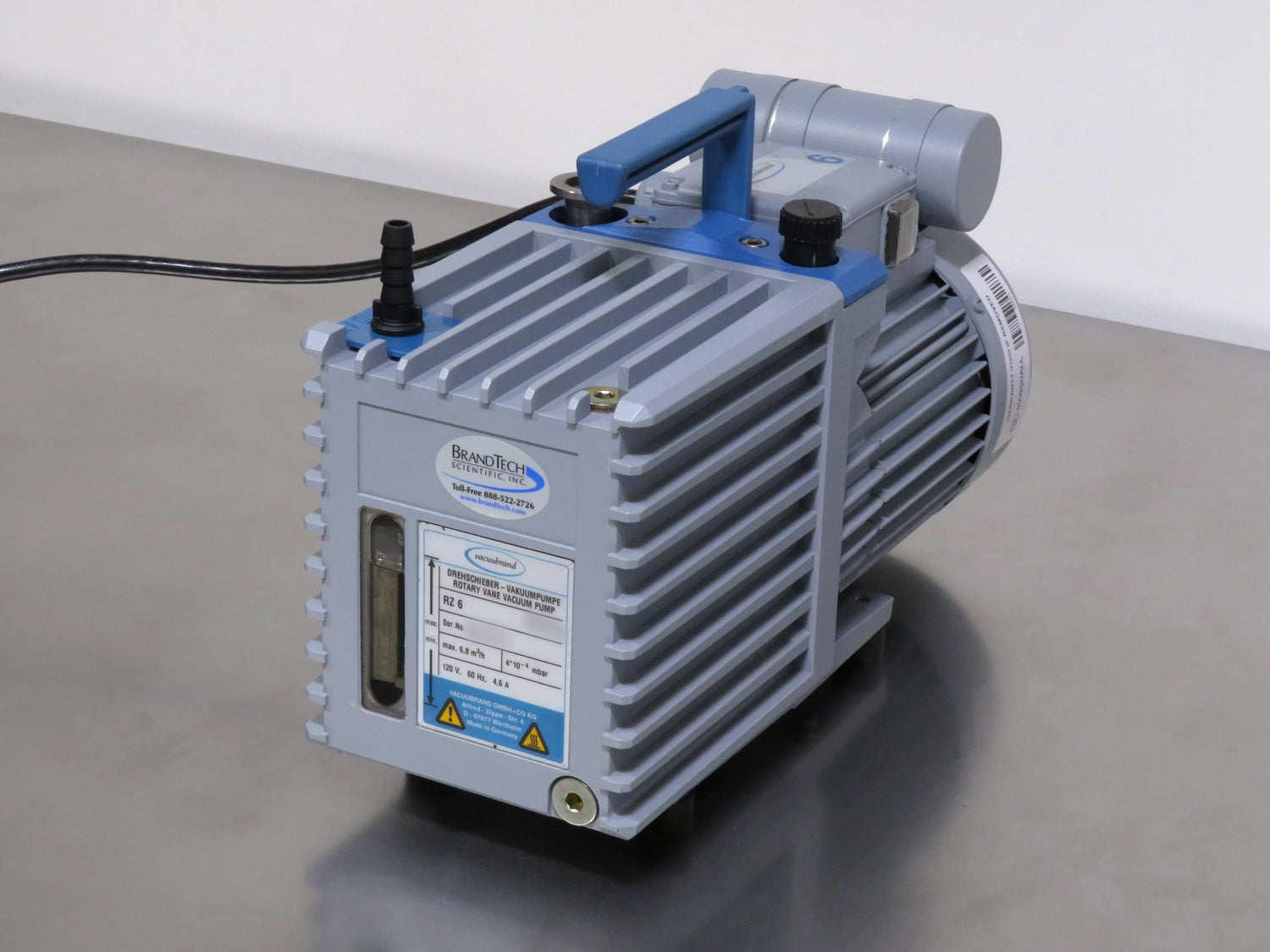

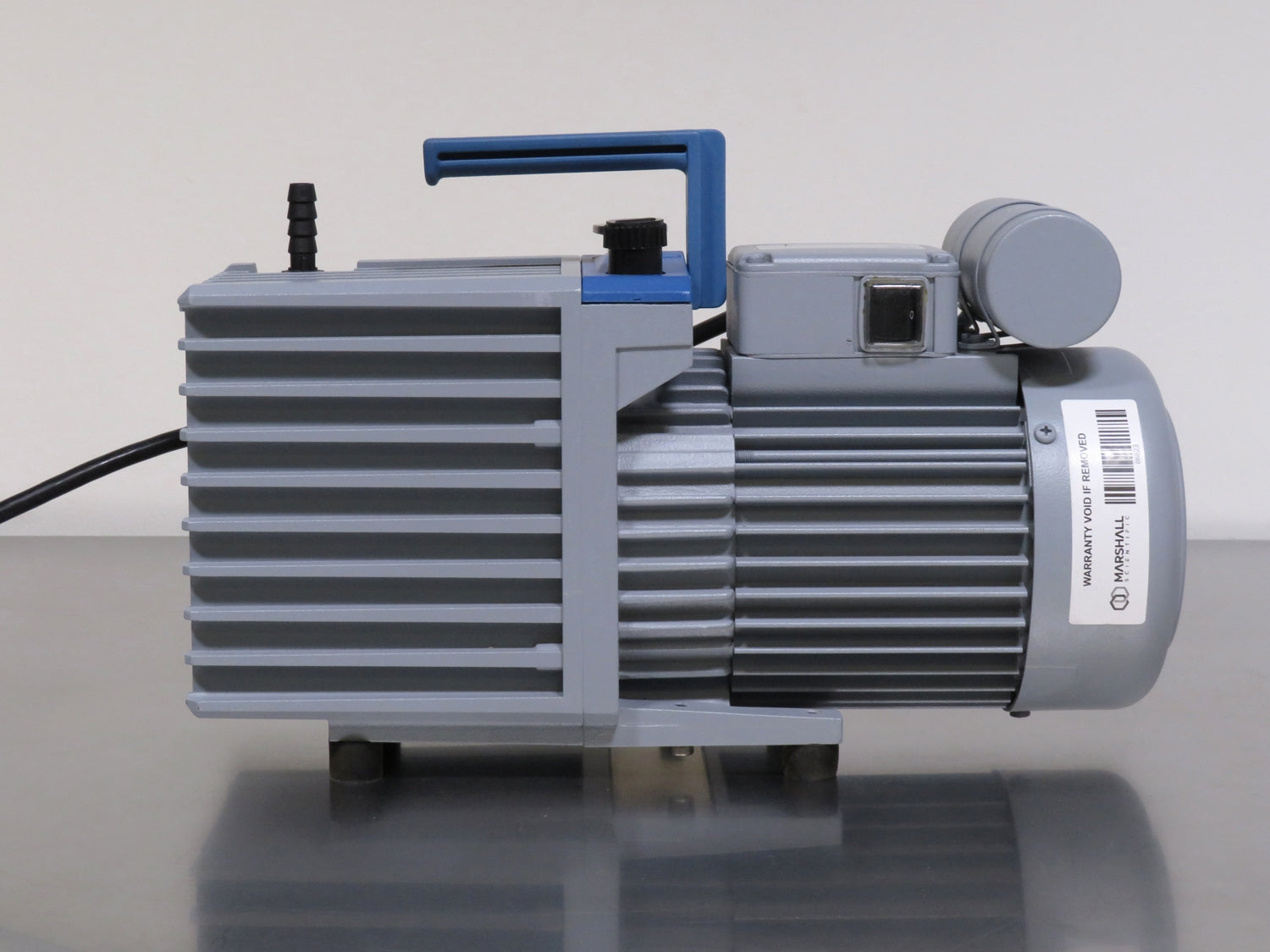

VACUUBRAND RZ 6 Rotary Vane Vacuum Pump
Ultimate Vacuum
2 x 10
-3 mbar (1.5 x 10-3 torr)
Maximum Pumping Speed (60Hz)
4.0 CFM (6.8 m3/h)
Inlet Connection
Small flange KF DN 16
Features
- High flow rates even at vacuum levels approaching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
- Vacuum-tight at switch-off; external anti-suckback valve not needed
- Large oil volume: Long intervals between oil changes
- Ease of maintenance due to telescopic design
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The VACUUBRAND RZ 6 Rotary Vane Vacuum Pump includes:
The VACUUBRAND RZ 6 Rotary Vane Vacuum Pump includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
VACUUBRAND RZ 6 Rotary Vane Vacuum Pump Specifications
| Maximum Pumping Speed (60Hz) | 4.0 CFM (6.8 m3/h) |
| Maximum Pumping Speed (50Hz) | 3.4 CFM (5.7 m3/h) |
| Ultimate Vacuum (Without Gas Ballast) | 2 x 10-3 mbar (1.5 x 10-3 torr) |
| Ultimate Vacuum (With Gas Ballast) | 1 x 10-2 mbar / 0.75 x 10-2 torr |
| Water Vapor Tolerance | 40 mbar / 30 torr |
| Maximum Permissible Inlet Pressure | 1.1 bar (16 psi) |
| Maximum Permissible Outlet Pressure | 1.1 bar (16 psi) |
| Inlet Connection | Small flange KF DN 16 |
| Outlet Connection | Hose nozzle DN 8-10 mm |
| Maximum Motor Speed (60Hz) | 1,800 RPM |
| Rated Motor Power (60Hz) | 0.3 kW |
| Sound Level | 50 dB(A) |
| Dimensions (L x W x H) | 14.6 x 5.6 x 8.1 in. (37 x 14.2 x 20.7 cm) |
| Weight | 36 lb. (16.4 kg) |
| Electrical Requirements | 120V, 60Hz, 4.6A |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
