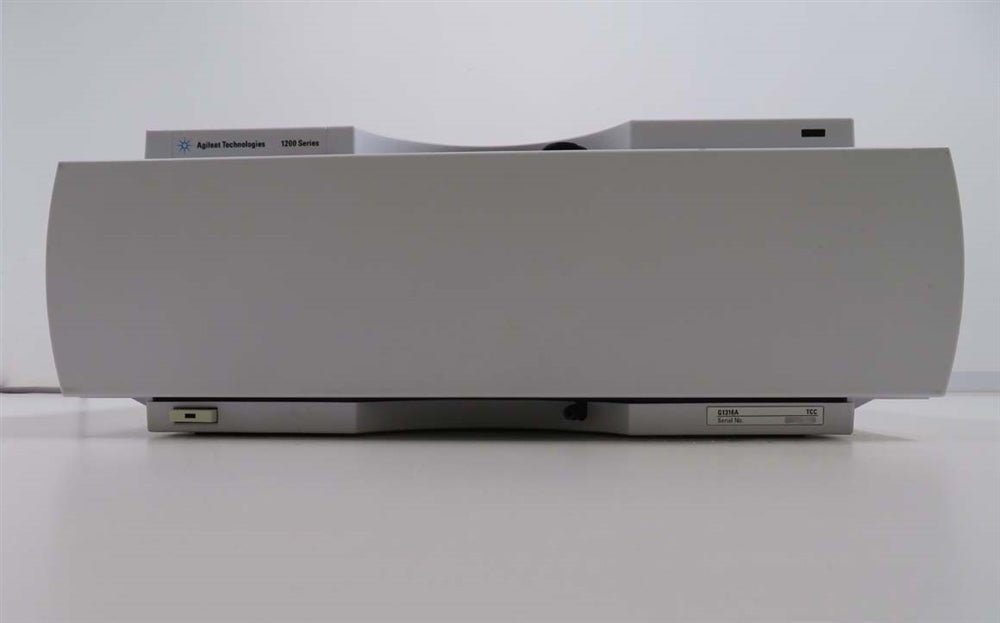

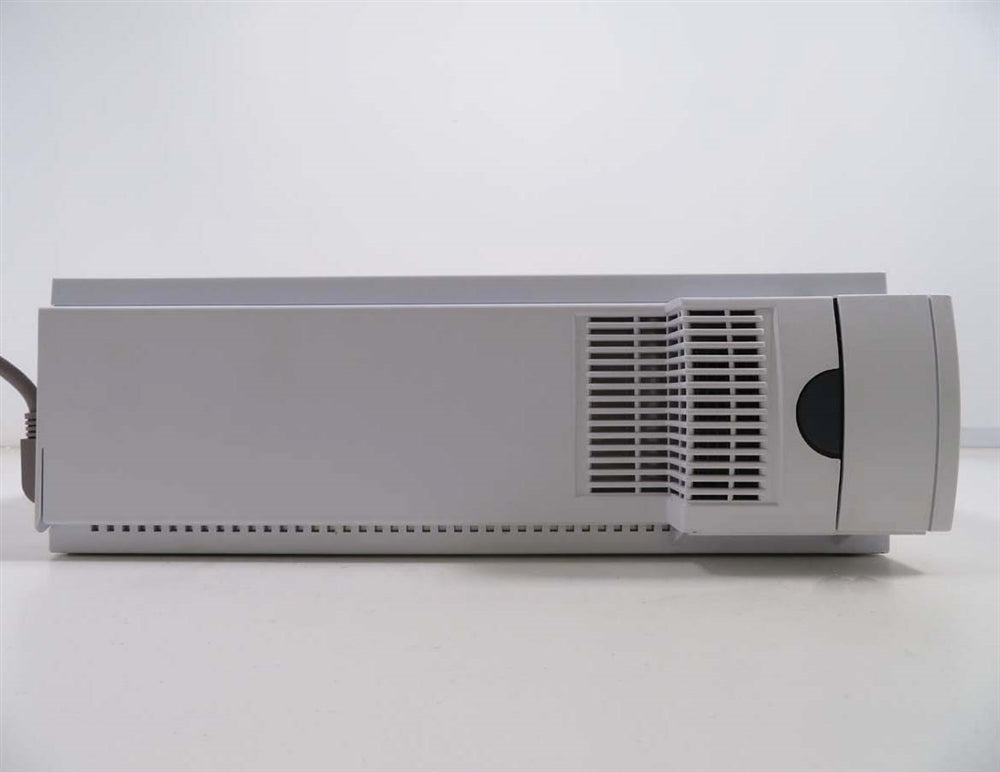

Agilent 1200 HPLC G1316A Column Compartment

The Agilent 1200 G1316A Colcom thermosstatted column compartment is built with two heat exchangers for solvent pre-heating, automated column identification module and CAN cable. The compartment’s compact size conveniently fits into a single Agilent 1200 Series HPLC stack. The G1316A offers a temperature range of 10° below ambient to 80° C and temperature stability of ± 0.15°C. The Agilent G1316A has a column capacity of three 30 centimeter columns and can utilize a temperature accuracy of ± 0.8°C. The warm up/cool down of the G1316A is 5 mins from ambient to 40°C. This colcom features many safety and maintenance protocols, such as extensive diagnostics, error detection and display, leak detection, safe leak handling, leak output signal for shutdown of pumping system, and low voltages in major maintenance areas.

Agilent 1200 HPLC G1316A Column Compartment Specifications

Temperature Range	Range 10° below ambient to 80° C
Temperature Stability	± 0.15°C
Temperature Accuracy	± 0.8°C
Column Capacity	Three 30cm columns
Warm-up/Cool Down	5 mins from ambient to 40°C

Agilent G1316A Operator's Manual


Click Here to View all the Technical Specs for the G1316A Column Compartment
