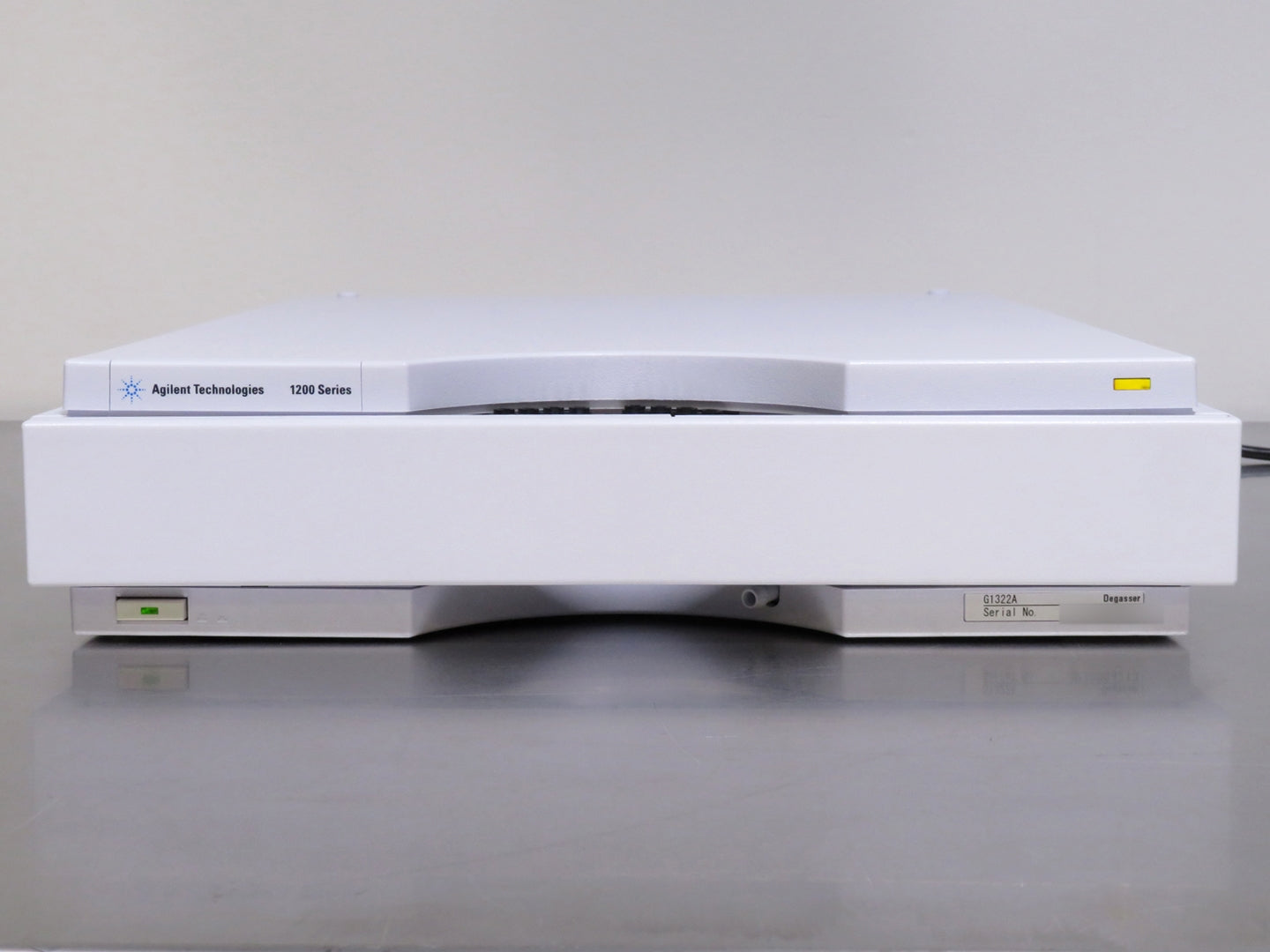

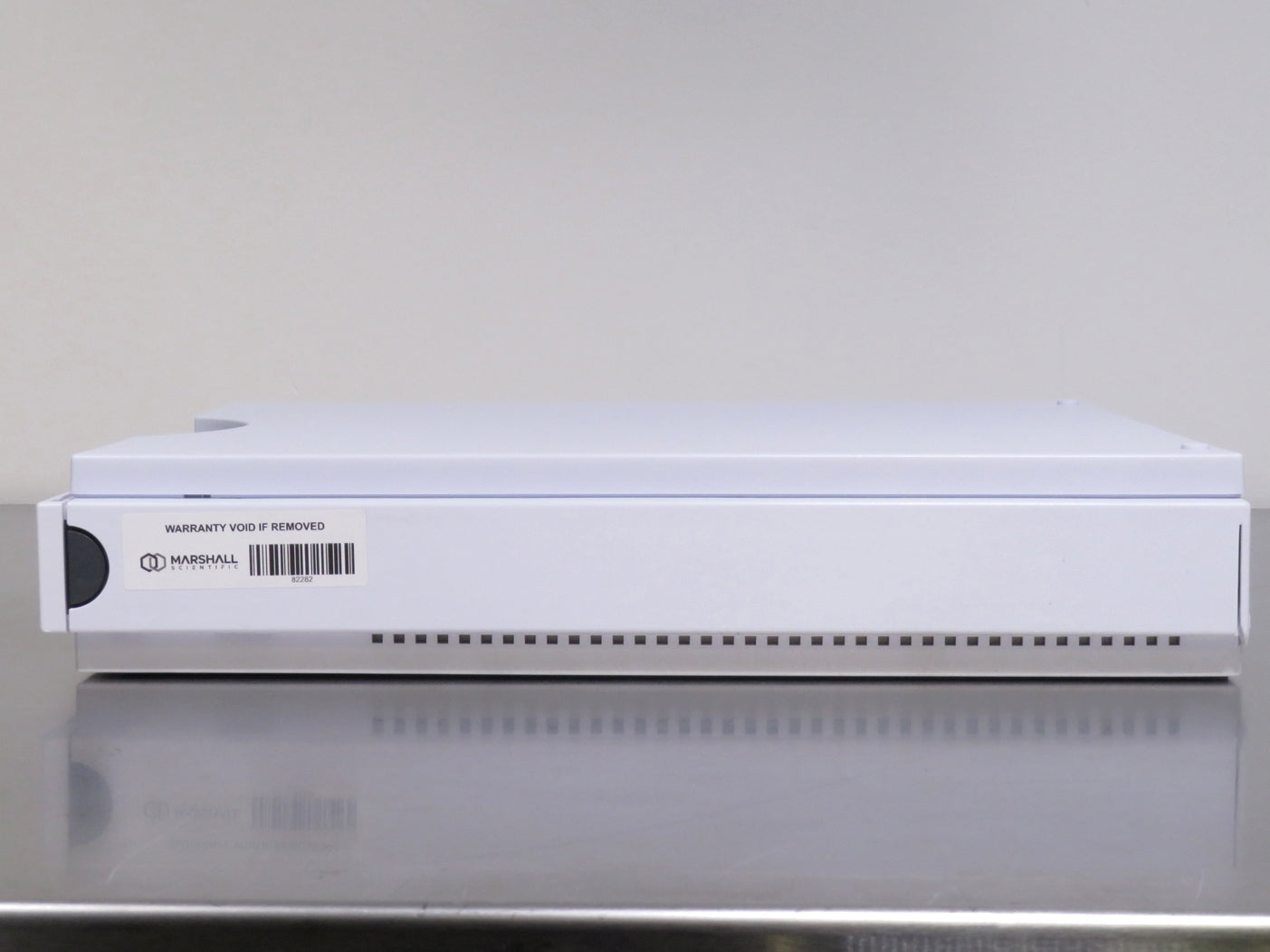

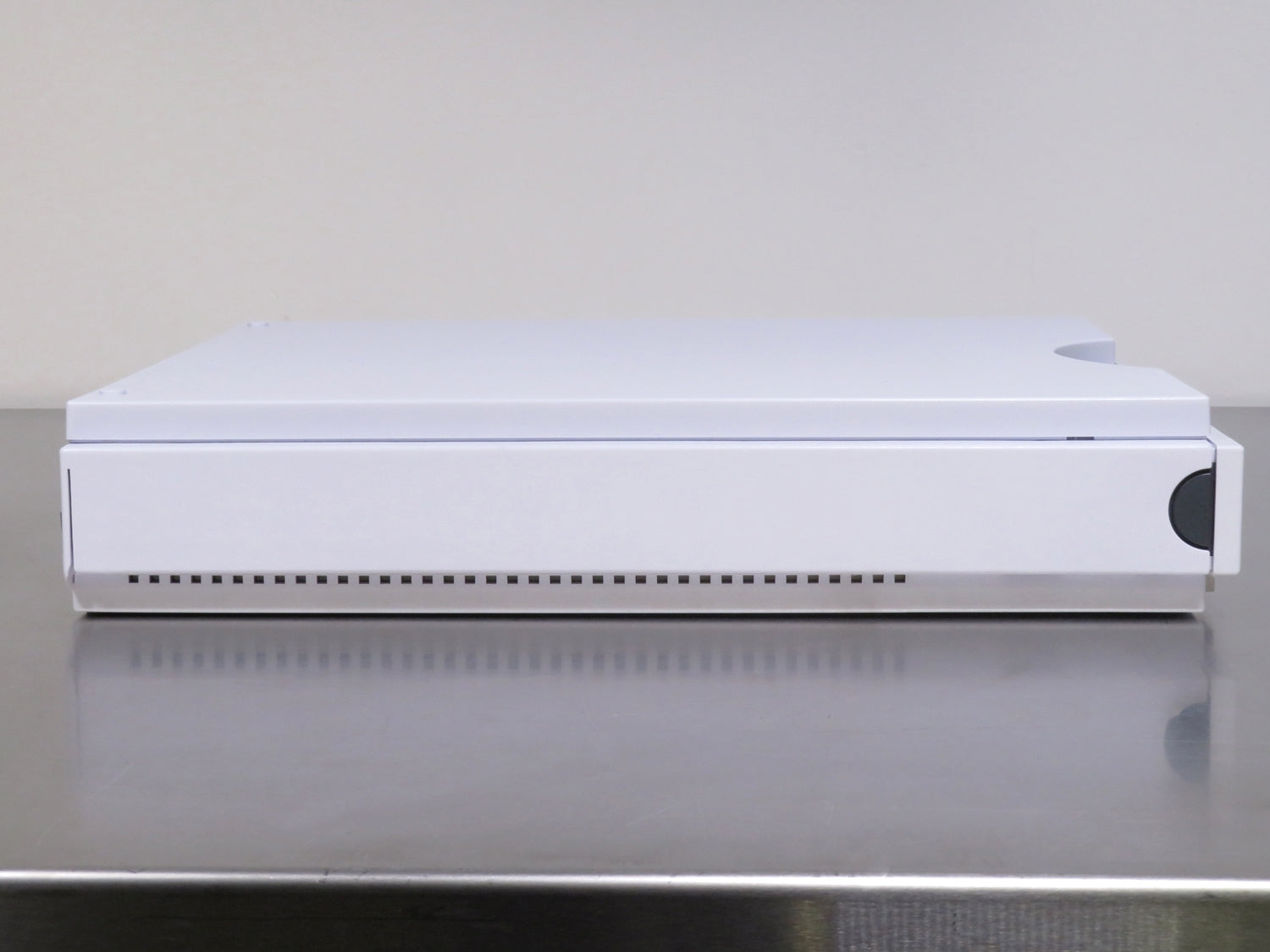

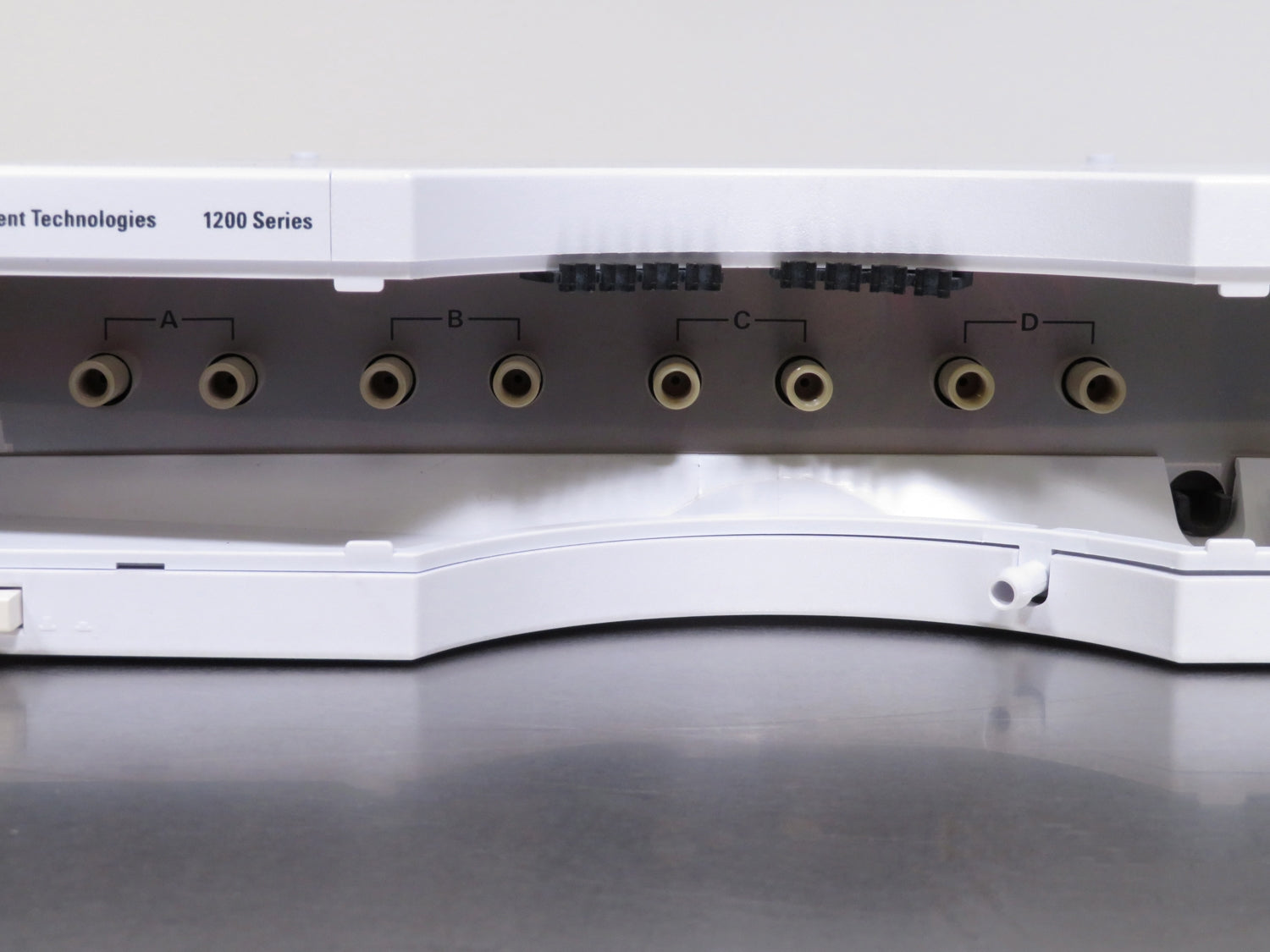

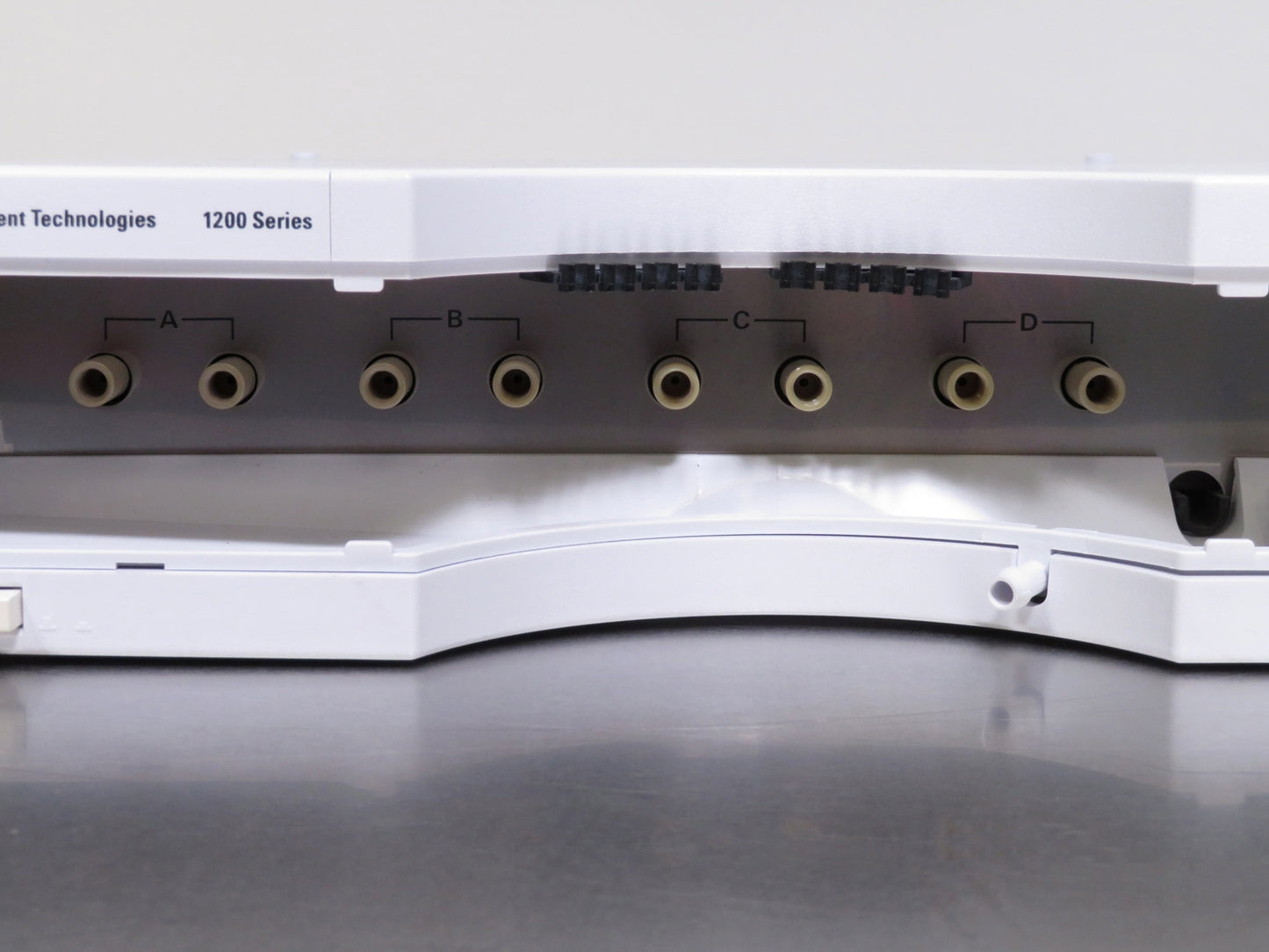

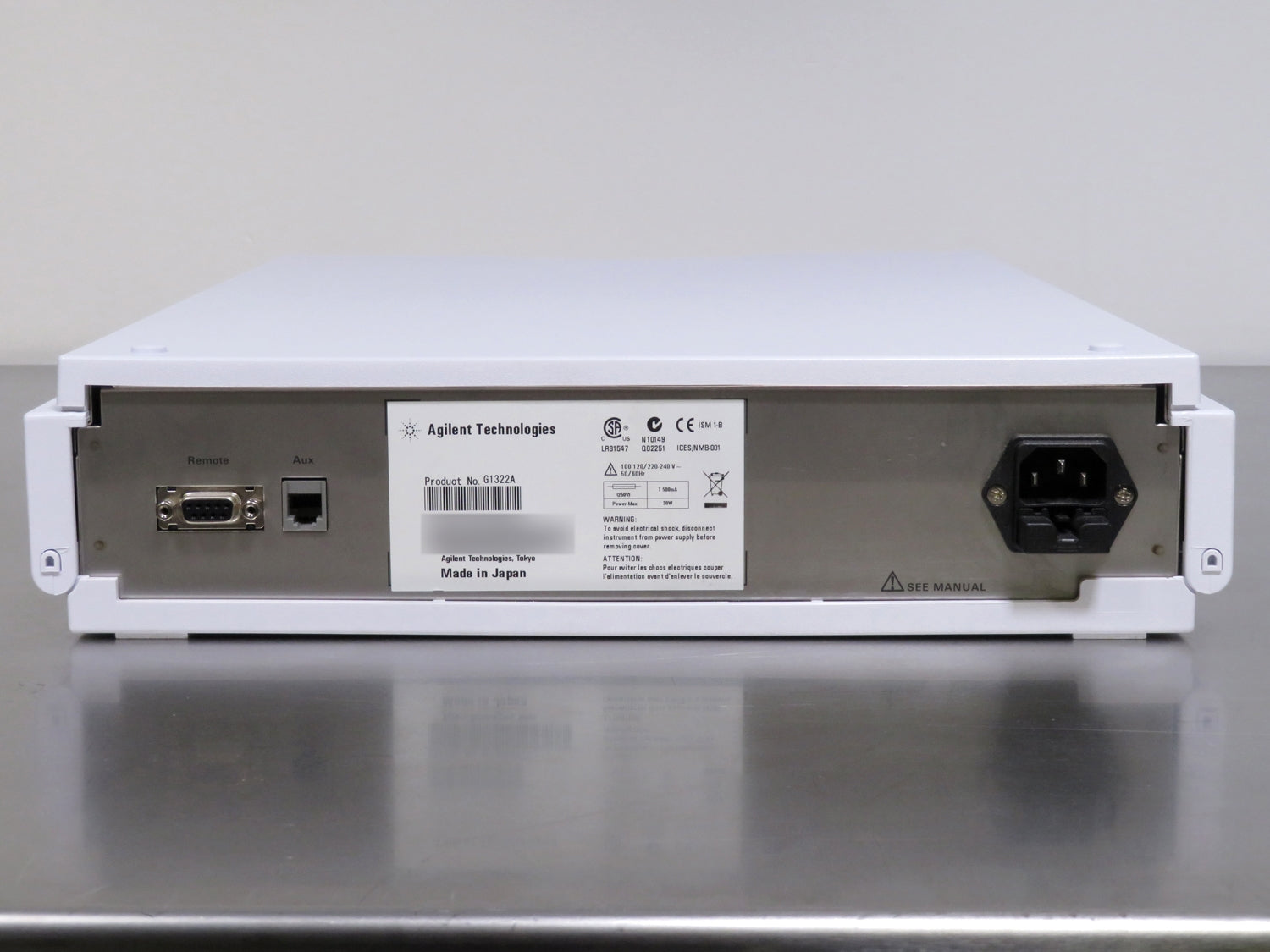

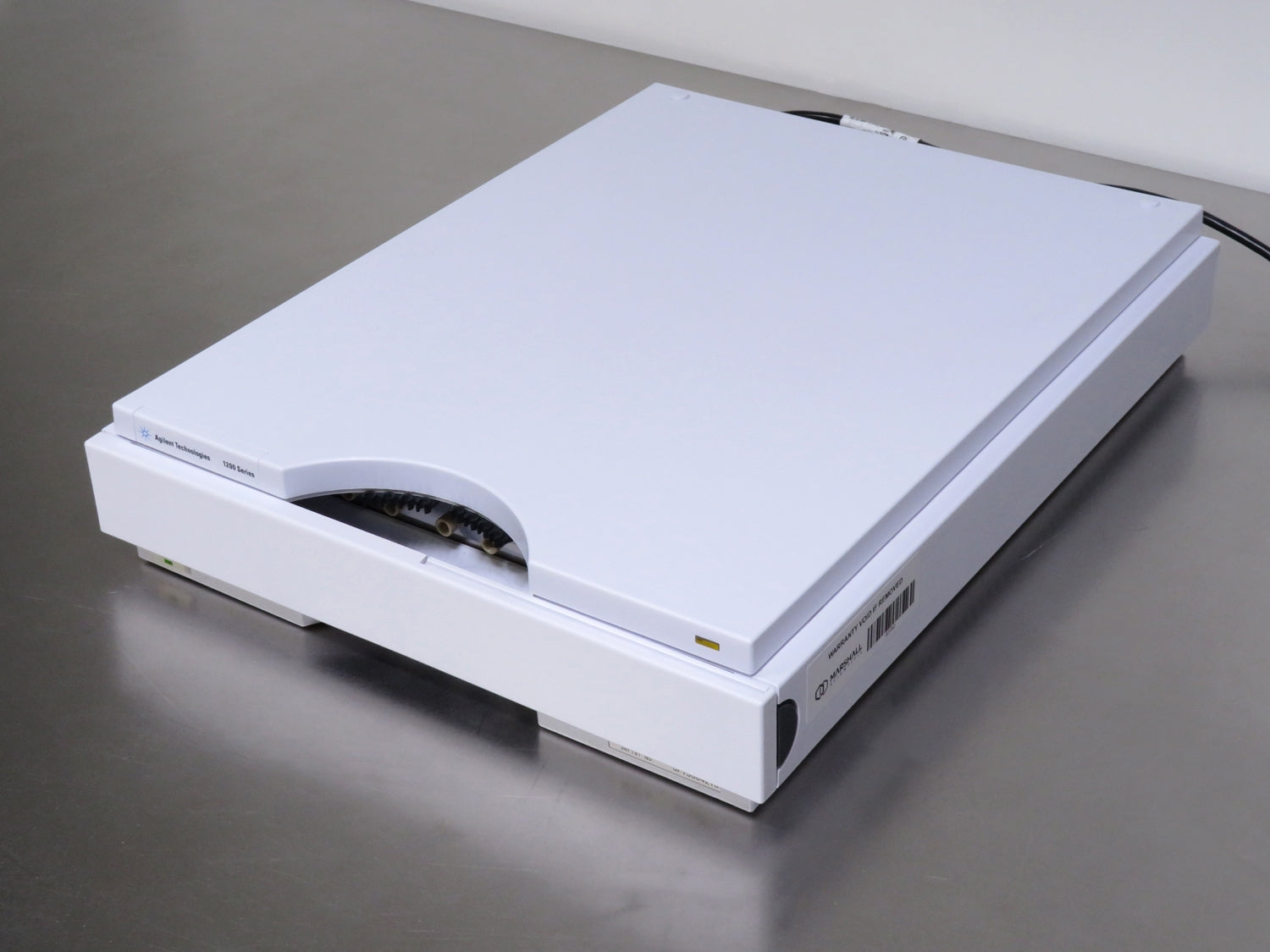

Agilent 1200 HPLC G1322A Degasser
Max Flow Rate
10 ml/min per channel
Number of Channels
4
Internal Volume
Typically 12 ml per channel
- Compatible with a Wide pH Range from 1 to 14 for diverse solvent applications
- Durable Construction with PTFE and PEEK materials for solvent resistance
- Integrated Analog Output enables real-time pressure monitoring (0-3V range)
- Compact Design with dimensions of 13.5 x 17 x 3.1 in (345 x 435 x 80 mm)
- Versatile Electrical Compatibility supports 100-120V or 220-240V, 50/60 Hz operation
- Optimized Solvent Flow Path minimizes internal restrictions for enhanced efficiency
- Reliable Degassing Performance ensures stable operation and reduced bubble formation
The Agilent 1200 HPLC G1322A Degasser provides fast and easy
flushing, purging, priming, and solvent exchange by low internal volume (1 ml
per channel). This degasser, with less internal flow restrictions than other
models, is a perfect fit for applications and solvents with higher flow rates.
The G1322A’s robust design allows high instrument uptime, with solvents passing
through a gas-permeable membrane tube with a constant vacuum level.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Agilent 1200 HPLC G1322A Degasser includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Agilent 1200 HPLC G1322A Degasser Specifications
|
Max Flow Rate
|
10 ml/min per channel |
|
Number of Channels
|
4
|
|
Internal Volume
|
Typically 12 ml per channel
|
|
Materials in Contact with Solvent
|
PTFE, PEEK
|
|
pH Range
|
1 – 14
|
|
Analog Output (AUX)
|
For pressure monitoring, range 0 – 3 V
|
|
Dimensions (W x D x H)
|
13.5 x 17 x 3.1 in (345 x 435 x 80 mm)
|
|
Electrical Requirements
|
100-120 or 220-240 VAC, 50/60 Hz
|
Click Here to View the Technical Specs for the G1322A Degasser
