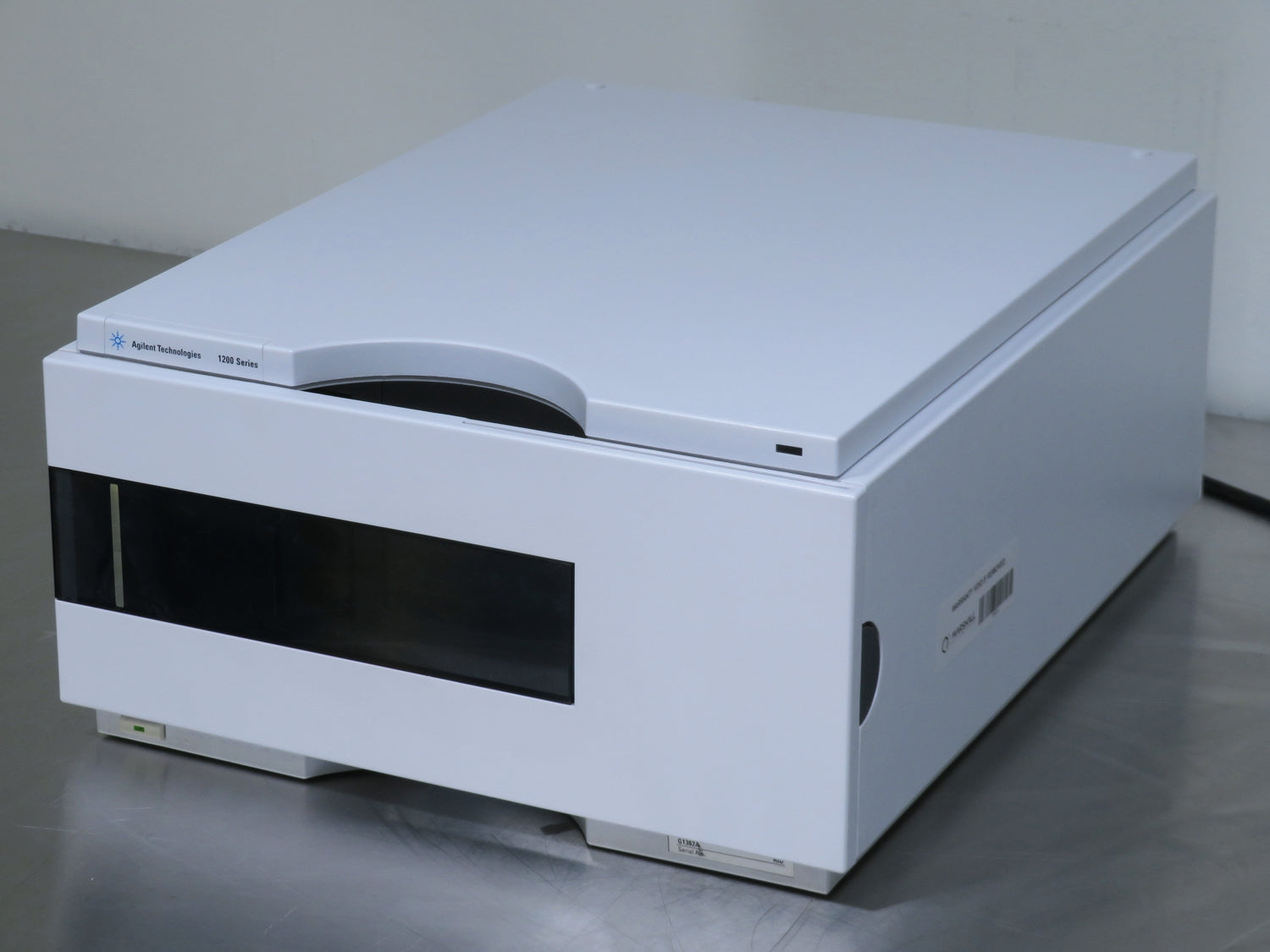

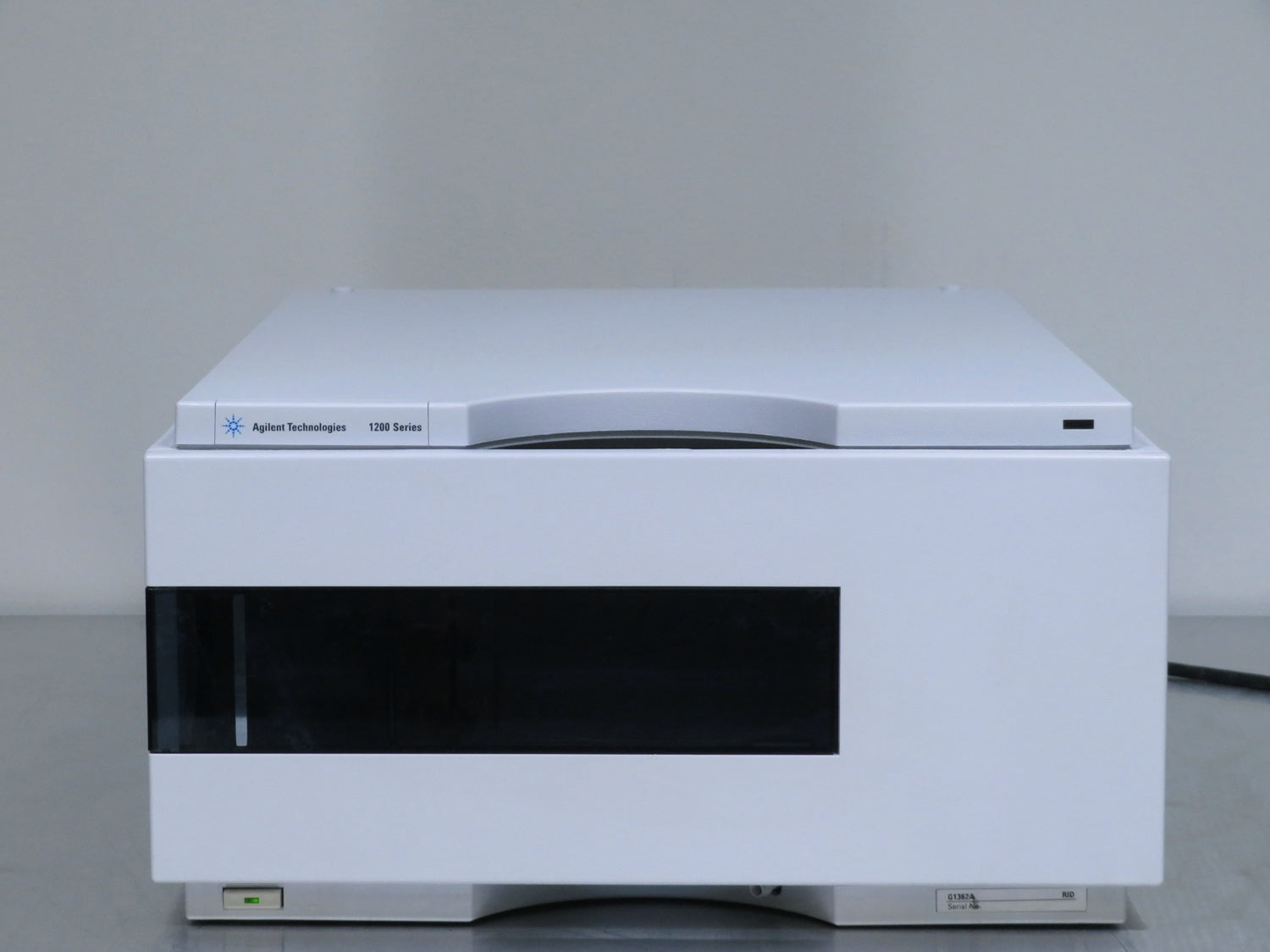

Agilent 1200 HPLC G1362A RID Detector

The Agilent 1200 HPLC G1362A RID Detector is a HPLC refractive index detector (RID) detector that provides excellent performance for entry-level UHPLC and HPLC differential refractometer (DRI) experiments. This detector is a differential refractometer that measures the deflection of a light beam due to the difference in refractive index between the liquids in the sample and reference cells of a single flow cell. A beam of light from the lamp passes through a flow cell which is separated diagonally into sample and reference cells. At the rear of the flow cell a mirror reflects the light back through the flow cell and via a zero glass, which affects the path of the light beam, to the light receiver. The light receiver has two diodes each of which produces an electrical current proportional to the amount of light that falls upon it. Rapid equilibration times and stable baselines make it easy to analyze carbohydrates, triglycerides, organic acids, and pharmaceutical excipients. The Agilent 1200 HPLC G1362A RID Detector is the detector of choice for polymer characterization using gel permeation chromatography (GPC) and size exclusion chromatography (SEC).

The Agilent 1200 HPLC G1362A RID Detector also features optimized light levels, automatically adjusting the light intensity to compensate for lamp degradation and flow cell staining. Users can conduct automatic purging of the reference flow cell as well using programmable purge and wait times. This G1362A RID Detector features minimum baseline noise for excellent sensitivity and low limits of detection. Users may also utilize the recycle valve to keep the system at operating conditions, avoiding warm-up wait times and saving solvents.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Agilent 1200 HPLC G1362A RID Detector Specifications

Detection Type	Refractive Index
Refractive Index Range	1.00 to 1.75 RIU, calibrated
Measurement Range	± 600 x 10 -6 RIU
Optical Zeroing	via set screw
Optics Temperature Control	5°C above ambient to 55°C
Sample Cell	Volume 8 µL, maximum pressure 5 bar (0.5 Mpa), maximum flow rate 5 mL/min

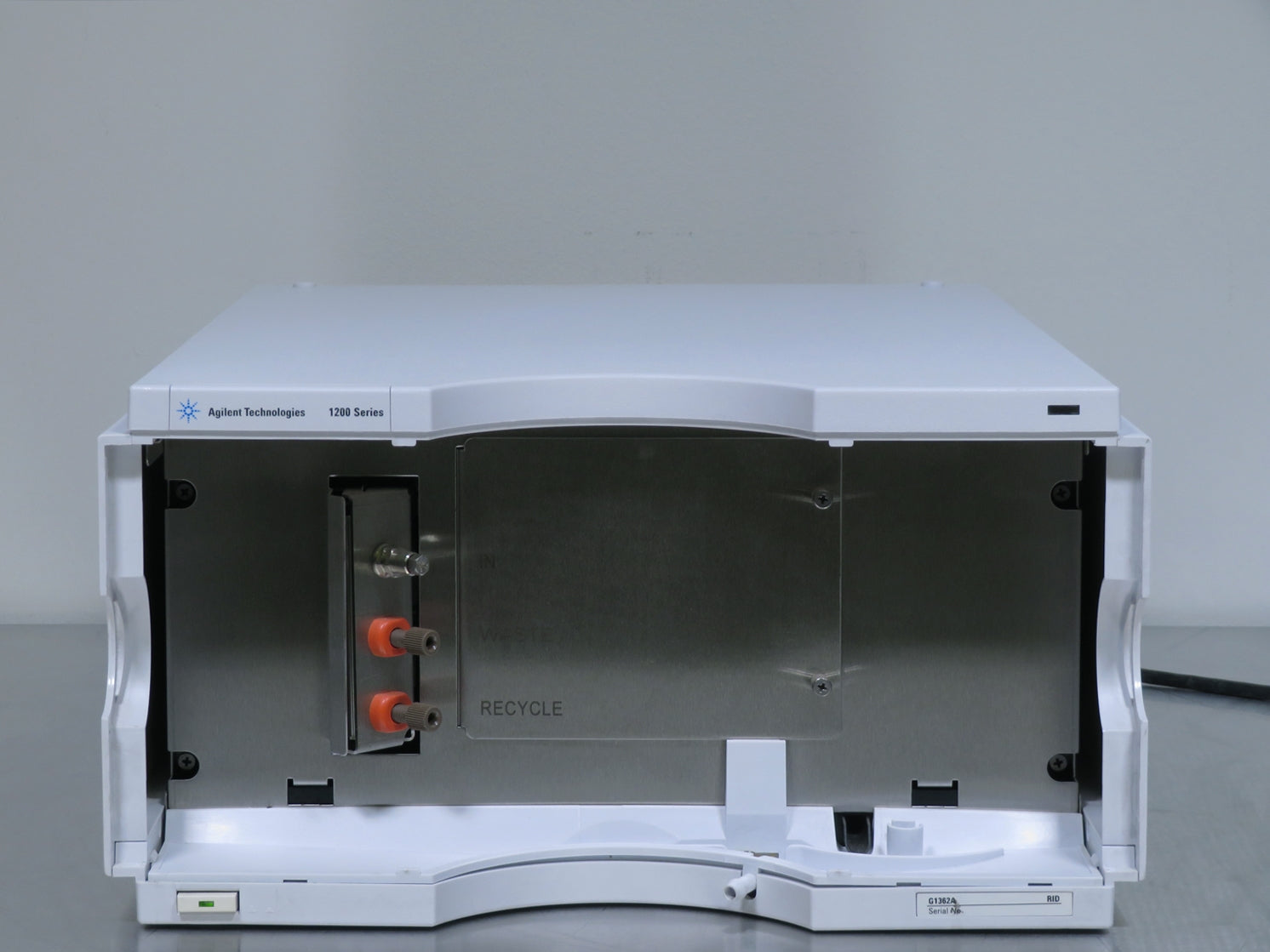

Valves	Automatic purge and automatic solvent recycle
Volumes	Inlet port to sample cell: 62 µL Inlet port to outlet port: 590 µL
Liquid Contact Materials	316 stainless steel, teflon and quartz glass
pH Range	2.3 to 9.5
Short Term Noise	< ± 2.5 x 10 -9 RIU
Drift	< 200 x 10 -9 RIU/hour
Time Programmable Parameters	Polarity and peak width
Detector Zero	Automatic zero before analysis
Dimensions (H x W x D)	7 x 13.5 x 17 in. (18 x 34.5 x 43.5 cm)
Weight	38 lb. (17 kg.)
Electrical Requirements	100-240V, 50/60Hz
