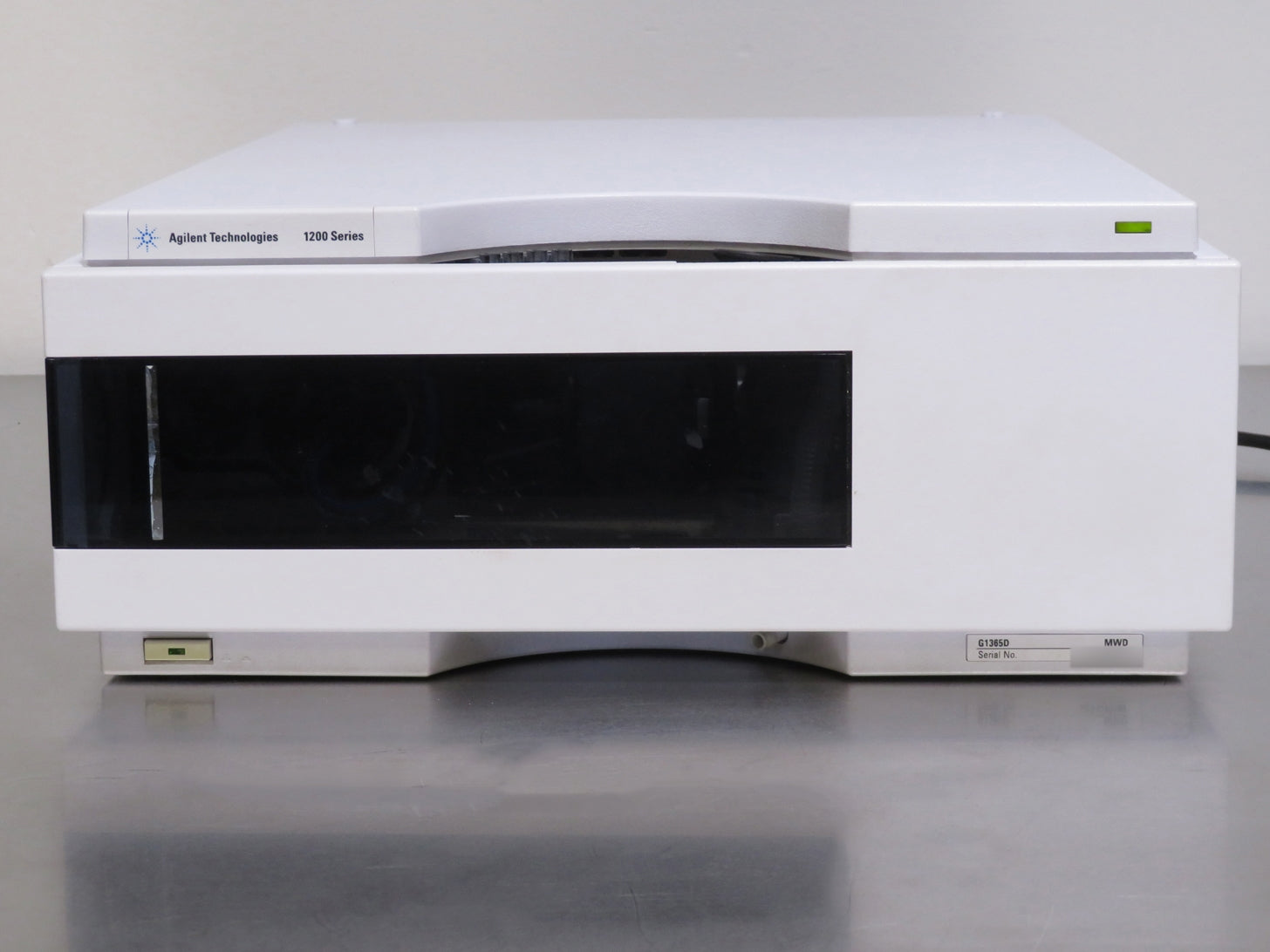

Agilent 1200 HPLC G1365D MWD Detector

The Agilent 1200 HPLC G1365D MWD Detector is a dedicated MWD that offers excellent sensitivity for both single and multiple wavelength detection. This Multiple Wavelength Detector utilizes deuterium and tungsten lamps with a wavelength range of 190 to 950 nm, offering an expanded detection range with lowest detection limit. The G1365B’s diode array design enables simultaneous acquisition of up to eight compound-specific wavelengths for increased sensitivity and selectivity. The programmable slit (1 to 16 nm) also allows rapid optimization of sensitivity, linearity, and spectral resolution.

All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

Agilent 1200 HPLC G1365D MWD Detector Specifications

Detection Type	1024-element photodiode array
Light Source	Deuterium and tungsten lamps
Wavelength Range	190 - 950 nm
Short Term Noise (ASTM) Single and Multi-Wavelength	± 1 x 10 -5 AU, at 254 and 750 nm
Drift	2 x 10 -3 AU/h at 254 nm
Linear Absorbance Range	> 2 AU (upper limit)
Wavelength Accuracy	± 1 nm
Wavelength Bunching	1 - 400 nm, programmable in 1 nm steps
Slit Width	1, 2, 4, 8, 16 nm
Diode Width	< 1 nm
Flow Cell	Standard: 13 ul volume, 10 mm cell path length and 120 bar (1740 psi) pressure maximum
Dimensions (W x D x H)	13.5 x 17 x 5.5 in. (34.5 x 43.5 x 14 cm)
Weight	26 lb. (11.5 kg)
Electrical Requirements	100-240V, 50/60Hz, 300VA
