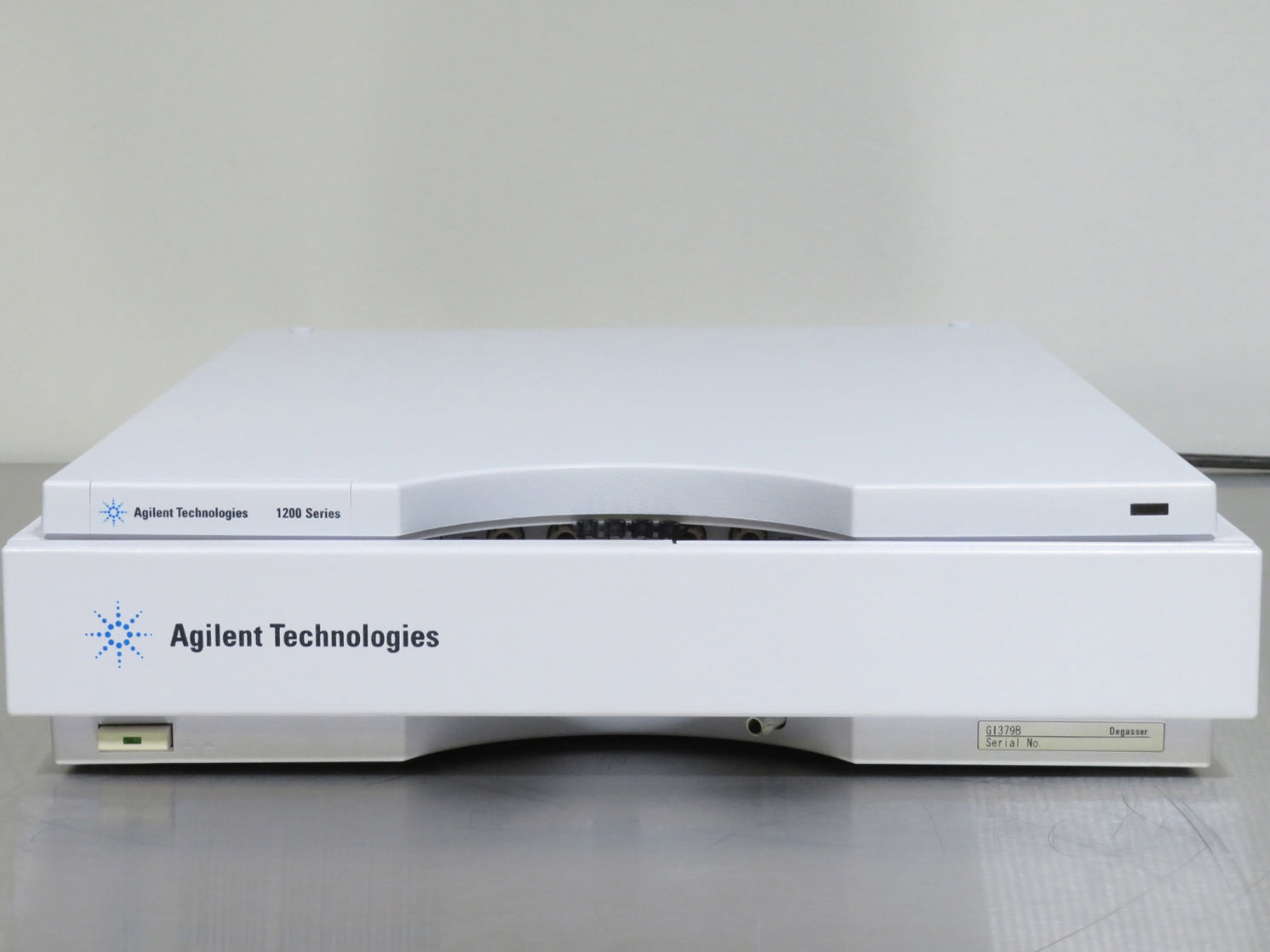

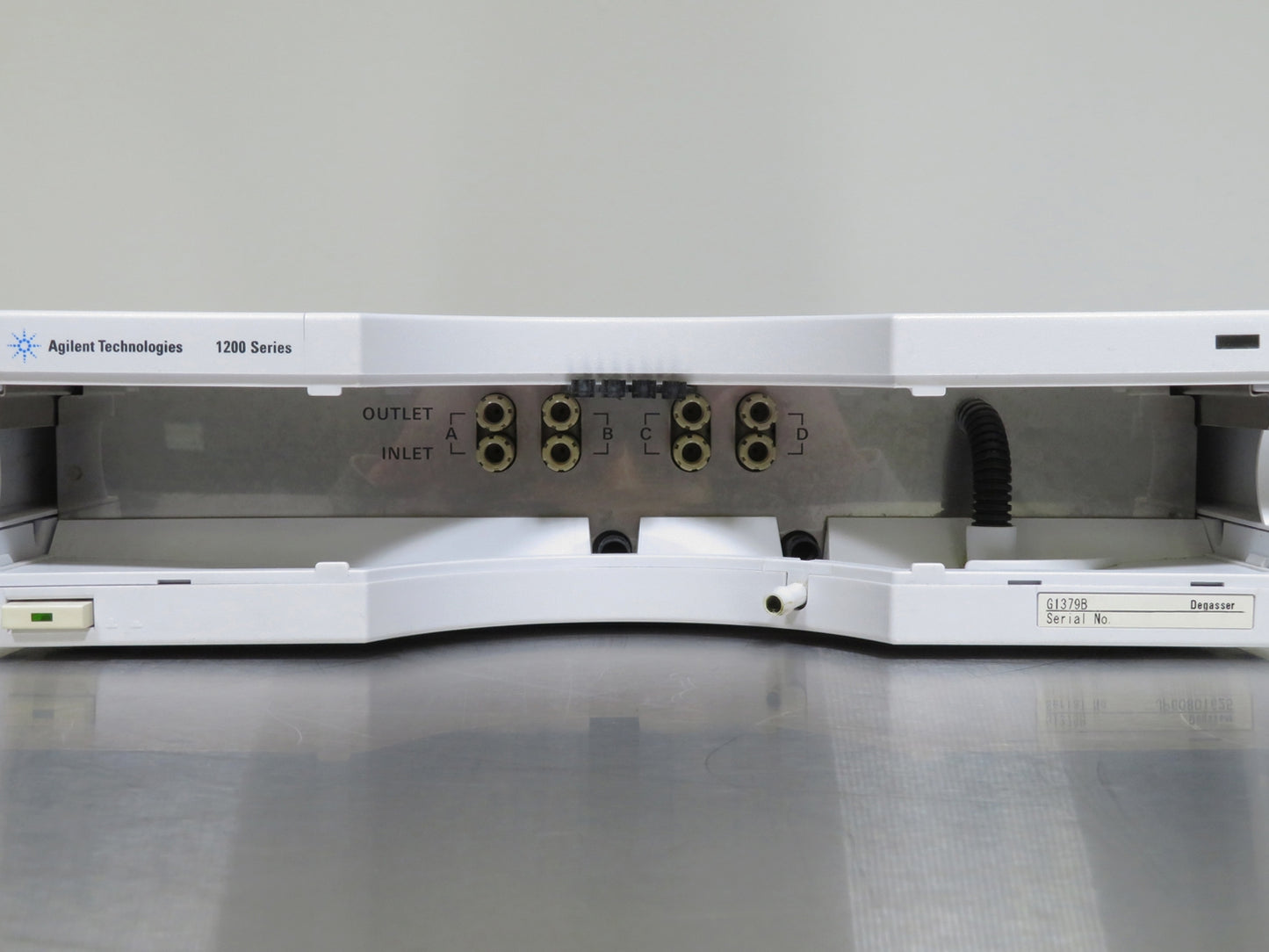

Agilent 1200 HPLC G1379B Degasser
Max Flow Rate
0 to 5 ml/min per channel
Number of Channels
4 Channels
Internal Volume per Channel
Typically 1 ml per channel
Features
- Constructed with chemically resistant materials, including PTFE, FEP, and PEEK for durability and solvent compatibility
- Wide pH range compatibility from 1 to 14, supporting diverse applications
- Integrated RS-232 output for convenient diagnostic monitoring
- Compact design with dimensions of 13.5 x 17 x 3.1 in (345 x 435 x 80 mm) for easy installation
- Efficient vacuum system with automatic control for consistent degassing performance
The Agilent 1200 HPLC G1379B Micro Vacuum Degasser comprises a 4-channel vacuum container, including 4 micro structured membranes, and a vacuum pump. When the micro vacuum degasser is switched on, the control circuit turns on the vacuum pump, which is operated with constant speed and voltage, generating a partial vacuum in the vacuum container. The degasser maintains the partial vacuum with the help of a controlled leak in the degasser's proportional valve.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Agilent 1200 HPLC G1379B Degasser includes:
The Agilent 1200 HPLC G1379B Degasser includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Agilent 1200 HPLC G1379B Degasser Specifications
|
Max Flow Rate
|
0-5 ml/min per channel |
|
Number of Channels
|
4
|
|
Internal Volume per Channel
|
Typically 1 ml per channel |
|
Materials in Contact with Solvent
|
PTFE, FEP, PEEK
|
|
pH Range
|
1 – 14
|
|
RS-232 Output |
For diagnostic purposes |
|
Dimensions (W x D x H)
|
13.5 x 17 x 3.1 in (345 x 435 x 80 mm)
|
|
Electrical Requirements
|
100-120 or 220-240 VAC, 50/60 Hz |
Click Here to View the Technical Specs for the Agilent 1200 HPLC G1379B Degasser
