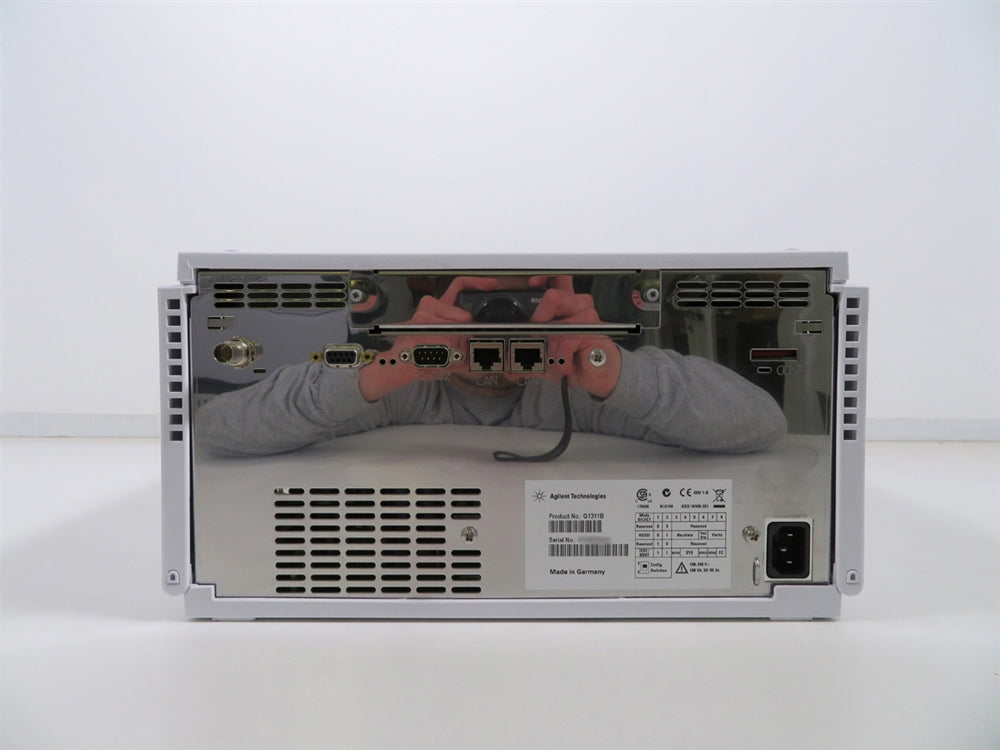

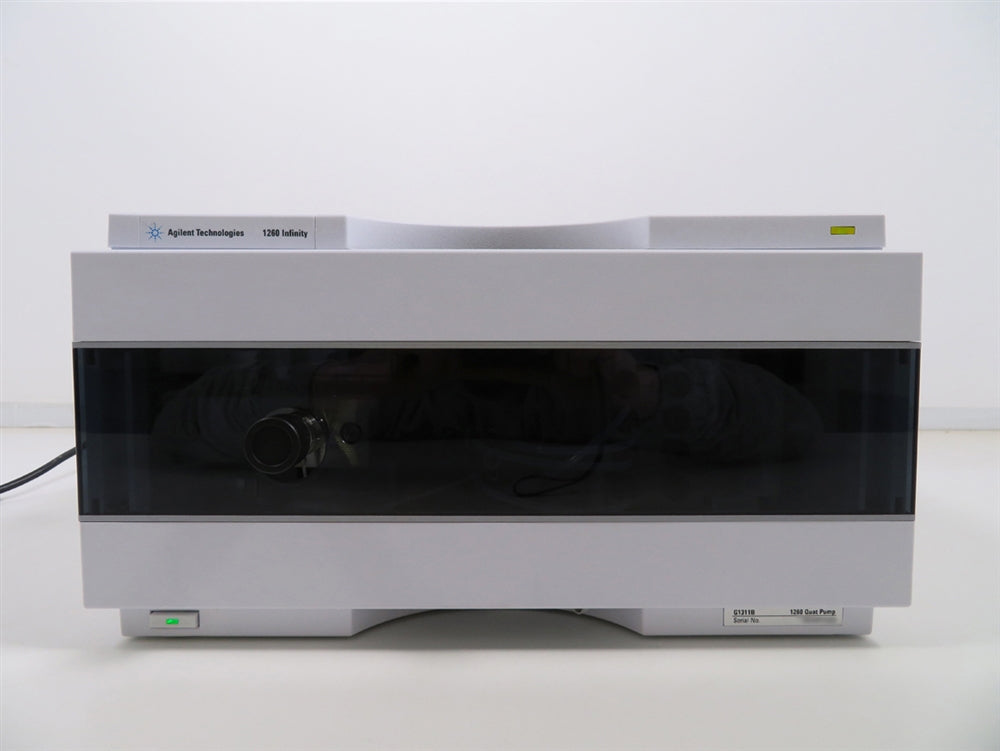

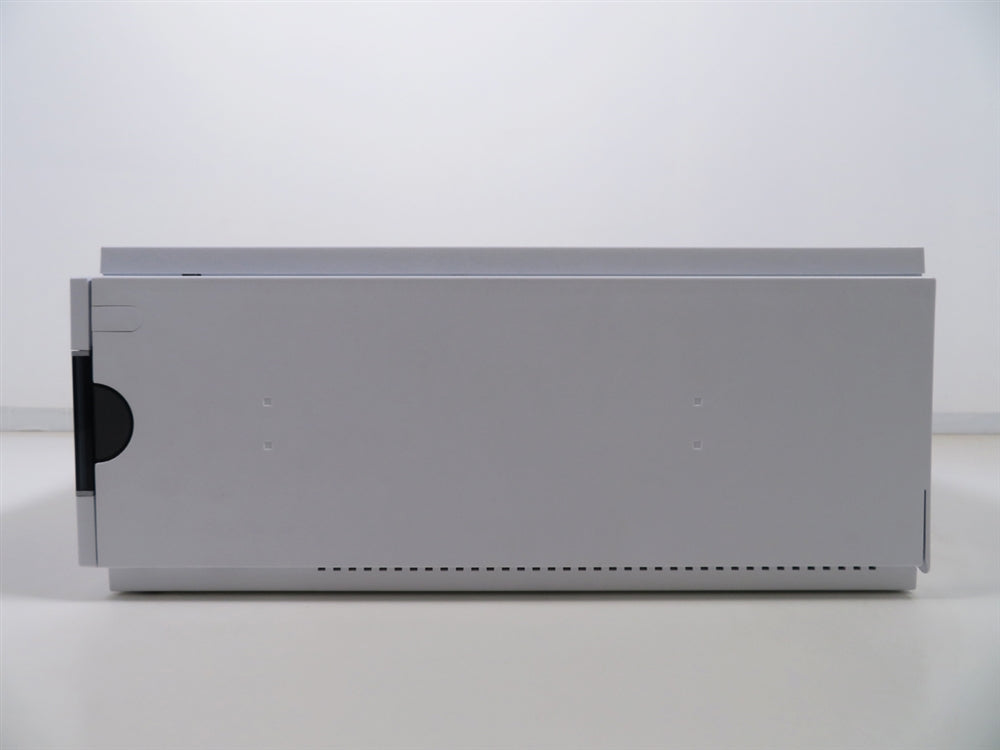

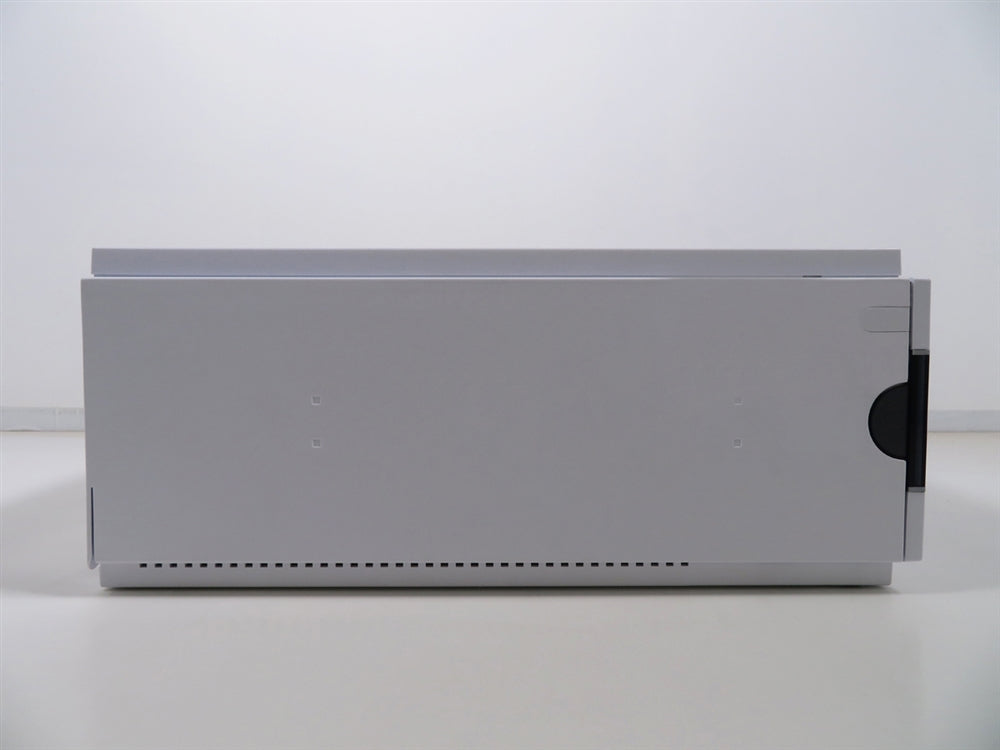

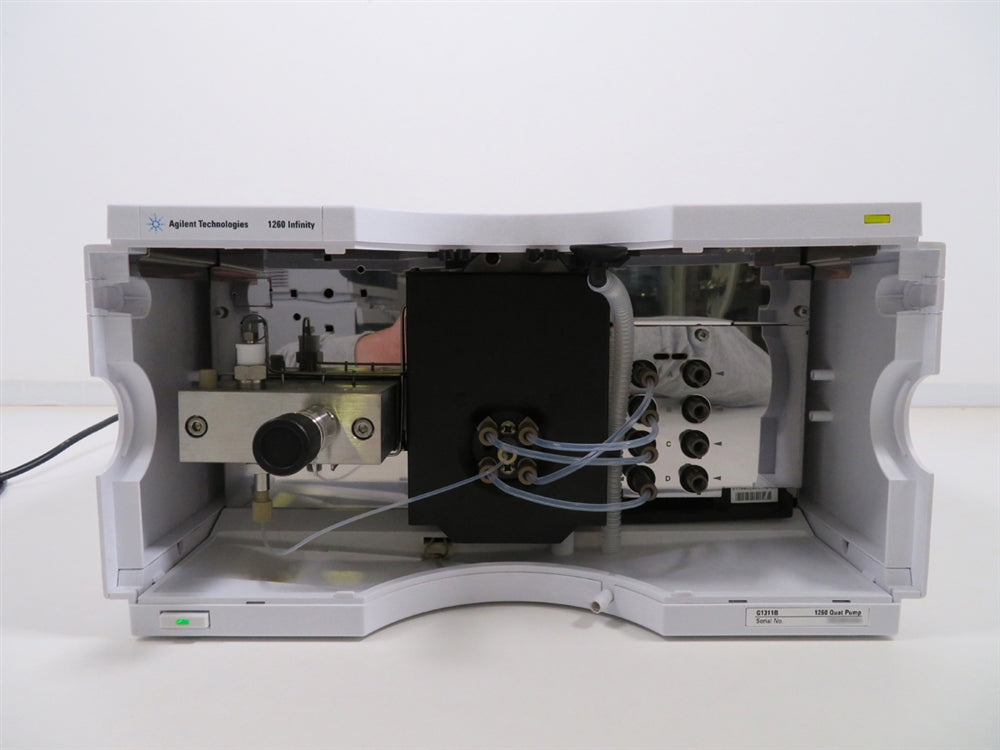

Agilent 1260 Infinity I HPLC G1311B Quat Pump
Flow Accuracy
± 1% or 10 µl/min
Setable Flow Range
0.001 – 10 mL/min, in 0.001 mL/min increments
Flow Range
0.2 – 10.0 mL/min
- Features a robust two-channel, dual-plunger in-series design for comprehensive solvent delivery functions.
- Capable of generating gradients through low-pressure mixing from four individual solvent channels.
- Achieves virtually pulse-free and stable solvent flow with variable stroke volume.
- Pump assembly can generate pressures up to 600 bar, efficiently metering solvent and delivering it to the high-pressure side.
- Integrated 4-channel vacuum degasser built into the quaternary pump to ensure efficient degassing of solvents.
The Agilent 1260 Infinity HPLC G1311B Quaternary Pump is based on a two-channel, dual-plunger in-series design which comprises all essential functions that a solvent delivery system has to fulfill, generating gradients by low pressure mixing from four individual solvent channels. The G1311B ensures virtually pulse-free and stable solvent flow via the variable stroke volume. Metering of solvent and delivery to the high-pressure side are performed by one pump assembly, which can generate pressure up to 600 bar. Degassing of solvents is accomplished with an integrated 4-channel vacuum degasser built into the quaternary pump. Solvent compositions are generated on the low-pressure side by a high speed proportioning valve.
All of our equipment is fully tested to perform at factory
specifications before being shipped.
The Agilent 1260 Infinity HPLC G1311B Quat Pump includes:
- > Firmware Version 07.02 (Can be changed upon request)
- > Leak and Pressure Diagnostic Report
- > Lan Cable / Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Agilent 1260 Infinity I HPLC G1311B Quat Pump Specifications
|
Setable Flow Range |
0.001 – 10 mL/min, in 0.001 mL/min increments |
|
Flow Range |
0.2 – 10.0 mL/min |
|
Flow Precision |
≤ 0.07% RSD, or ≤ 0.02 min SD whatever is greater, based on retention time at constant room temperature |
|
Flow Accuracy |
± 1% or 10 µl/min whatever is greater |
|
Pressure Operating Range |
0 – 60 MPa (0 – 600 bar, 0 – 8,700 psi) up to 5 mL/min 0 – 20 MPa (0 – 200 bar, 0 – 2,950 psi) up to 10 mL/min |
|
Pressure Pulsation |
< 2% amplitude or < 3 bar at 1 mL/min isopropanol, at all pressure > 1 MPa (10 bar, 145 psi) |
|
Recommended pH Range |
1.0 – 12.5, solvents with pH < 2.3 should not contain acids which attack stainless steel |
|
Gradient Formation |
Low pressure quaternary mixing/gradient capability using proprietary high-speed proportioning valve |
| Delay Volume | 600 - 900µl, dependent on back pressure |
|
Composition Range |
0 – 95% or 5 – 100%, user selectable |
|
Composition Precision |
< 0.2% RSD or < 0.04 min SD |
| Integrated Degassing Unit |
Number of channels: 4
Internal volume per channel: 1.5 mL |
|
Electrical Requirements |
100 - 240V, 50/60 Hz, 180 VA |
Click Here to View the Technical Specs for the Agilent 1260 Infinity HPLC G1311B Quat Pump
