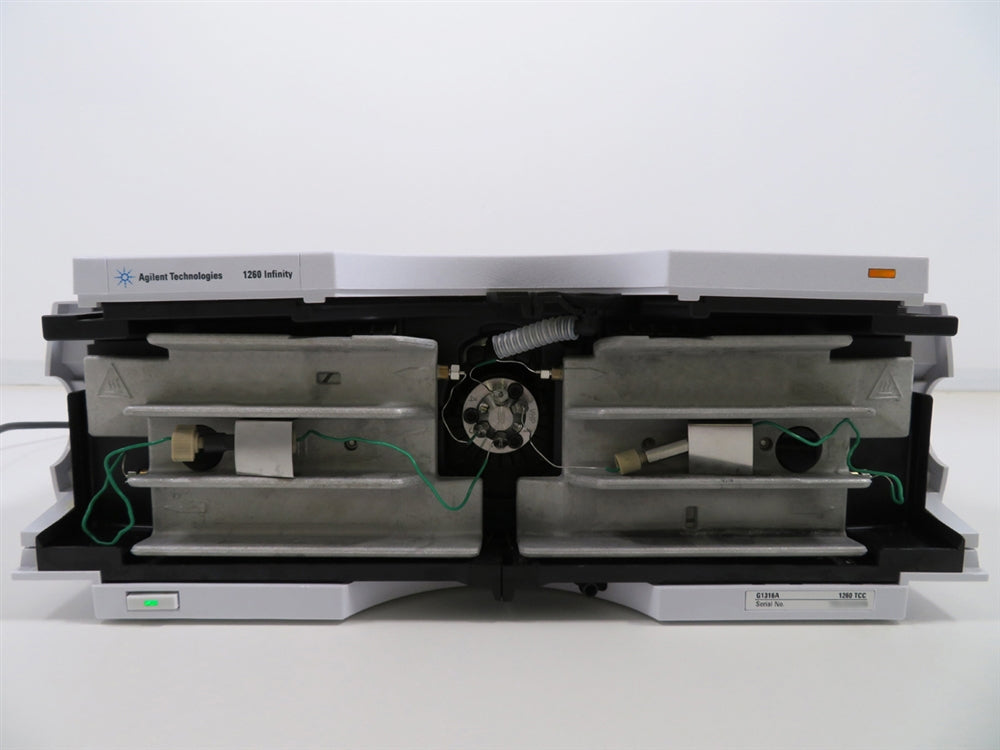

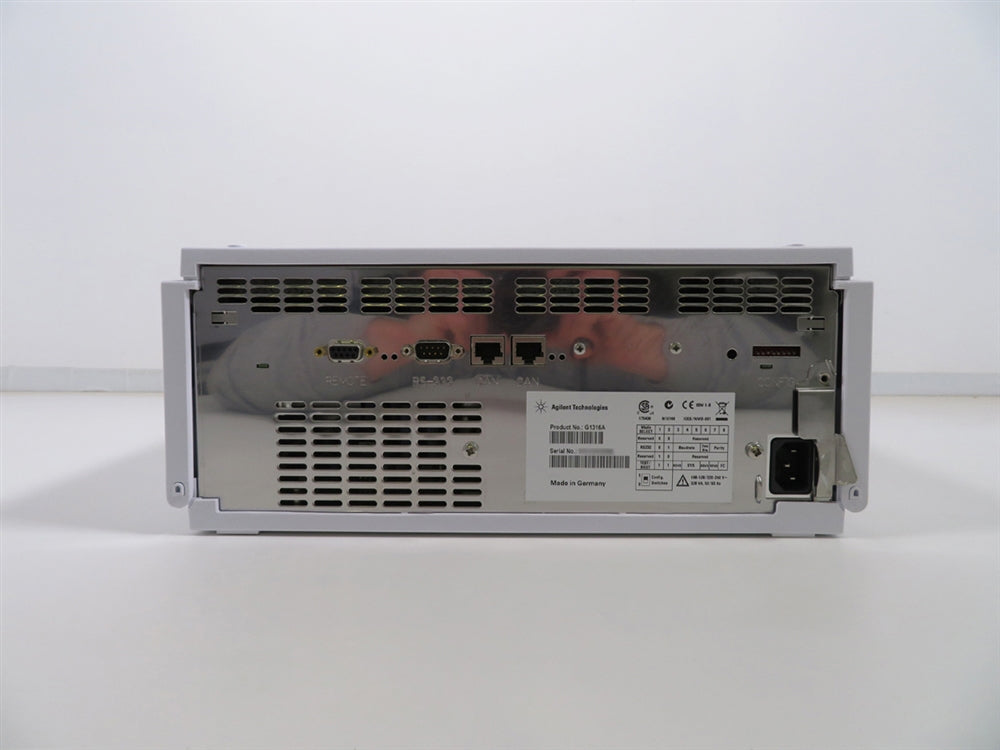

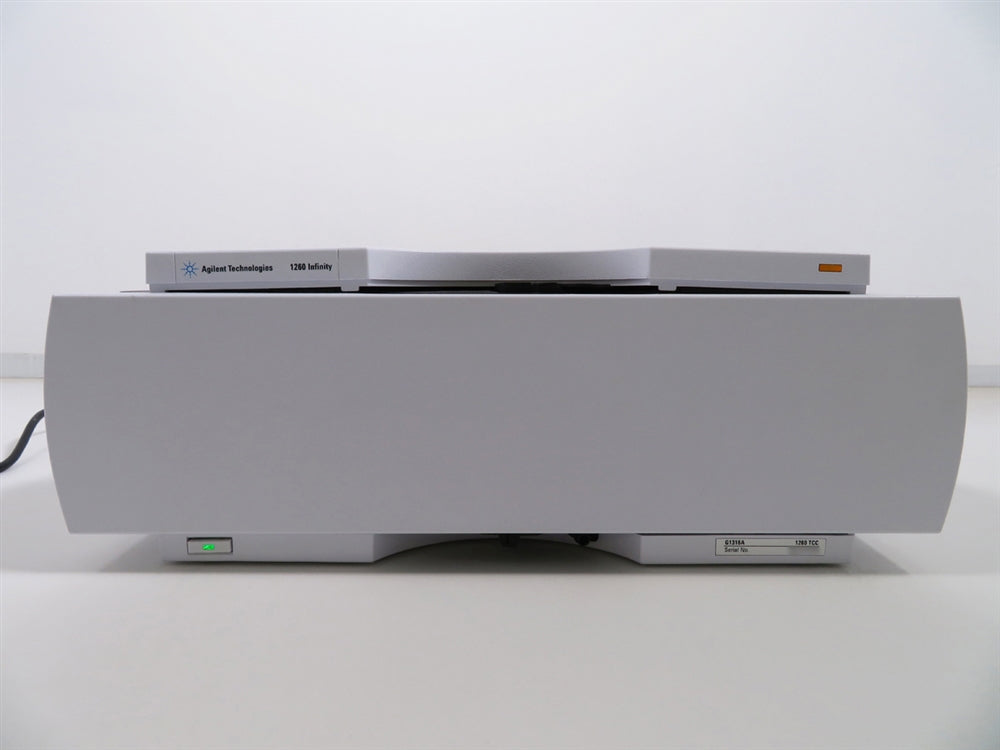

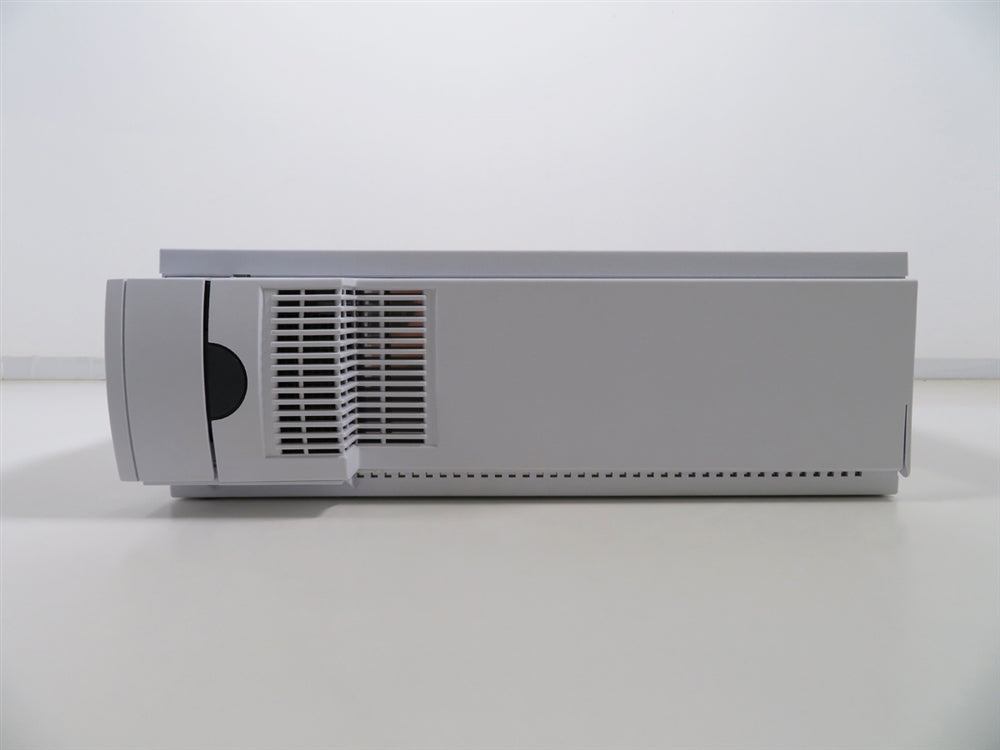

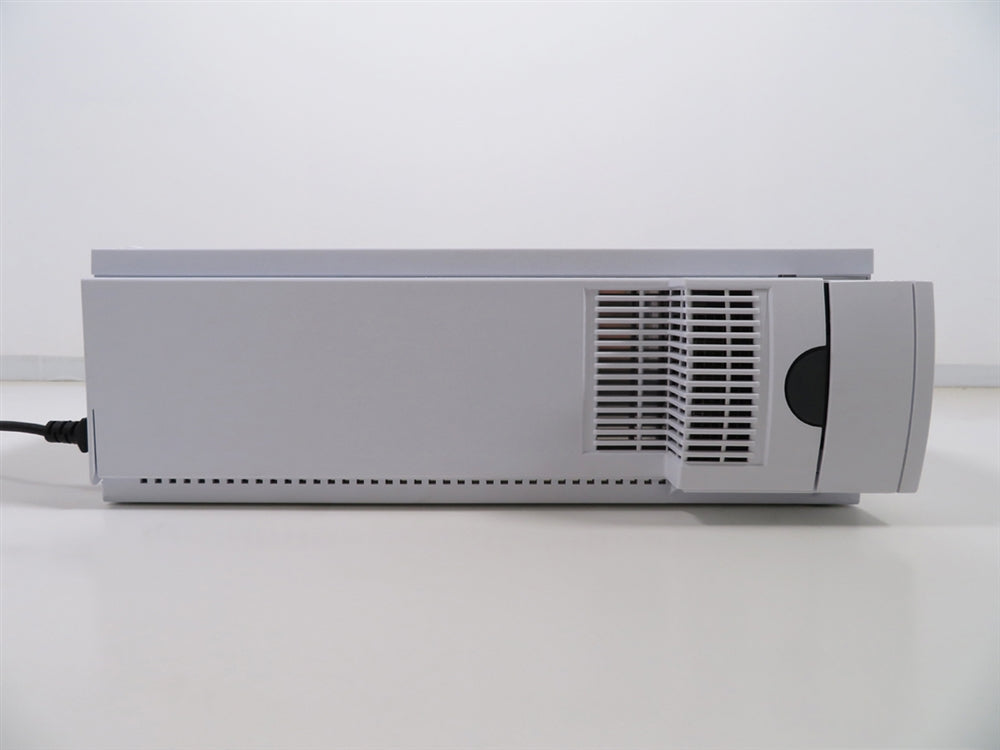

Agilent 1260 Infinity I HPLC G1316A Column Compartment
Temperature Range
10°C below ambient to 80°C
Temperature Stability
± 0.15°C
Temperature Accuracy
± 0.8°C
- Accommodates up to three 30 cm columns for flexible method development
- Dual heat exchangers enable efficient solvent pre-heating
- Automated column identification module supports GLP compliance
- Compact design integrates easily into Agilent 1260 Infinity HPLC stacks
- Fast warm-up and cool-down reduces downtime between runs
- Includes CAN cable for seamless communication within the HPLC system
- Built-in safety features include leak detection and shutdown signaling
The Agilent 1260 Infinity I HPLC G1316A Column Compartment is built with two heat exchangers for
solvent pre-heating, automated column identification module and CAN cable. The compartment’s compact size conveniently fits into a single Agilent 1260 Infinity HPLC stack. The G1316A offers a temperature range of
The Agilent 1260 Infinity I HPLC G1316A Column Compartment is fully tested to perform at factory specifications before being shipped.
The Agilent 1260 Infinity I HPLC G1316A Column Compartment includes:
- > Firmware Version 07.02 (Can be changed upon request)
- > Switching Valve
- > Thermostat Calibration Report
- > Lan Cable / Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Agilent 1260 Infinity I HPLC G1316A Column Compartment Specifications
|
Temperature Range |
10°C below ambient to 80°C |
|
Temperature Stability |
± 0.15°C |
|
Temperature Accuracy |
± 0.8°C |
|
Column Capacity |
Three 30 cm columns |
|
Warm-Up/Cool-Down Time |
5 mins from ambient to 40°C
|
