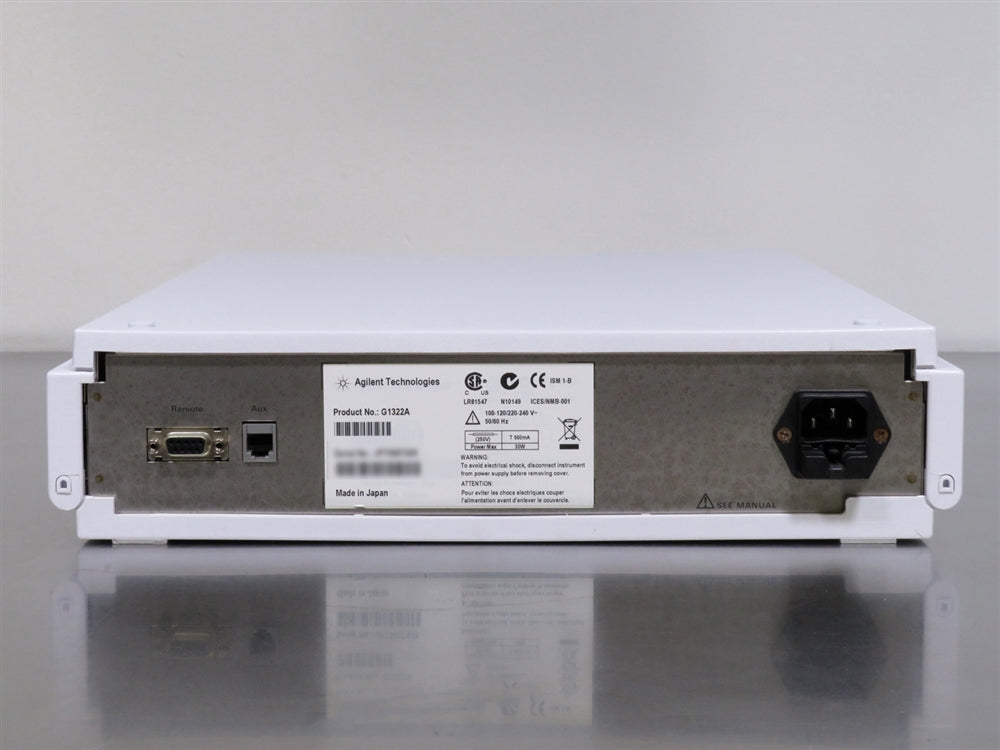

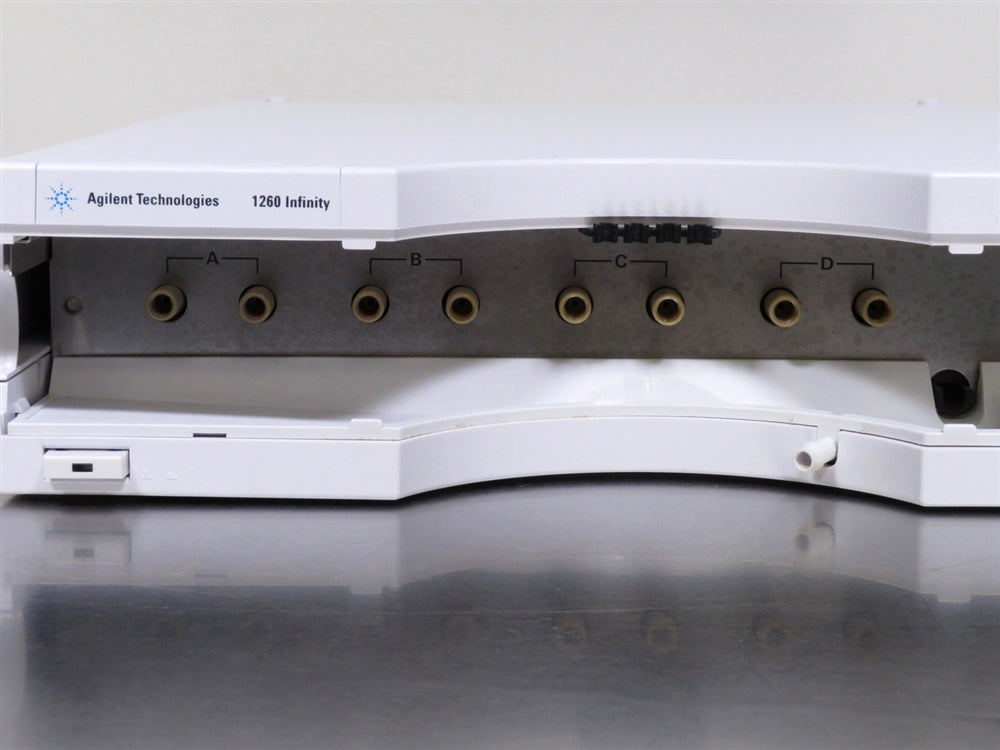

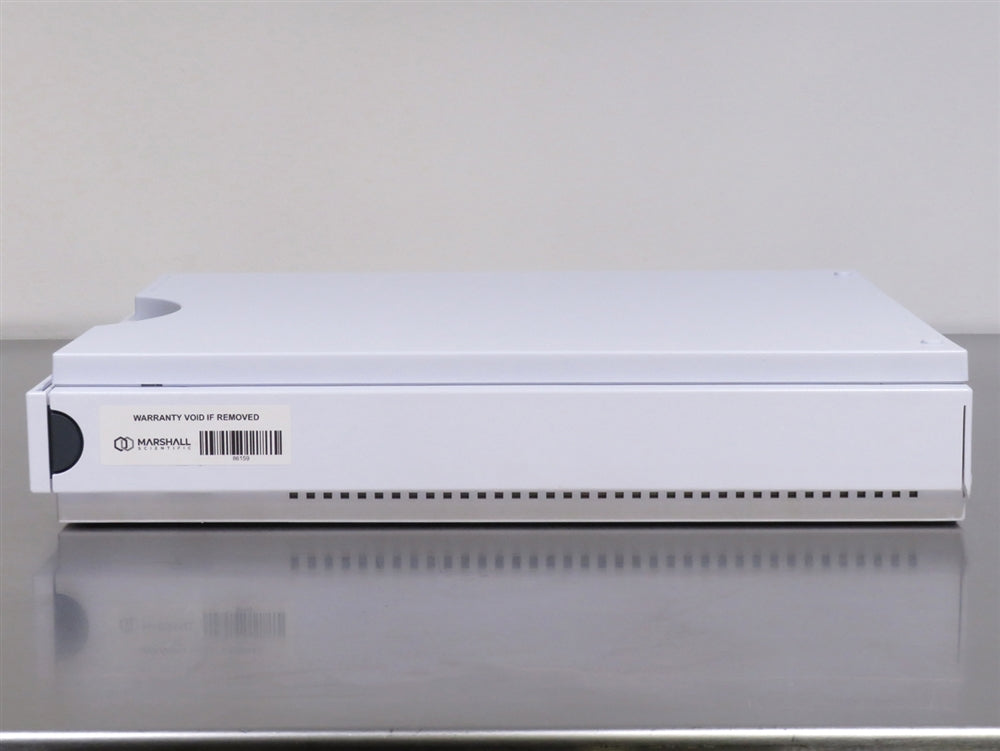

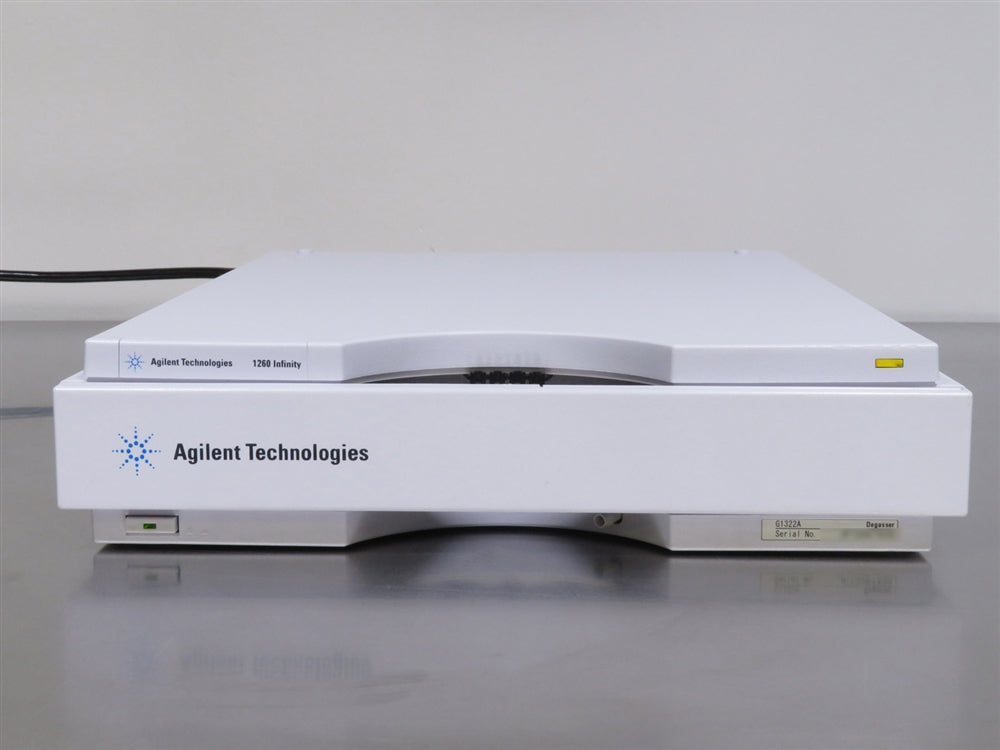

Agilent 1260 Infinity I HPLC G1322A Degasser

The Agilent 1260 Infinity I HPLC G1322A Degasser is designed to effectively remove dissolved gases from mobile phases, helping ensure stable pump performance and consistent chromatographic results. The system uses a four-channel vacuum container with tubular membrane technology, allowing solvents to pass through gas-permeable membranes where dissolved gases are efficiently removed under controlled vacuum conditions. Vacuum generation and regulation are automatically managed by an internal pump and pressure sensor, which maintain the appropriate vacuum level during operation. The degasser continuously monitors system pressure and adjusts pump activity as needed to keep the vacuum within defined operating limits. Multiple operating modes support reliable degassing under varying conditions, while integrated diagnostics detect abnormal vacuum levels and initiate protective responses in the event of a fault.

Built for dependable day-to-day LC operation, the G1322A provides consistent solvent degassing with minimal user intervention. Its controlled vacuum management, membrane-based degassing design, and integrated monitoring functions make it a reliable component for maintaining baseline stability and reproducible performance in Agilent 1260 Infinity LC systems.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Agilent 1260 Infinity I HPLC G1322A Degasser Specifications

Maximum Flow Rate	10 ml/min per channel
Number of Channels	4
Internal Volume per Channel	Typically 12 mL per channel
Materials in Contact with Solvent	PTFE, PEEK
pH Range	1 to 14
Dimensions (H x W x D)	13.5 x 17 x 3.1 in. (34.5 x 43.5 x 8 cm)
Weight	16 lb. (7 kg.)
Electrical Requirements	100-240V, 50/60Hz, 5W
