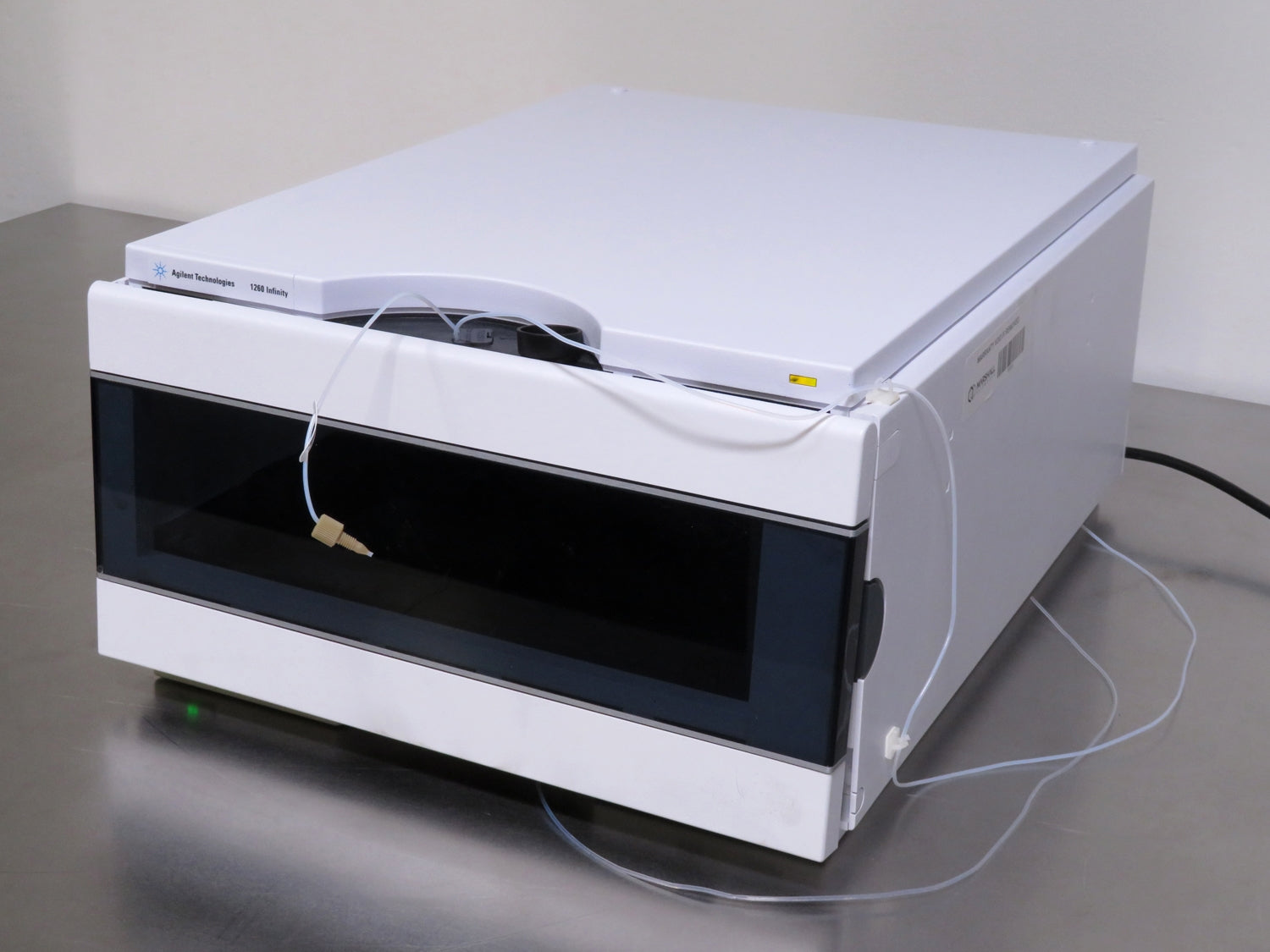

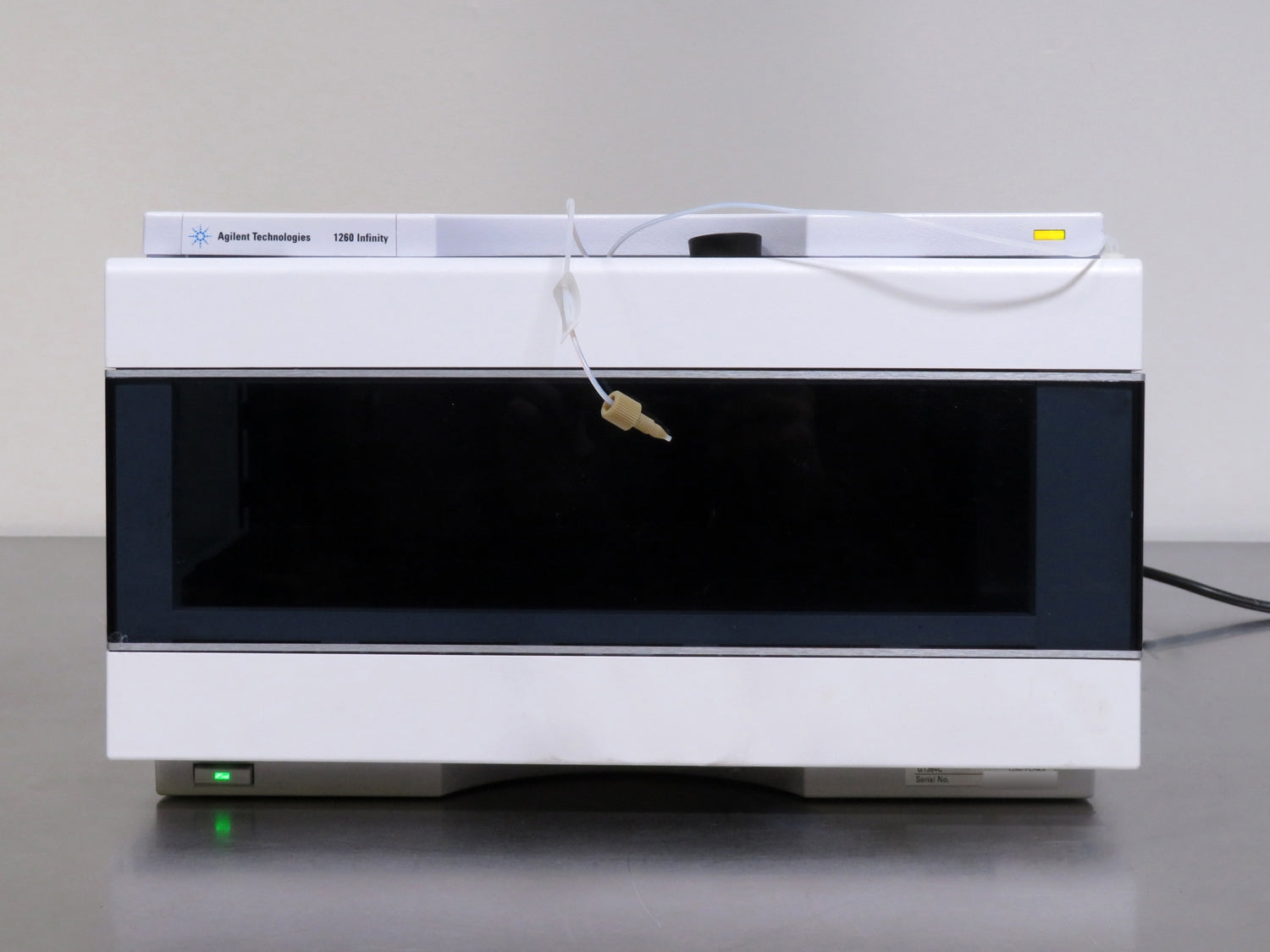

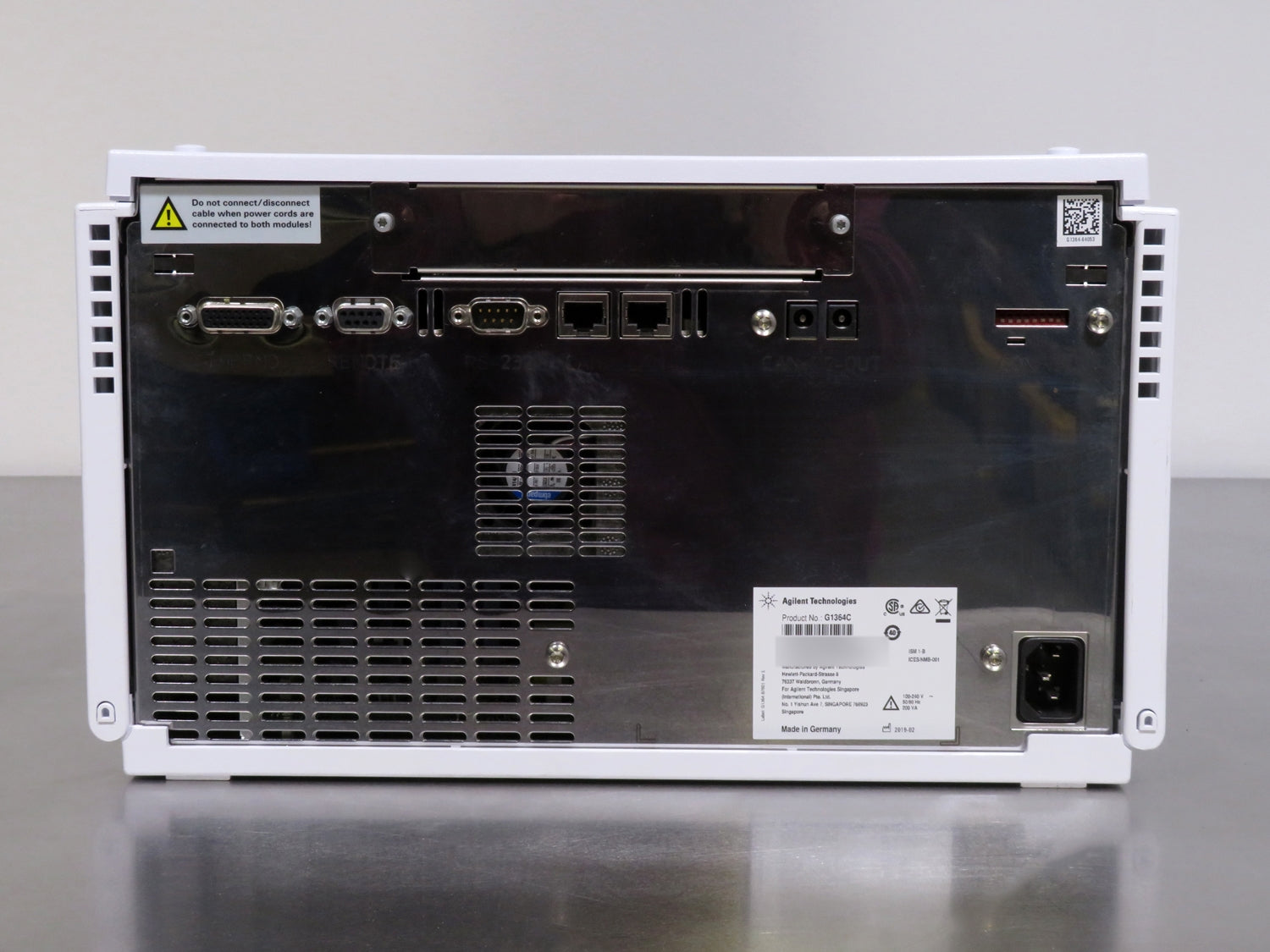

Delay Volume (in ul)

Fraction collector inlet to diverter valve: ~50 (typical, depends on length of the tubing)

Diverter valve: ~15

Diverter valve to needle: ~10

Needle: ~4

~20 mL with 48 mm tubes

~30 mL with 75 mm tubes

Time slices

Peak (threshold, up- / downslope)

Timetable (combination of time intervals and peak)

Manual trigger (supported only with Agilent Instant Pilot G4208A)

Discrete fractions: default mode for all vessels. The flow is diverted to waste, while moving from one vessel position to the next vessel position

Continuous flow: optional, available only when using deep well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste

Needle into location: Needle pushes into the vessel as deep as specified, for the use with capped vials and test tubes and well plates with closing mats

Droplet setup mode: The tip of the fraction collector needle will initially move down to the bottom of the well. Then it will slowly move upwards while the fraction is collected. The droplet setup mode enables the fraction collector to collect small fractions without bubbles

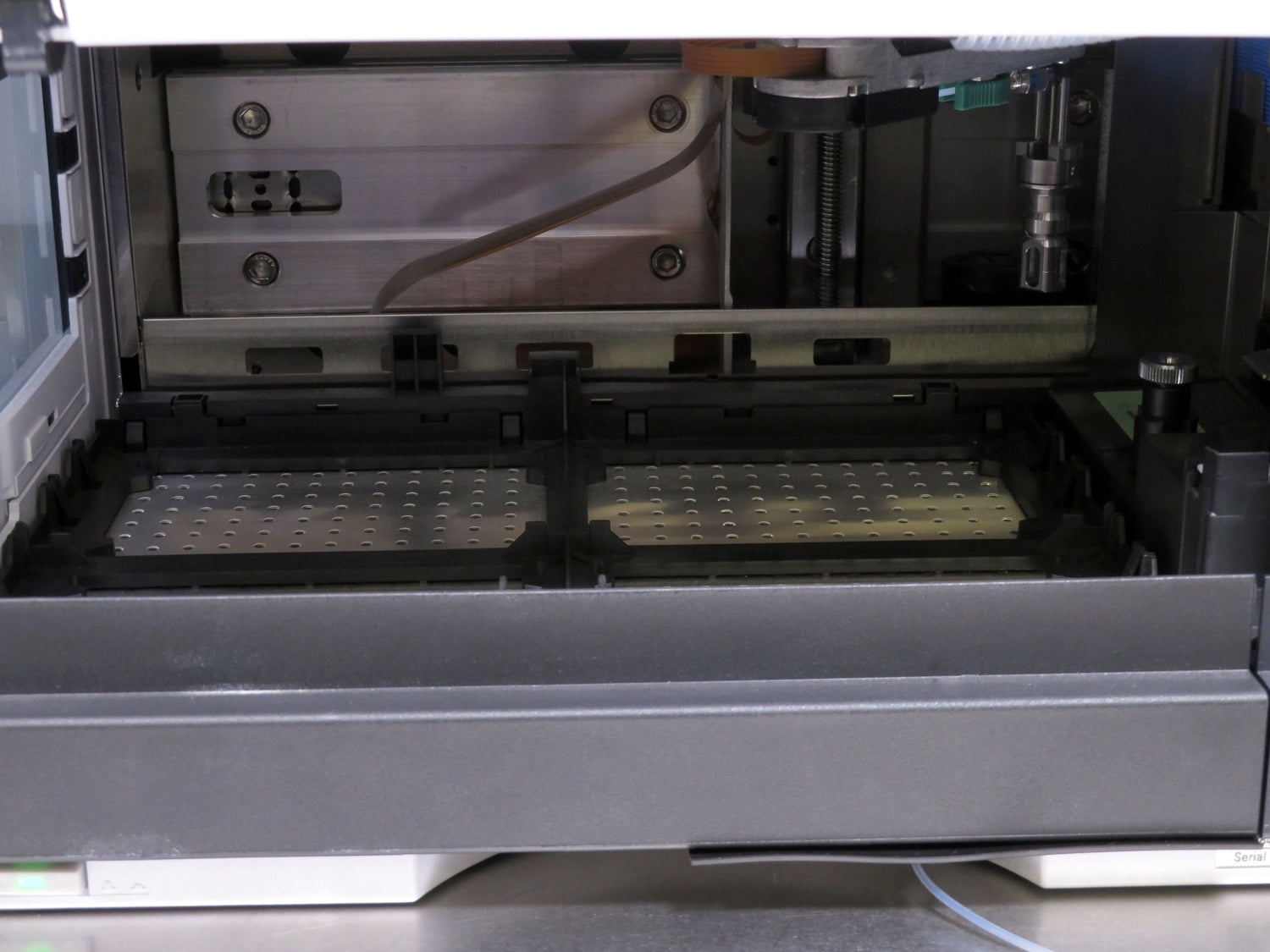

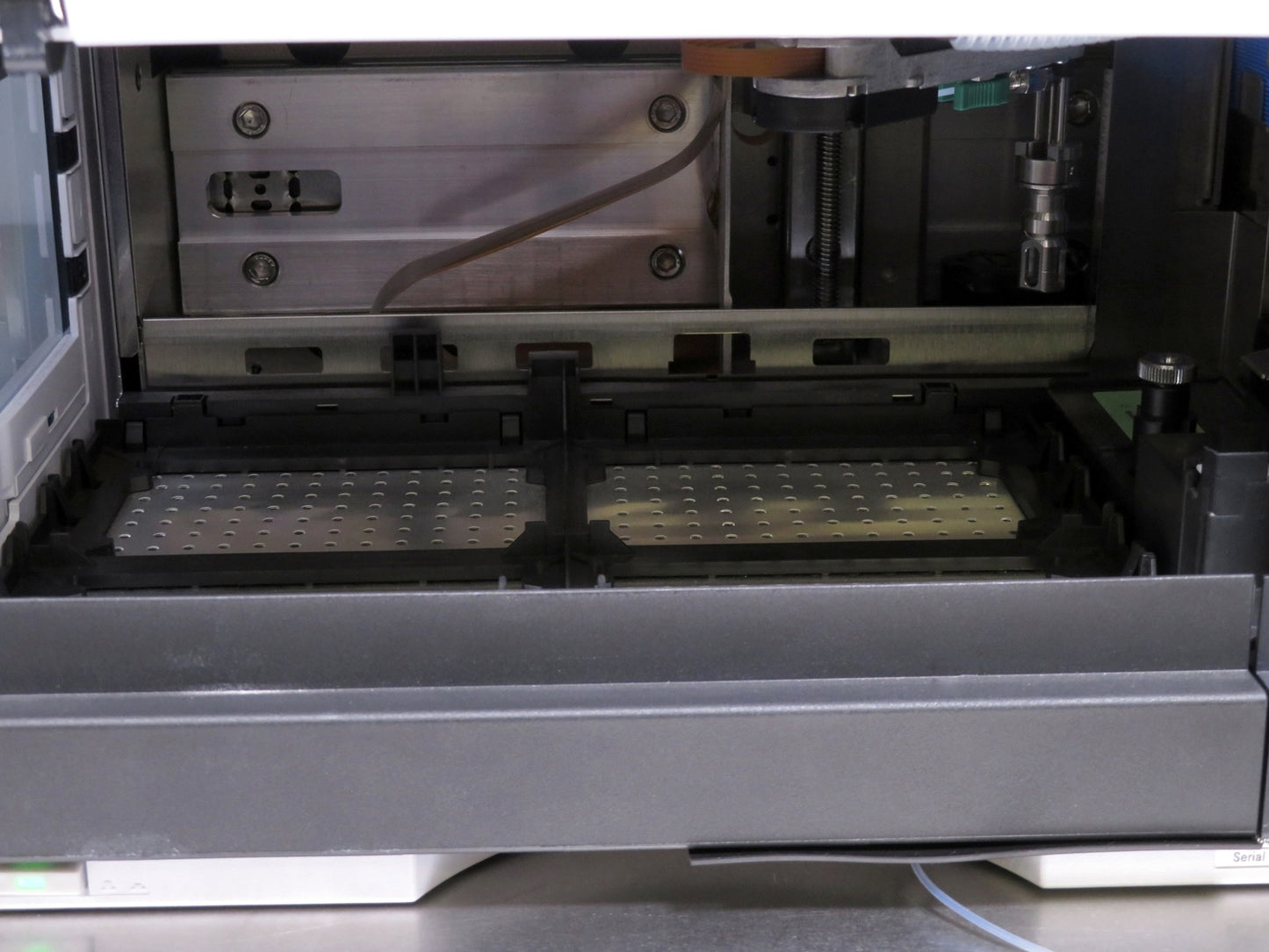

4 x well-plates full tray (MTP)*

2 x well-plates std. tray + 10 funnels with external containers* (+ 1 half tray)

2 × well-plates std. tray (MTP) + 10 × 2 ml vials* (+ 1 half tray)

100 x 2 ml in std. tray (+ 1 half tray)*

3 x 40 x 2 ml in half tray*

3 x 40 funnels in half tray

3 x 15 x 6 ml in half tray*

Full tray with 40 test tubes (30 mm OD, max. height 48 mm, ~20 ml vol.)

Full tray with 60 test tubes (25 mm OD, max. height 48 mm

Full tray with 126 test tubes (16 mm OD, max. height 48 mm)

Full tray with 215 test tubes (12 mm OD, max. height 48 mm)

48 mm with long needle assembly G1367-87200

75 mm with short needle assembly G1364-87202
