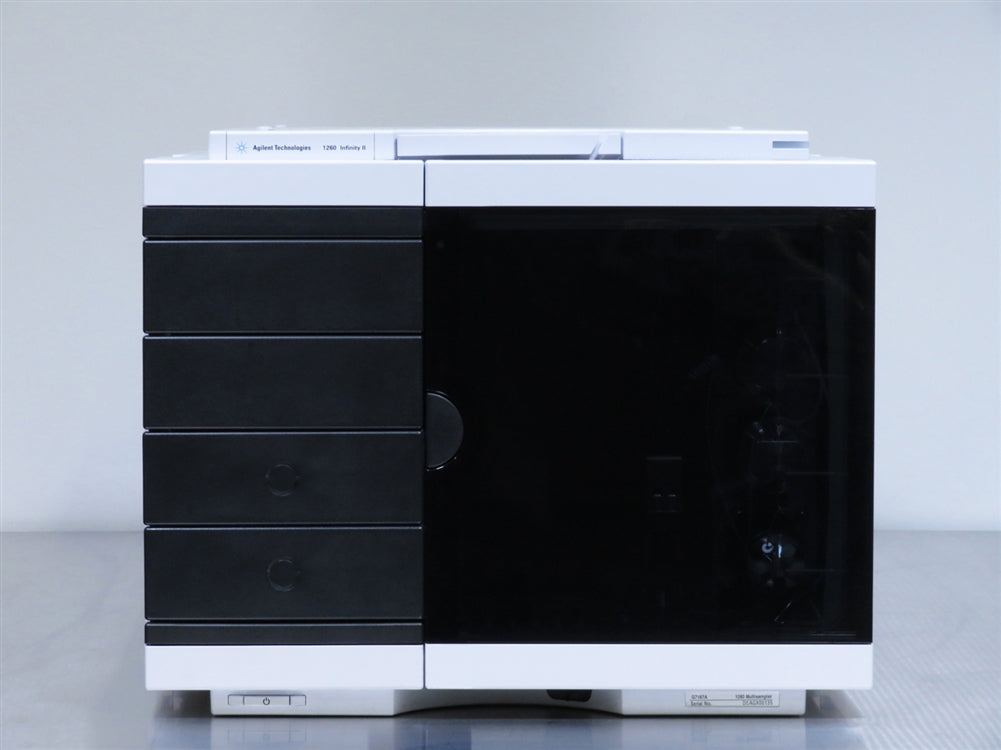

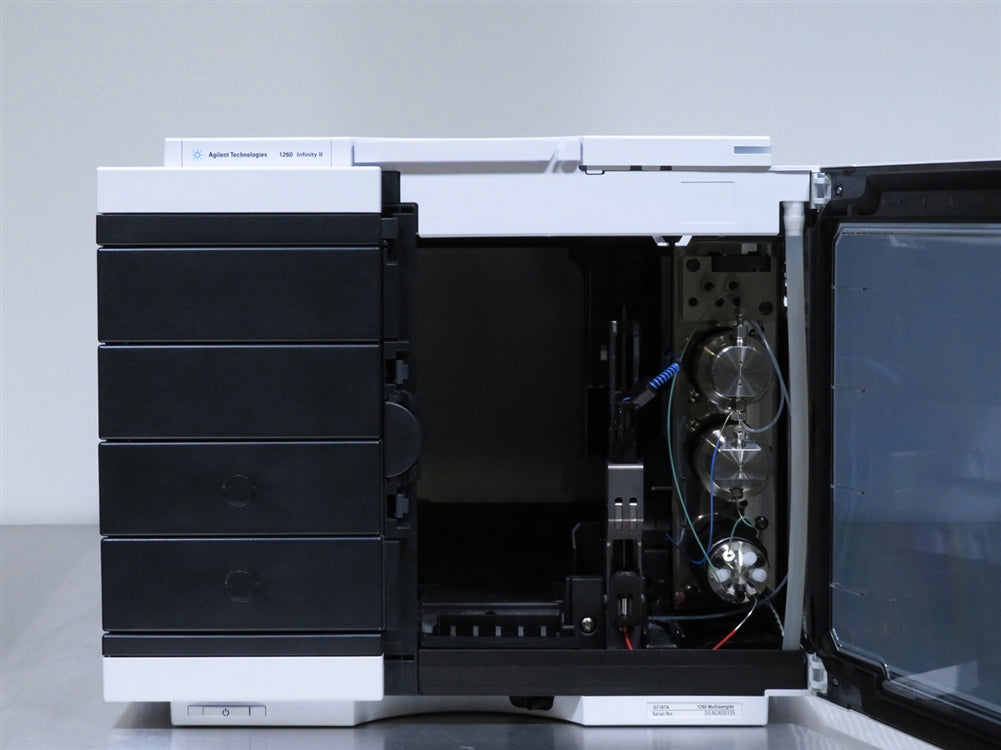

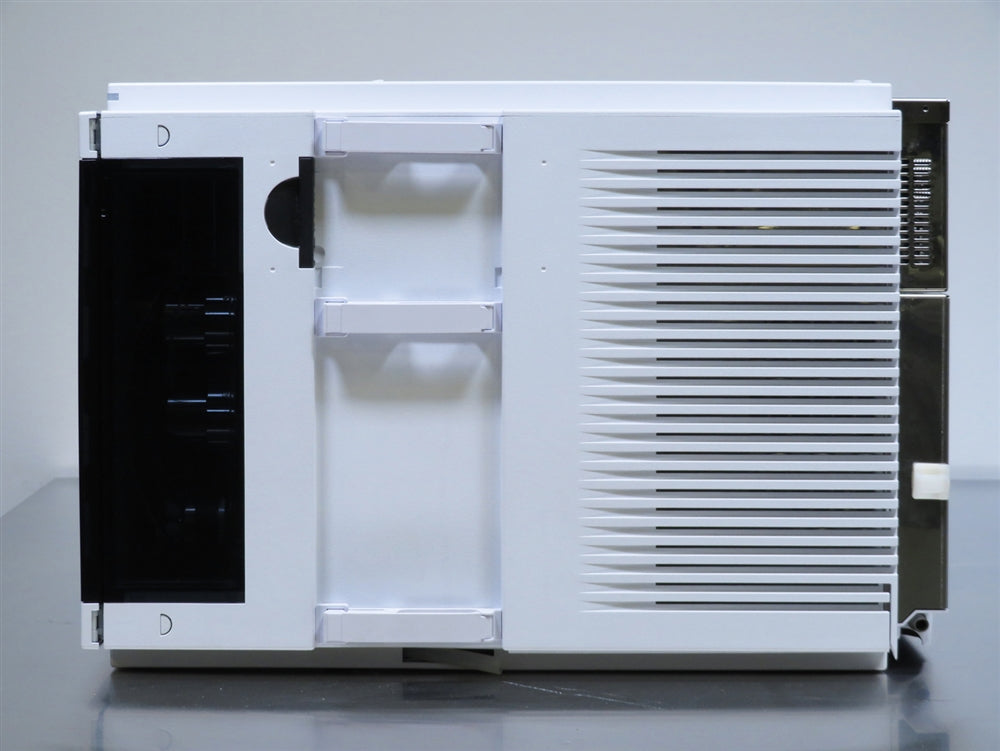

Agilent 1260 Infinity II HPLC G7167A Multisampler

The Agilent 1260 Infinity II HPLC G7167A Multisampler is a multipurpose autosampler that handles vials and microplates. Injecting at pressures up to 600 or 800 bar, the Multisampler is a compact module with a capacity of up to 6,144 samples, all within the footprint of an Agilent LC stack. The 1260 Infinity II Multisampler is optimized for highest flexibility. The unique dual-needle design enables cycle times to be reduced by overlapping sample runs and injection cycles. The multiwash capability reduces carryover to less than 9 ppm.

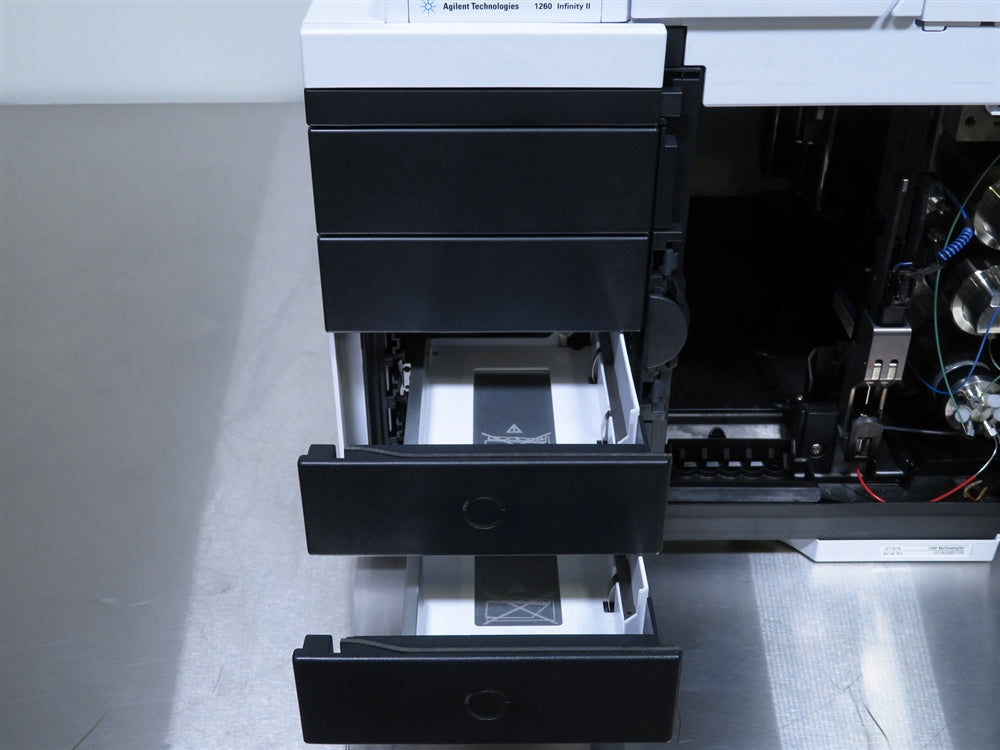

The G7167A's internal robotics allow for seamless automation, moving microtiter plates and other sample containers from the sample hotel to the central workspace for sample processing steps and injections. The Agilent unique dual-needle setup also enhances flexibility by providing two differently optimized injectors in a single instrument. Users for example can optimize one path for large volume injections and the other for low delay volumes. Lights are featured on each sample drawer to easily indicate loading status, current activity, and accessibility for instant information.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Agilent 1260 Infinity II HPLC G7167A Multisampler Specifications

Injection Range	Default: 0.1 – 100 µL in 0.1 µL increments; optional: 20 µL or 40 µL (using 100 µL analytical head)
Injection Precision	<0.2 % RSD or SD <10 nL, whatever is greater
Injection Linearity	0.9999 in the range of 0.1 – 100 µL
Pressure Range	Up to 800 bar
Sample Viscosity Range	0.2 to 5.0 cP

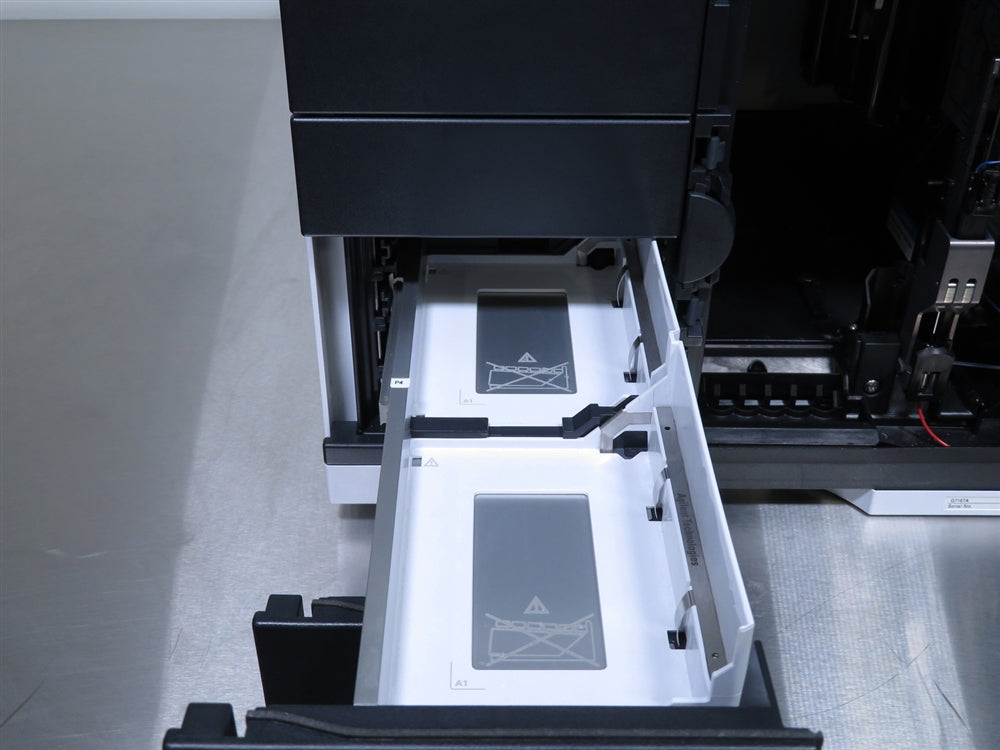

Sample Capacity	1H Drawer: up to 8 drawers and 16 positions; Shallow well plates (MTP) 2H Drawer: up to 4 drawers and 8 positions; MTP, deep well plates, vials, Eppendorf 3H Drawer: up to 2 drawers and 4 positions; MTP, deep well plates, vials up to 6 mL, Eppendorf
Injection Cycle Time	<10 s using following standard conditions: Default draw speed: 100 µL/min Default eject speed: 400 µL/min Injection volume: 1 µL
Carryover	<0.003 % (30 ppm) Multisampler Standard and Dual Needle <0.0009 % (9 ppm) Multisampler Multiwash
Multiwash	Outer needle wash and seat backflush for carryover reduction with up to 3 different solvents
Dimensions (H x W x D)	12.6 x 15.6 x 18.4 in. (32 x 39.6 x 46.8 cm)
Weight	48.5 lb. (22 kg.)
Electrical Requirements	100 - 240V, 50/60Hz, 180VA
