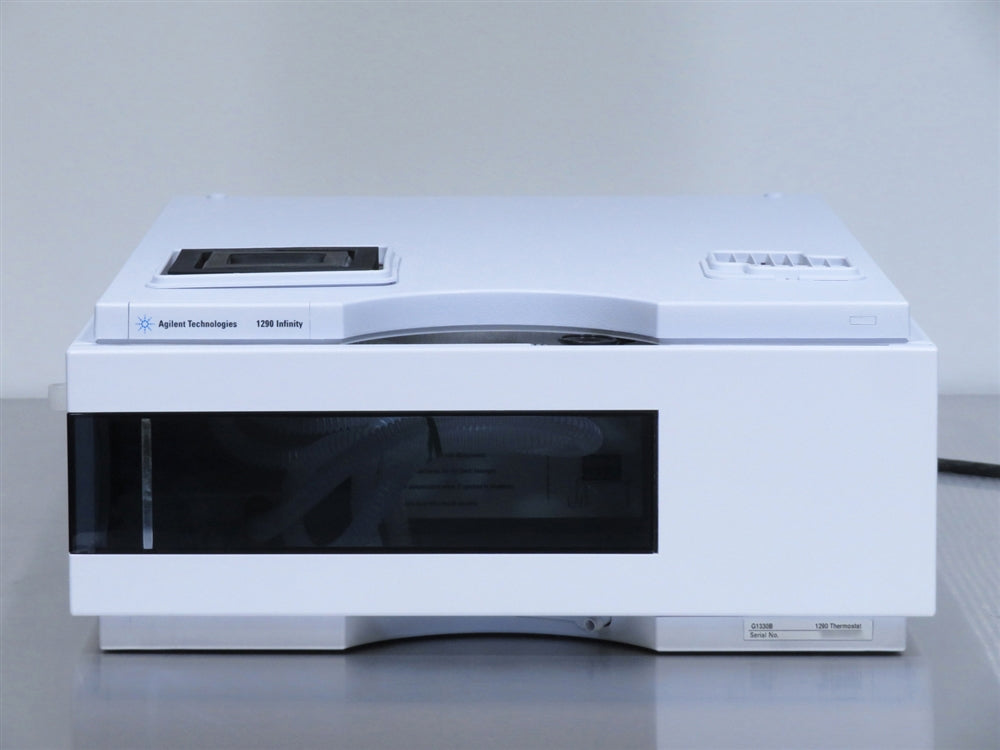

Agilent 1290 Infinity HPLC G1330B ALS Therm

The Agilent 1290 Infinity HPLC G1330B ALS Therm contains Peltier-controlled heat exchangers to allow for HPLC temperature control. A fan draws air from the area above the sample vial tray of the autosampler, and then blows it through the fins of the cooling/heating module. Within there, it is cooled or heated according to the temperature setting. The thermostatted air enters the autosampler through a recess underneath the specially-designed sample tray. The air is then distributed evenly through the sample tray ensuring effective temperature control, regardless of how many vials are in the tray.

The Agilent 1290 Infinity HPLC G1330B ALS Therm is designed for use with other modules of the Agilent 1200 Infinity Series or with other LC systems if adequate remote control inputs are outputs are available. The thermostat is controlled from the Agilent 1200 Infinity Series Instant Pilot or from your Agilent control software for LC systems.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Agilent 1290 Infinity HPLC G1330B ALS Therm Specifications

Temperature Range	4°C to 40°C
Temperature Accuracy at Ambient Temperatures (< 25°C and Humidity < 50%)	3°C to 8°C at a setpoint of 4°C
Temperature Accuracy at Ambient Temperatures (< 25°C and Humidity < 60%)	3°C to 9°C at a setpoint of 4°C
Weight	46 lbs. (20.7 kg)
Dimensions (H x W x D)	5.5 x 13.5 x 17 in. (14 x 34.5 x 43.5 cm)
Electrical Requirements	100-120 / 220-240V, 50/60Hz, 260VA
