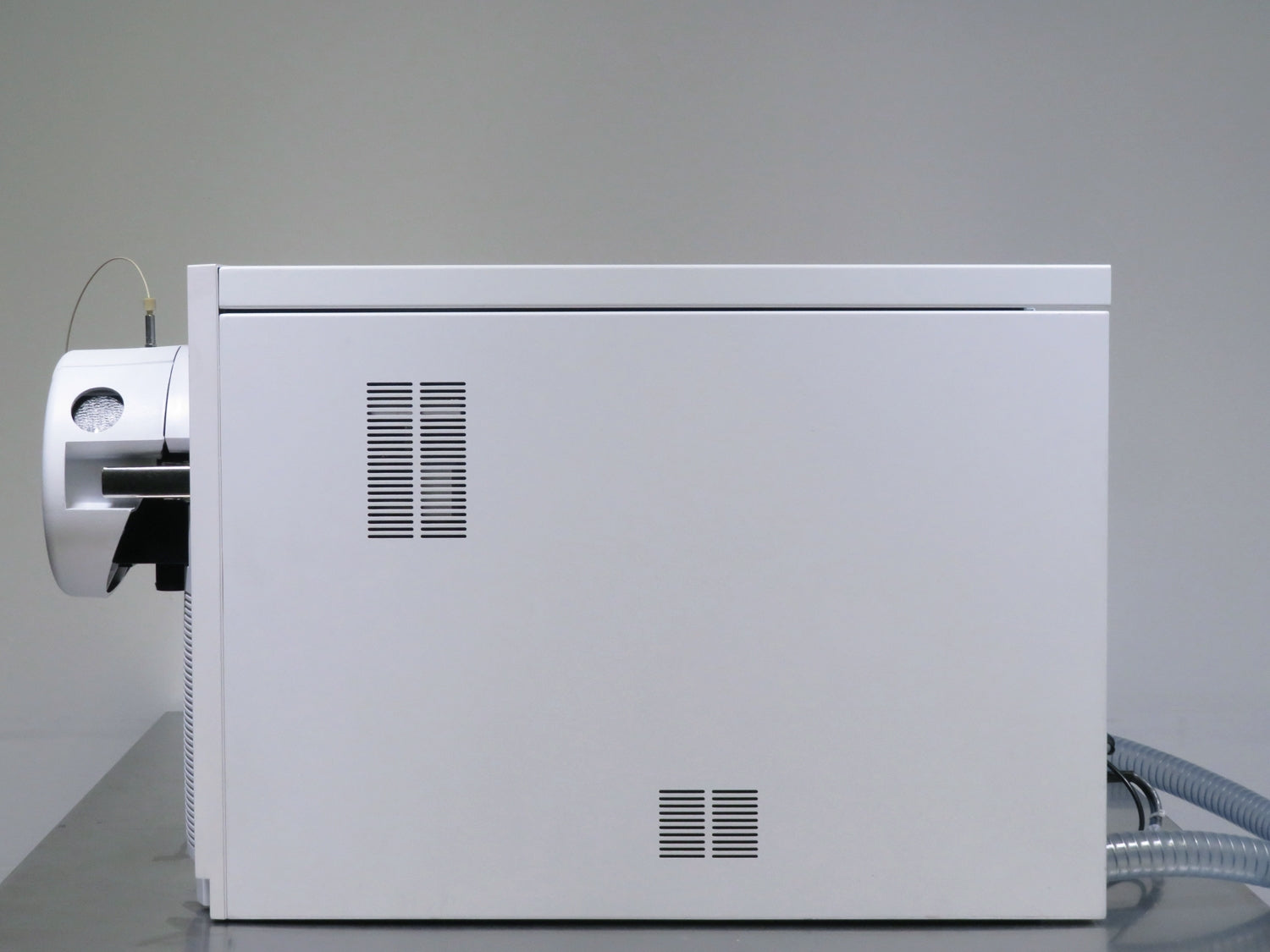

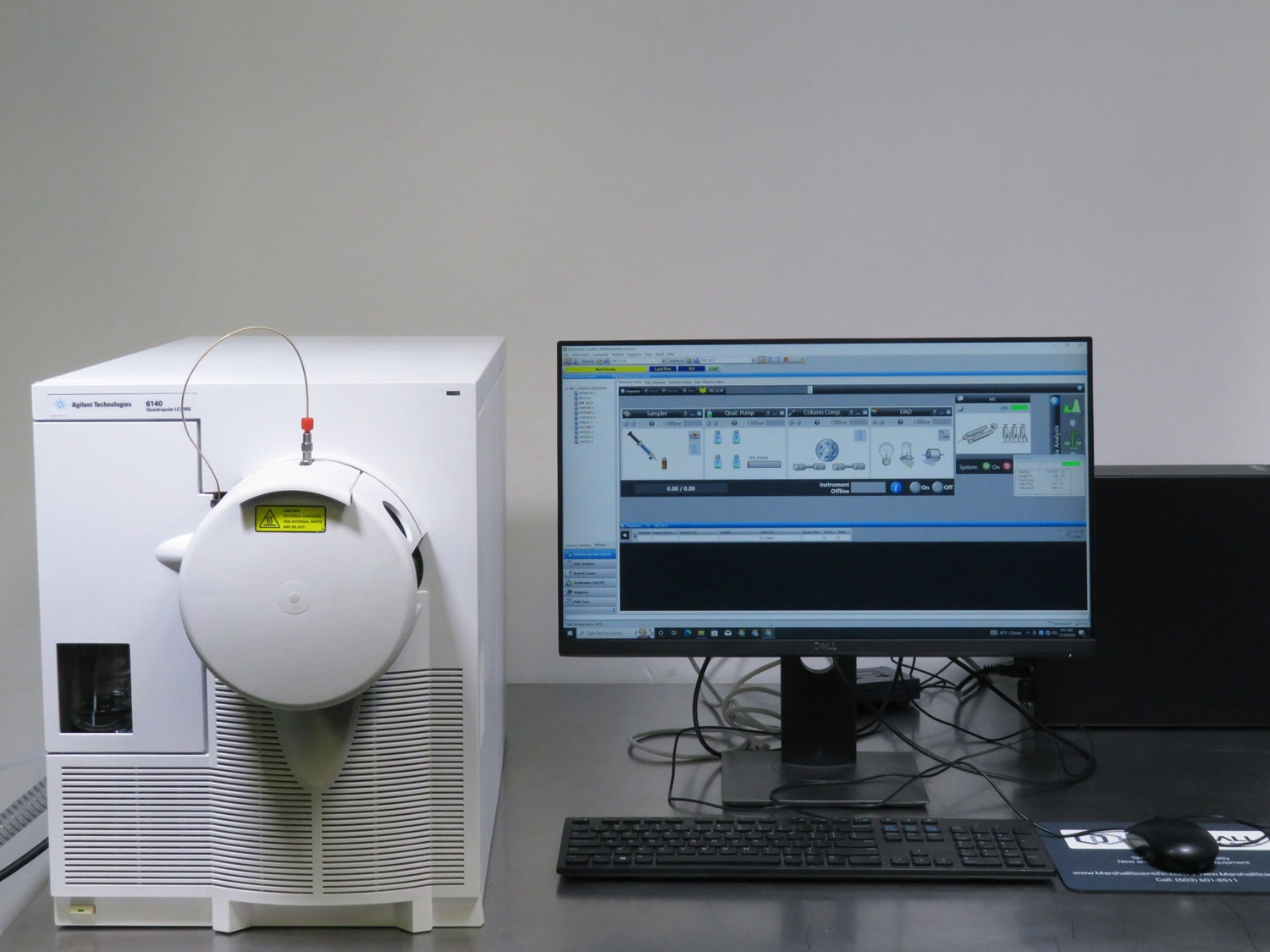

Agilent 6140A Single Quadrupole Mass Spectrometer
Mass Range
10 to 1350 m/z
Mass Accuracy
± 0.13 u
Scan Speed
10,000 u/s in fast mode and 2500 u/s in normal mode
- Delivers unmatched analytical performance for routine QC and research applications
- Ultra-fast scanning for high-throughput
- Simplifies sample preparation with exceptional sensitivity
- Features ultrafast ion polarity switching for maximum information from a single injection
- Orthogonal pneumatic nebulizer reduces chemical noise across diverse LC conditions
- High-capacity solvent drying system supports thermally-sensitive compound analysis
- Platinum-plated dielectric capillary enhances sensitivity and optimizes in-source fragmentation
- Multisignal acquisition supports up to four modes, including polarity switching and SIM/scan
- User-friendly operation through Agilent ChemStation Workstation Software
The Agilent 6140A Single Quadrupole Mass Spectrometer delivers unmatched analytical performance and proven day-after-day reliability from routine QC to research applications. This 6140A model brings maximum performance plus ultra-fast scanning for fast chromatography and high-throughput applications. This system allows users to rapidly screen compounds and confirm molecular weights, purify target compounds in complex mixtures, quantitate target compounds, positively identify impurities and more. The Agilent 6140A Single Quadrupole Mass Spectrometer provides unmatched sensitivity, simplifying sample preparation. An ultrafast scan speed allows users to take full advantage of LC separations when paired with an Agilent LC System, as well as featuring ultrafast ion polarity switching to return maximum information from a single injection, even with narrow LC peaks. Agilent 6140A Single Quadrupole Mass Spectrometer can be fully controlled from the included Agilent ChemStation Workstation Software, which allows for user-friendly operation in data acquisition, analysis, instrument control, automation, and more.
Additional high-performance design features of the Agilent 6140A Single Quadrupole Mass Spectrometer include:
- Orthogonal pneumatic nebulizer design allows for a wide range of LC conditions by helping to reduce chemical noise.
- High-capacity solvent drying system – reduces chemical noise and permits the analysis of thermally-sensitive compounds through user control of gas flow rate and gas temperature.
- Resistive capillary for fast switching
- Fraction collection capability – can monitor and trigger the collection of fractions based on mass, analog signal input, or time. For mass-based determination, up to 16 m/z values can be monitored. Requires optional I/O Accessory Module.
This Agilent MS system was recertified and calibrated by a factory trained engineer and is ready to ship on demand. This system comes with everything needed for easy installation and setup. All of our equipment is fully tested to perform at factory specifications before being shipped.
The Agilent 6140A Single Quadrupole Mass Spectrometer includes:

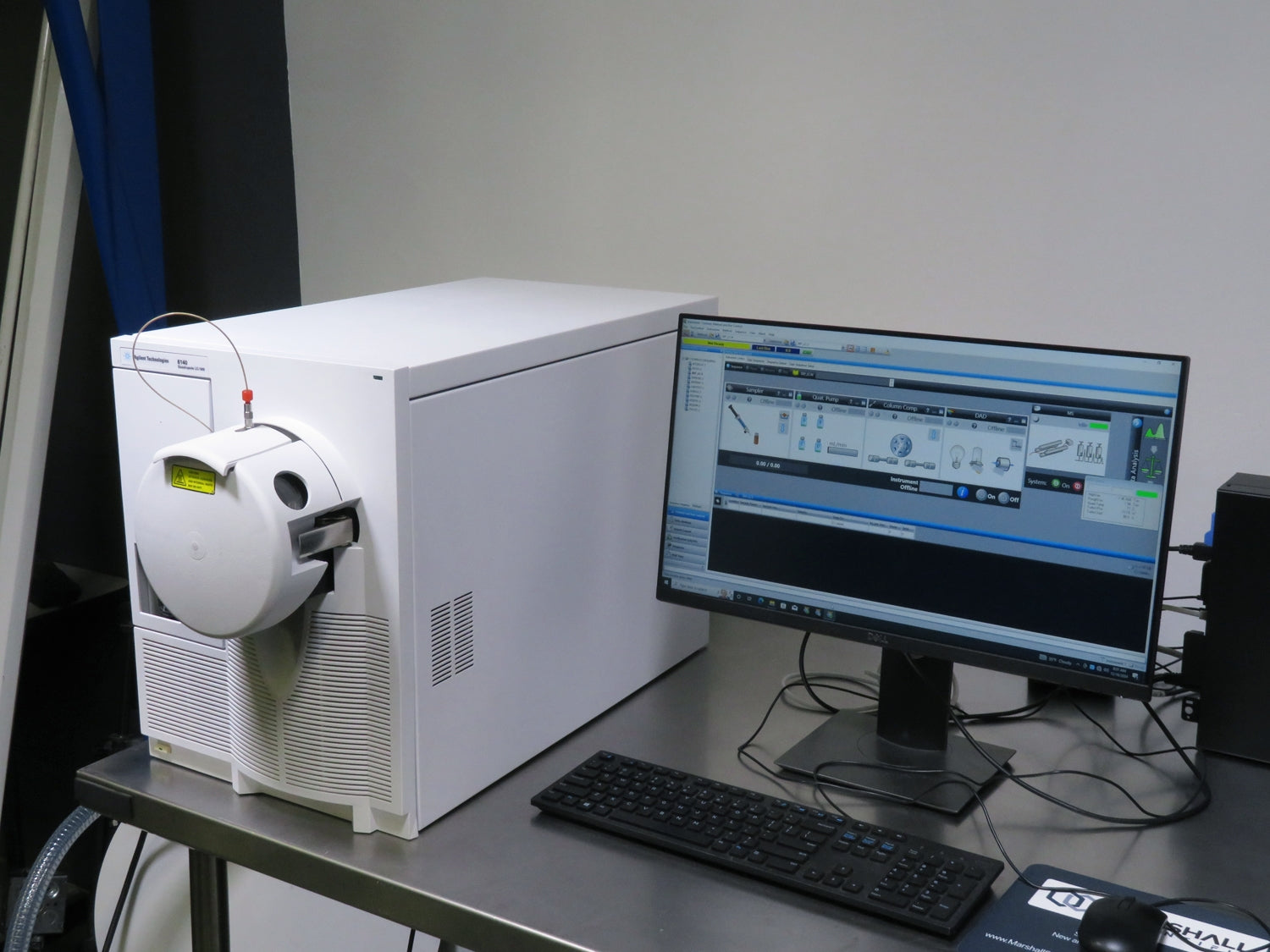

- > Agilent 6140A Single Quadrupole Mass Spectrometer

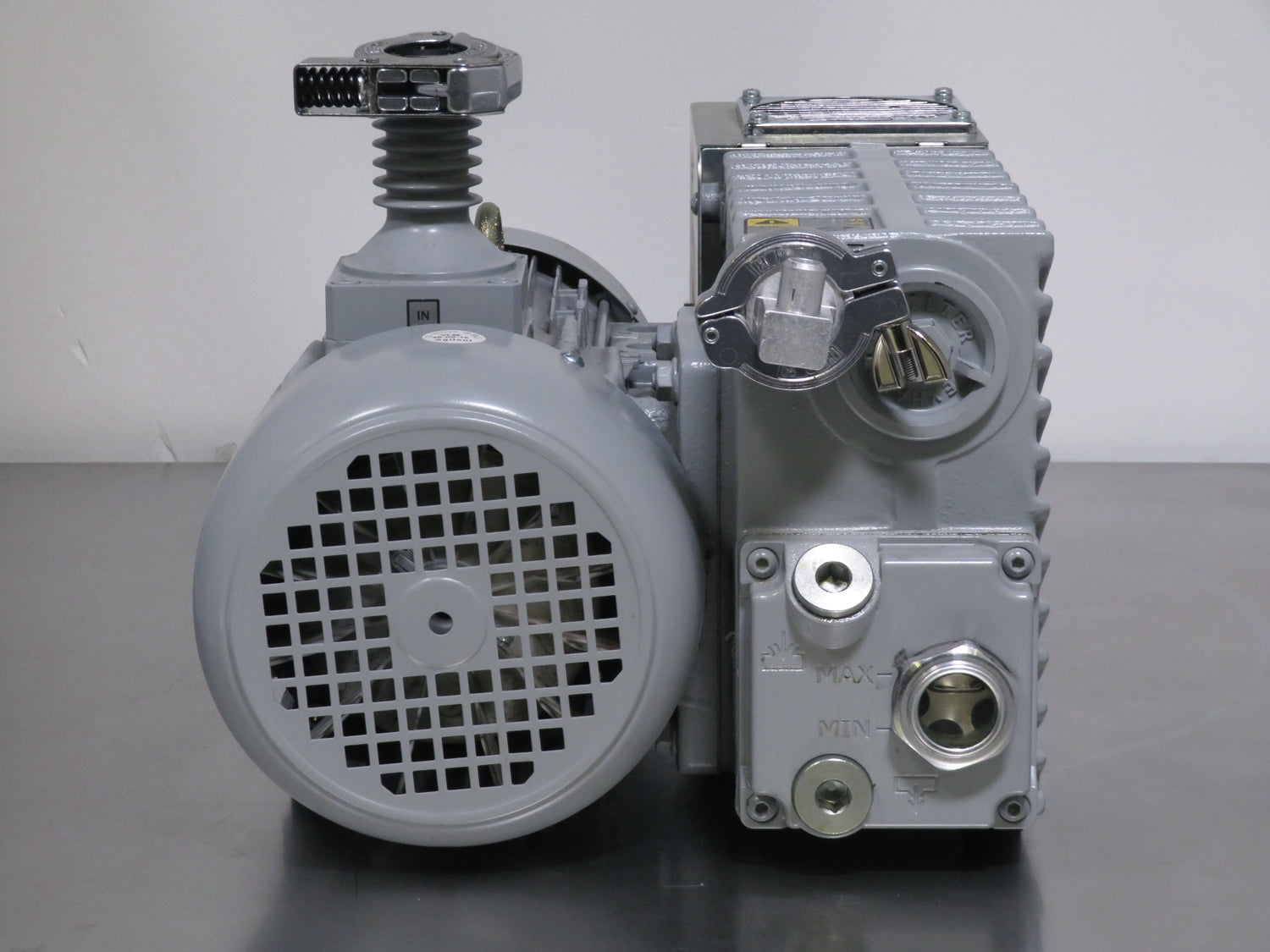

- > Agilent MS40+ Rotary Vane Vacuum Pump

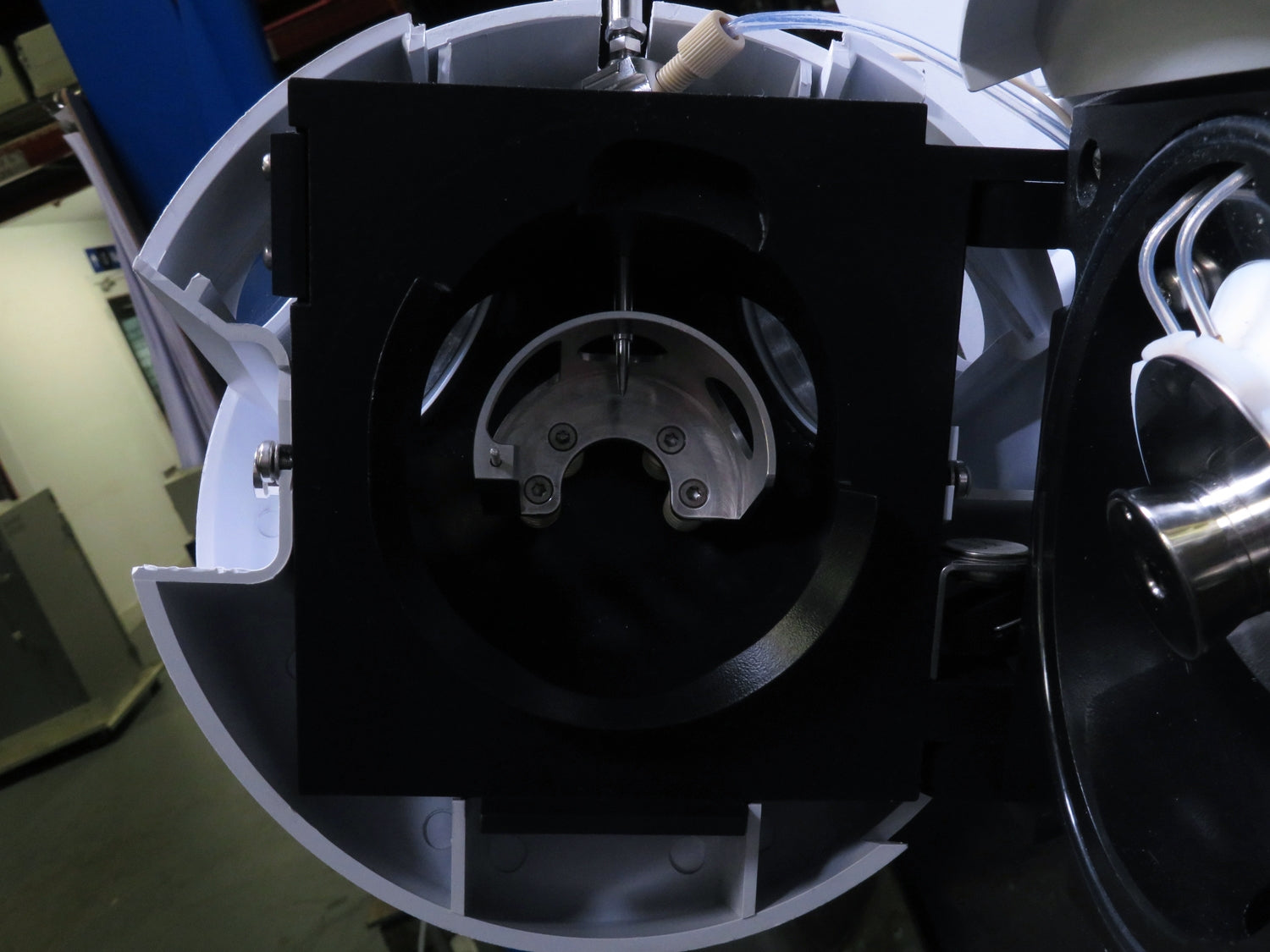

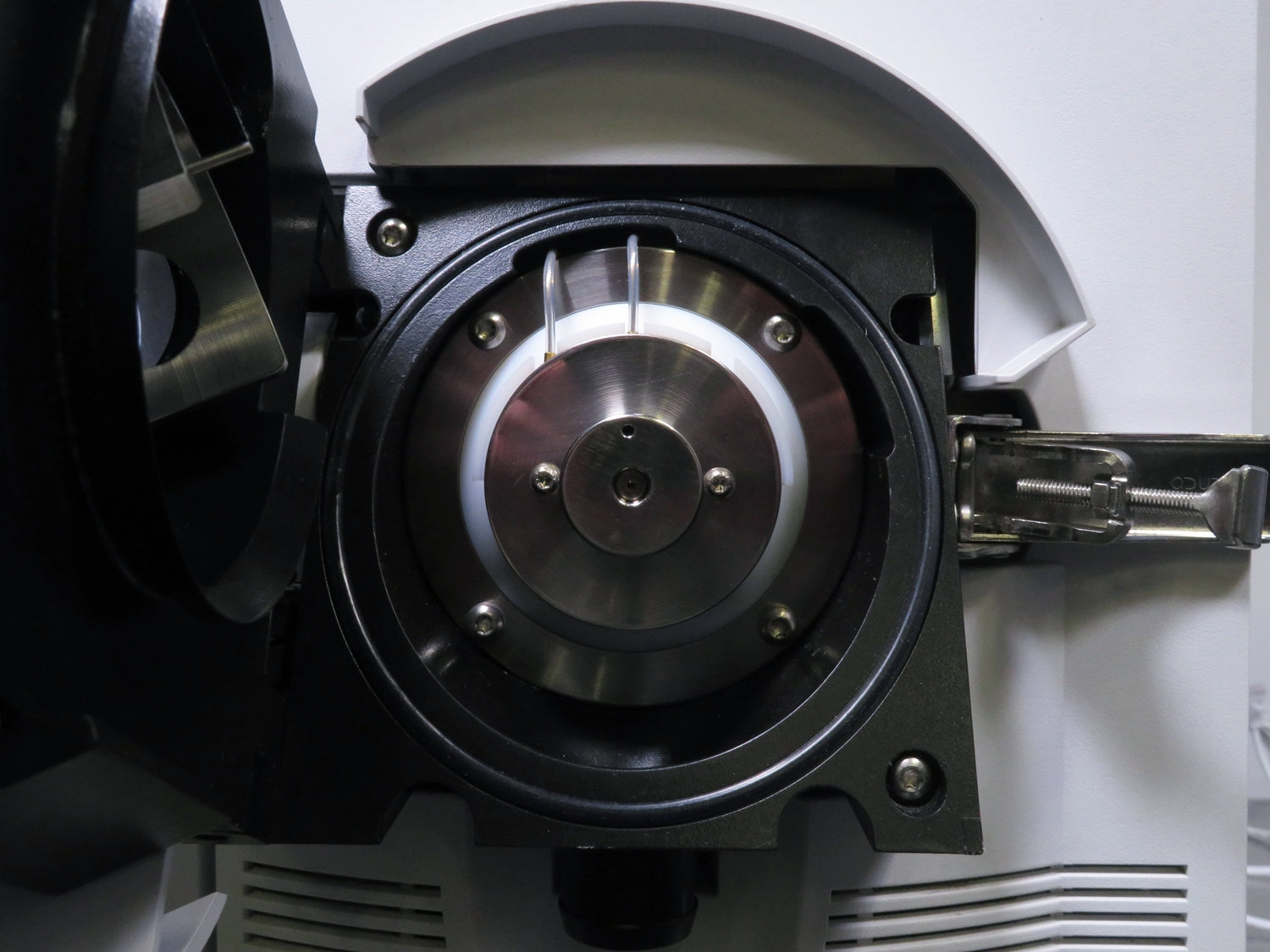

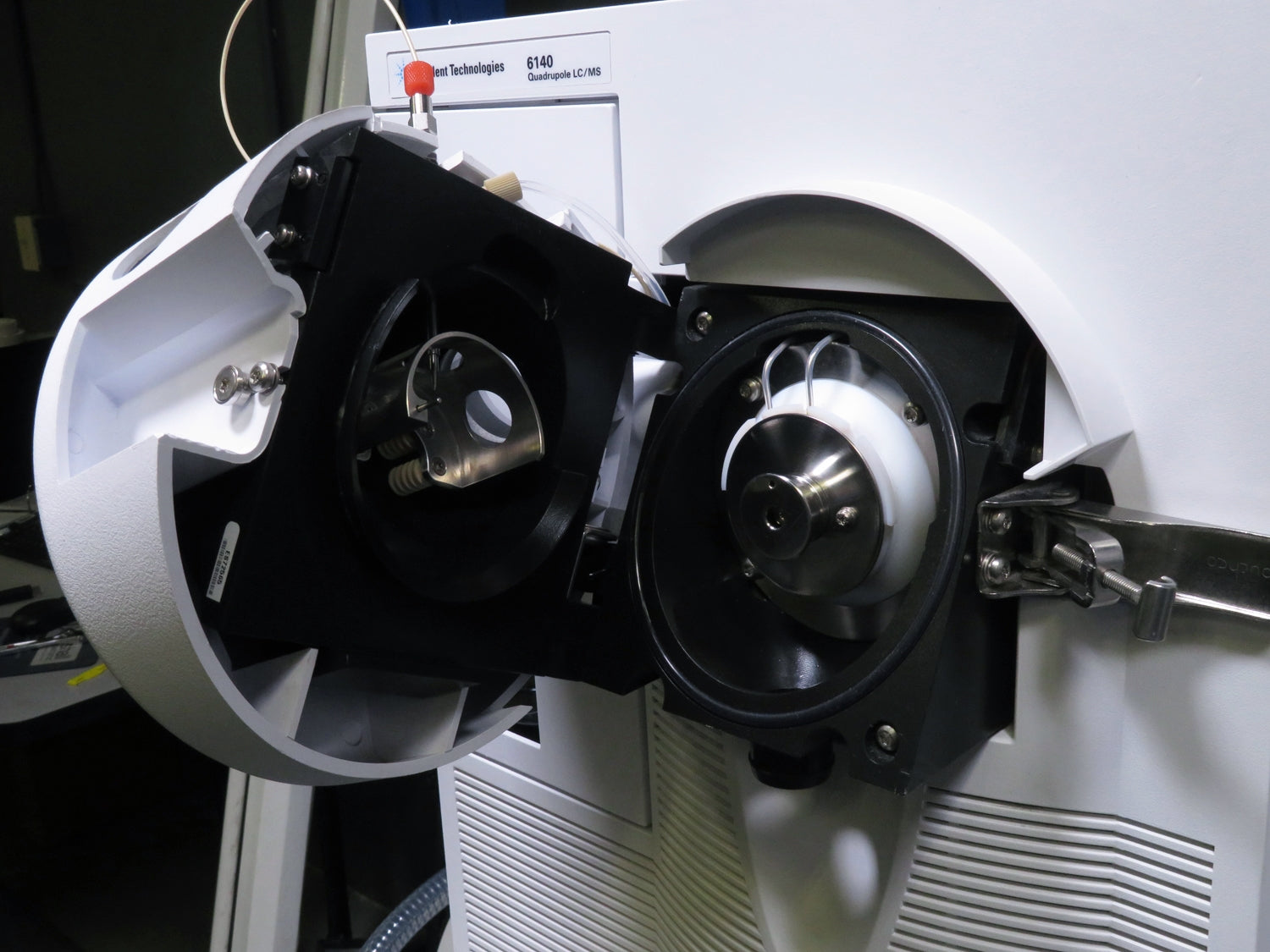

- > G1948B ESI Ionization Source
- > Windows 11 Professional 64-Bit Data Station with Flatscreen Monitor
- > ChemStation Version 4.3 Software Installed
- > All Power Cords
- > Can/Crossover Cables

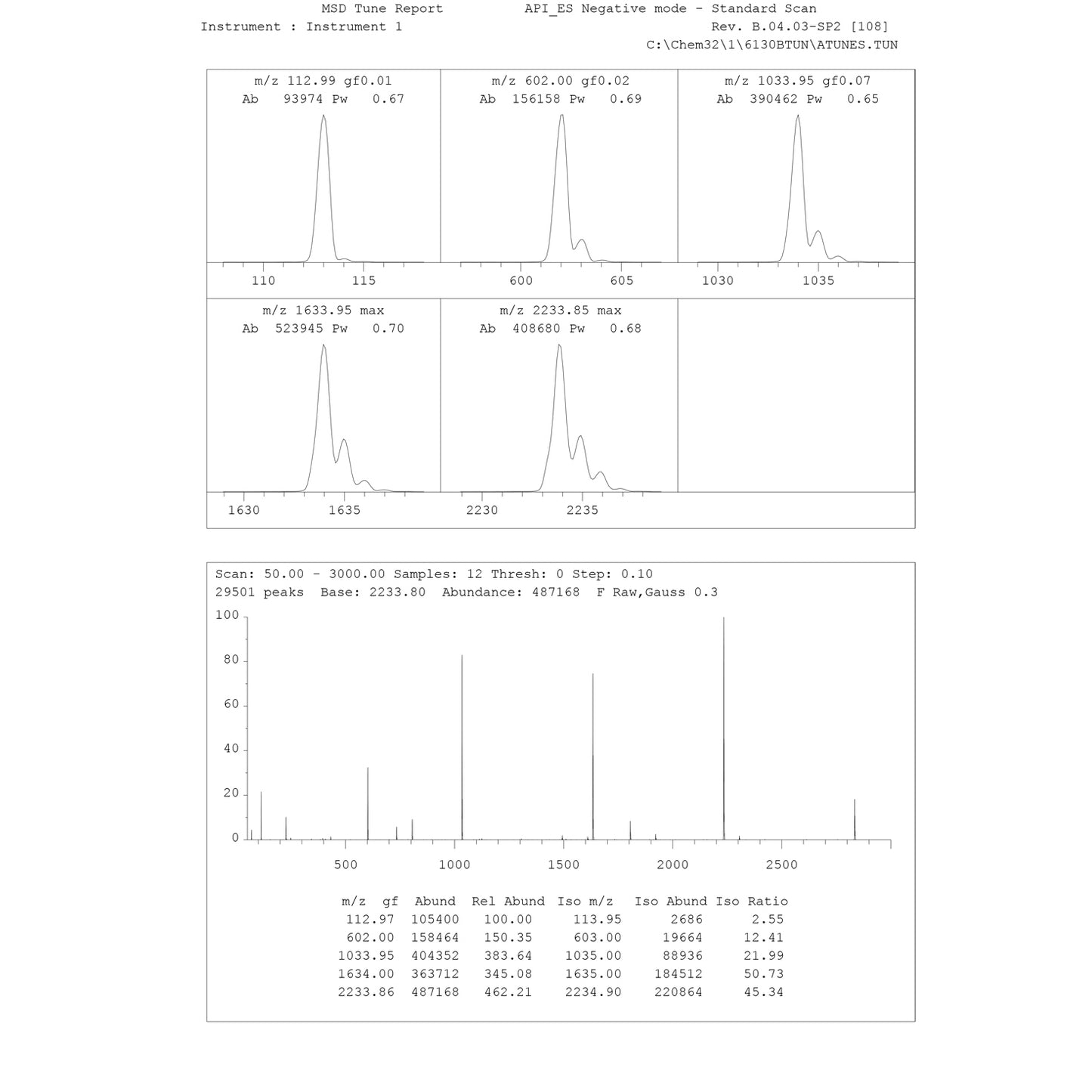

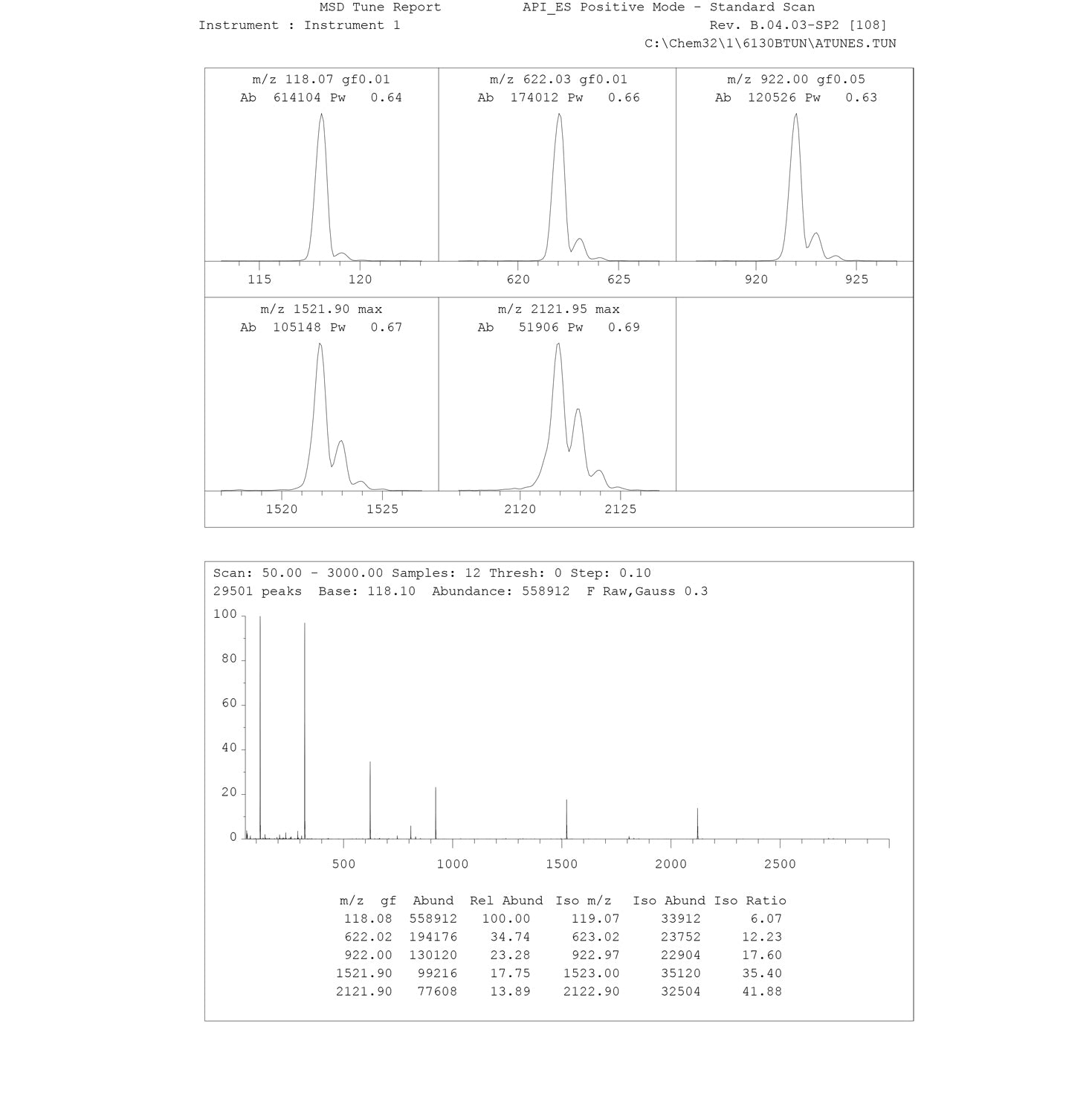

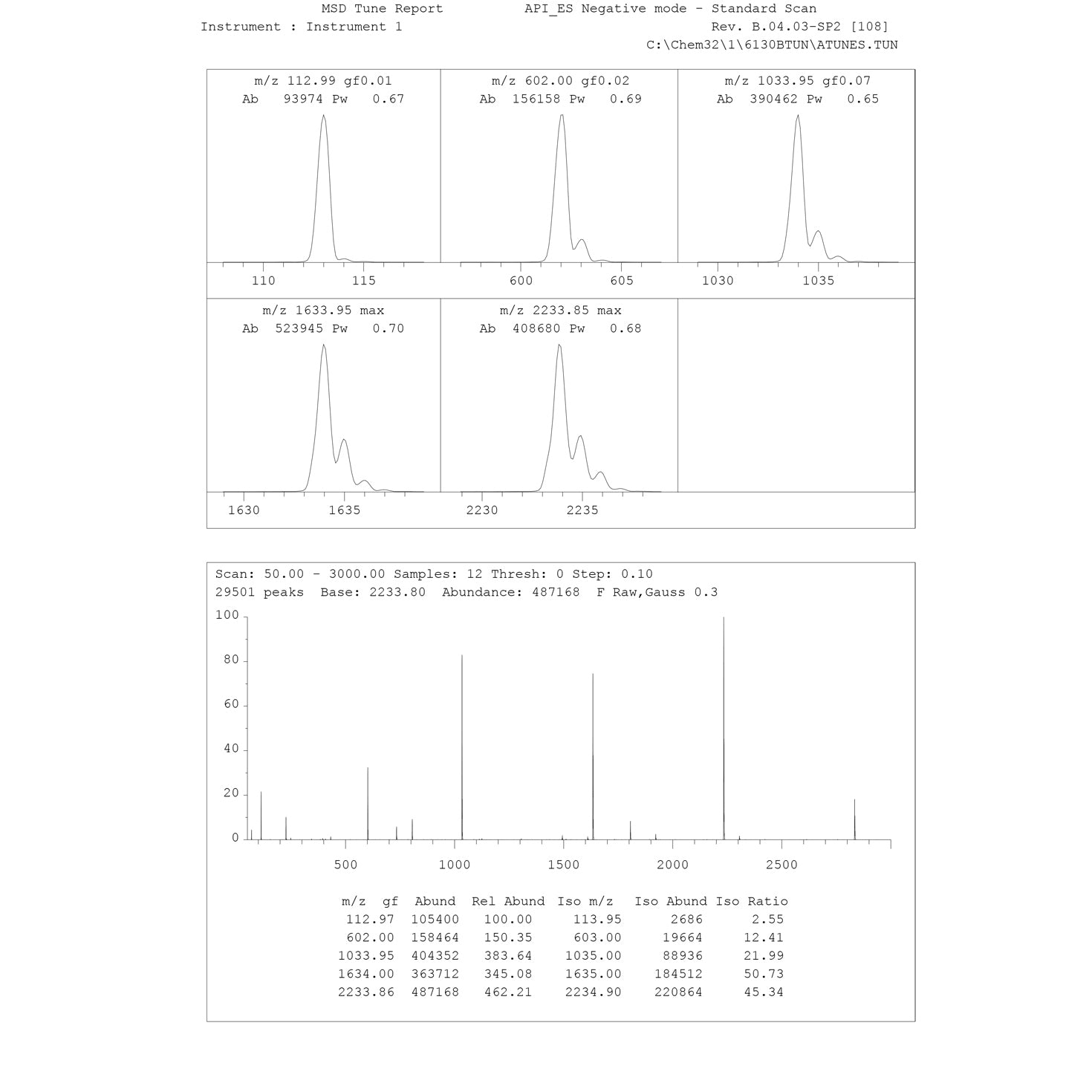

- > Lab Advisor Diagnostics Report & Mass Spec Tuning Report
- > Full 180 Day Parts and Labor Warranty
Agilent 6140A Single Quadrupole Mass Spectrometer Specifications
|
Mass Range |
10 – 1350 m/z |
|
Mass Accuracy |
± 0.13 u within the calibrated mass range in scan mode |
|
Mass Axis Stability |
The mass drift does not exceed the larger absolute value of ± 0.1 Da or ± 100 ppm of measured mass over a 12 hour period at constant temperature ± 3 degrees centrigrade. |
|
Scan Speed |
10,000 u/s in fast mode and 2500 u/s in normal mode |
|
SIM Sensitivity |
ESI at 400 μ/min or APCI at 1000 μ/min
|
|
Scan Sensitivity |
ESI at 400 μ/min or APCI at 1000 μ/min
|
|
Flow Rate |
ESI: Up to 1.0 ml/min water without a flow splitter
|
|
Multisignal acquisition |
Ability to cycle through four acquisition modes on a scan-by-scan basis within a single run. Up to four analysis modes can be viewed in the software window and can be linked together to facilitate processing and analysis. Modes of operation: positive/negative polarity switching, variable fragmentor voltage selection, and concurrent SIM/scan. |
|
Operating Conditions |
Temperature range: 15 °C to 35 °C (59 °F to 95 °F)
|
|
Dimensions |
Height: 65 cm (26 in)
|
|
Electrical Requirements |
200-240V, 50/60Hz |
|
Computer Specifications |
|
| Processor | Intel Core I5-8500 CPU |
| RAM | 32.0 GB |
| Hard Drive | 500GB Internal SSD |
| Operating System | Windows 11 Professional, 64-bit |
Click Here to View the Technical Specs for the Agilent 6140A Single Quadrupole Mass Spectrometer
