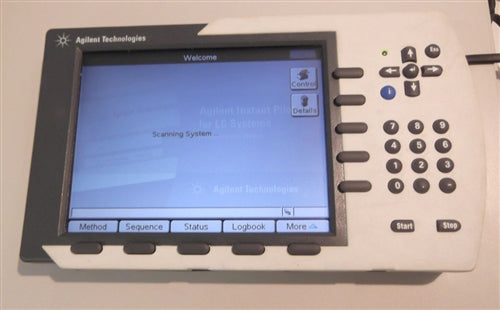

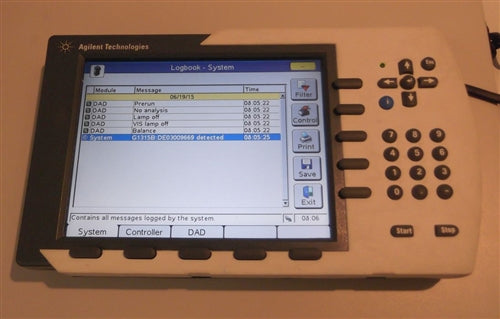

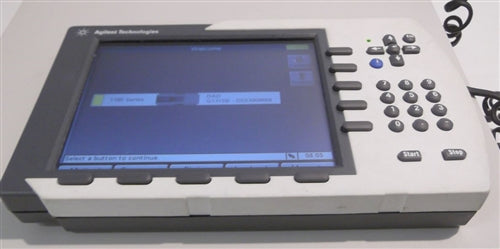

Agilent G4208A Series Pilot Controller
The Agilent 1200 Series instant pilot controller gives you
complete control, system monitoring, signal plotting and diagnostic
capabilities for a virtually unlimited number of LC system modules. Based on
the highly successful implementation of the industry-standard control area network
(CAN) and cabling, used in the first Agilent control module, the instant pilot
is even more powerful. FEATURES: Complete local control and monitoring of an
entire Agilent Series 1200-,1200 SL- and 1100 system, or a single module from a
single point. Excellent readability and usability by large
colored display with background light, high resolution and contrast.
Convenient, ergonomic operation either handheld or at the stack with newly
developed, secure attachment. Handheld or attached to a module in a stack to
facilitate operator preferences. Easy automation - recalibration intervals and
multi-method sequences satisfy the most stringent automation routines. Transfer
and archiving of methods, sequences and logbooks via standard USB memory
sticks.
All of our products are fully tested to perform at factory specifications before being shipped.
The Agilent G4208A Series Pilot Controller includes:
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Agilent G4208A Series Pilot Controller Specifications
|
Type
|
Specification
|
|
Weight
|
0.8 kg
|
|
Dimensions (width × depth × height)
|
130 × 225 × 35 mm (5.1 × 8.9 × 1.4 inches)
|
|
Line voltage
|
22 VDC, ± 10 %
|
|
Power consumption
|
6 W / 20.5 BTU/hour
|
|
Ambient operating temperature
|
0 – 55 °C (32 – 131 °F)
|
|
Ambient non-operating temperature
|
-40 – 70 °C (-40 – 158 °F)
|
|
Humidty
|
< 95%, at 25 – 40 °C (77 – 104 °F)
|
|
Operating Altitude
|
Up to 2000 m (6562 ft)
|
|
Non-operating altitude
|
Up to 4600 m (15092 ft)
|
|
Safety standards: IEC, CSA, UL, EN
|
Installation category II, pollution degree 2. For indoor use only.
Research Use Only. Not for use in Diagnostic Procedures.
|
