Amersham Biosciences AKTA Frac-920 Fraction Collector
Flow Rate
< 100 ml/min
Capacity
95 fractions in 10-18 mm tubes
pH Stability Long Term
1 to 13
- Compatible with multiple rack formats including 95 x 10–18 mm, 175 x 12 mm, and 40 x 30 mm tubes
- Supports time-based (0.01–9.999 min) and volume-based (0.1–999 ml) collection modes
- Stores up to 99 user-defined programs for flexible operation
- Operates reliably in environments with 20–95% non-condensing relative humidity
- Designed for operating temperatures from 4°C to 40°C
- Short-term pH stability from 1 to 14 for versatile buffer compatibility
- Can function as a standalone unit or integrate with AKTA FPLC systems
- Compact footprint with a height of 250 mm and depth of 400 mm

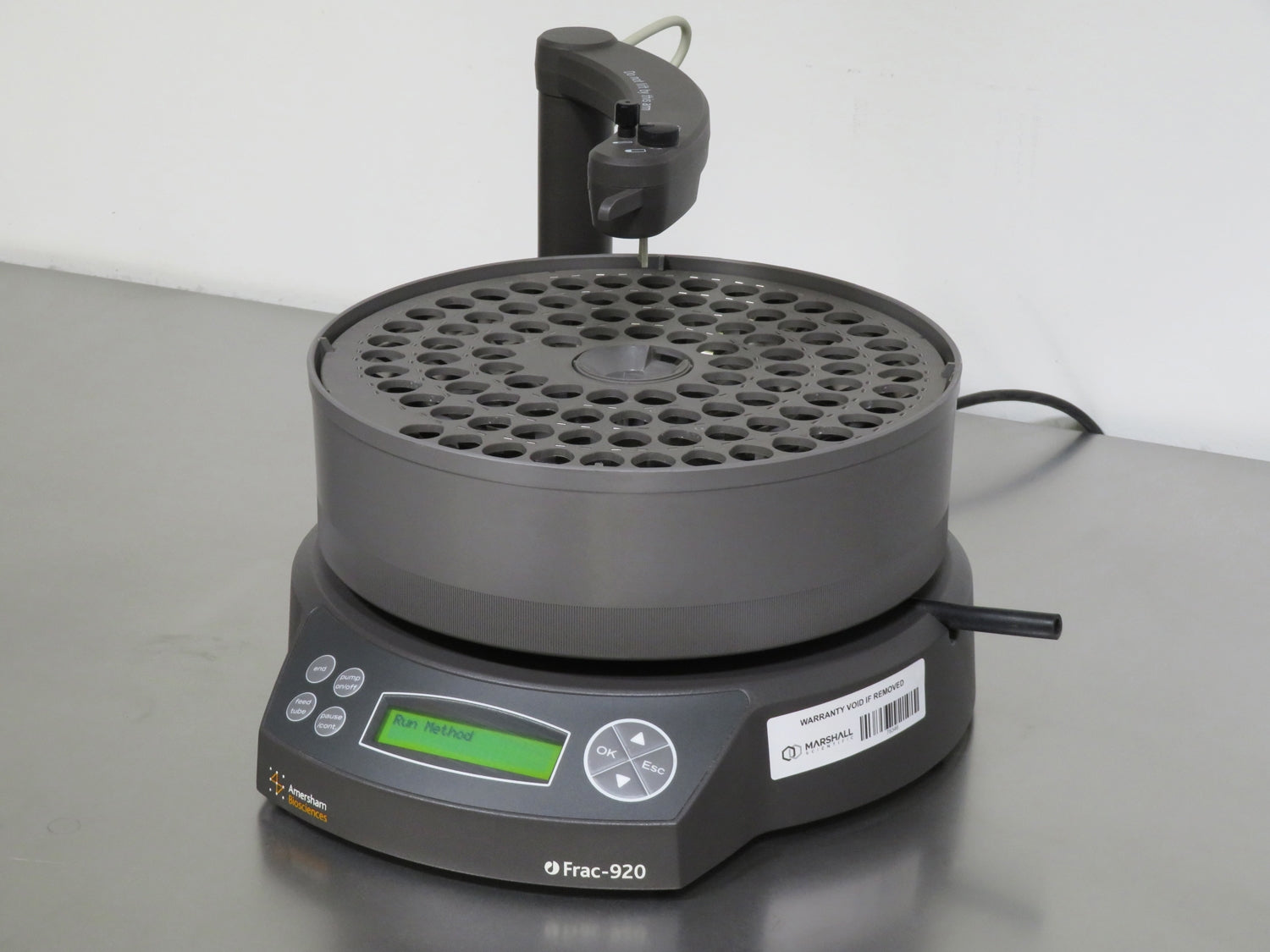

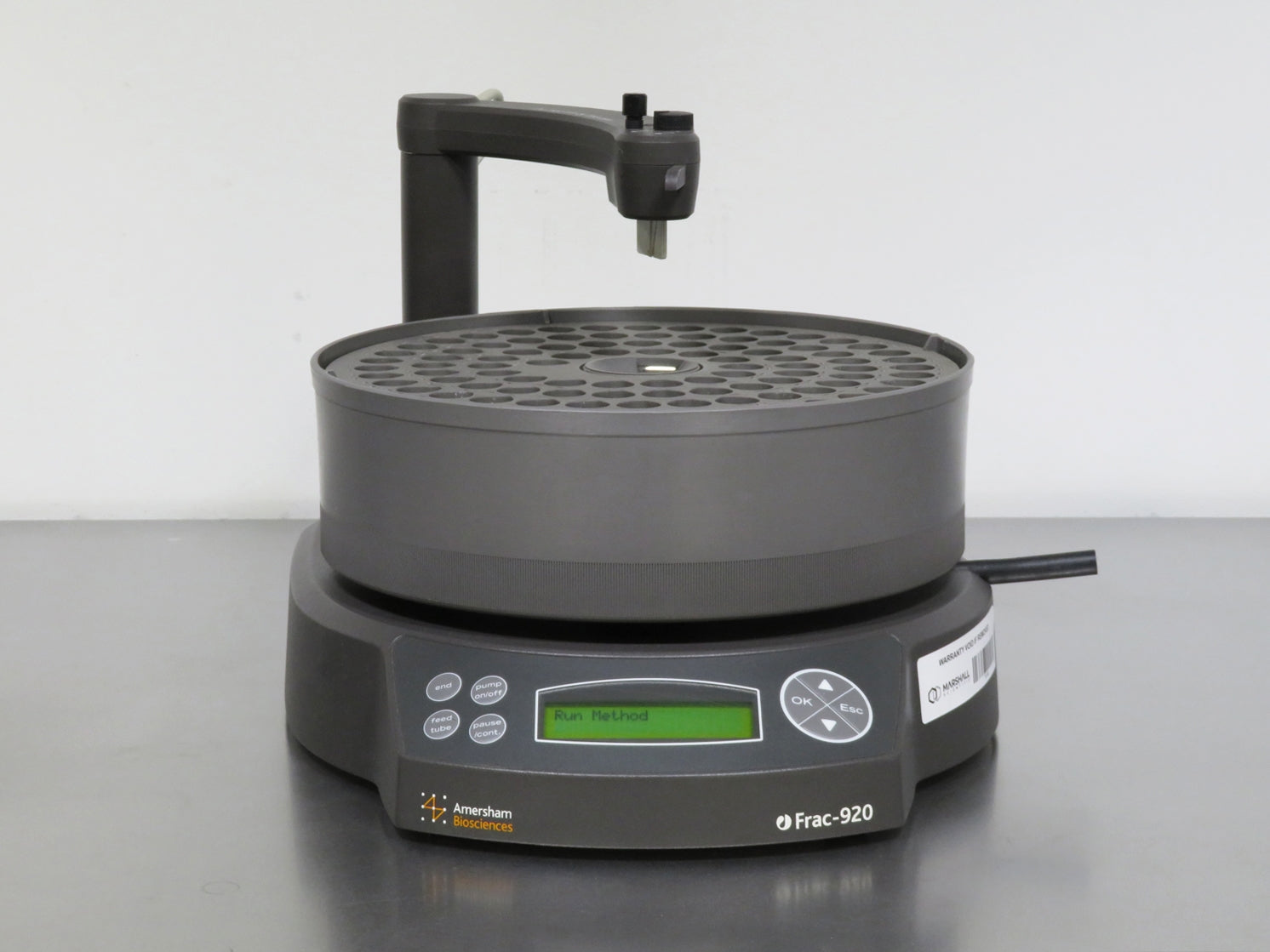

The Amersham Biosciences Frac-920 Fraction Collector has the ability to collect up to 175 fractions in 12 mm tubes, or 95 fractions using 10-18mm tubes, or 40 fractions with 30 mm diameter tubes, depending on which rack you’re using. The Frac-920 can collect fixed volumes, peak fractionation, and timed fractionation all through a few simple pushes of a button. The system is reliable and easy-to-use, allowing quick and concise setup of methods, and was designed with scale-up chromatography in mind. The Frac-920 can be used as a standalone fraction collector or can be connected to an AKTA FPLC system.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Amersham Biosciences Frac-920 Fraction Collector includes:
- > Standard 95 x 10-18mm Rack
- > Power Cord
- > Uninet Cable
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Amersham Biosciences AKTA Frac-920 Fraction Collector Specifications
|
Capacity
|
95 fractions in 10-18 mm tubes
|
|
Depth
|
400 mm
|
|
Flow Rate
|
< 100 ml/min
|
|
Height
|
250 mm
|
|
Operating Temperature
|
4° to 40°C
|
|
pH Stability Long Term
|
1 – 13
|
|
pH Stability Short Term
|
1 – 14
|
|
Program Memory
|
99 programs
|
|
Rack Designation
|
95 x 10-18 mm (Standard)
175 x 12 mm and 40 x 30 mm (Optional)
|
|
Relative Humidity
|
20 – 95% (none condensing)
|
|
Time Mode
|
0.01 – 9.999 min
|
|
Volume Mode
|
0.1 – 999 ml
|
|
Voltage
|
100 – 240 V
|
Click Here to View the Technical Specs for the Frac-920
