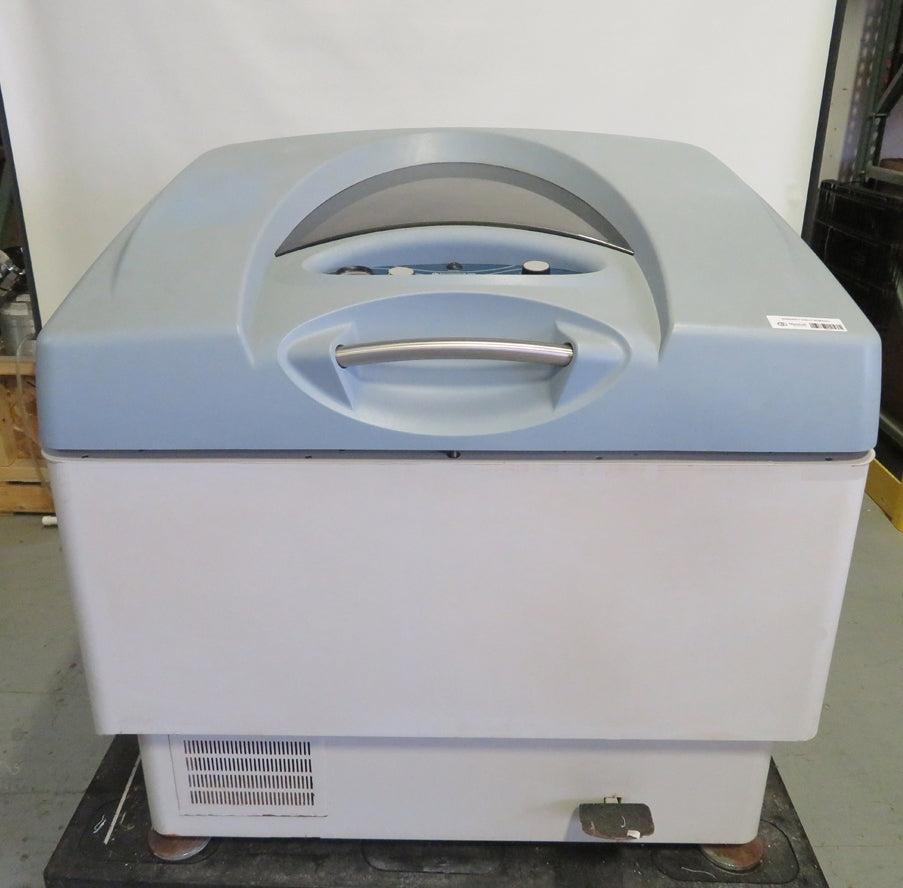

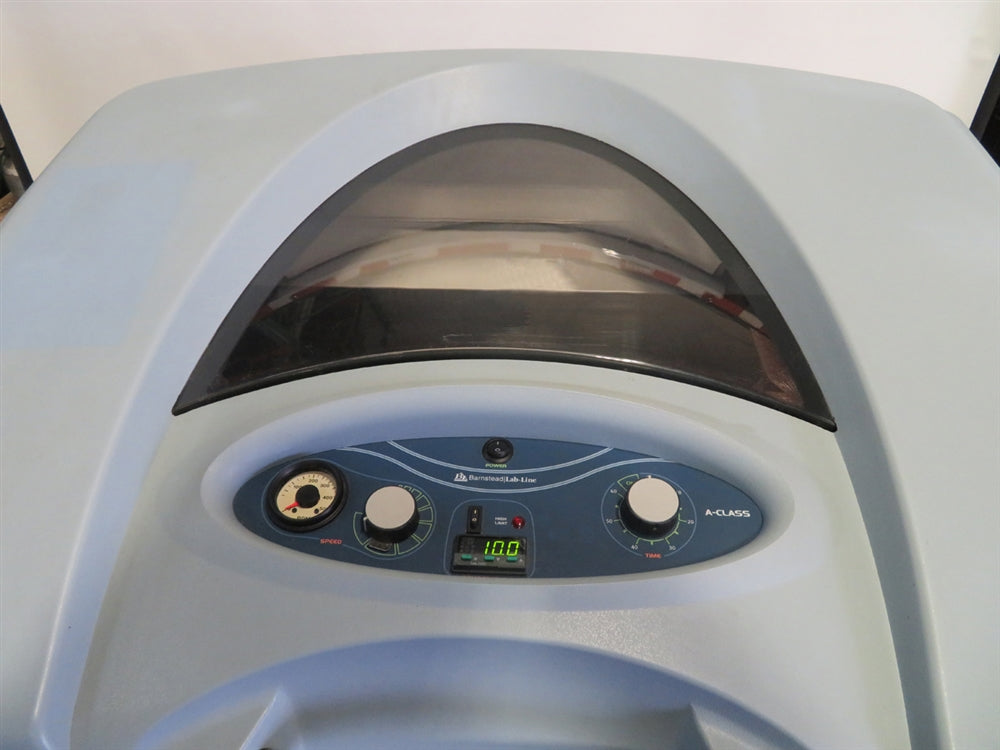

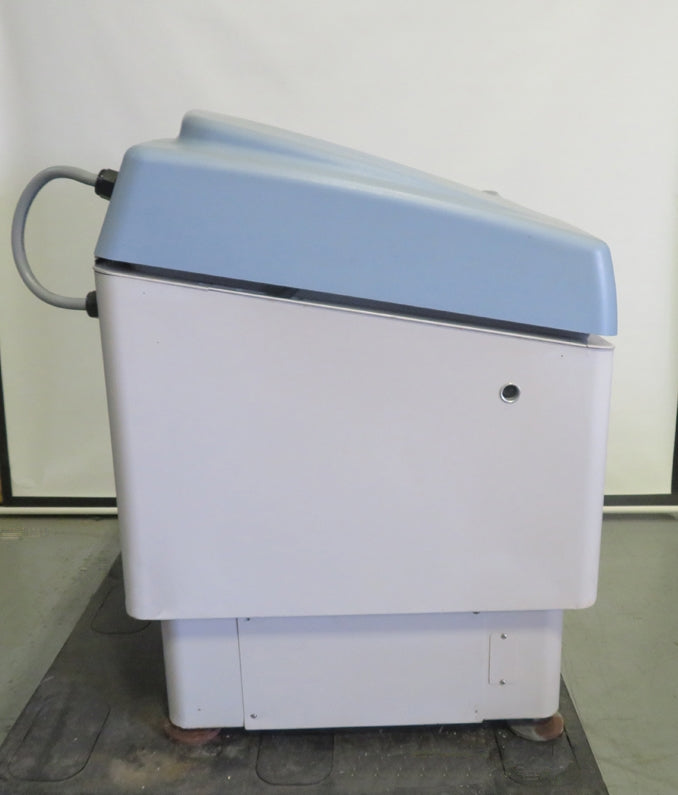

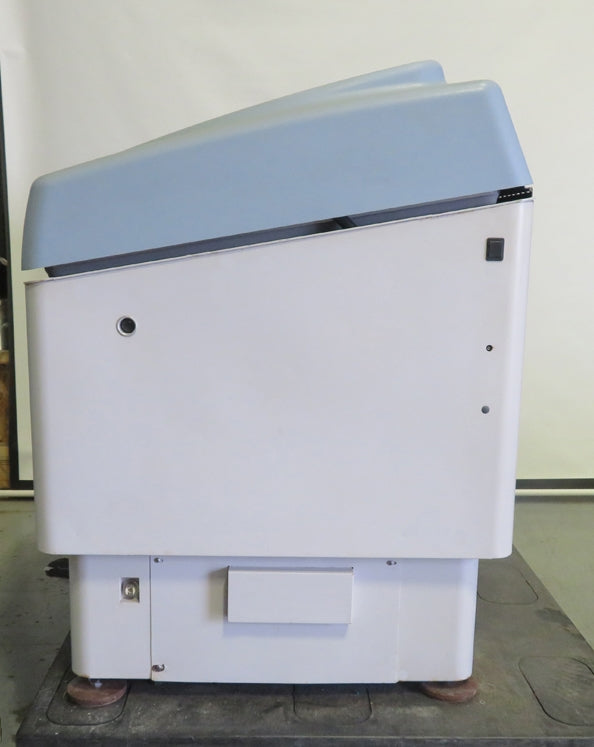

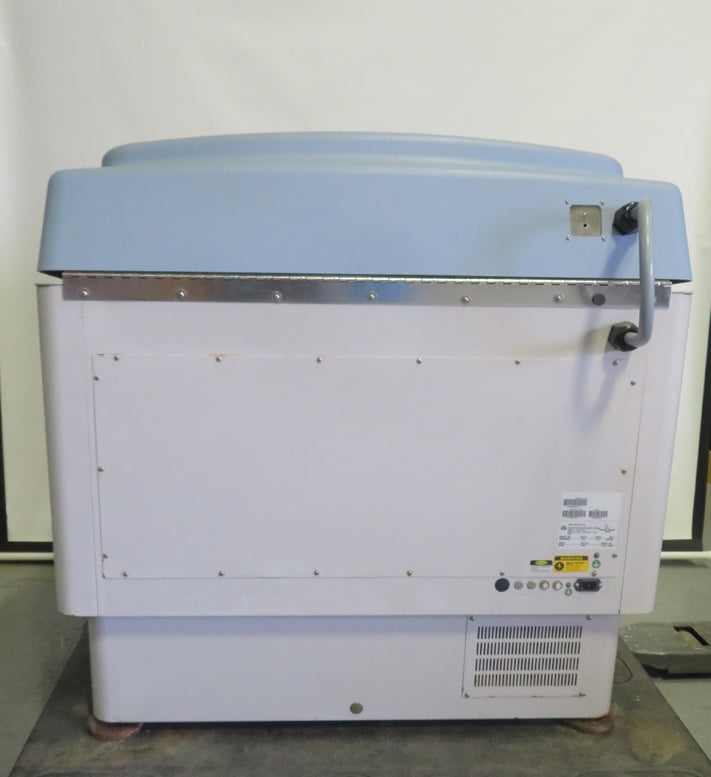

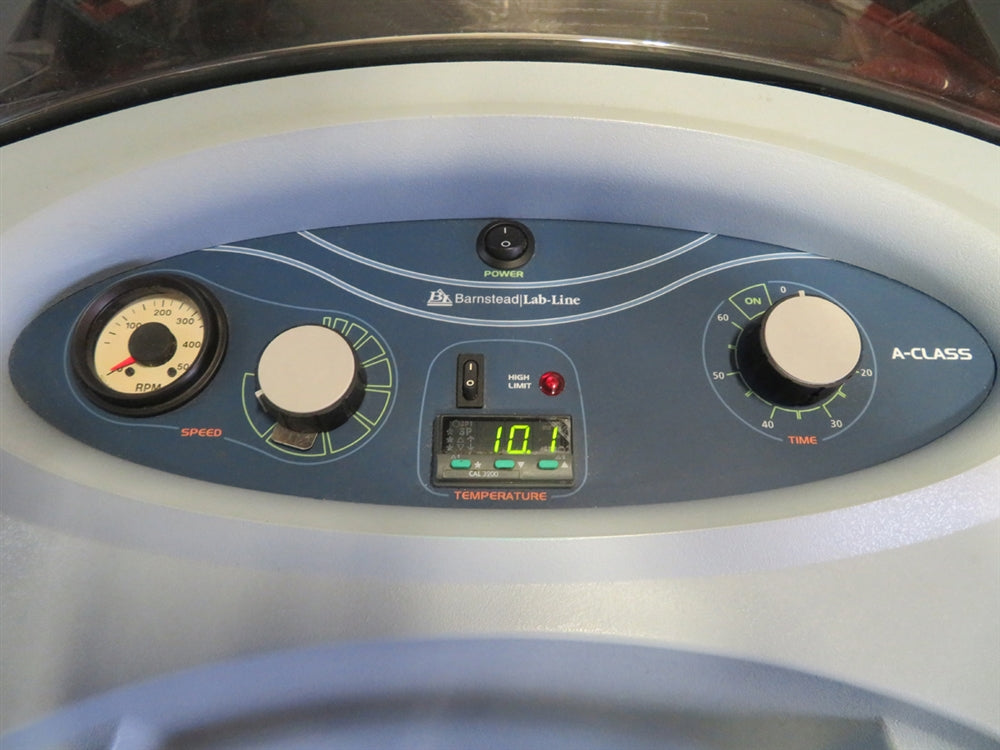

Barnstead Lab-Line MaxQ 5000 Incubator Shaker
Speed Range
40 to 400 RPM
Temperature Range
Ambient +10°C to 60°C
Temperature Accuracy
± 0.1° at 37°C
Features
- Triple eccentric orbit drive with six sets of lubricated ball bearings ensures smooth and stable shaking performance
- Continuous or timed operation with a built-in timer ranging from 1 to 60 minutes for flexible workflows
- Clear, scratch-resistant lid allows easy viewing of samples without disturbing the internal environment
- Independent over-temperature protection system provides additional safety for sensitive applications
- Robust floor-model design supports high-capacity workflows and demanding laboratory environments

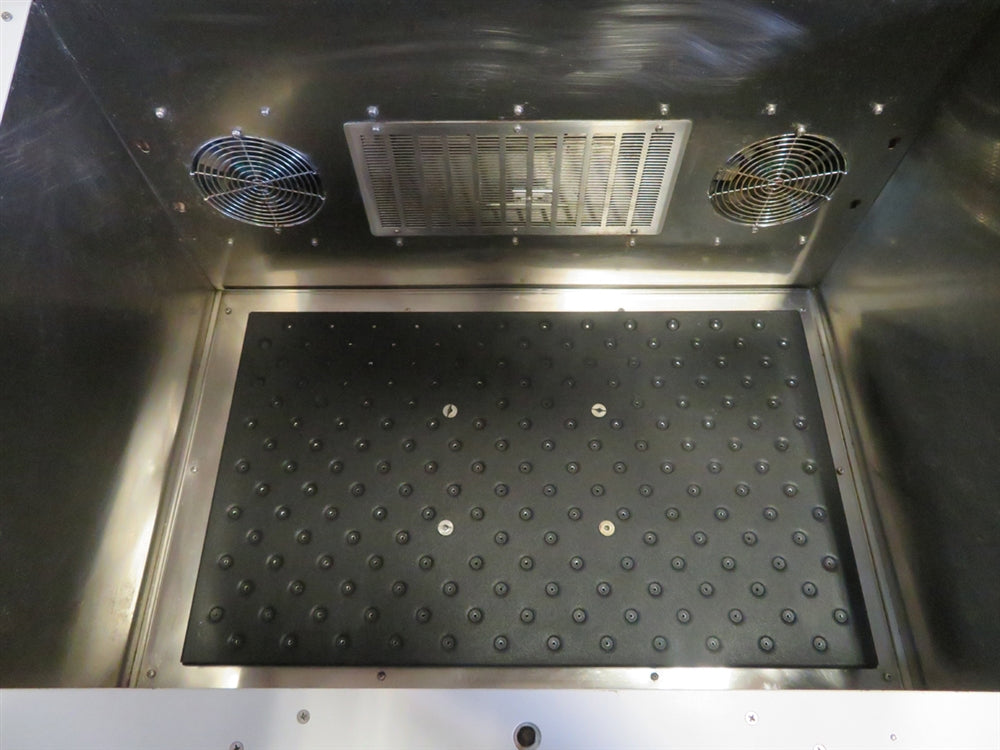

- Spacious platform accommodates a variety of flask sizes for versatile applications like cell culture and protein expression
- Heavy-duty construction with a load capacity of 75 lbs for handling larger sample volumes
This incubator shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Barnstead Lab-Line MaxQ 5000 Incubator Shaker includes:
The Barnstead Lab-Line MaxQ 5000 Incubator Shaker includes:
- > Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Barnstead Lab-Line MaxQ 5000 Incubator Shaker Specifications
|
Speed Range |
40 to 400 RPM |
|
Speed Accuracy |
±10 RPM |
|
Temperature Range |
Ambient +10° to 60°C |
|
Temperature Accuracy |
±0.1° at 37°C |
|
Timer |
Continuous or timed operation from 1 to 60 minutes |
|
Dimensions (L x W x H) |
32 x 41 x 41 in (81.3 x 104.1 x 104.1 cm) |
|
Weight |
476 lbs |
|
Electrical Requirements |
120V, 12A, 1450W, 50/60 Hz |
|
Shaker Orbit |
1 in triple eccentric orbit drive on 6 sets of lubricated ball bearings |
|
Load Capacity |
75 lbs |
Inspection and Recertification Checklist
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
