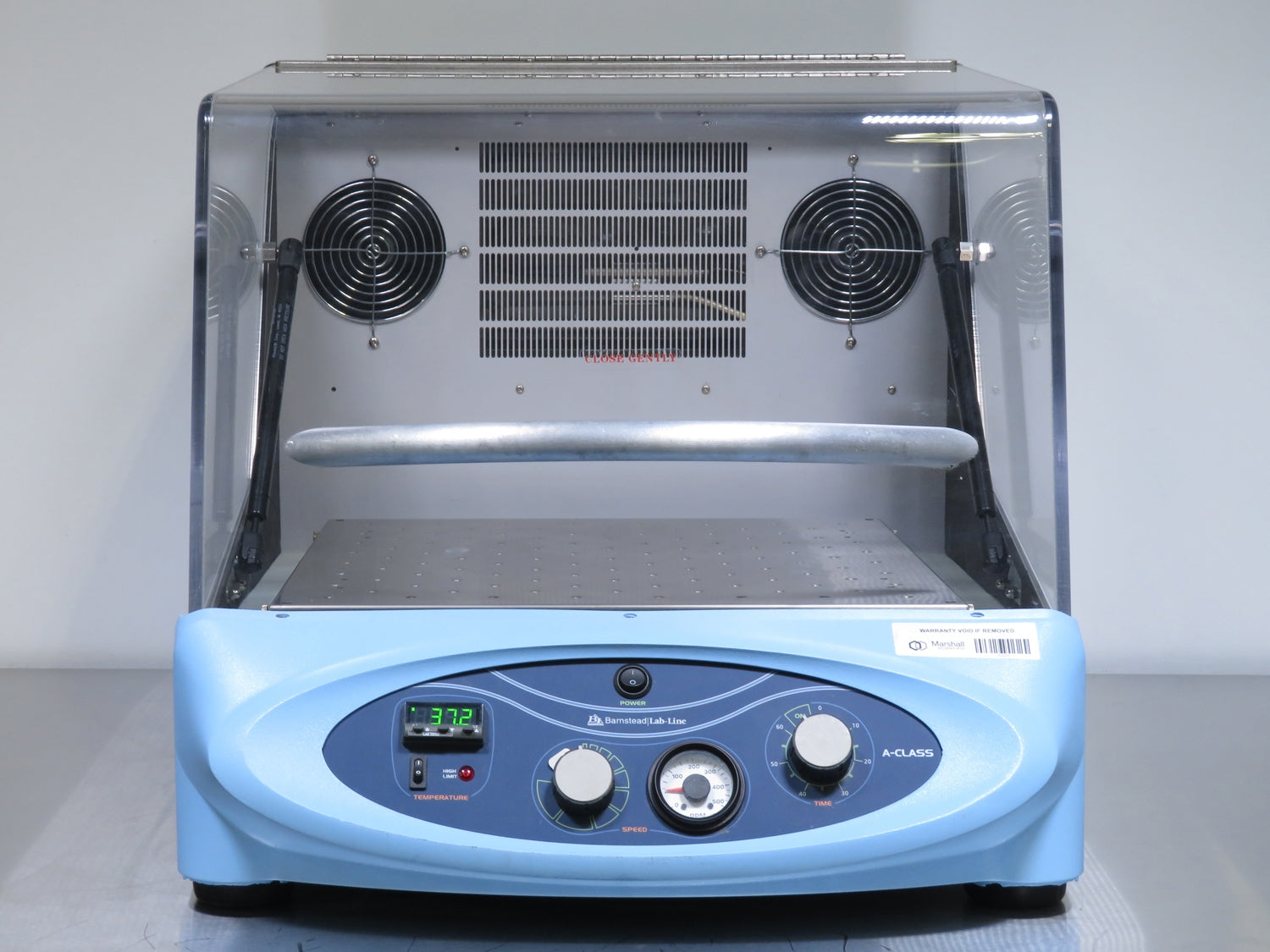

Barnstead MaxQ 4000 Orbital Incubator Shaker
Speed Range
40 to 400 RPM
Temperature Range
Ambient +10C to 60C
Timer
Continuous / Timed from 1 to 60 mins
Features
- Ideal for cell culture, solubility studies, extraction procedures, protein expression, and more.
- Smooth shaking in a 3/4-inch (1.9 cm) triple eccentric orbital drive.

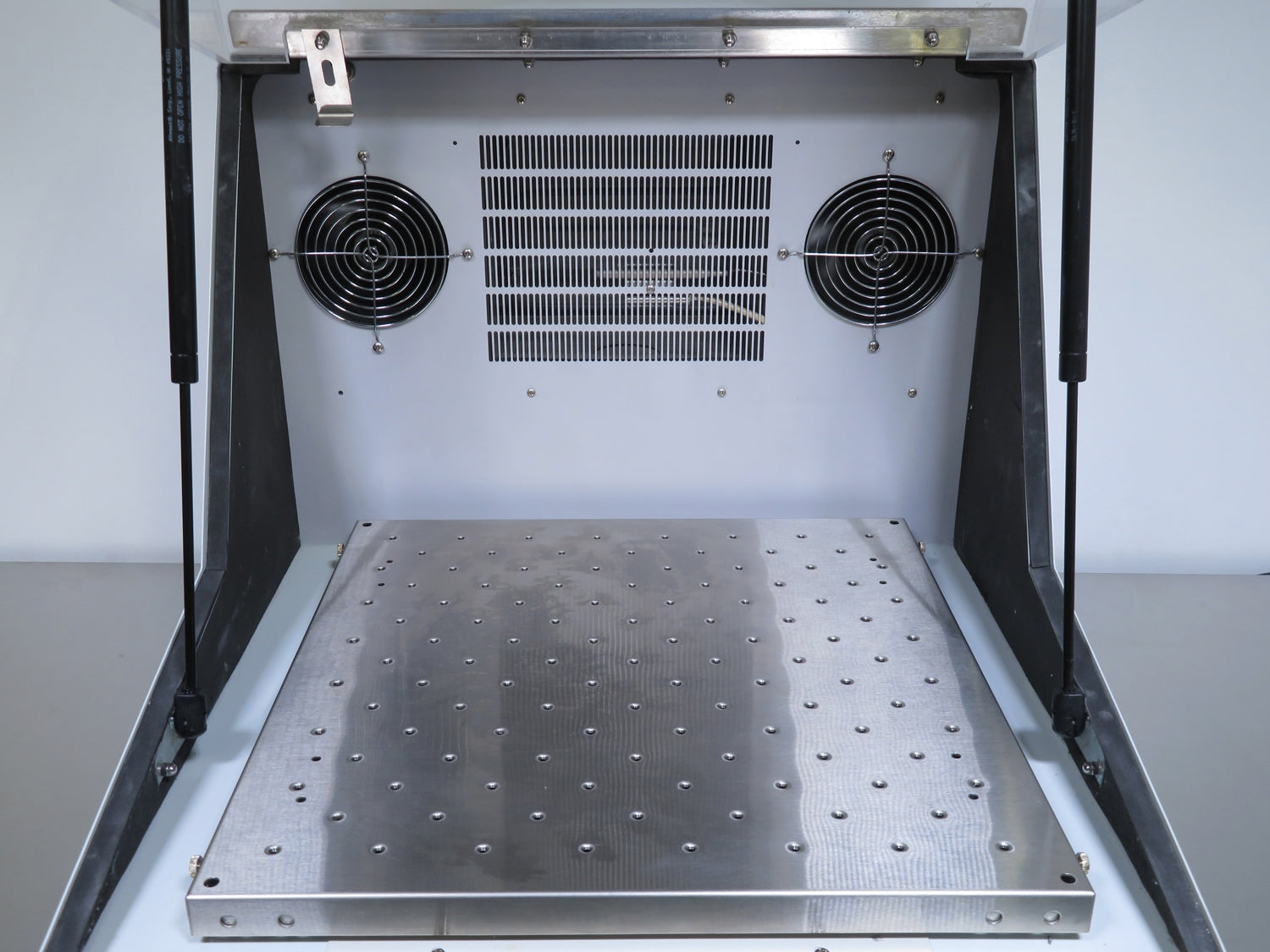

- Spacious 18 x 18 inch platform accommodates up to six 2L flasks.
- Memory retains all set points and automatically reactivates after power is restored.
- Visual, user-adjustable over-temperature safety signal with independent thermostat controls in case the main controller fails.

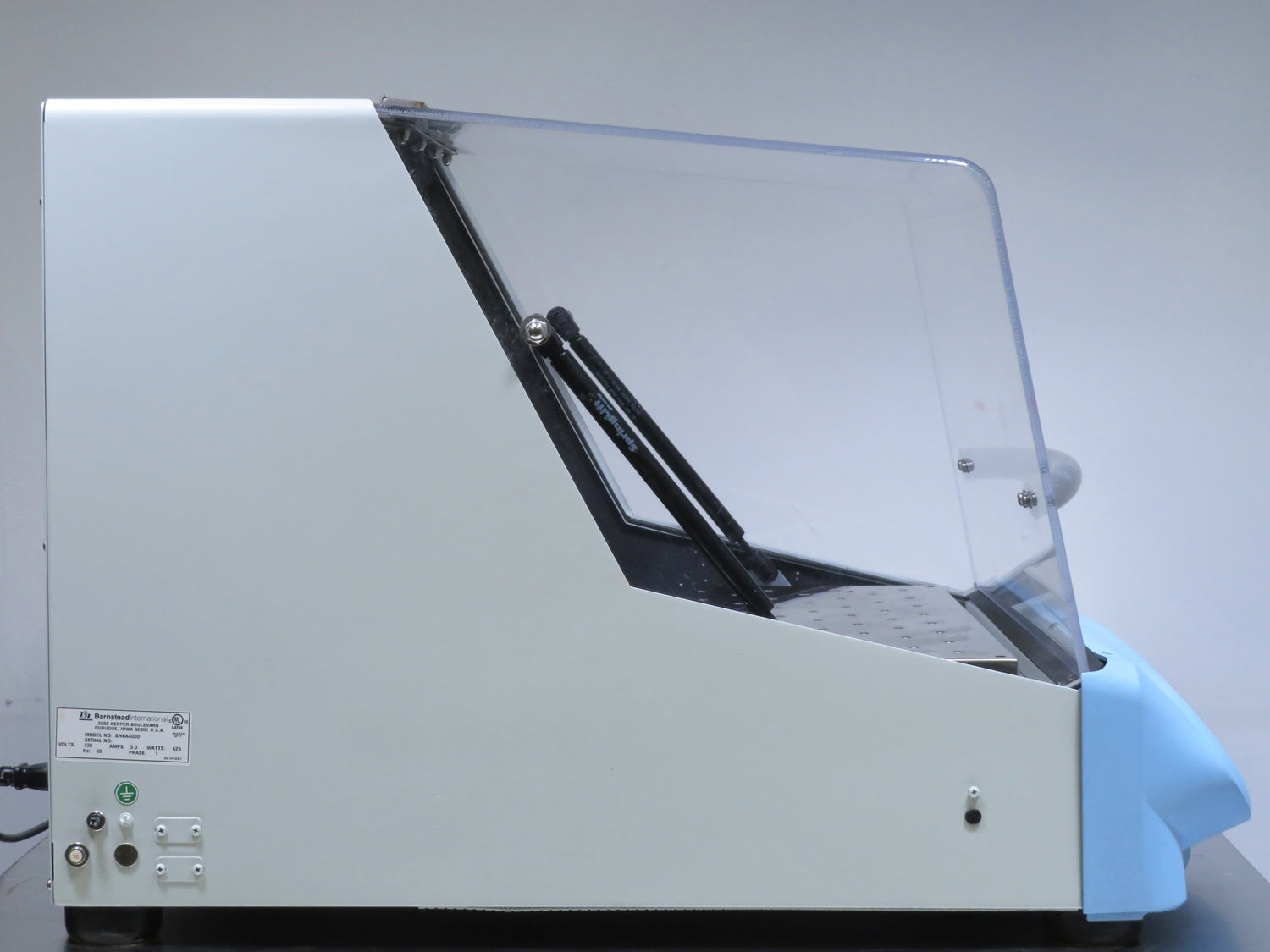

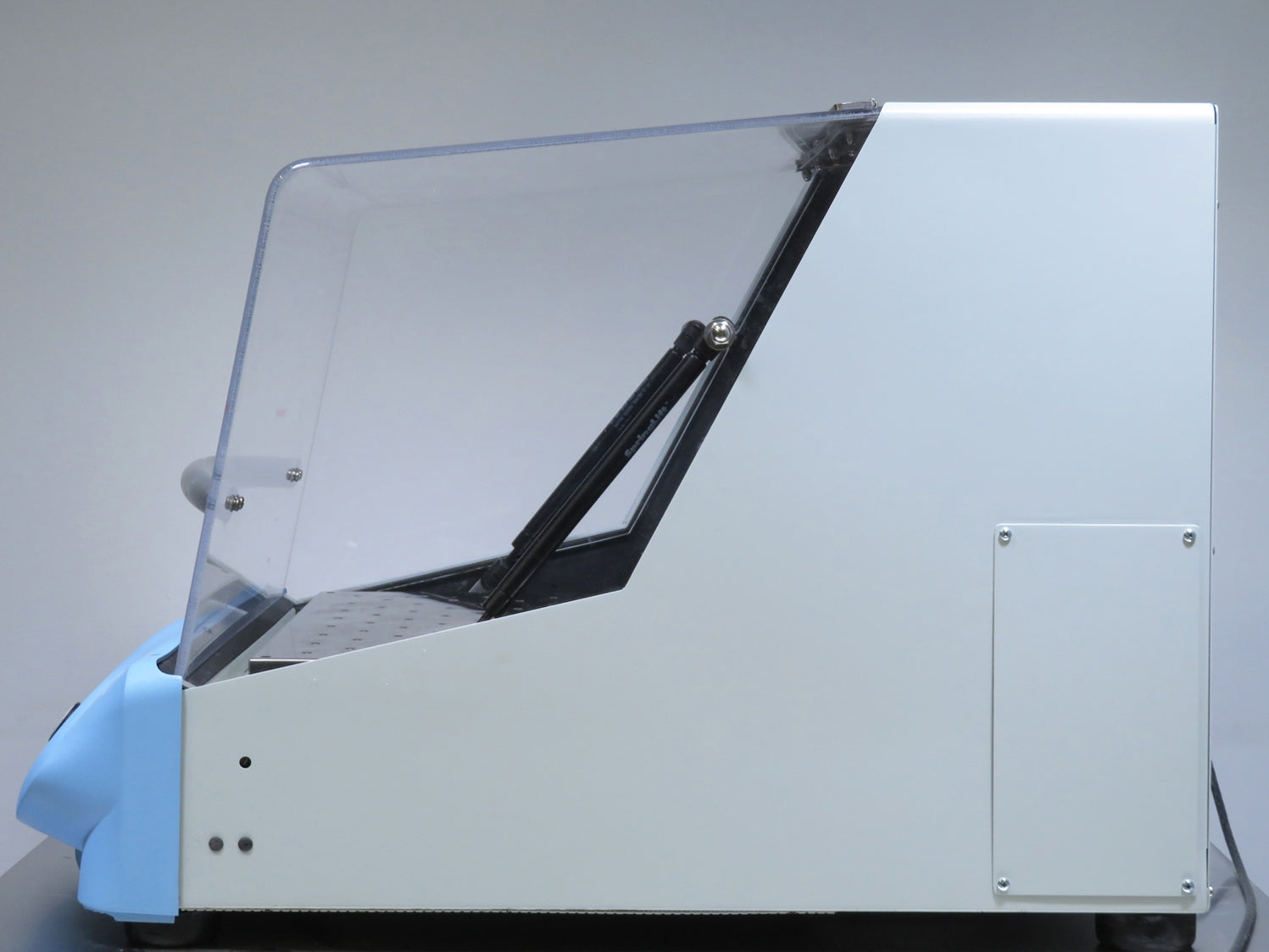

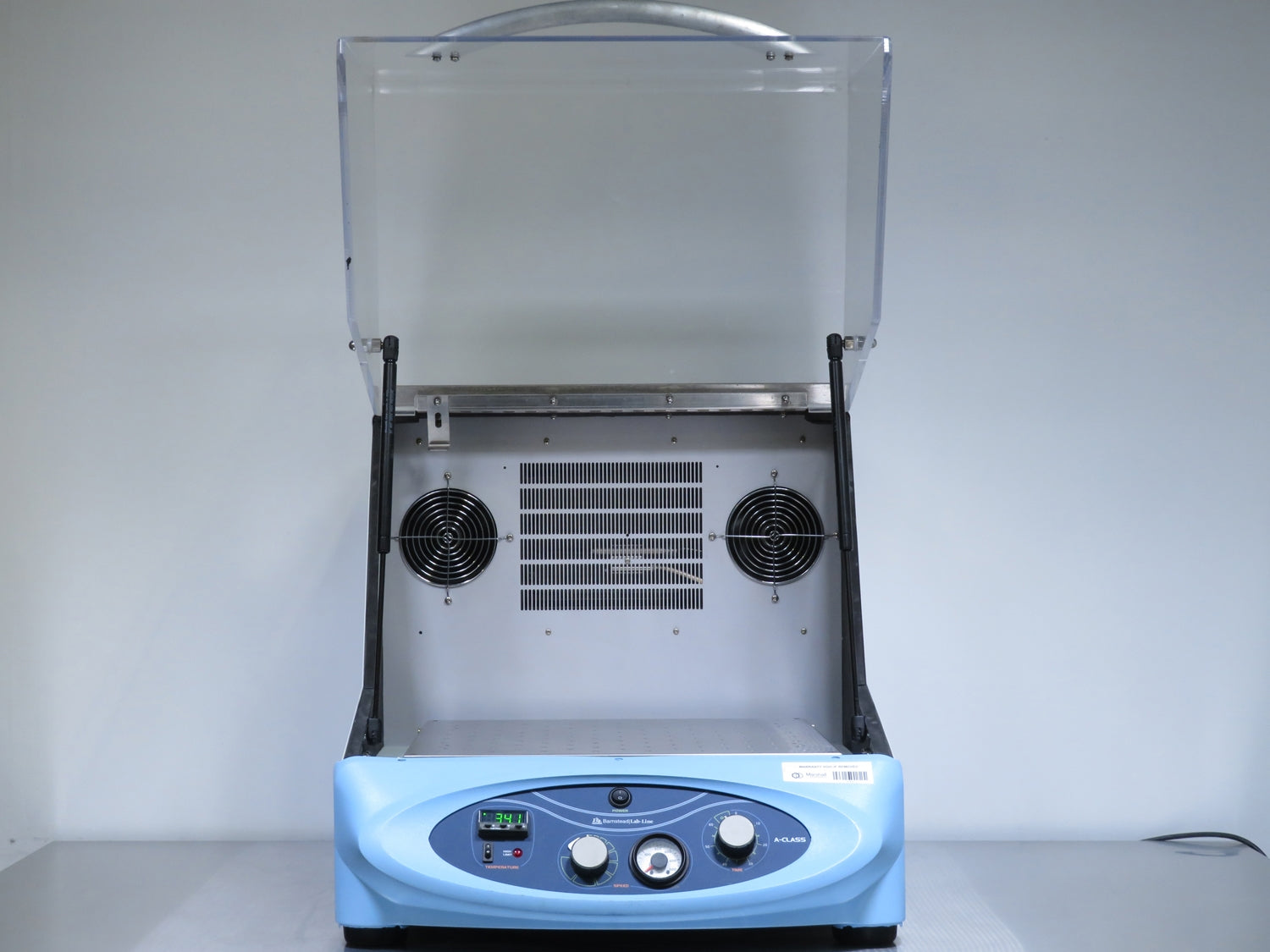

The Barnstead MaxQ 4000 combines orbital shaking technology with benchtop design for a versatile shaker ideal for cell culture, solubility studies, extraction procedures, protein expression, and many other applications. The MaxQ 4000 features shaking speeds from 40 to 400 RPM around a 0.75 inch orbit with a temperature range of 10°C above ambient to 60°C. Spacious 18 x 18 inch platform allows for higher vessel capacity for up to six 2L flasks. The MaxQ 4000's clear, scratch-resistant lid allows for unobstructed sample viewing without disturbing the chamber. PID temperature controller provides ±0.1°C temperature accuracy at 37°C, and an independent over temperature feature provides a backup temperature controller for added safety.
This incubator shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Barnstead MaxQ 4000 Orbital Incubator Shaker includes:
The Barnstead MaxQ 4000 Orbital Incubator Shaker includes:
- > 18 x 18 in Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Barnstead MaxQ 4000 Orbital Incubator Shaker Specifications
|
Speed Range |
40 to 400 RPM |
|
Speed Accuracy |
±10 RPM |
|
Temperature Range |
Ambient +10° to 60°C |
|
Temperature Uniformity |
±0.5° at 37°C |
|
Temperature Accuracy |
±0.1° at 37°C |
|
Timer |
Continuous or timed operation from 1 to 60 minutes |
|
Dimensions (L x W x H) |
32 x 22.5 x 22 in (81.3 x 57.2 x 55.9 cm) |
Inspection and Recertification Checklist
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.

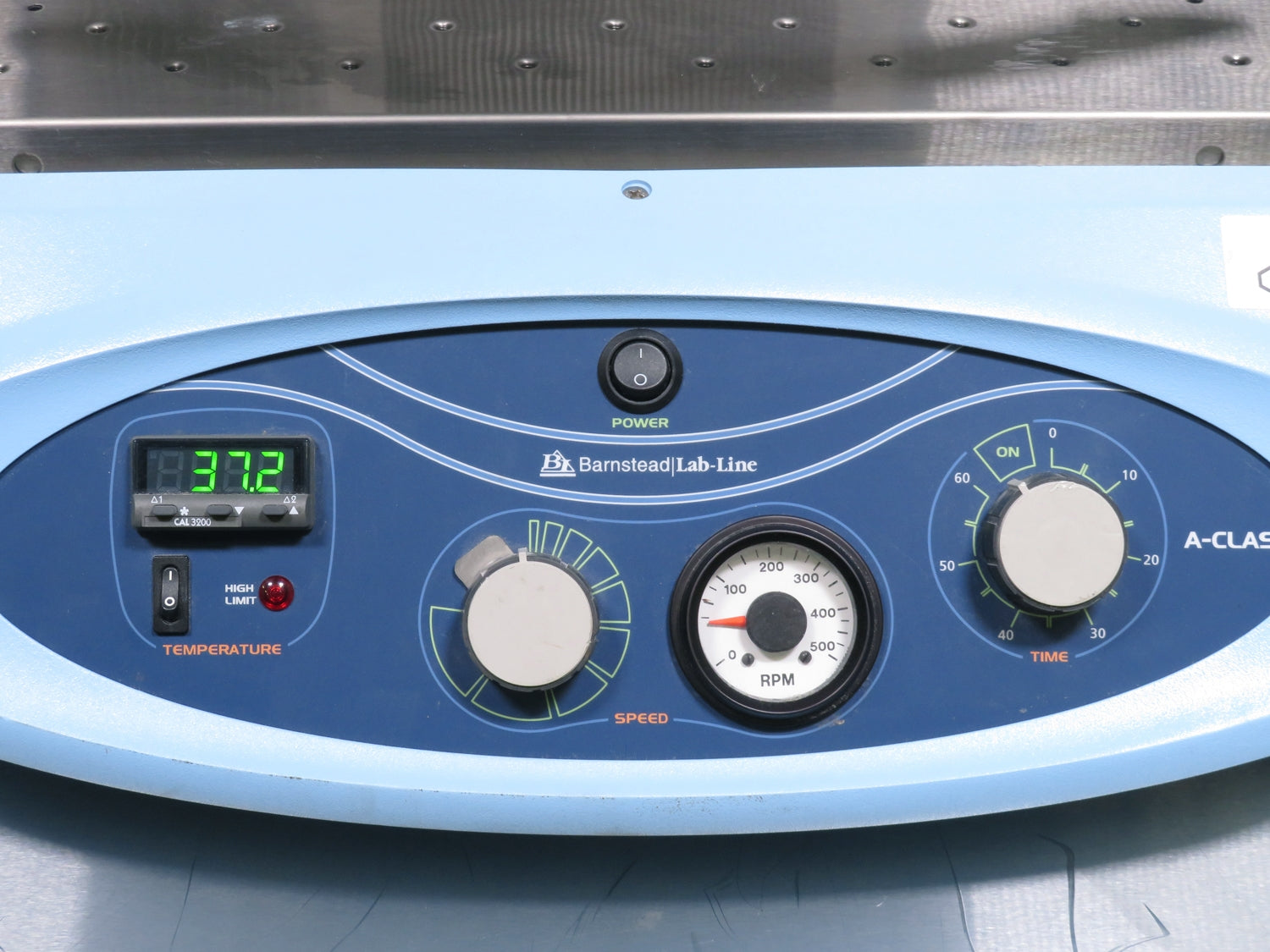

- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
