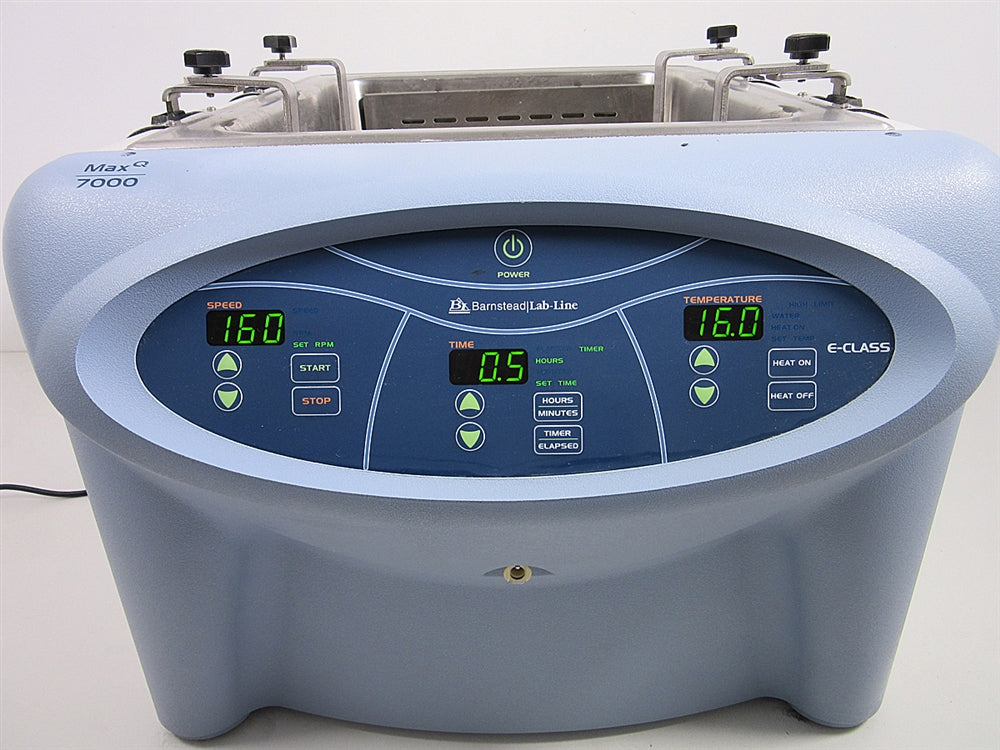

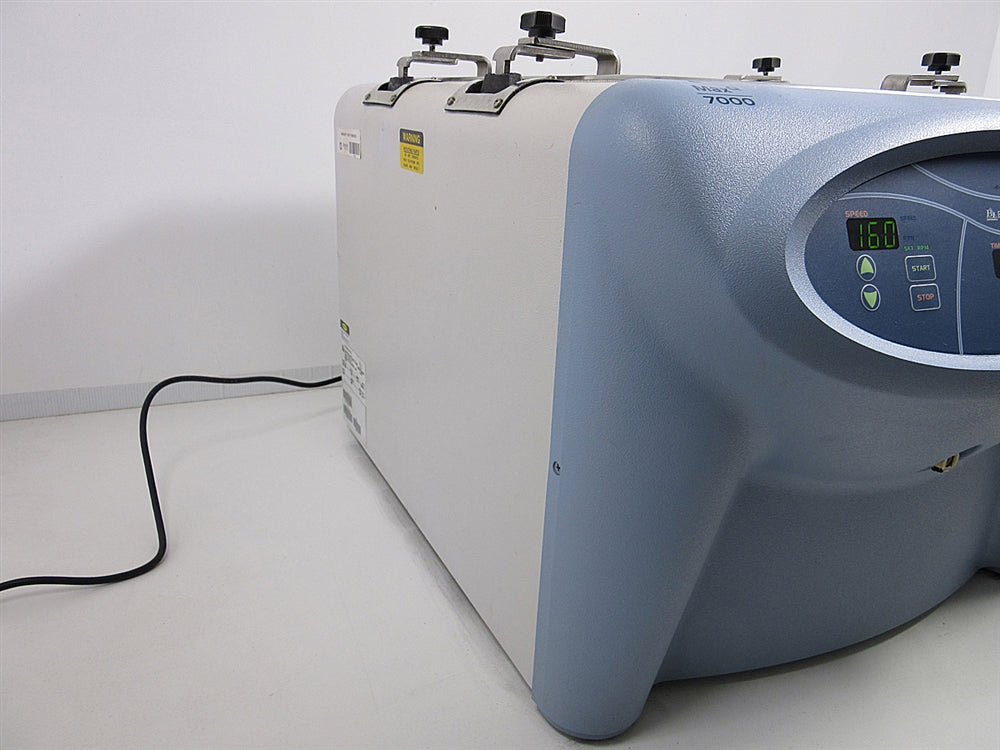

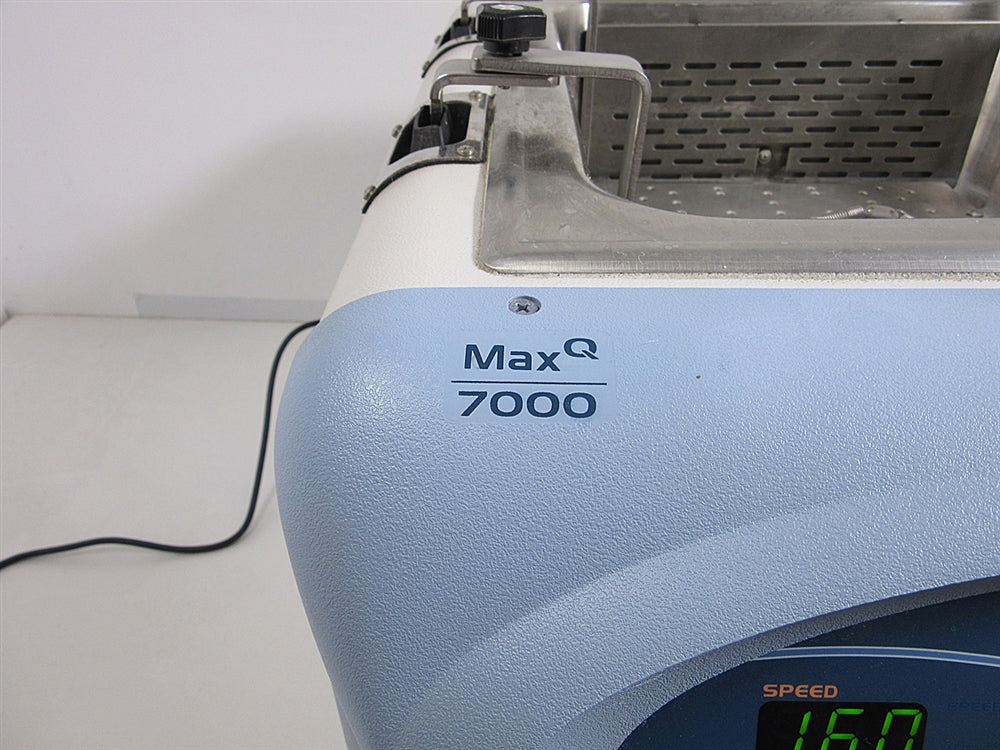

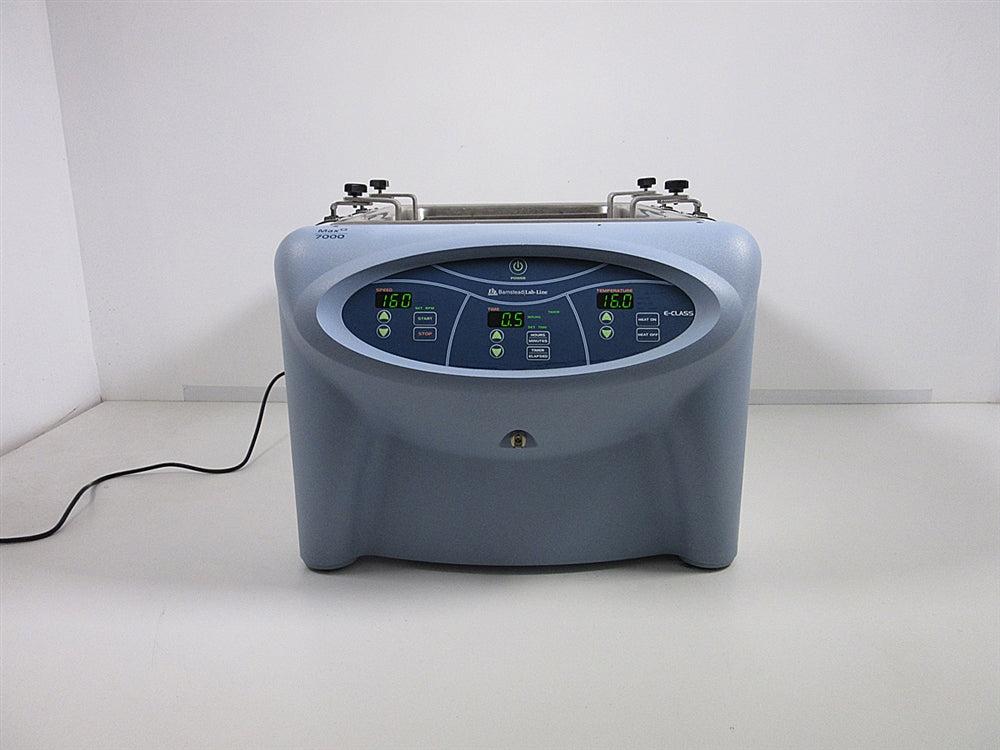

Barnstead MaxQ 7000 Water Bath Orbital Shaker

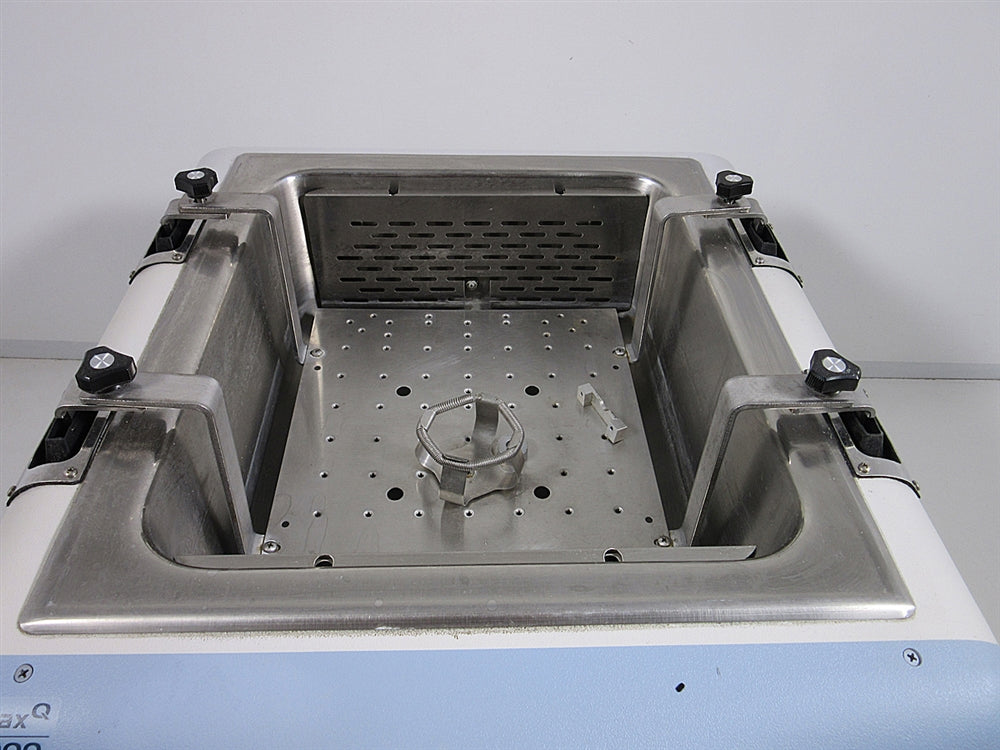

The Barnstead MaxQ 7000 Water Bath Orbital Shaker combines a controlled water bath with the orbital shaking motion of a shaker. This benchtop shaker easily holds large samples in an oversized bath chamber and contain an easy-access drain system in the front cabinet. The MaxQ 7000 is ideal for cell culture, solubility studies, extraction procedures, diagnostic tests and many other applications.
This shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Barnstead MaxQ 7000 Water Bath Orbital Shaker includes:
The Barnstead MaxQ 7000 Water Bath Orbital Shaker includes:
- > Reciprocating Tray
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Barnstead MaxQ 7000 Water Bath Orbital Shaker Specifications
|
Speed Range |
15 to 500 ±1 rpm |
|
Temperature Range |
Ambient+5° to 60°C |
|
Orbit |
1.27cm (0.5 in.) |
|
Control |
Digital |
|
Hertz |
50/60Hz |
|
Load Bearing Capacity |
35 lb. (15.9kg) |
|
Motor Type |
DC brushless |
|
Shipping Weight |
107 lb. (48.5kg) |
|
Temperature Accuracy |
5 deg. C above ambient to 65 deg. C |
|
Timer |
1 to 60 min. |
|
Certifications/Compliance |
UL, cUL, CE |
|
Dimensions (L x W x H) Exterior |
25 x 21.5 x 18 in. (63.5 x 54.6 x 45.7cm) |
|
Electrical Requirements |
120V 50/60Hz |
|
Platform Dimensions (L x W) |
11 x 13 in |
Water Bath Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Inspect Display and Replace Any Dim/Dead Pixels
- Confirm All Buttons, Knobs, And Switches Are Functioning Properly
- Inspect Water Reservoir for Holes, Rust and Other Damage
- Fill With Water and Confirm Unit Has No Leaks
- Inspect Lid for Any Damage and Replace Hinges and Handle as Needed
- Inspect For Any Internal Leaks Coming from The Water Reservoir
- Inspect Internal Wiring for Any Breakages or Tears. Replace All Underperforming Components.
- Inspect Internal Insulation for Burns or Breaks, And Replace as Needed
- Check Feet and Confirm Bath Is Sitting Balanced
- Calibrate Temperature Accuracy and Temperature Uniformity with Nist Traceable Temperature Probe
- Ensure Cosmetics Are Acceptable
Downloads
Click Here to View the Technical Specs for the Barnstead MaxQ 7000
