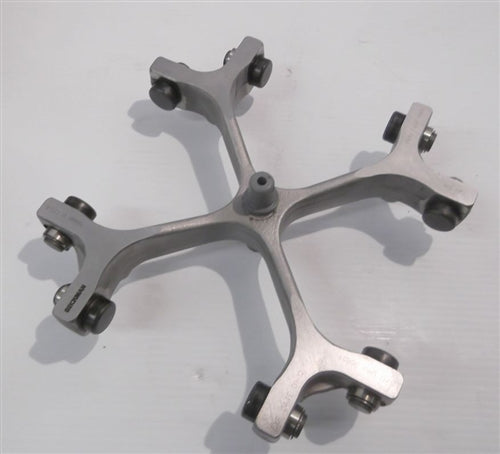

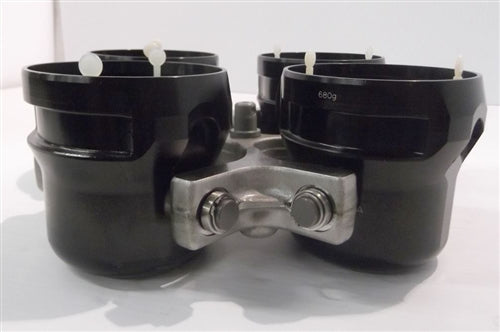

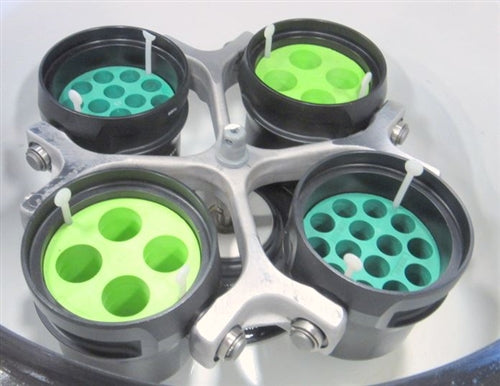

Beckman GH 3.8 Swing Bucket Rotor and Buckets
Maximum Speed
3,750 RPM
Maximum Capacuty
4 x 750 mL
Radius
20.4 cm
- Designed for compatibility with the Allegra 6 series and GS-6 centrifuges, including Allegra 6, Allegra 6R, GS-6, and GS-6R
- Includes Beckman GH 3.8 Swing Bucket Rotor with buckets, and sets of 15ml and 50ml adapters
- Boasts a maximum speed of 3,750 RPM for efficient centrifugation
- Delivers a high maximum Relative Centrifugal Force (RCF) of 3,210 x g
- Constructed from durable stainless steel for long-lasting use
- Accommodates up to 3L with 4 x 750 mL cavities for substantial sample processing
- Features nominal largest container/bucket dimensions of 96 x 130 mm
- Designed with radius measurements: R min (86 mm), R av (145 mm), and R max (204 mm) for optimized centrifugal performance
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Beckman GH 3.8 Swing Bucket Rotor and Buckets includes:
- > 1 Set of 15ml Adapters
- > 1 Set of 50ml Adapters
- > Full 180 Day Parts and Labor Warranty
Beckman GH 3.8 Swing Bucket Rotor Specifications
|
Specifications
|
|
|
Maximum Speed
|
3,750 rpm
|
|
Maximum RCF at r max (g)
|
3,210 x g
|
|
k-Factor
|
15,560
|
|
Rotor Material
|
Stainless Steel
|
|
R min
|
86 mm
|
|
R av
|
145 mm
|
|
R max
|
204 mm
|
|
Nominal Rotor Capacity
|
3L
|
|
Number of Rotor Cavities x Nominal Largest Load Capacity
|
4 x 750 mL
|
|
Nominal Largest Container/Bucket/Carrier/Canister Dimensions
|
96 x 130 mm
|


Click Here to View the Technical Specs for the Beckman GH 3.8 Rotor
