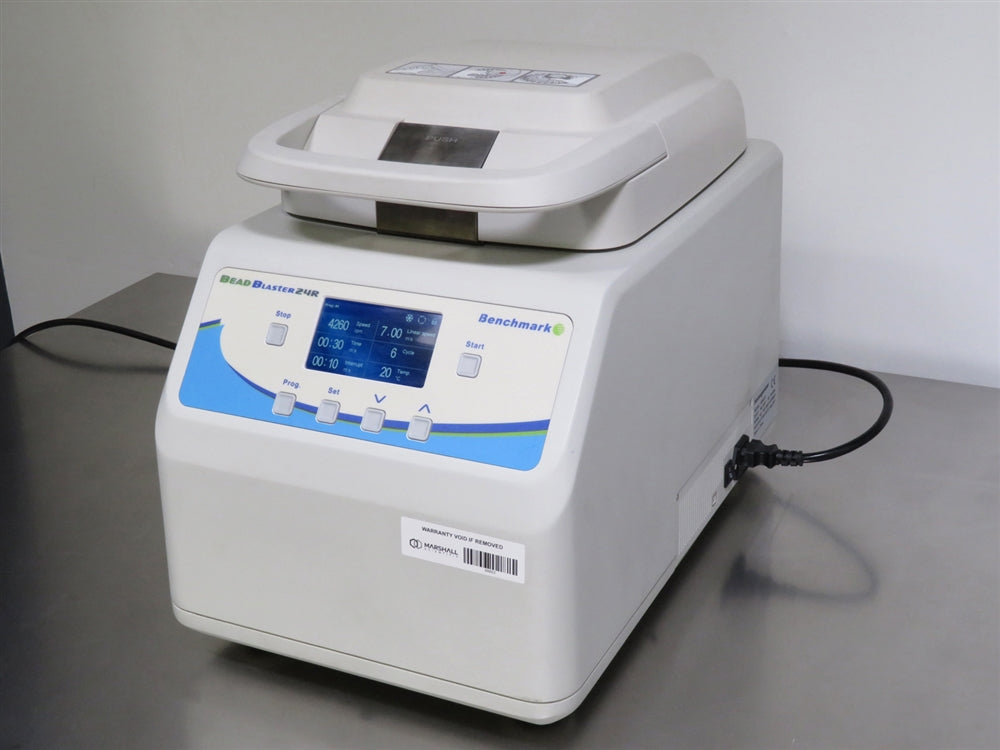

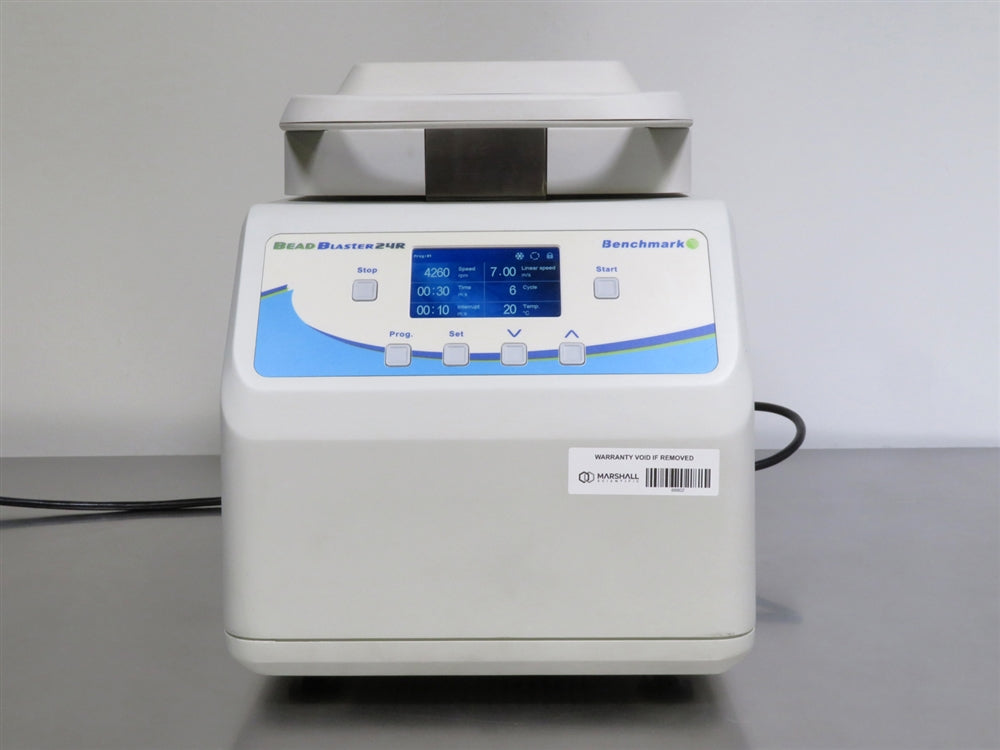

Benchmark BeadBlaster 24 Refrigerated Microtube Homogenizer
Speed Range
4.0 to 7.0 m/s (in 0.05 m/s increments)
Capacity
24 x 2.0ml
Temperature Range
-10°C to Ambient
Features
- Efficient bead homogenizer with built-in refrigeration
- Compressor-based cooling; no dry ice or liquid nitrogen needed
- Maintains set temperature during homogenization process
- Processes up to 24 samples with high-energy 3D motion

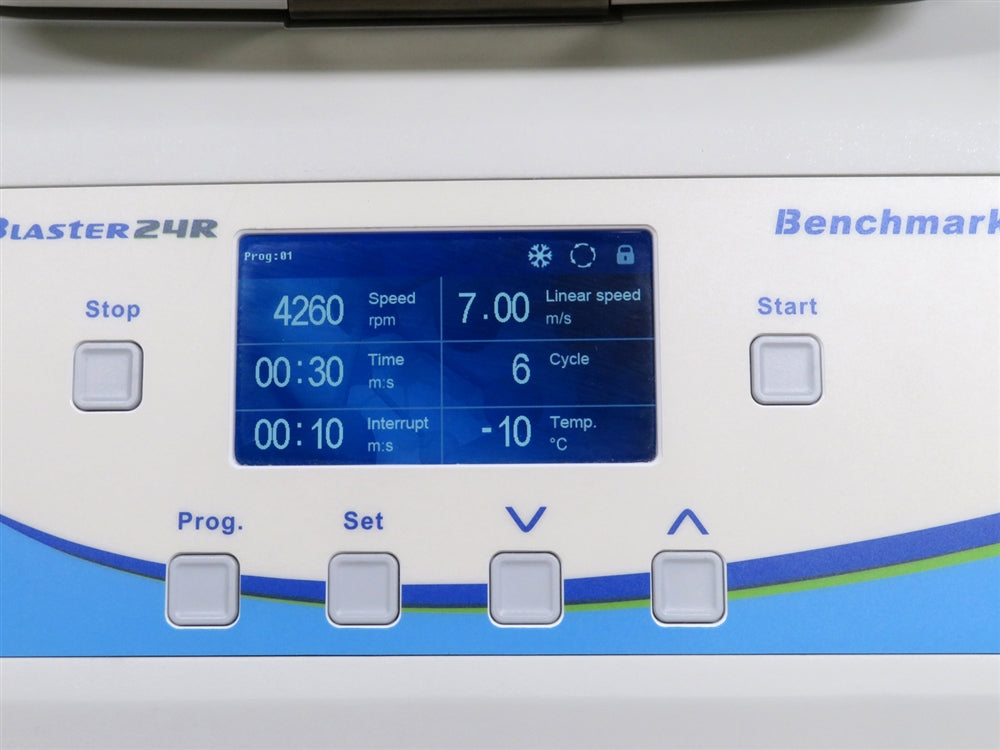

- Digital controls with memory for 50 stored profiles
- Brushless motor ensures quiet, maintenance-free operation

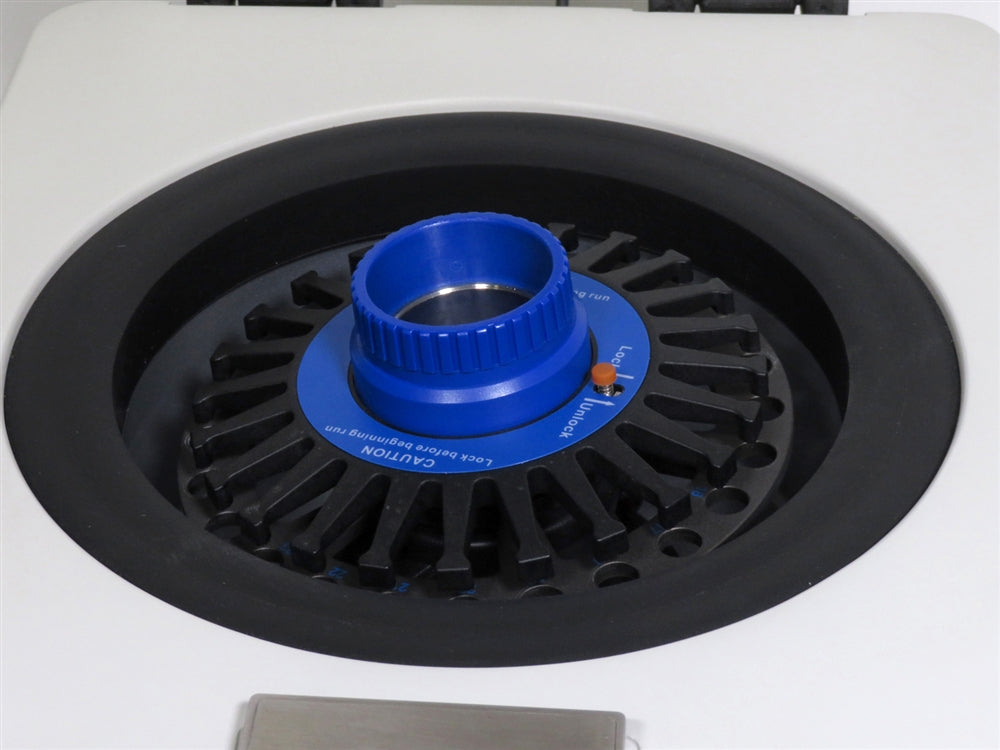

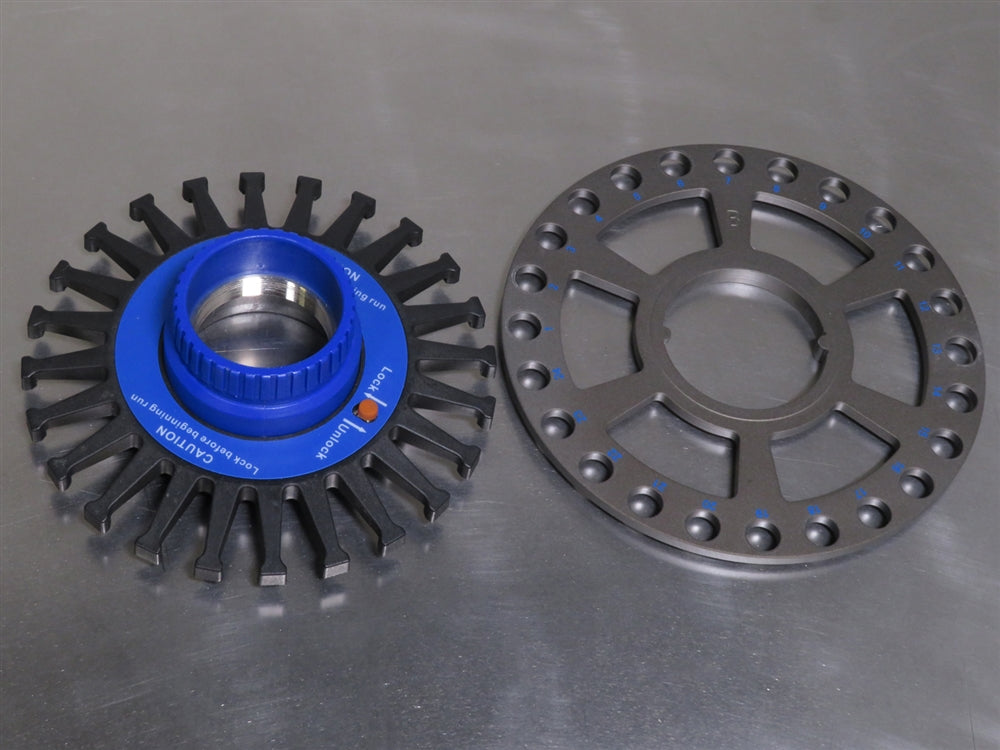

The BeadBlaster 24R retains many of the features of the popular BeadBlaster 24. The stainless steel tube carrier subjects up to 24 samples to an optimized, high speed, 3D motion, producing high energy impacts between the samples and micro-beads to release cellular contents. Operating parameters are set and displayed digitally, while 50 profiles can be stored in memory and recalled for future use. A brushless motor reduces motor noise and provides maintenance free operation.
The Benchmark BeadBlaster 24 Refrigerated Microtube Homogenizer is compatible with an assortment of prefilled tube kits for processing a variety of sample types. The popular Triple-Pure kits include acid washed, heat treated, zirconium beads. A convenient starter kit (D1032-SK) is also available to accommodate a broad range of sample types and optimize applications.
All of our equipment is fully tested to perform at factory specifications before being shipped.
Marshall Scientific is an Authorized Distributor for Benchmark products. If a brand new pre-filled tube kit is of interest, please inquire with our customer service team.
INCLUDED:
The Benchmark BeadBlaster 24 Refrigerated Microtube Homogenizer includes:
The Benchmark BeadBlaster 24 Refrigerated Microtube Homogenizer includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Benchmark BeadBlaster 24 Refrigerated Microtube Homogenizer Specifications
| Speed Range | 4.0 to 7.0 m/s (in 0.05 m/s increments) |
| Capacity | 24 x 2.0ml |
| Temperature Range | -10°C to Ambient |
| Cycle Time | 1 to 90 sec. (1 sec. increments) |
| Pause Between Cycles | 0 to 2 min. (1 sec. increments) |
| Max. Cycles Per Program | 10 |
| Program Memory | up to 50 |
| Acceleration / Deceleration Time | < 4 sec. / < 4 sec. |
| Cooling Method | Compressor |
| Precool to 0°C | < 30 minutes |
| Noise Level | < 65 db |
| Dimensions (W x D x H) | 12.6 x 20.1 x 16.2 in. (32 x 51 x 41 cm) |
| Weight | 88 lb. (40 kg) |
| Electrical Requirements | 100-120V, 50/60Hz, 5A |
Vortexer Inspection and Recertification Checklist
- Verify power supply and PCB output correct, stable voltages across all required circuits
- Confirm the correct platform head is installed according to specifications
- Inspect the display for dim or dead pixels, replacing any compromised sections to maintain clear visibility
- Confirm full functionality of all buttons and knobs, ensuring accurate input response
- Verify that touch, pulse, and continuous modes operate fully and as intended
- Inspect all internal wiring for breakages, tears, or wear, replacing any underperforming components to ensure reliability
- Disassemble and thoroughly clean the internal casing to remove any accumulated debris
- Check that the feet are intact and confirm the vortexer is properly balanced on a flat surface
- Conduct a comprehensive cosmetic inspection to ensure all exterior surfaces meet quality standards
Technician Inspection and Recertification Checklist: Vortexer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB output stable, correct voltages across circuits | Completed | |
| Confirm correct platform head is installed according to specifications | Completed | |
| Inspect display for dim or dead pixels; replace compromised sections for clarity | Completed | |
| Confirm functionality of all buttons and knobs for accurate input response | Completed | |
| Verify full operation of touch, pulse, and continuous modes as intended | Completed | |
| Inspect internal wiring for damage; replace underperforming components for reliability | Completed | |
| Disassemble and clean internal casing to remove accumulated debris | Completed | |
| Check feet for integrity and confirm vortexer is balanced on flat surface | Completed | |
| Conduct comprehensive cosmetic inspection to ensure quality of exterior surfaces | Completed |
