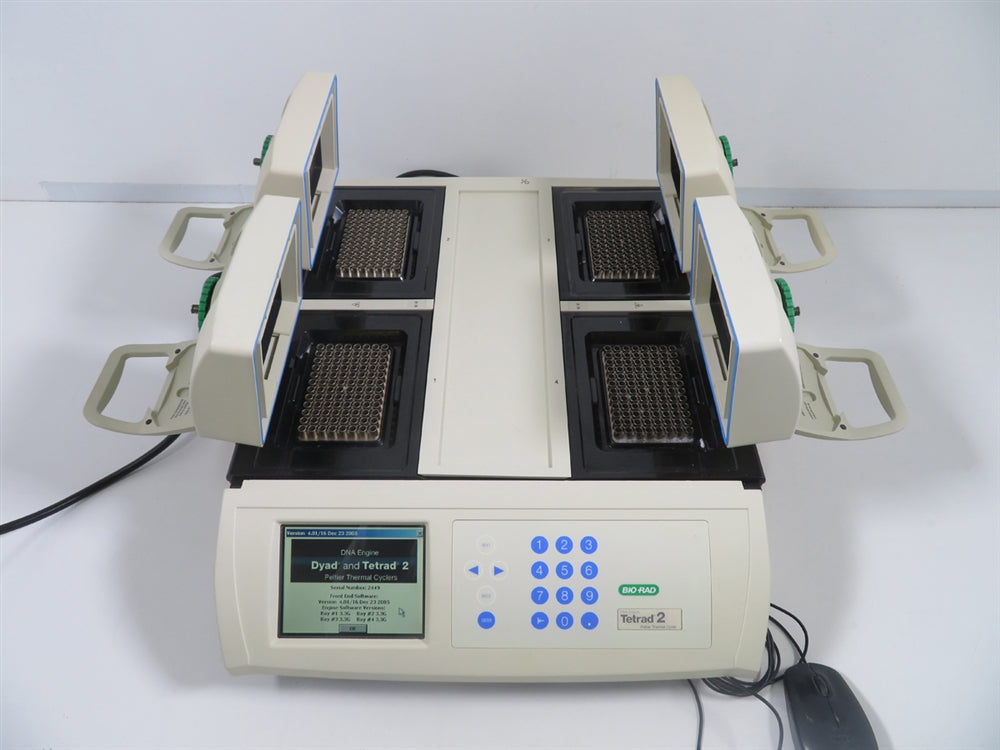

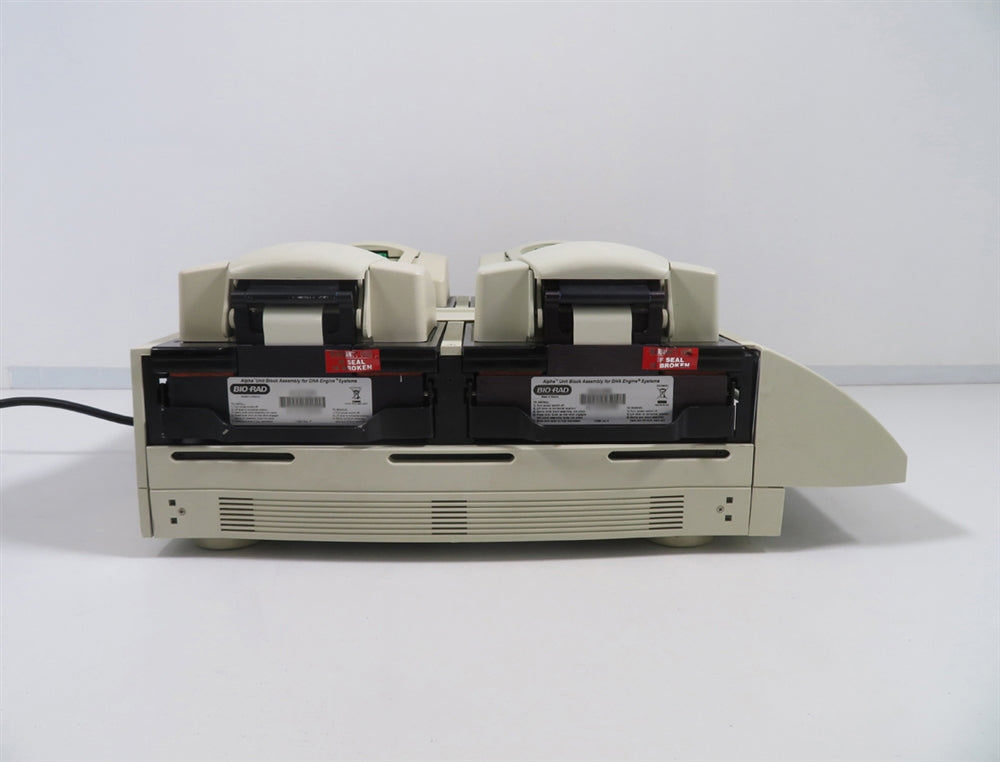

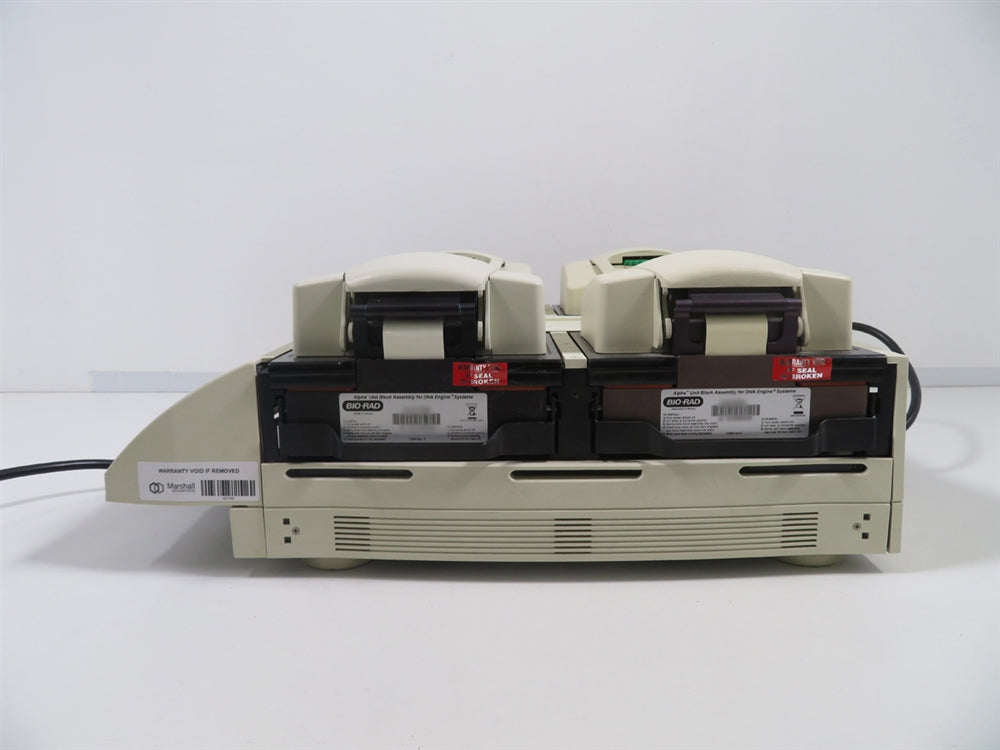

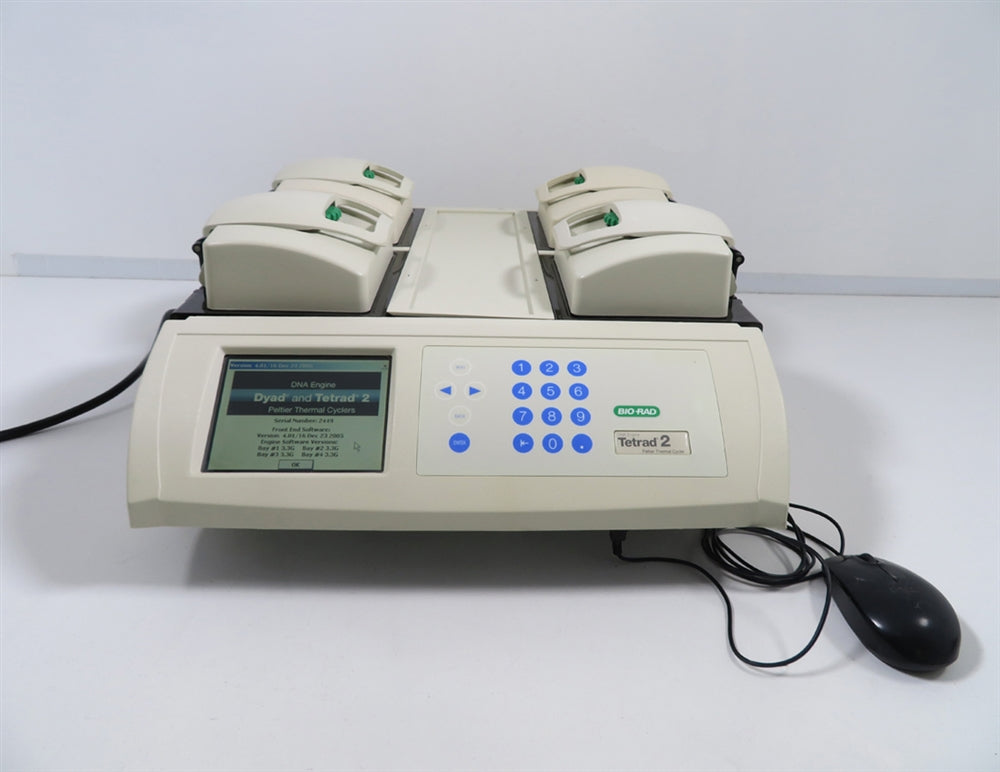

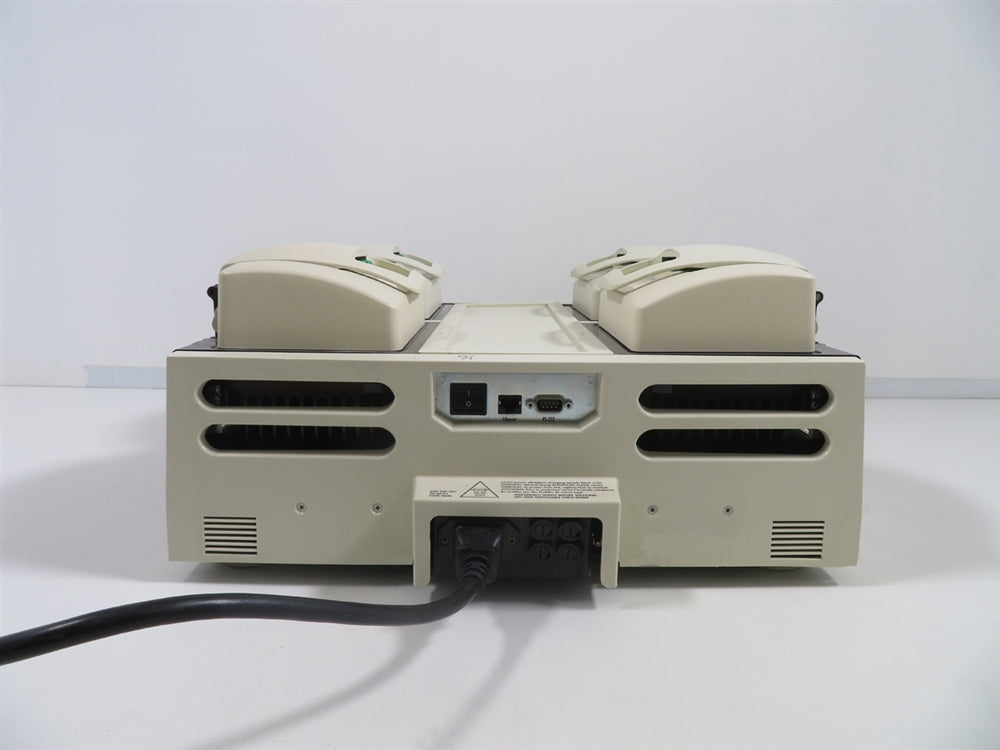

Bio Rad DNA Engine Tetrad 2 Thermal Cycler with 4 blocks
Thermal Range
0 to 105C
Thermal Accuracy
0.3C
Ramping Speed
Up to 3C/sec
- Multi-block thermal cycling capability with superior thermal performance

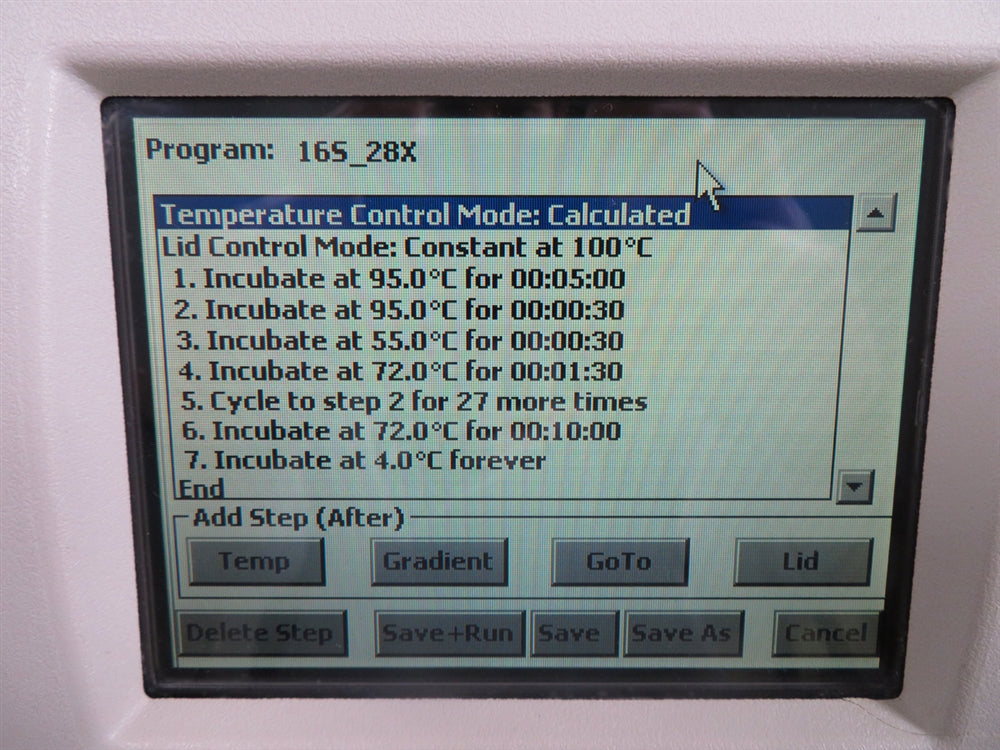

- Intuitive DNA Engine Tetrad 2 system software with user-friendly interface for programming, editing, file management.

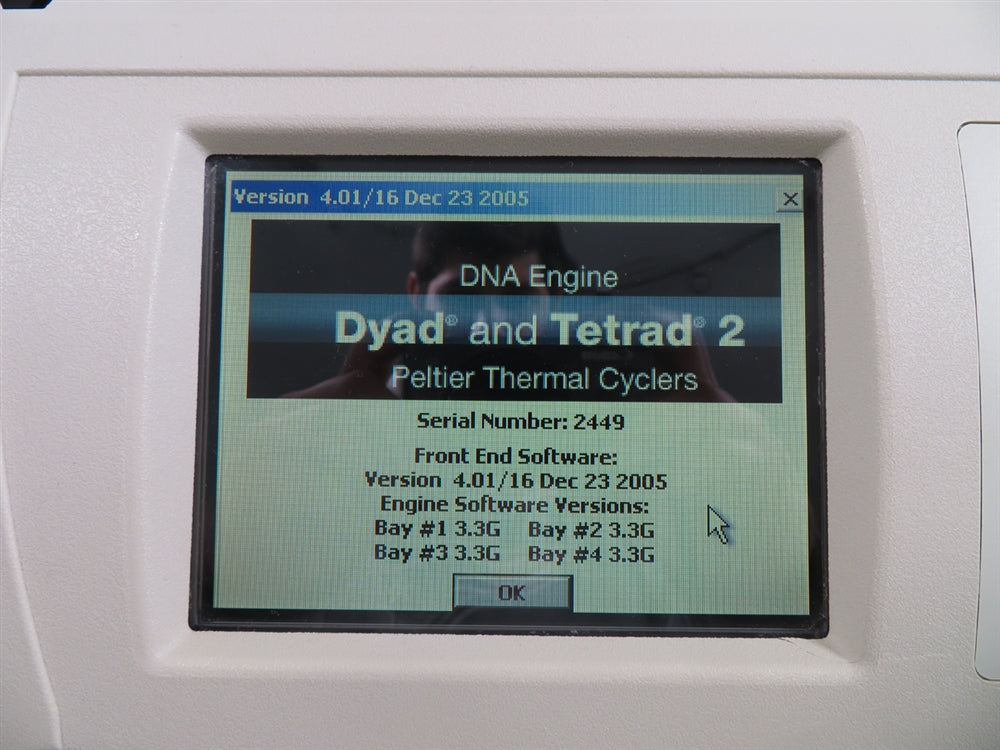

- Equipped with a 16 color VGA screen display (320 x 240), 16 colors.
- 4-bay chassis is ideal for running multiple protocols and accommodating multiple users.
- Instant Incubate feature for continuous-temperature incubations
The Bio Rad DNA Engine Tetrad 2 Thermal Cycler offers
multi-block thermal cycling in a thermal range of 0–105˚C with an accuracy of ±0.3˚C.
The Bio Rad DNA Engine Tetrad 2 reaches a ramping speed of up to 3˚C/sec with a
memory of 1,000 programs.
The Bio Rad DNA Engine Tetrad 2 Thermal Cycler with 4 blocks includes:
- > 4 Blocks
- > NIST Traceable Calibration Certificate
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Bio Rad DNA Engine Tetrad 2 Thermal Cycler with 4 blocks Specifications
|
Thermal Range |
0–105˚C |
|
Accuracy |
±0.3˚C |
|
Thermal uniformity |
±0.4˚C |
|
Ramping speed |
Up to 3˚C/sec |
|
Sample capacity |
Varies with installed Alpha unit |
|
Input Power |

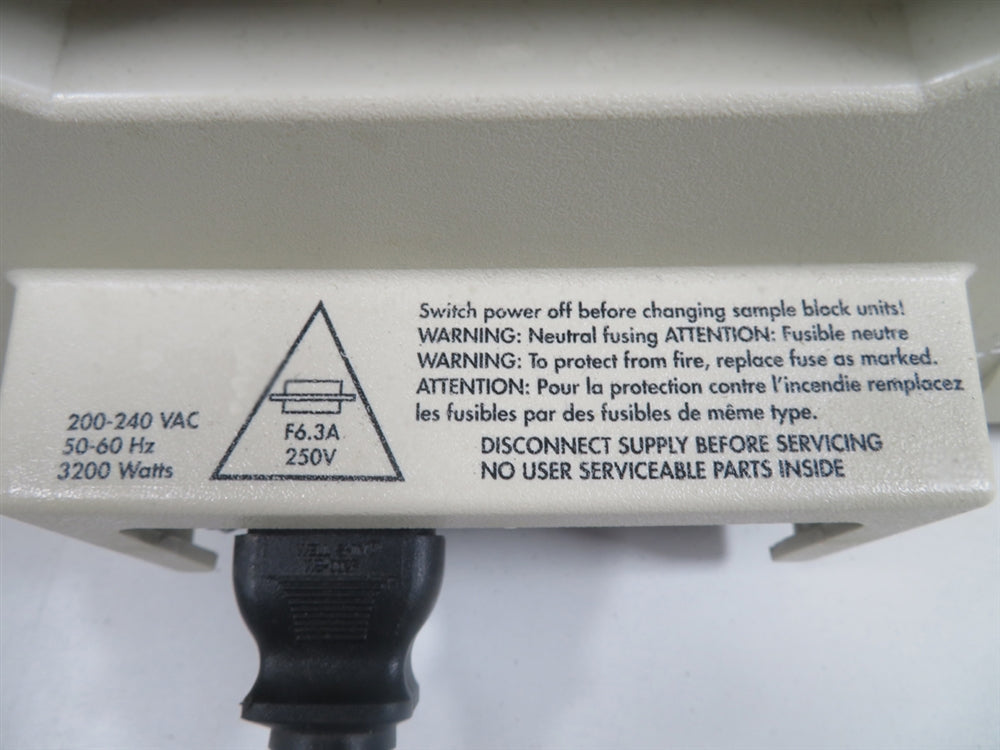

200–240 VAC, 50-60 Hz, 3200 W max fitted with NEMA L620-P plug |
|
Memory |
1,000 typical programs |
|
Display |
One 1/4 size VGA screen (320 x 240), 16 colors |
|
Weight |
21.6 kg |
|
Dimensions (L x W x H) |
47 x 61 x 16 cm |
|
Thermal gradient accuracy |
±0.3˚C |
|
Thermal gradient differential range |
1-24 ˚C |
- Validate that the power supply and PCB consistently deliver accurate, stable voltages across all circuits and connections, confirming operational reliability
- Thoroughly inspect the display for any dim, flickering, or dead pixels, replacing compromised segments to ensure clear visibility and precise data display
- Verify complete functionality and responsiveness of all buttons and knobs, confirming accurate and reliable input across all controls
- Ensure the machine completes all internal diagnostic checks with zero errors, indicating system readiness and functional integrity
- Confirm the machine accurately identifies attached blocks (96-well, dual 48, etc.), with seamless recognition across different configurations
- Conduct a detailed inspection of internal wiring and all electrical connections, checking for any signs of breaks, disconnections, or tears; replace or repair any underperforming components
- Examine the connector between the block and base for bent or broken pins, replacing as needed to maintain secure, reliable connections
- Calibrate well temperatures with a NIST-traceable thermometer, verifying accuracy and uniformity across all wells to meet specification standards
- Perform a comprehensive cosmetic inspection, ensuring all exterior surfaces and components are free of damage, wear, or defects, maintaining aesthetic and professional quality
Technician Inspection and Recertification Checklist: Thermal Cycler
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, accurate voltage outputs from power supply and PCB across circuits | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed for clarity | Completed | |
| Verify functionality and responsiveness of all buttons and knobs | Completed | |
| Confirm machine completes internal diagnostics with zero errors | Completed | |
| Ensure accurate block identification across configurations (96-well, dual 48, etc.) | Completed | |
| Inspect internal wiring and connections for integrity; repair or replace as needed | Completed | |
| Check connector between block and base for bent or broken pins; replace as necessary | Completed | |
| Calibrate well temperatures with a NIST-traceable thermometer for accuracy | Completed | |
| Conduct cosmetic inspection to ensure quality and professionalism of all surfaces | Completed |
