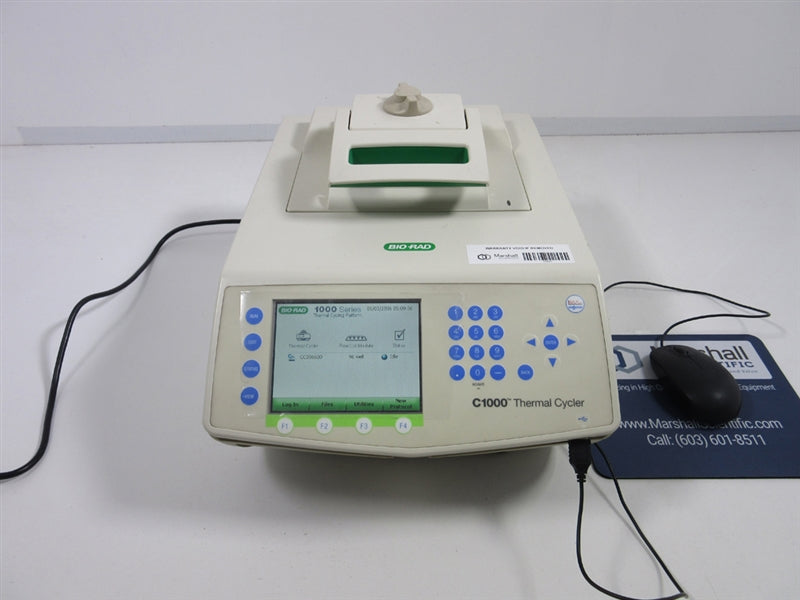

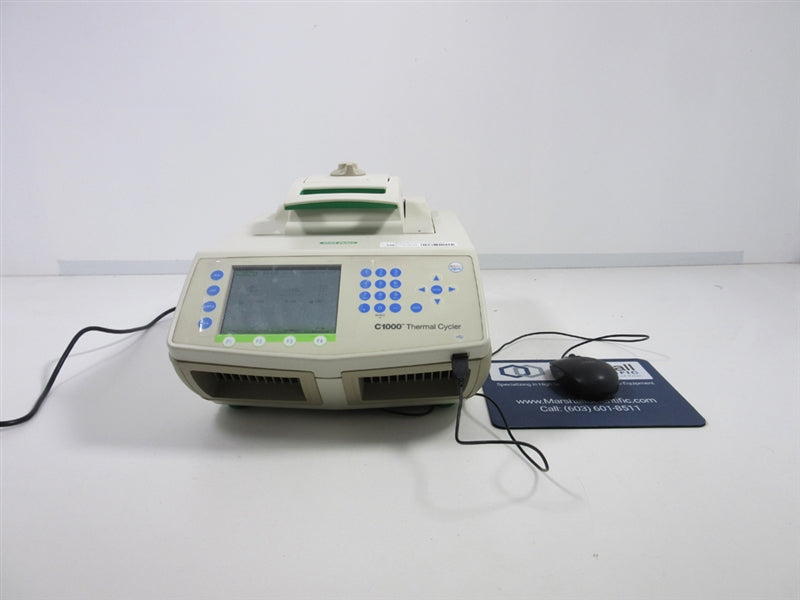

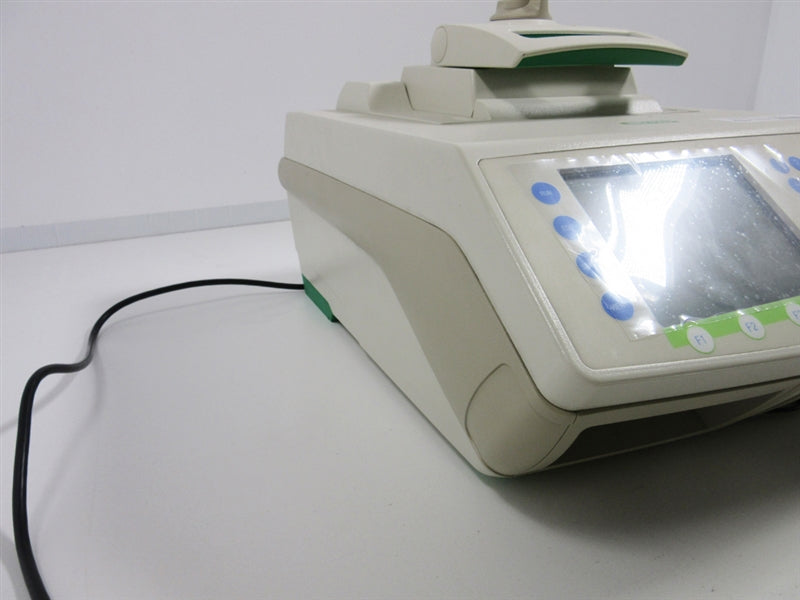

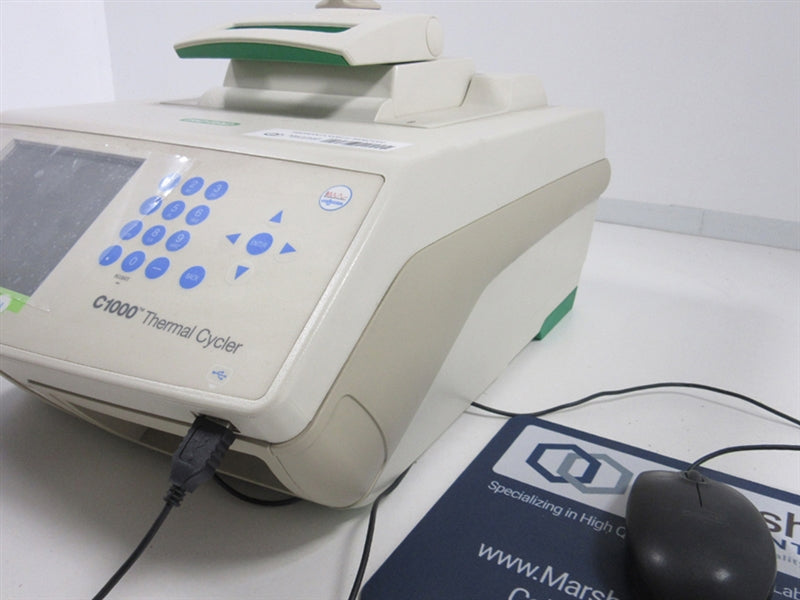

Biorad C1000 Thermal Cycler
Sample Capacity
96 x 0.2 ml tubes
Max Ramp Rate
5C/sec
Gradient Capable
Yes
- Superior Performance: The C1000 thermal cycler offers excellent performance for PCR processes with Gradient Capability.

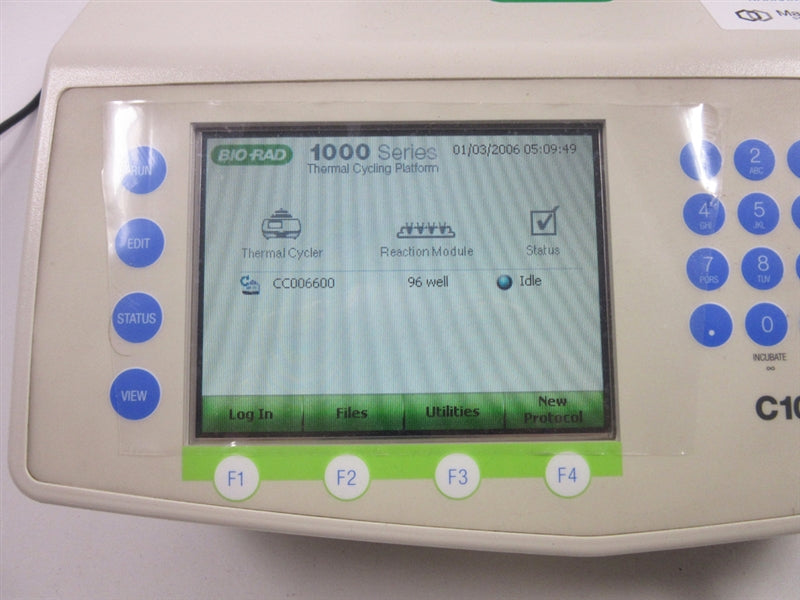

- Features a large color display for intuitive graphical text based programming.
- Fully modular platform accommodates varying throughput needs with interchangeable reaction modules that can be swapped quickly and without tools.
- Internal memory can store 400 typical programs in up to 12 individual folders, and data can be transferred via a USB Flash Drive
- Increase throughput capability with up to 3 additional cyclers or adding PC control for up to 32 cyclers
The Biorad C1000 Thermal Cycler features a large color display for intuitive graphical text based programming and windows operating system. Store and transfer data using a USB Flash Drive. Increase throughput with up to 3 additional cyclers or adding PC control for up to 32 cyclers. Comes with interchangable 96-well fast reaction module.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Biorad C1000 Thermal Cycler includes:
- > 96 Well Fast Block
- > Calibration and Preventative Maintenance Report
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Biorad C1000 Thermal Cycler Specifications
|
Input Power |
400W, maximum |
|
Frequency |
50-60 Hz, single phase |
|
Display |
12 x 9 cm, high resolution |
|
Ports |
5USB A, 1 USB B |
|
Memory |
>1,000 Typical Programs |
|
Dimensions (W x D x H) |
13x 18 x 8 |
|
Weight |
23 lb |
|
Temperature Control Modes |
Calculated and block |
|
PCR License |
Yes |
|
Programing Options |
Step-based graphical, text based, automatic |
|
Reporting |
Exportable run logs, system error logs |
|
Onboard Software |
Windows CE 6.0 |
|
PC Compatibility |
Windows XP or higher |
|
USB Peripheral Compatibility |
Mouse, USB flash drive, bar code reader |
|
Real-time PCR upgrade |
6- Channel, 5-color CFX(^ module |
|
Instant Incubation |
Yes |
|
Fuses |
Two 6.3 A, 250 V x 220 mm |

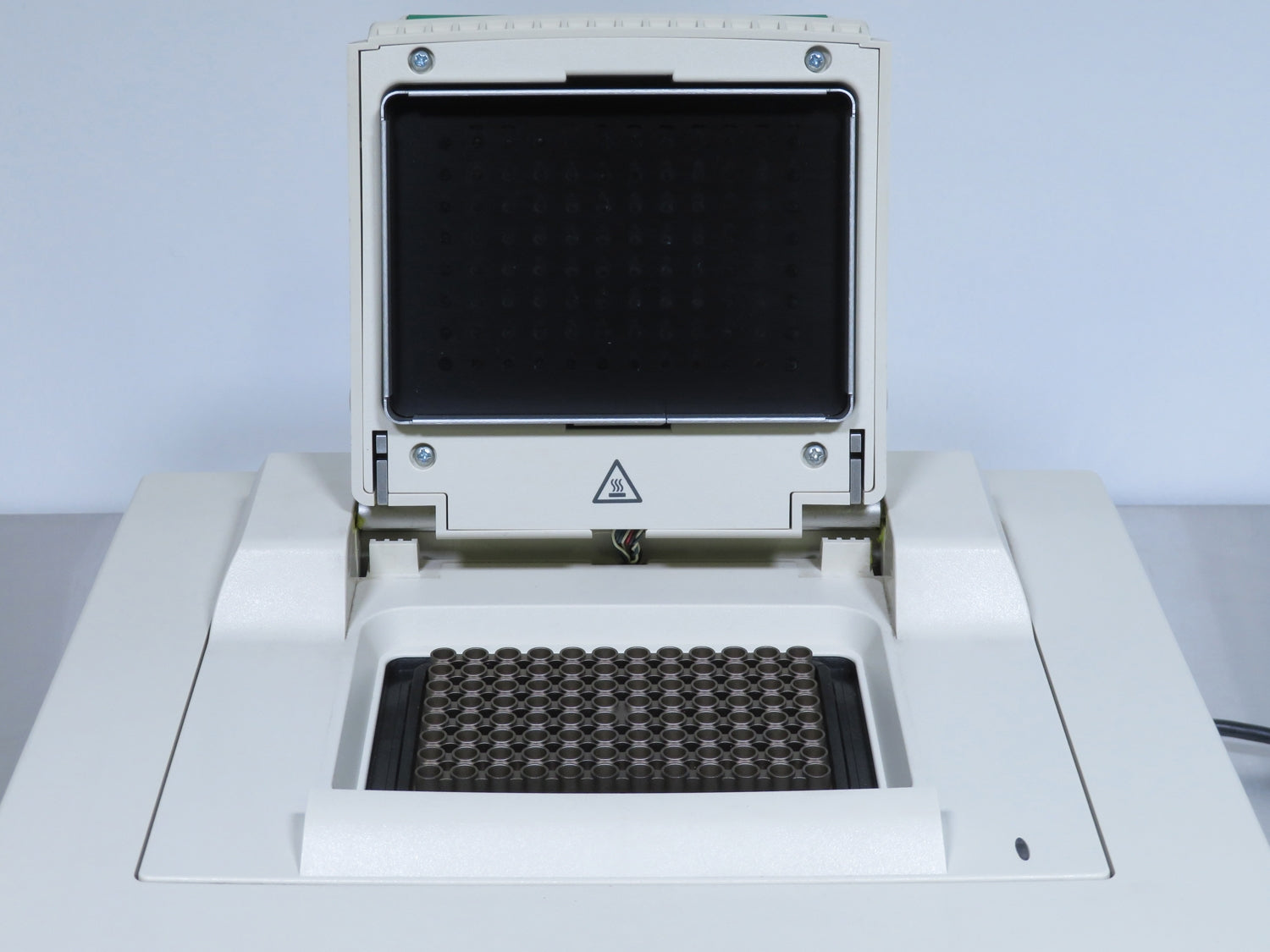

Reaction Module: 96 Well Fast Specifications
|
Sample Capacity |
96 x 0.2 mi tubes |
|
Maximum Ramp Rate |
5°C/sec |
|
Average Ramp Rate |
3.3°C/sec |
|
Temperature Range |
0-100°C |
|
Temperature Accuracy |
±0.2° of Programed target at 90°C |
|
Temperature Uniformity |
±0.4°C well to well within 10 sec of arrival at 90°C |
|
Gradient Capability |
Yes |
- Validate that the power supply and PCB consistently deliver accurate, stable voltages across all circuits and connections, confirming operational reliability
- Thoroughly inspect the display for any dim, flickering, or dead pixels, replacing compromised segments to ensure clear visibility and precise data display
- Verify complete functionality and responsiveness of all buttons and knobs, confirming accurate and reliable input across all controls
- Ensure the machine completes all internal diagnostic checks with zero errors, indicating system readiness and functional integrity
- Confirm the machine accurately identifies attached blocks (96-well, dual 48, etc.), with seamless recognition across different configurations
- Conduct a detailed inspection of internal wiring and all electrical connections, checking for any signs of breaks, disconnections, or tears; replace or repair any underperforming components
- Examine the connector between the block and base for bent or broken pins, replacing as needed to maintain secure, reliable connections
- Calibrate well temperatures with a NIST-traceable thermometer, verifying accuracy and uniformity across all wells to meet specification standards
- Perform a comprehensive cosmetic inspection, ensuring all exterior surfaces and components are free of damage, wear, or defects, maintaining aesthetic and professional quality
Technician Inspection and Recertification Checklist: Thermal Cycler
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, accurate voltage outputs from power supply and PCB across circuits | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed for clarity | Completed | |
| Verify functionality and responsiveness of all buttons and knobs | Completed | |
| Confirm machine completes internal diagnostics with zero errors | Completed | |
| Ensure accurate block identification across configurations (96-well, dual 48, etc.) | Completed | |
| Inspect internal wiring and connections for integrity; repair or replace as needed | Completed | |
| Check connector between block and base for bent or broken pins; replace as necessary | Completed | |
| Calibrate well temperatures with a NIST-traceable thermometer for accuracy | Completed | |
| Conduct cosmetic inspection to ensure quality and professionalism of all surfaces | Completed |
