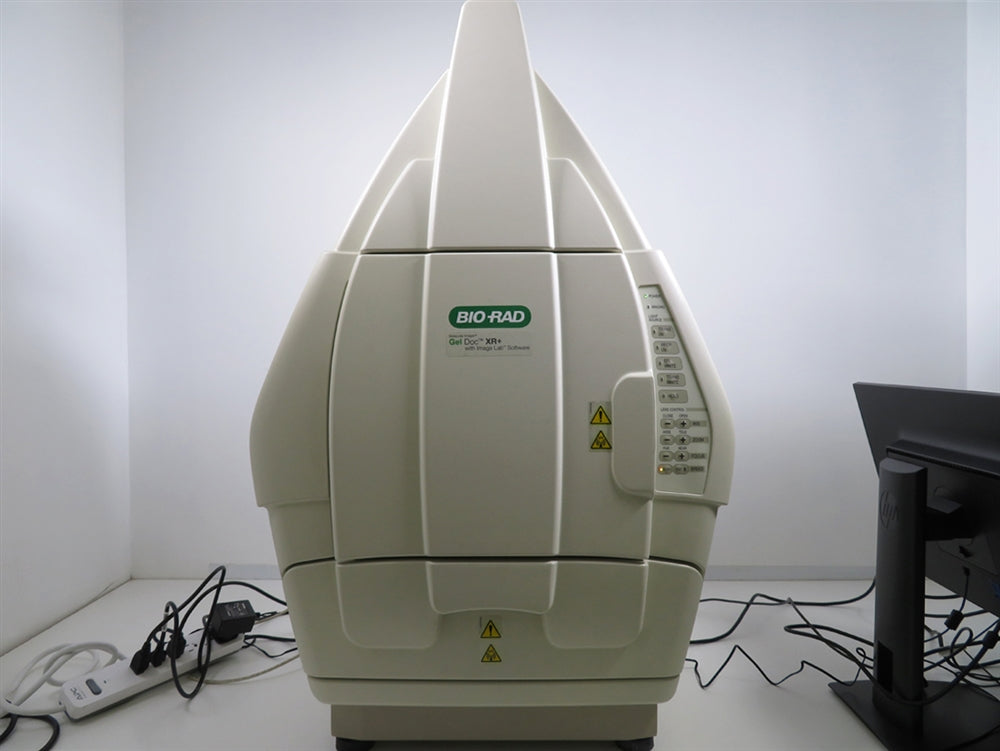

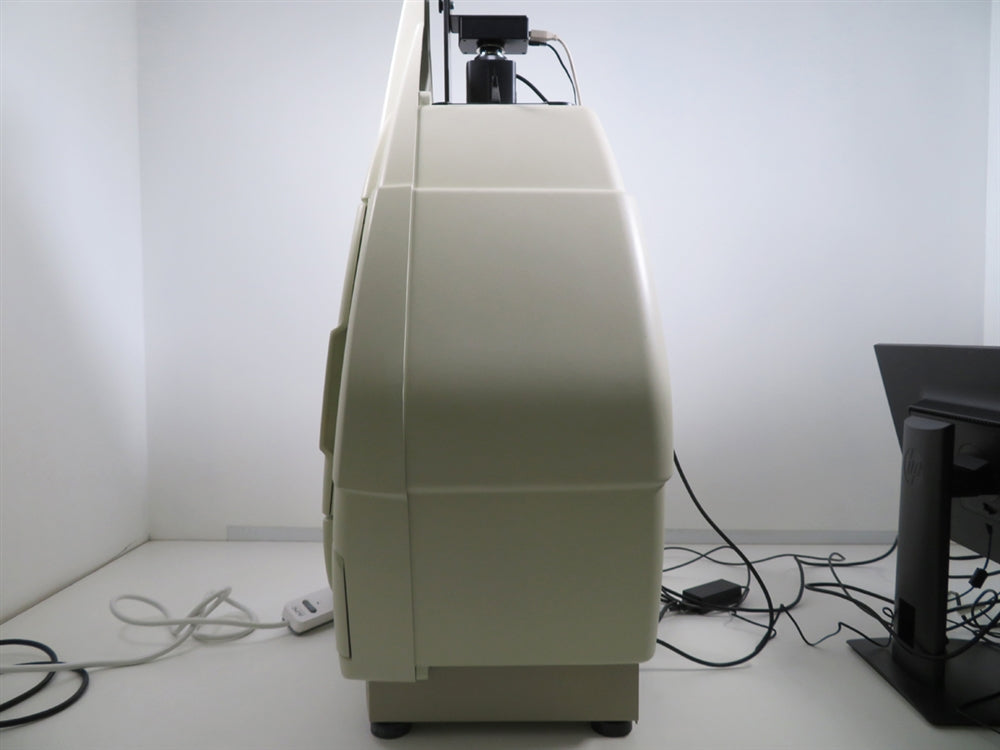

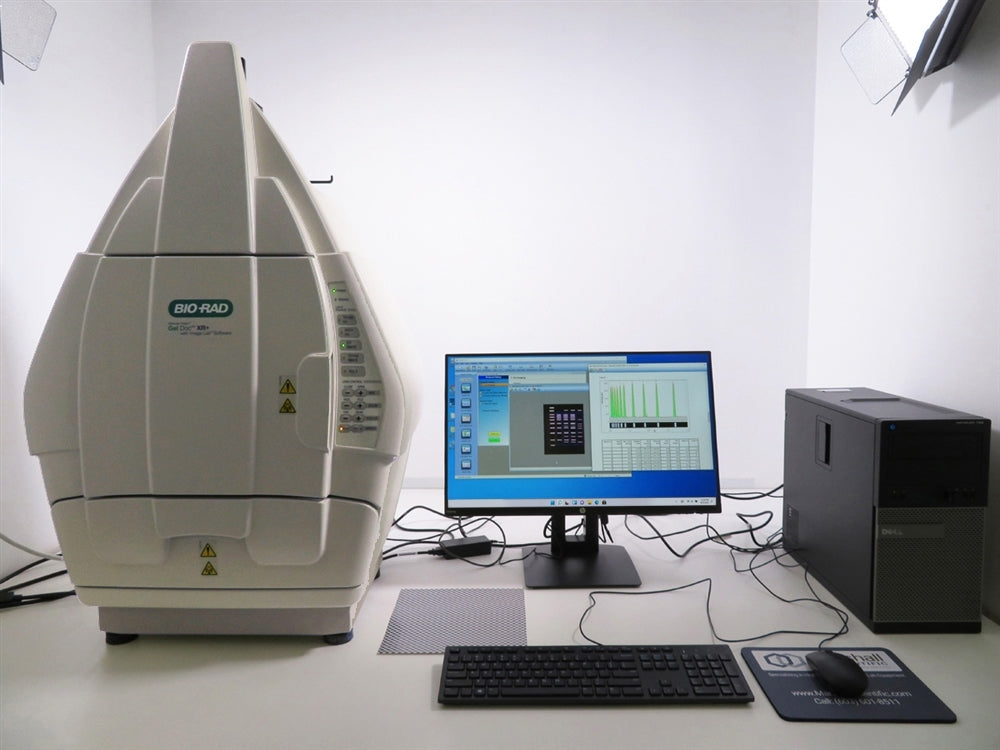

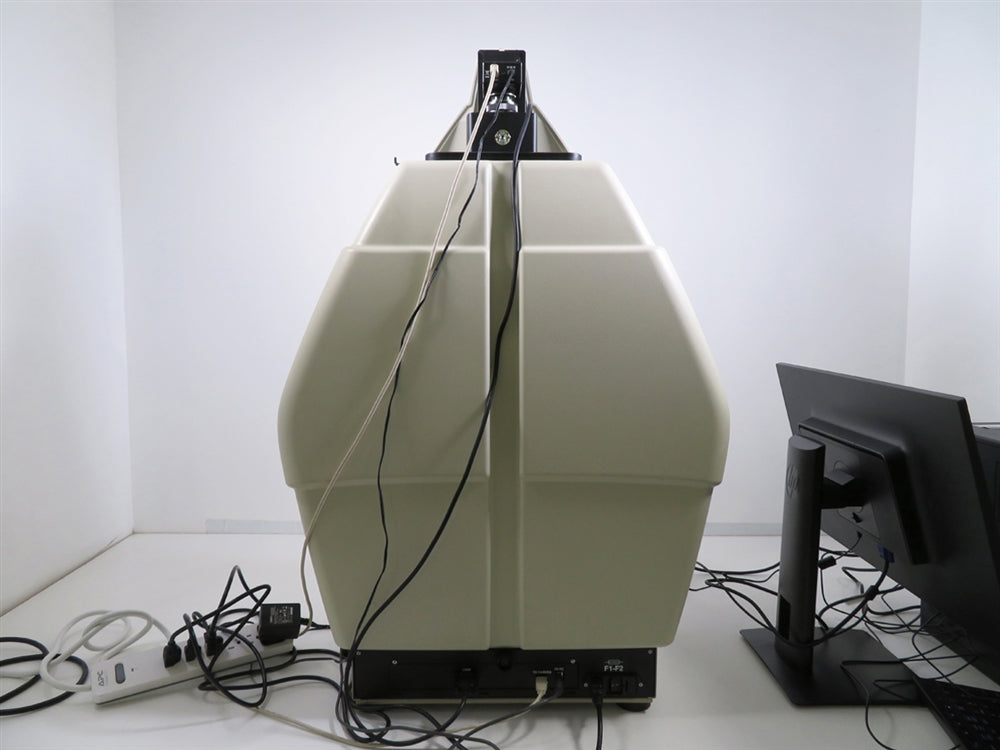

Biorad Gel Doc XR+ Imaging System
Applications
Fluorescence, Colormetric/Densitometry, Gel Documentation
Pixel Size (H x V)
4.65 x 4.65 µm
Filter Holder
3 Positions (2 Filters, 1 Without Filter)
- Gel and blot imaging and analysis are quick and accurate
- Automated, hands-off routines; no training is required
- Save and recall all the steps in the workflow for repeatable and reproducible results
- Optimize the system at setup for image data that is always accurate, reproducible, and free of imaging artifacts
- Wide range of applications with special accessories to preserve sample integrity for downstream research while ensuring user safety

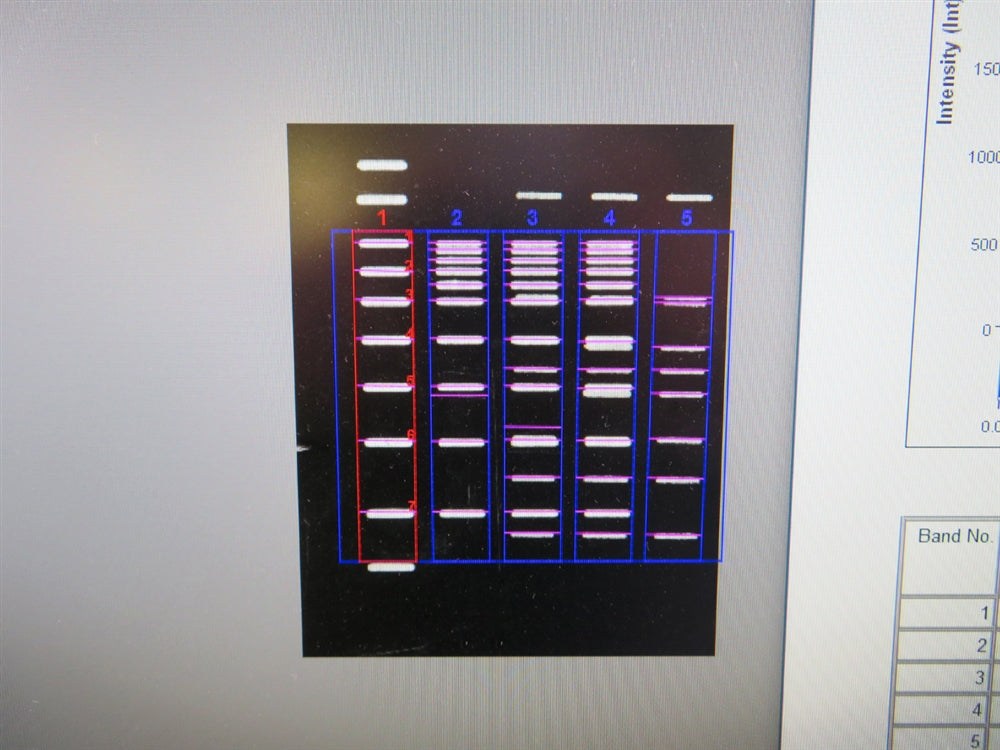

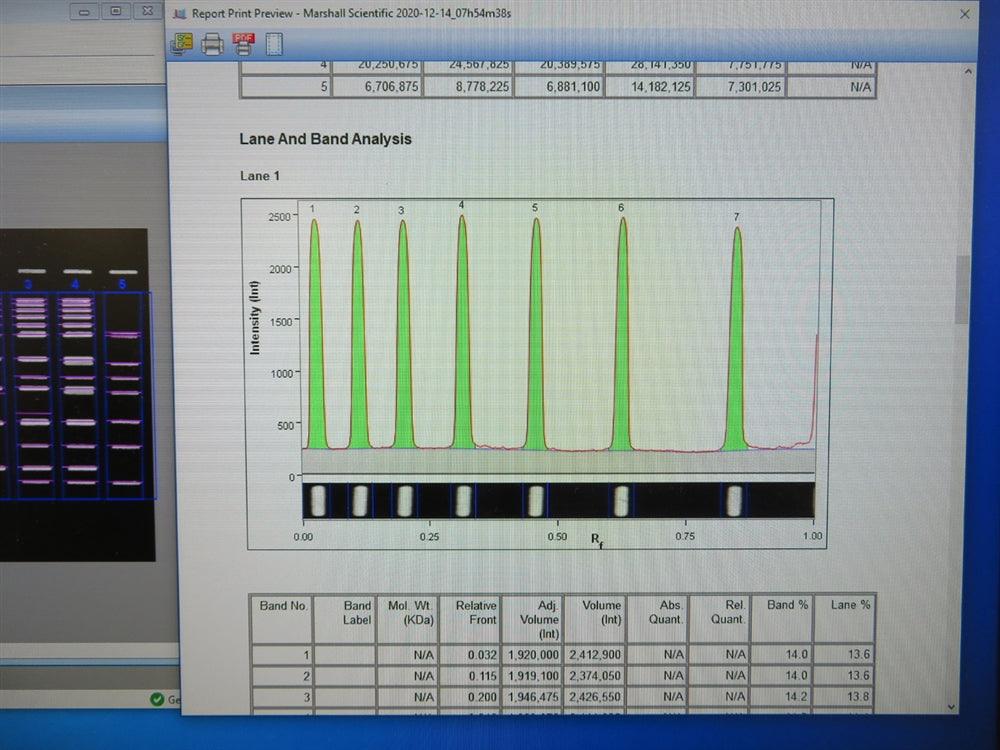

- Comprehensive, automated quantitative analysis of protein and DNA samples in seconds
- Customize and organize data in reports
- Obtain publication-quality results quickly
- Images are in focus at all times, regardless of zoom level or sample position

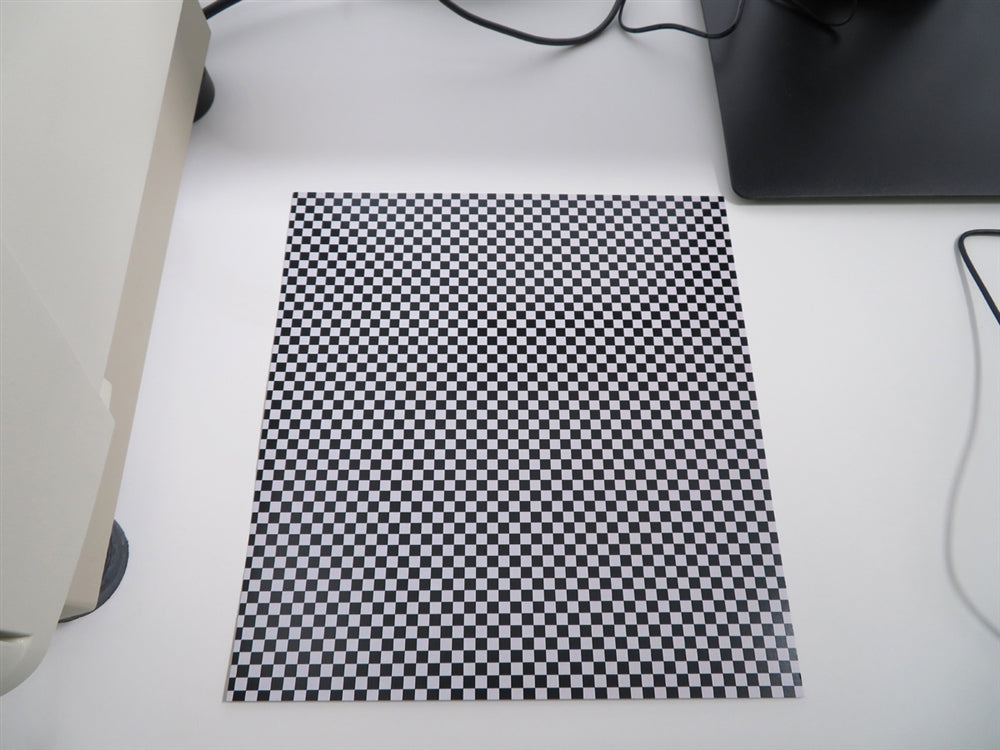

- Appropriate flat fielding correction is automatically and consistently applied to image data for every application
- Imaging artifacts are automatically corrected
The Biorad Gel Doc XR+ Imaging System is fully tested to perform at factory specifications before being shipped.
The Biorad Gel Doc XR+ Imaging System includes:

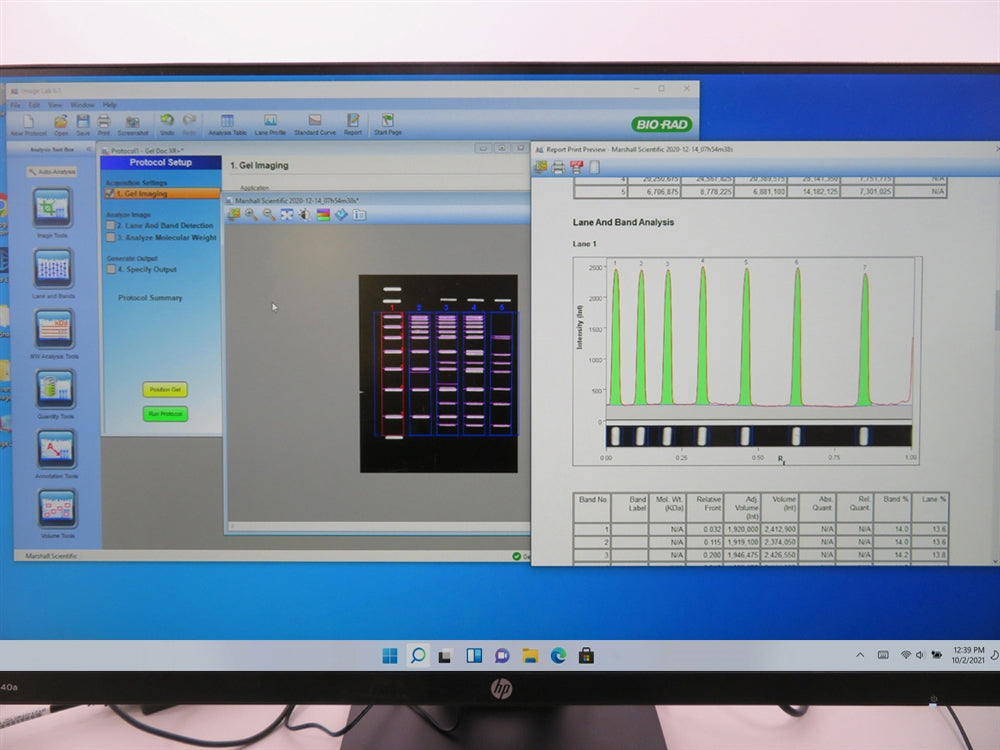

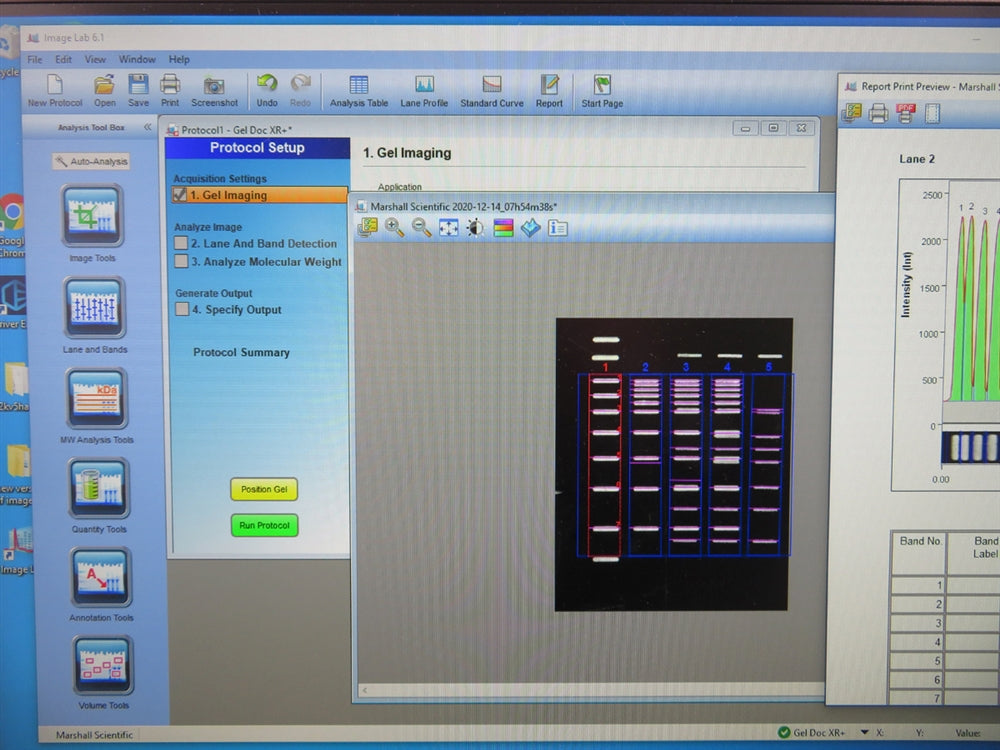

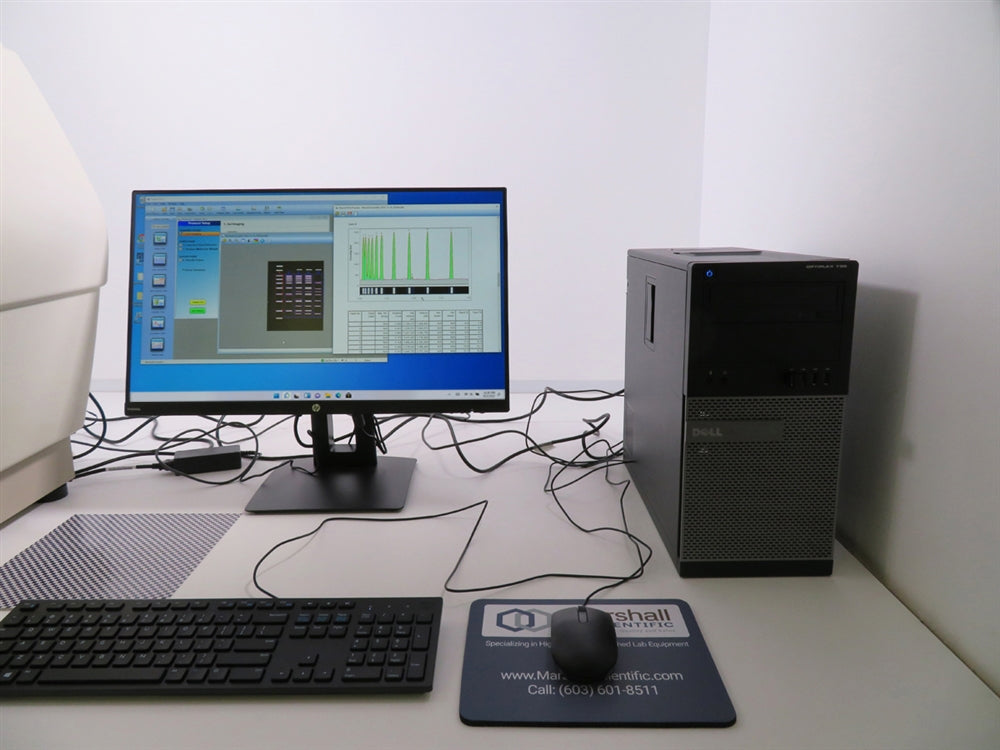

- > Windows 11 Professional 64-Bit Data Station with Image Lab (6.1) Preinstalled & Flatscreen Monitor

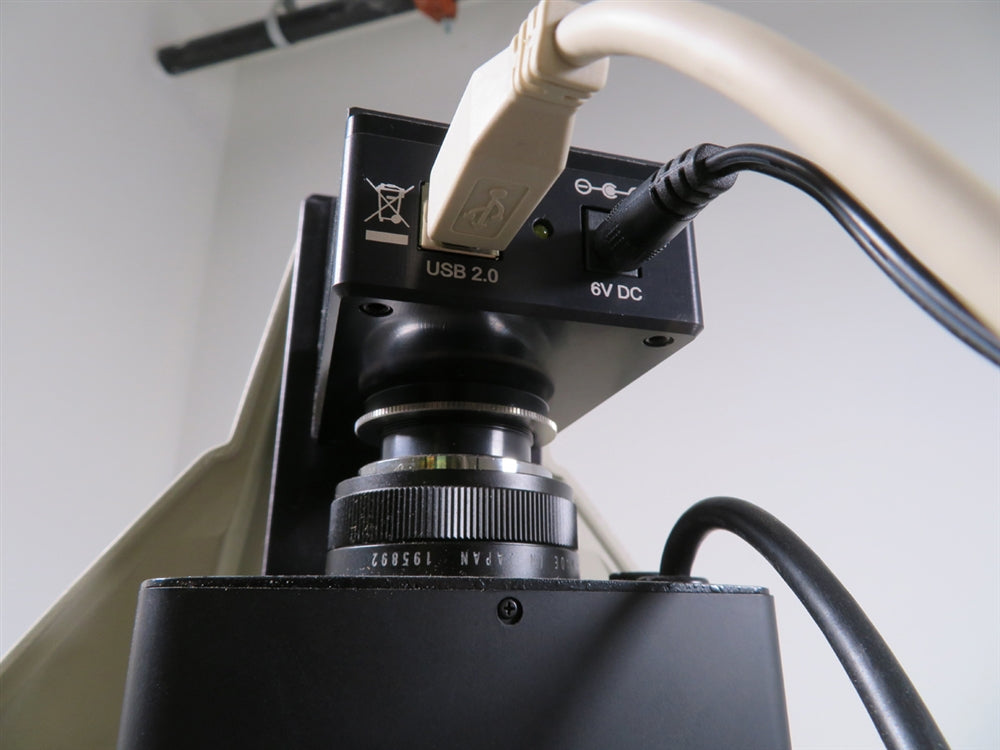

- > UV Camera
- > Flat Screen Monitor

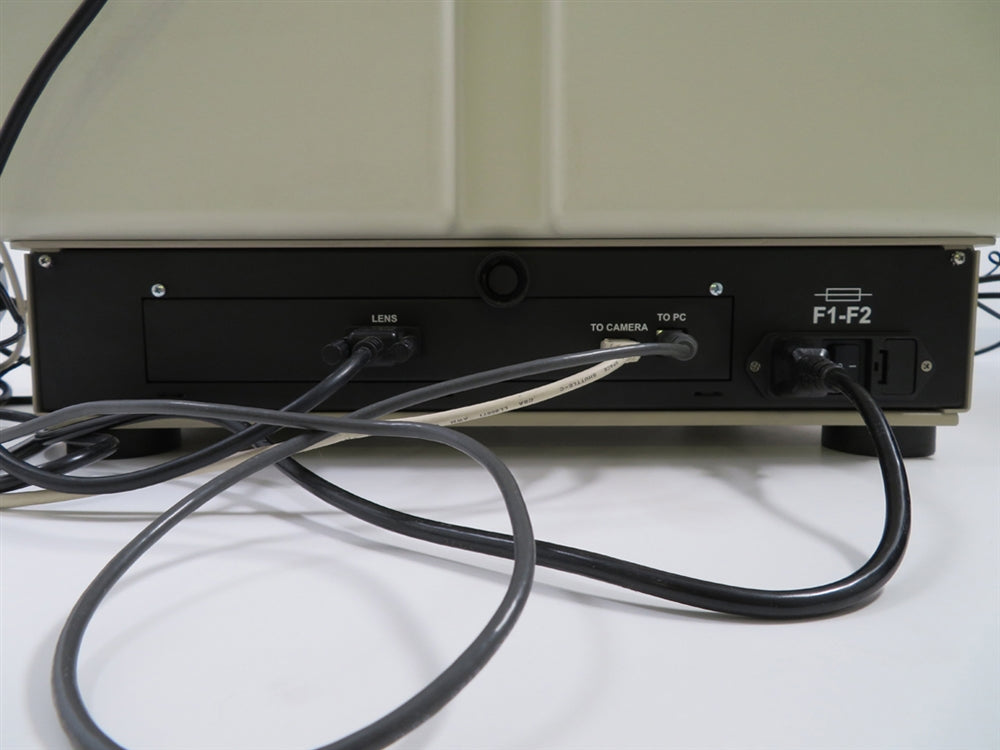

- > Communication Card & Interface Cables
- > UV Filter
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Biorad Gel Doc XR+ Imaging System Specifications
|
Applications |
|
|
Chemiluminescence |
No |
|
Fluorescence |
Yes
|
|
Colorimetry/densitometry |
Yes |
|
Gel documentation |
Yes |
|
Hardware Specifications |
|
|
Maximum sample size |
28 x 36 cm |
|
Maximum image area |
19.4 x 26 cm |
|

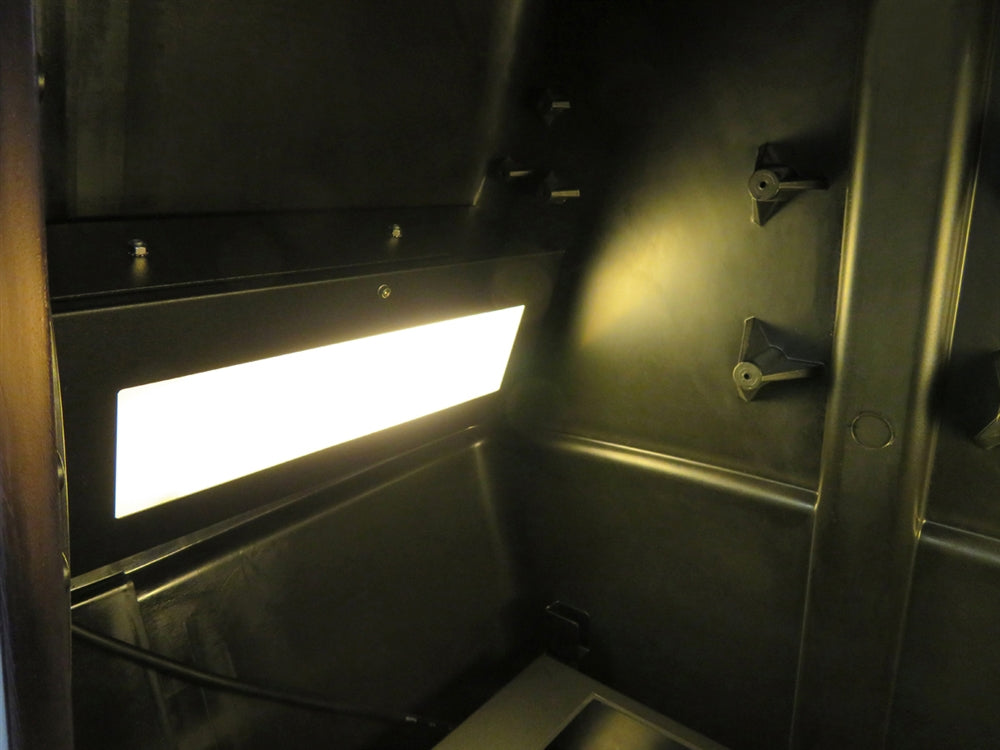

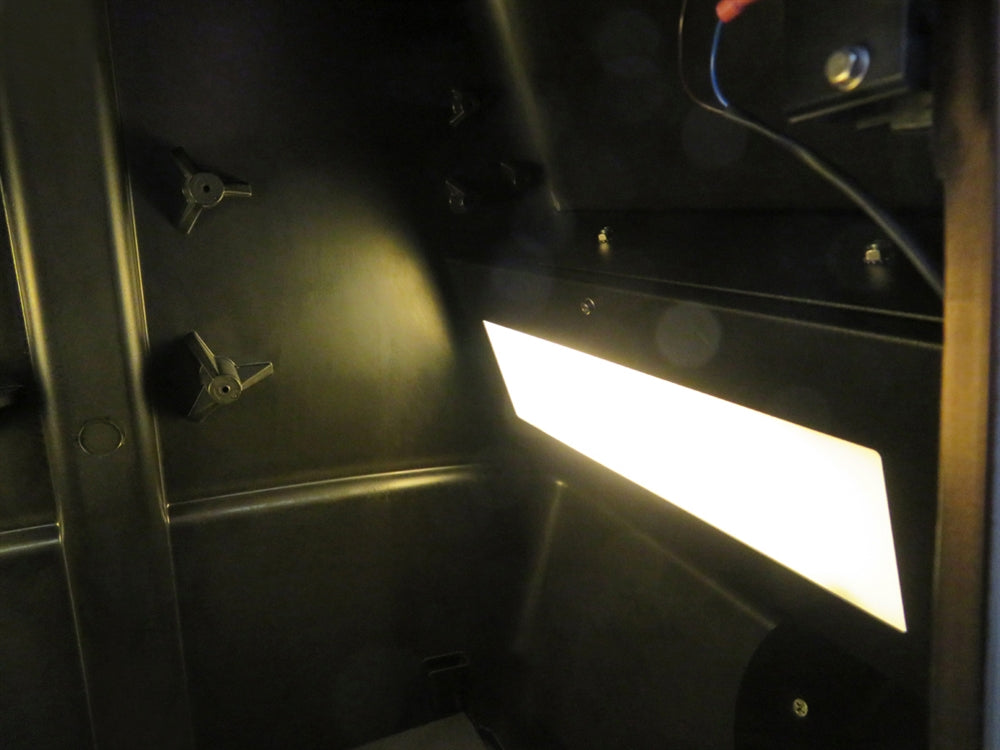

Excitation source |
Epi-white light and trans-UV (302 nm) are standard (optional 365 nm lamp available); optional trans-white conversion screen and XcitaBlue™ UV/blue conversion screen available |
|

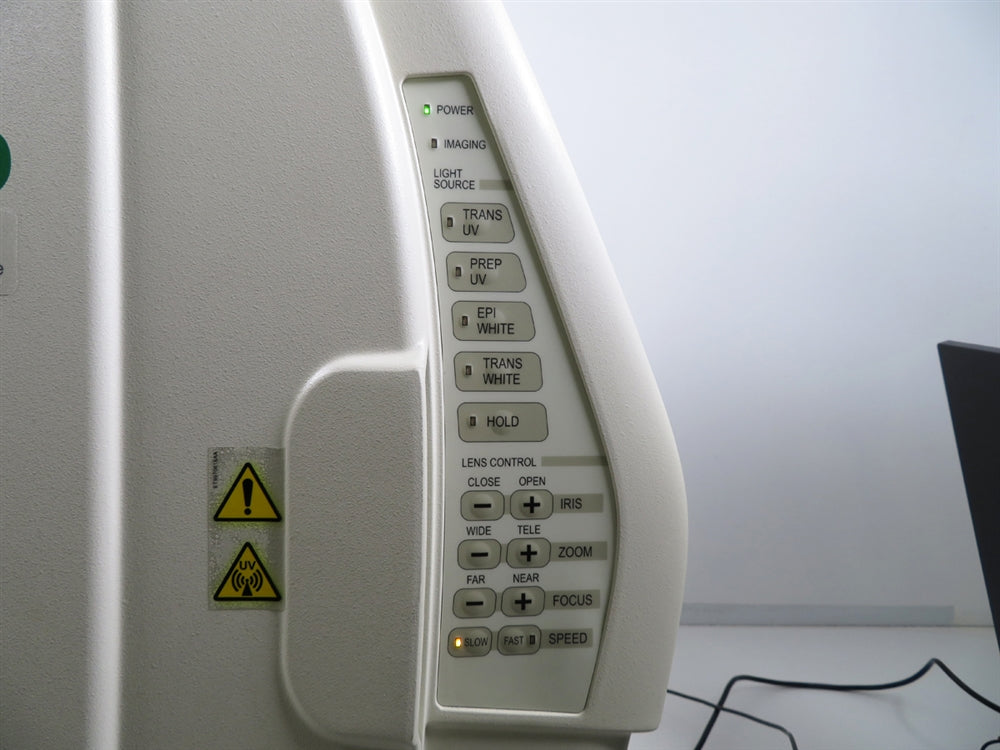

Illumination control |
3 modes (trans-UV, trans white, epi-white) |
|
Detector |
CCD |
|
Pixel size (H x V) |
4.65 x 4.65 µm |
|

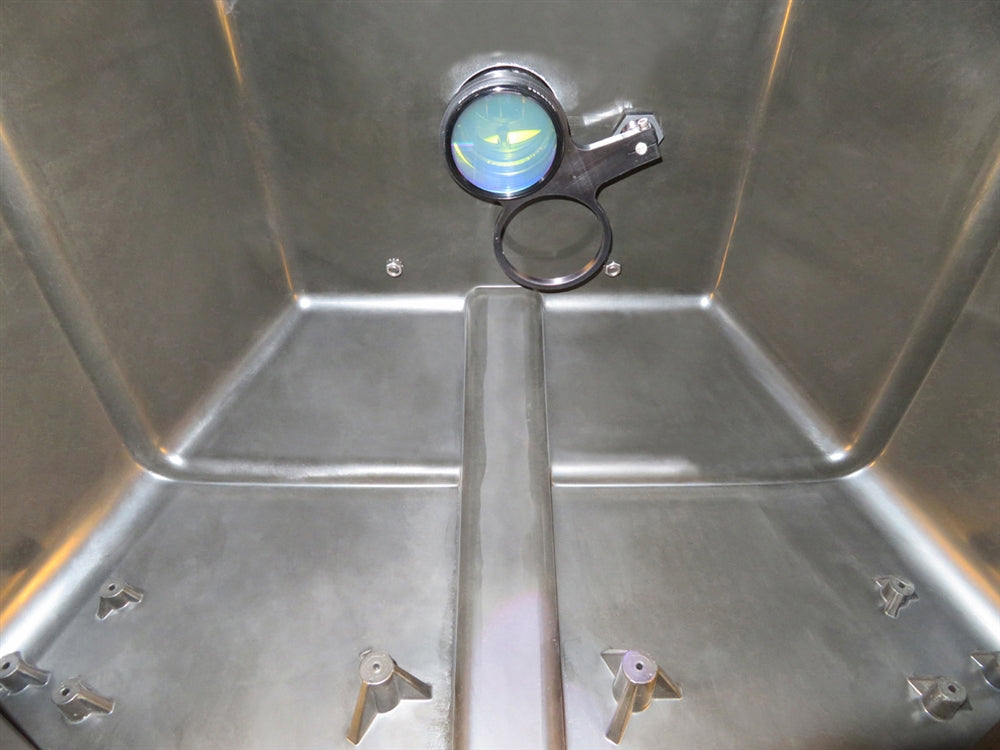

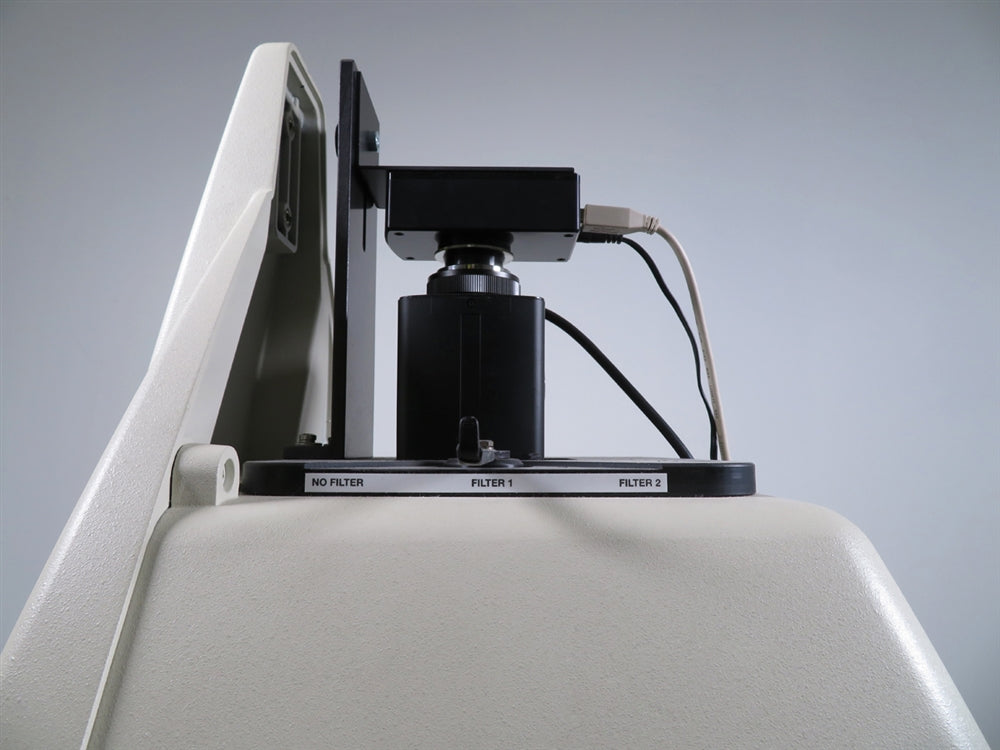

Filter holder |
3 positions (2 for filters, 1 without filter) |
|
Emission filters |
1 included (standard), 3 optional |
|
Dynamic range |
>3.0 orders of magnitude |
|
Pixel density (gray levels) |
4,096 |
|
Dynamic flat fielding |
Application specific, for all applications |
|
Instrument size (L x W x H) |
36 x 60 x 96 cm |
|
Instrument weight |
32 kg |
|
Operating Ranges |
|
|
Operating voltage |
110/115/230 V AC nominal |
|
Operating temperature |
10–28°C (21°C recommended) |
|
Operating humidity |
<70% noncondensing |
Biorad Gel Doc XR+ Imaging System Applications:
|
Chemiluminescence
|
No
|
|
Fluorescence
|
Yes
|
|
Chemifluorescence
|
No
|
|
Colormetric/Densitometry
|
Yes
|
|
Gel Documentation
|
Yes
|
|
Isotopic Imaging
|
No |
|
Computer Specifications |
|
| Processor | Intel Core I5-8500 CPU |
| RAM | 32.0 GB |
| Hard Drive | 500GB Internal SSD |
| Operating System | Windows 11 Professional, 64-bit |
Downloads
Click Here to View all the Technical Specs for the Biorad Gel Doc XR+ Imaging System
