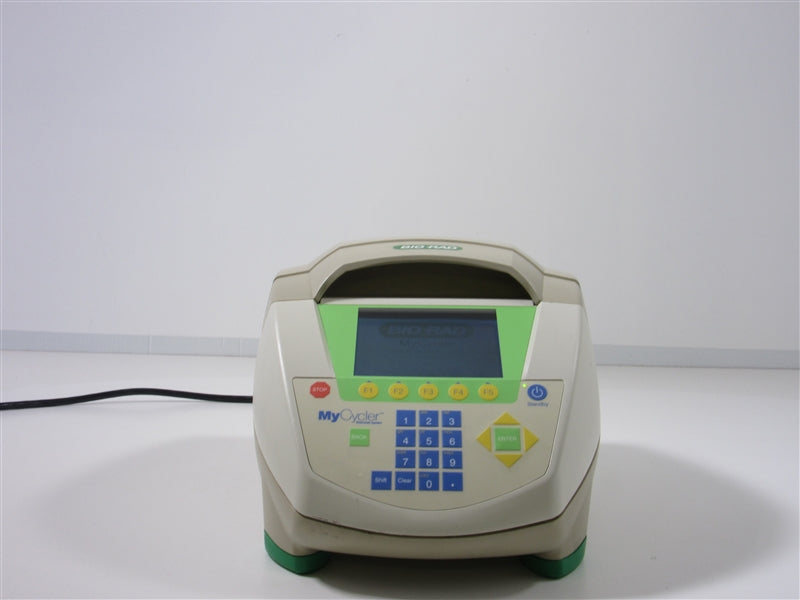

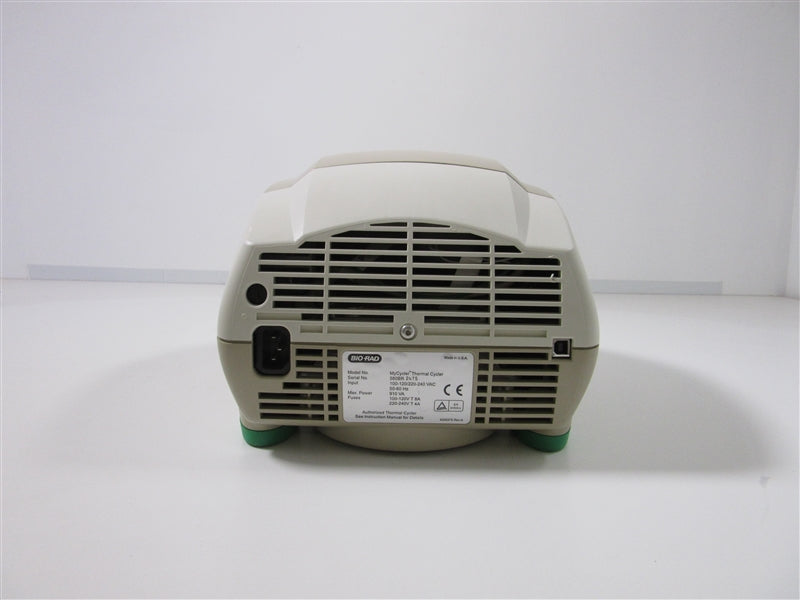

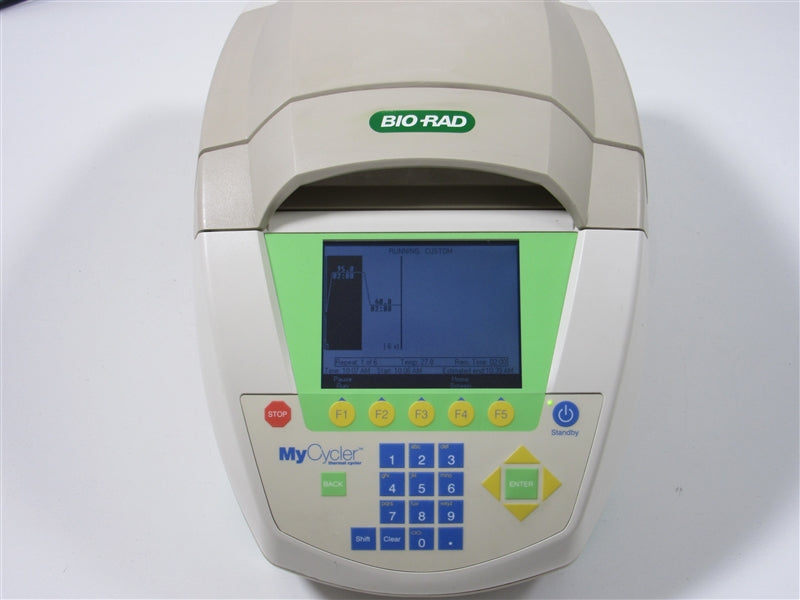

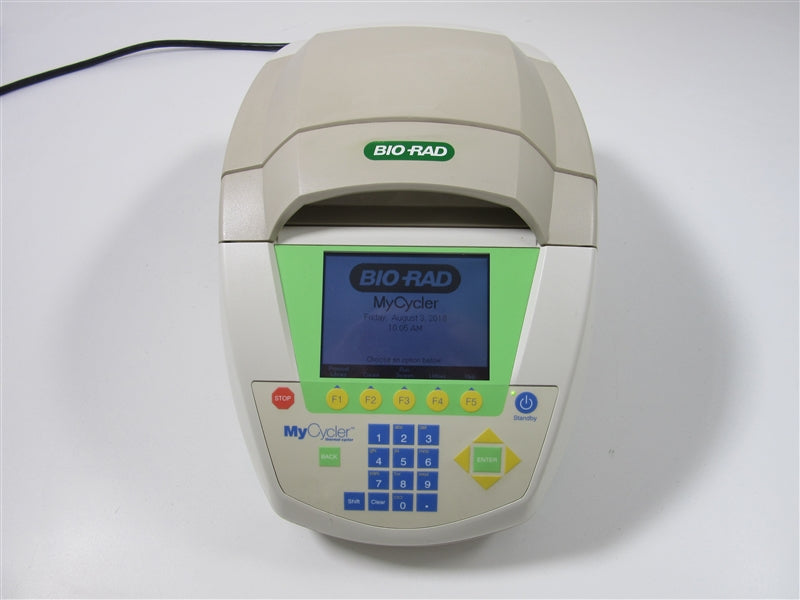

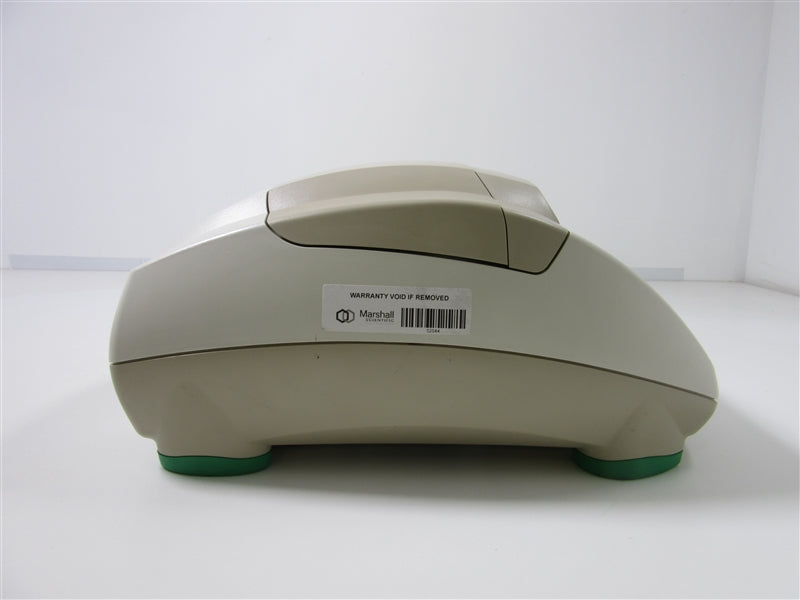

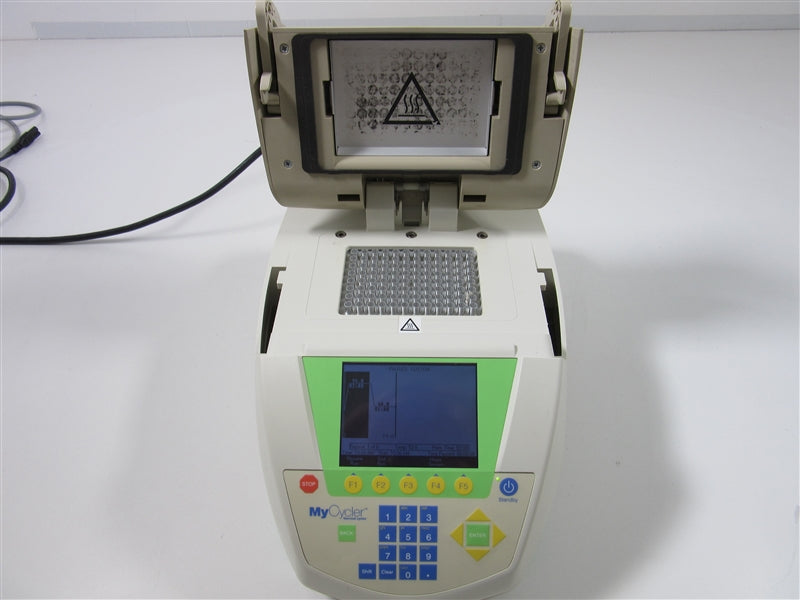

Biorad MyCycler Thermal Cycler

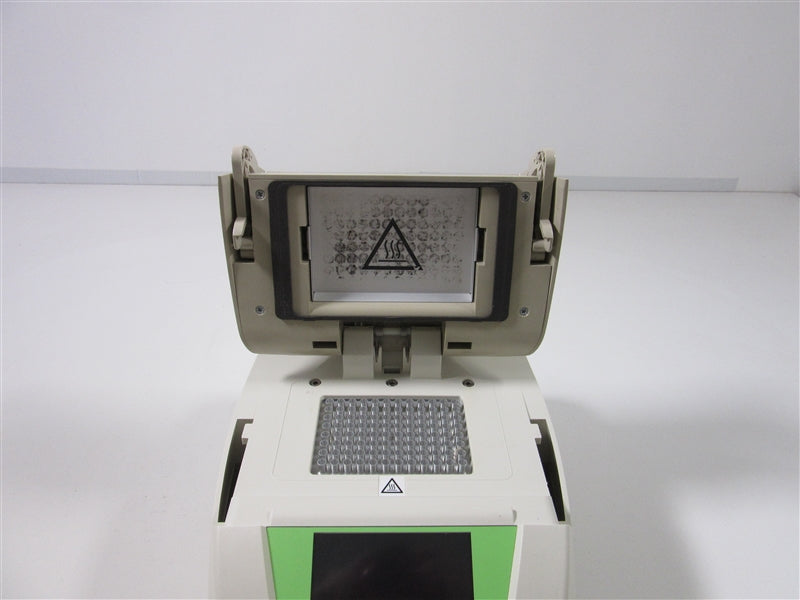

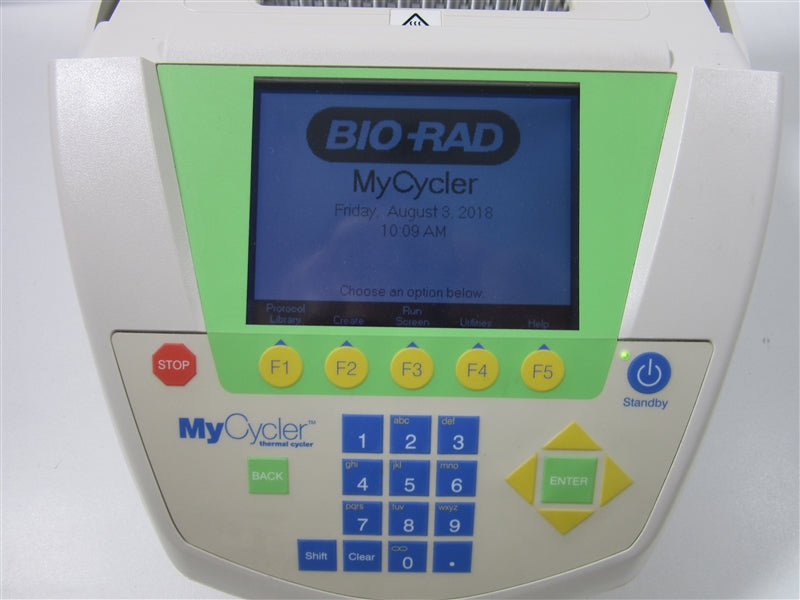

The Biorad MyCycler Thermal Cycler, 115V, is a sleek 96-well PCR system with a gradient feature used for gene amplification. This compact thermal cycler features intuitive programming of temperatures, times, and protocols with ready-made templates for ease of viewing, editing, and running protocols. Program protocols with as many as 9 cycles with 9 steps each and repeats up to 99 times per cycle. The MyCycler’s self-adjusting heated lid maintains accurate temperature and accommodates standard 0.2 ml thin-wall PCR tubes, strips, and plates. Temperature monitoring and control can be performed either via algorithm, which uses the experimentally derived sample temperature given specific sample volume, or block, which uses the actual sample block temperature. The Biorad MyCycler employs multiple built-in utilities, such as self-diagnostics and storage of detailed run and validation reports, for optimal performance for PCR and other thermal cycling techniques.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Biorad MyCycler Thermal Cycler Specifications

Block Temperatures
Range	4-100°C
Cycling Speed	With 20 ul sample in a 0.2 ml tube, after warm up, when cycling between 50°C and 95°C; at least 2.5°C/sec maximum heating rate and 1.5°C/sec maximum cooling rate
Storage Cooling	Less than 3 minutes to cool from 40°C to 4°C
Overshoot	Less than0.5°C
Accuracy	±0.5°C to NIST traceable standard after 30 seconds at 90°C, to block mode
Uniformity	Well to well uniformity of ±0.5°C within 30 seconds after arrival at 90°C
Temperature Gradient
Input Gradient Range	1-25°C
Functional gradient range	5-25°C
Mininum temperature of gradient	30°C
Maximum temperature of gradient	99°C
Gradient accuracy	±0.5°C
Gradient Uniformity	0.5°C
