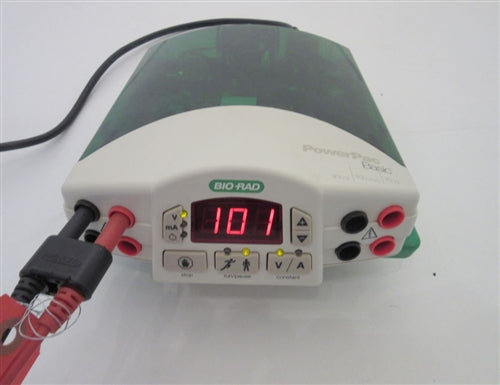

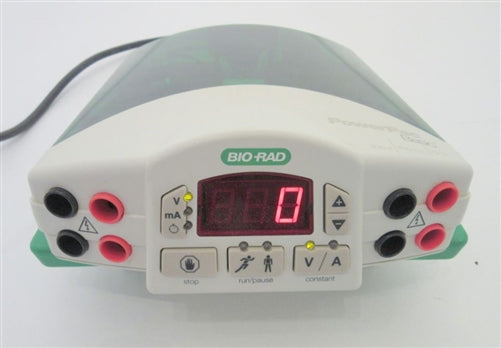

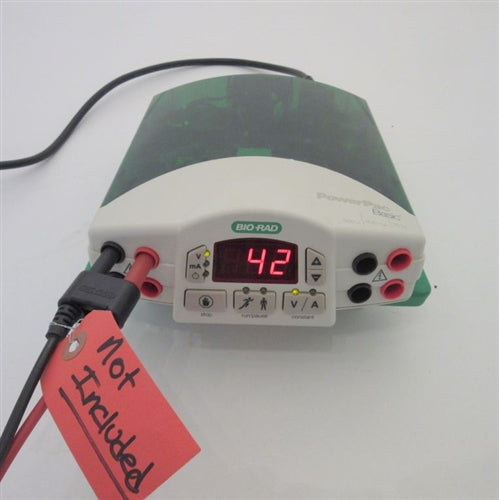

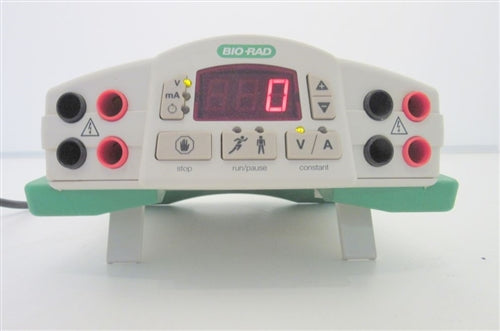

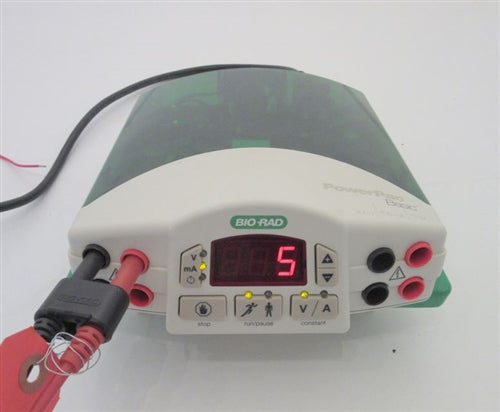

Biorad PowerPac Basic Electrophoresis Power Supply
Voltage
10 V to 300 V
Current
4 mA to 400 mA
Power
75 Watts
- Programming in a compact, stackable case
- Timer control and constant voltage or constant current output
- Ability to pause and resume a run
- Automatic crossover featured to prevent damage
- When the set limit of the non-constant parameter is reached, and the power capability of the unit is not exceeded
- Used for nucleic acid gel electrophoresis & protein gel electrophoresis
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Biorad PowerPac Basic Electrophoresis Power Supply includes:
- > Power Cord
- > Calibration
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Biorad PowerPac Basic Electrophoresis Power Supply Specifications
|
Output
|
|
|
Voltage
|
10 V to 300 V, fully adjustable in 1 V steps
|
|
Voltage Accuracy
|
+/- 2% of reading or 3 volts, whichever is more
|
|
Current
|
4 mA to 400 mA, fully adjustable in 1 mA steps
|
|
Current Accuracy
|
+/- 2% of reading or 3 mA, whichever is more
|
|
Power (maximum)
|
75 Watts
|
|
Terminals
|
4-pair recessed banana jacks, floating in parallel
|
|
Timer Control
|
001 to 999 minutes, fully adjustable
|
|
Ripple
|
<1% @ 300 V and 70 W
|
|
Line Regulation
|
<1% @ 300 V and 70 W, 90-132 or 198-264 VAC
|
|
Load Regulation
|
<1% @ 300 V for a 50% change in output load
|
|
Drift
|
<1% @ after 15 min warmup at 300 V and 70 W
|
|
Noise
|
55 dBA at 1 meter
|
- Verify internal power supply output for correct voltage in alignment with equipment specifications
- Inspect LED display for any dim or dead pixels, ensuring optimal readability
- Examine internal wiring and connections, checking for any rips, tears, or compromised insulation
- Ensure fan is clean and fully operational to maintain adequate cooling
- Test PCB test points for proper voltage output, confirming consistent circuit performance
- Validate functionality of all buttons and switches, ensuring responsive control
- Measure and confirm constant voltage, amplitude, and wattage using precise resistance values
- Cross-check displayed voltage with multimeter readings for accuracy
- Monitor for rapid resistance changes, software errors, and power fluctuations
- Inspect line cord for any signs of wear, cuts, or damage impacting safety
- Confirm cosmetic condition meets quality standards, free of any damage affecting functionality or aesthetics
Technician Inspection and Recertification Checklist: Electrophoresis Power Supplies
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify internal power supply output voltage | Completed | |
| Inspect LED display for dim or dead pixels | Completed | |
| Examine internal wiring for rips or tears | Completed | |
| Ensure fan is clean and fully operational | Completed | |
| Test PCB test points for voltage accuracy | Completed | |
| Validate functionality of buttons and switches | Completed | |
| Confirm constant voltage, amplitude, and wattage with resistance | Completed | |
| Cross-check displayed voltage with multimeter | Completed | |
| Monitor for rapid resistance changes and power fluctuations | Completed | |
| Inspect line cord for wear or damage | Completed | |
| Confirm cosmetic condition meets quality standards | Completed |
