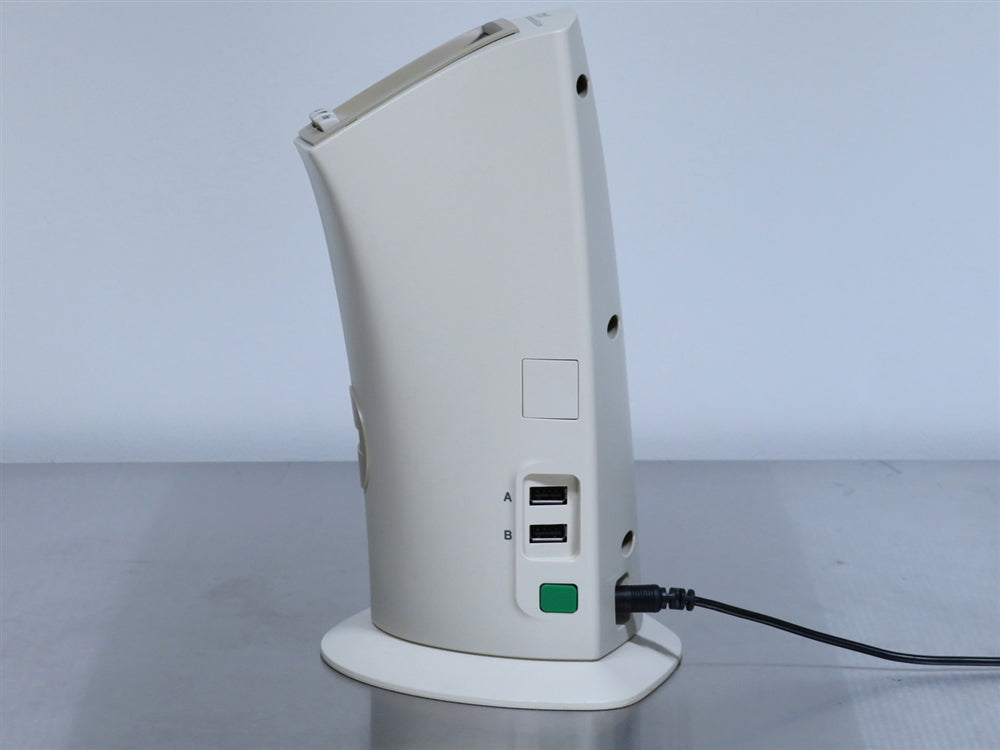

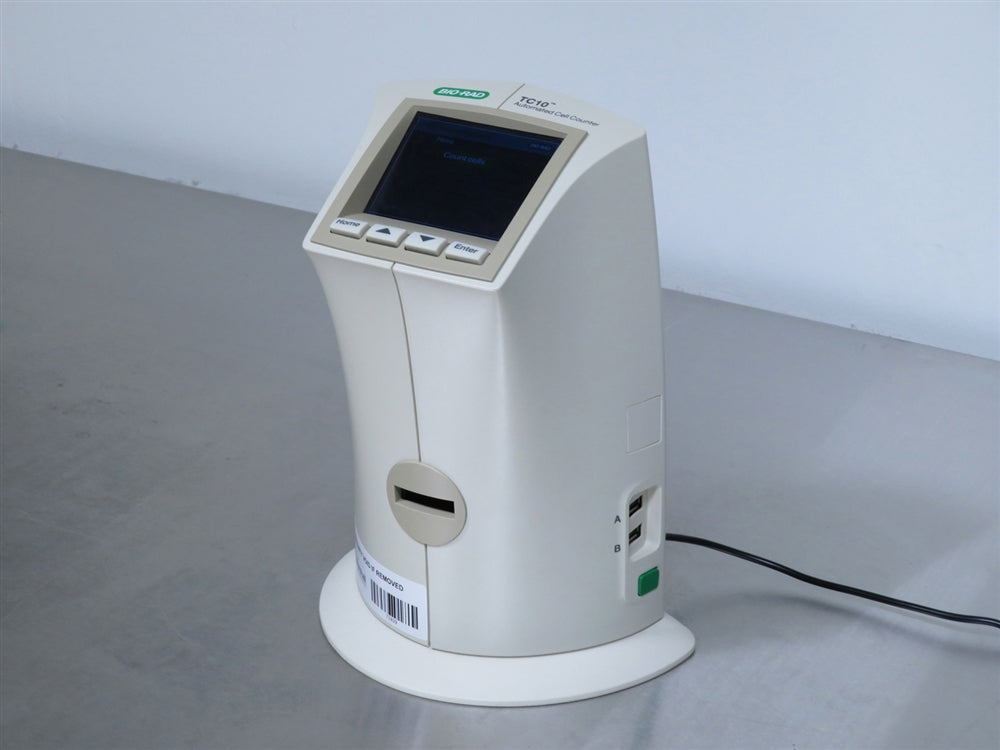

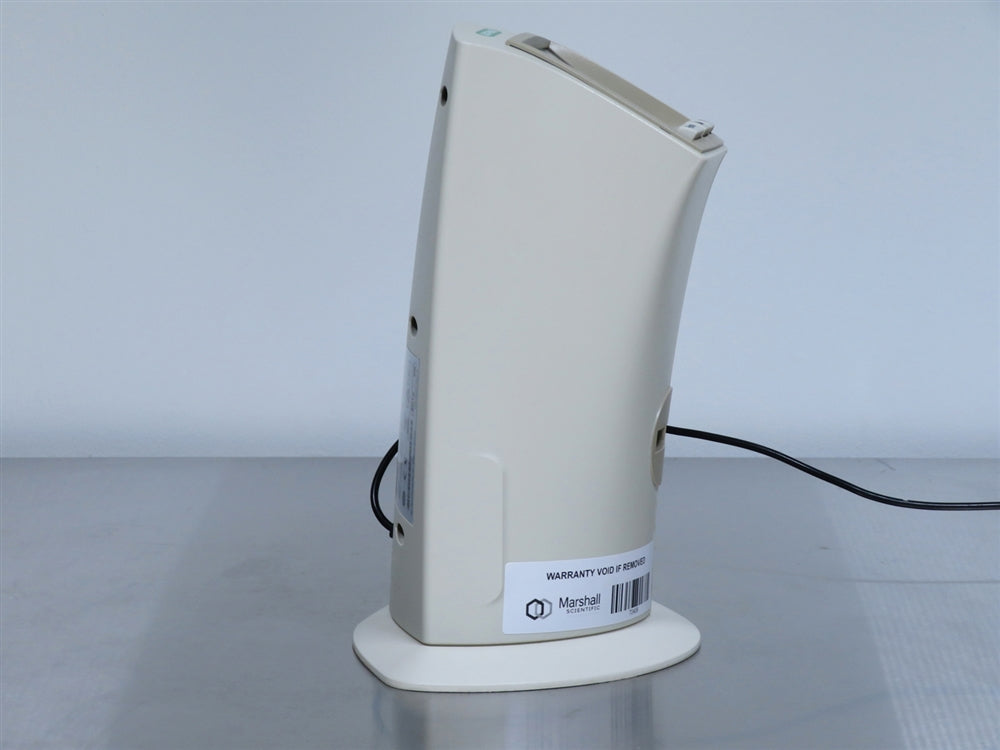

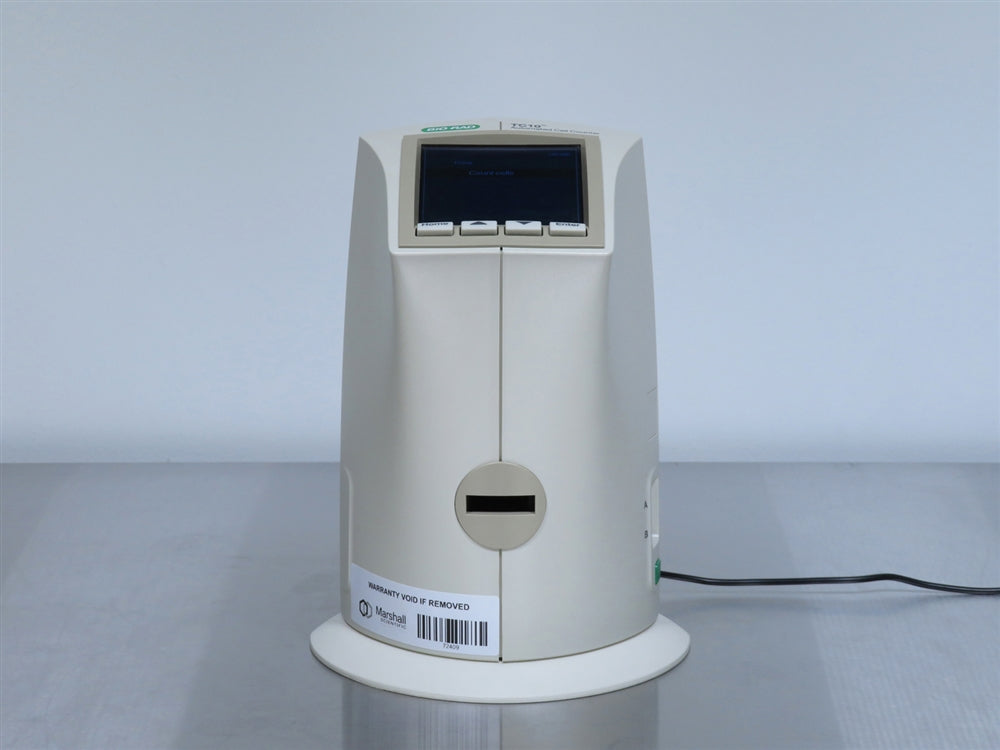

BioRad TC10 Automated Cell Counter
Capacity
One 2-chamber disposable slide
Cell Size
6 to 50 µm
Counting Time
30 Seconds
Features
- Brightfield-based detection method ensures precise and reliable cell counting
- Autofocus technology and advanced image analysis eliminate manual adjustments
- Automatically accounts for trypan blue dilution to calculate cell viability
- Onscreen display of counted cells with USB export for data transfer
- Built-in storage for up to 100 counts, simplifying data management
- Includes a dilution calculator to derive resuspension volumes for experiments
- Compact and portable design with dimensions of 7.5 x 6 x 10 in. and weight of 4.8 lbs
The BioRad TC10 Automated Cell Counter is a benchtop instrument that counts mammalian cells in one simple step, initiating auto-counts immediately upon slide insertion. The innovative autofocus technology and sophisticated digital image analysis algorithm produce accurate cell counts for most samples in less than 30 seconds. The TC10 cell counter rapidly provides a total cell count with or without trypan blue staining and assesses cell viability via trypan blue dye exclusion. Getting all the data you need about your cell cultures is fast and easy, as the TC10 Cell Counter and disposable counting slides eliminates the need for tedious setup, cleaning, or maintenance.
The TC10 Cell Counter provides accurate and reproducible cell counts for suspended cells that have been grown as adherent or suspension cells at concentrations within the 5 x 10^4 to 1 x 10^7 cells/ml range and for cells within the 6-50 um cell diameter range. Only 10 ul of cell suspension is required for the cell count. The cell counter detects the presence of trypan blue in the sample with no user input required and automatically accounts for the 1:1 (trypan blue:cells) dilution factor.

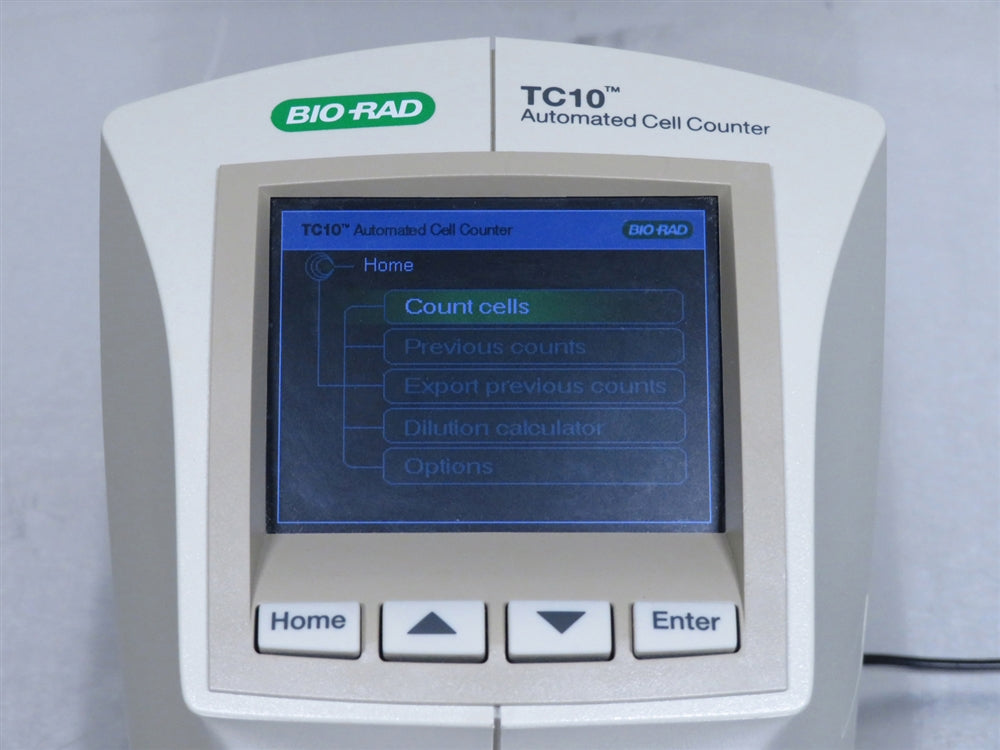

An image of the counted cells can be viewed onscreen and downloaded onto a USB flash drive immediately after the count. The TC10 can store results from 100 counts. Count results can be exported onto a USB flash drive and viewed in Excel. The TC10 cell counter has a dilution calculator to derive cell resuspension volumes required to achieve the cell concentration needed for the next experiment. A histogram of cell diameter distribution in the sample can be viewed after the cell count.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The BioRad TC10 Automated Cell Counter includes:
The BioRad TC10 Automated Cell Counter includes:
- > Calibration Report
- > 10 Disposable Cell Counting Chamber Slides for TC10/TC20
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
BioRad TC10 Automated Cell Counter Specifications
|
Capacity |
One 2-chamber disposable slide |
|
Cell Size |
6 to 50 µm |
|
Concentration |
5x10^4-1x10^7 cells/ml |
|
Counting Time |
30 seconds |
|
Detection Method |
Brightfield-based |
|
Data Storage |
100 Counts |
|
Data Export |
Via USB Drive |
|
Sample Volume |
10 µl |
|
Dimensions (W x D x H) |
7.5 x 6 x 10 in. (19 x 15 x 25.4 cm) |
|
Weight |
4.8 lb. (2.2 kg.) |
|
Electrical Requirements |
120 - 240V, 30W |
Cell Counter Inspection and Recertification Checklist
- Verify machine software initialization to ensure complete and accurate startup
- Examine display screen for cracks, dead pixels, or other damage that may affect visibility
- Test touch screen functionality, confirming sensitivity and accurate response
- Inspect slide port for proper alignment and any visible signs of wear or obstruction
- Examine internal wiring for secure connections and any signs of damage or wear
- Clean internal casing to maintain optimal equipment hygiene and prevent dust buildup
- Prepare a test sample using a precise 10µL mixture of cell suspension fluid and Trypan Blue stain
- Conduct Phosphate Buffered Saline calibration and validate with Countess test beads, if applicable
- Confirm concentration accuracy of test beads, ensuring results align with specified standards
- Verify zoom, brightness, and focus controls are fully functional for optimal image clarity
- Test USB port functionality, saving test results and images to verify data transfer
- Inspect packaging of disposable chamber slides for any tears, punctures, or contamination
- Verify power supply output for correct voltage delivery to all components
- Compile a comprehensive calibration report, detailing all verification and validation results
Technician Inspection and Recertification Checklist: Cell Counters
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify machine software initialization | Completed | |
| Inspect display screen for cracks or damage | Completed | |
| Confirm touch screen functionality | Completed | |
| Inspect slide port for alignment and wear | Completed | |
| Check internal wiring for secure connections and damage | Completed | |
| Clean internal case for dust prevention | Completed | |
| Prepare 10µL test sample with cell suspension and Trypan Blue | Completed | |
| Conduct PBS calibration and Countess test beads validation | Completed | |
| Confirm test bead concentration accuracy | Completed | |
| Verify zoom, brightness, and focus functionality | Completed | |
| Test USB port, save test results and images | Completed | |
| Inspect disposable chamber slide packaging for damage | Completed | |
| Verify power supply output voltage | Completed | |
| Prepare a detailed calibration report | Completed |
