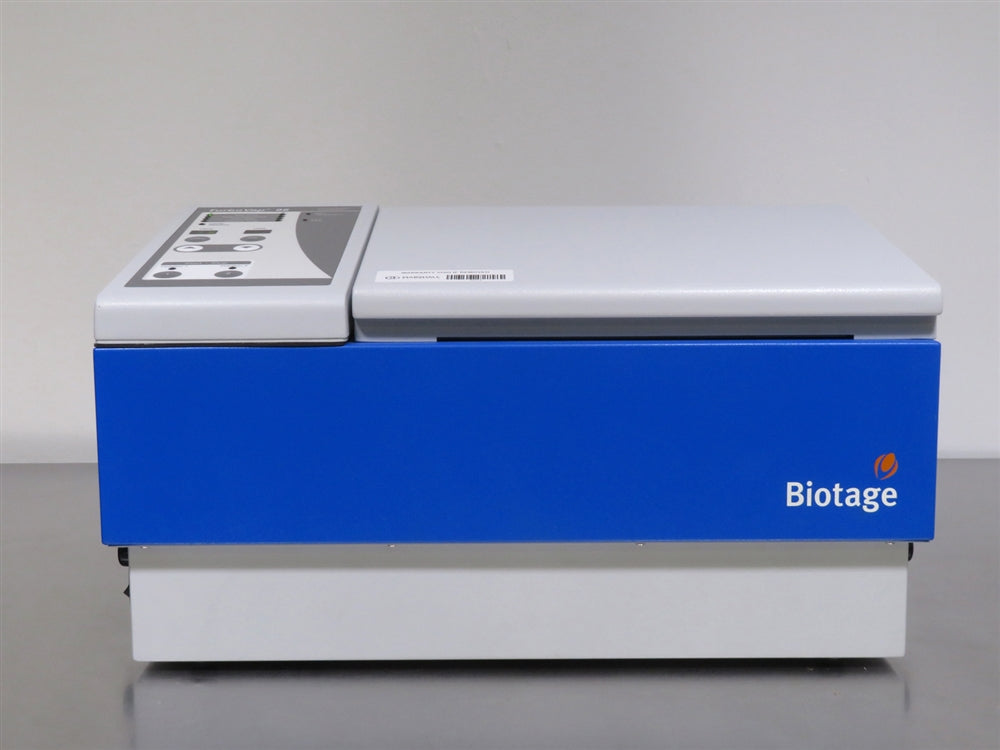

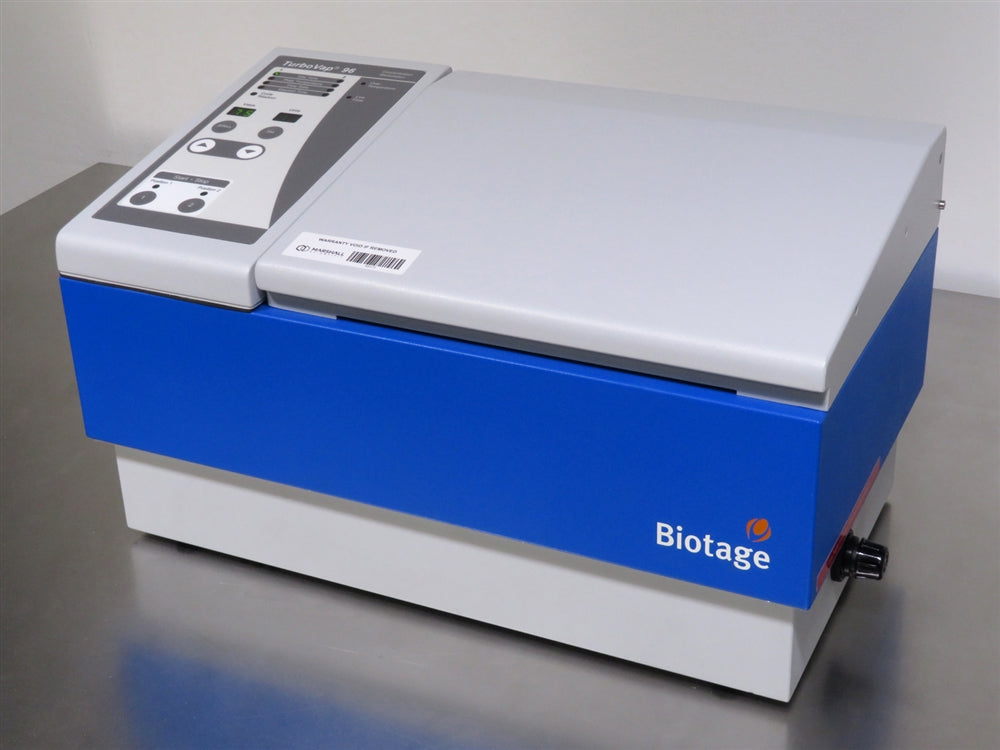

Biotage TurboVap 96 Evaporator w/ Manifolds
Capacity
2 x 96-Well Microplates
Water Bath Temperature Range
Ambient to 80°C
Gas Consumption
5 to 99 standard cubic feet/hour (SCFH)
Features
- Microprocessor-controlled system enables automated, unattended sample concentration
- Processes one or two 96-well plates simultaneously for high-throughput workflows
- Patented gas vortex shearing technology promotes fast and uniform evaporation
- Helical gas flow design ensures consistent evaporation across all wells
- Heated airflow enhances evaporation efficiency under mild conditions

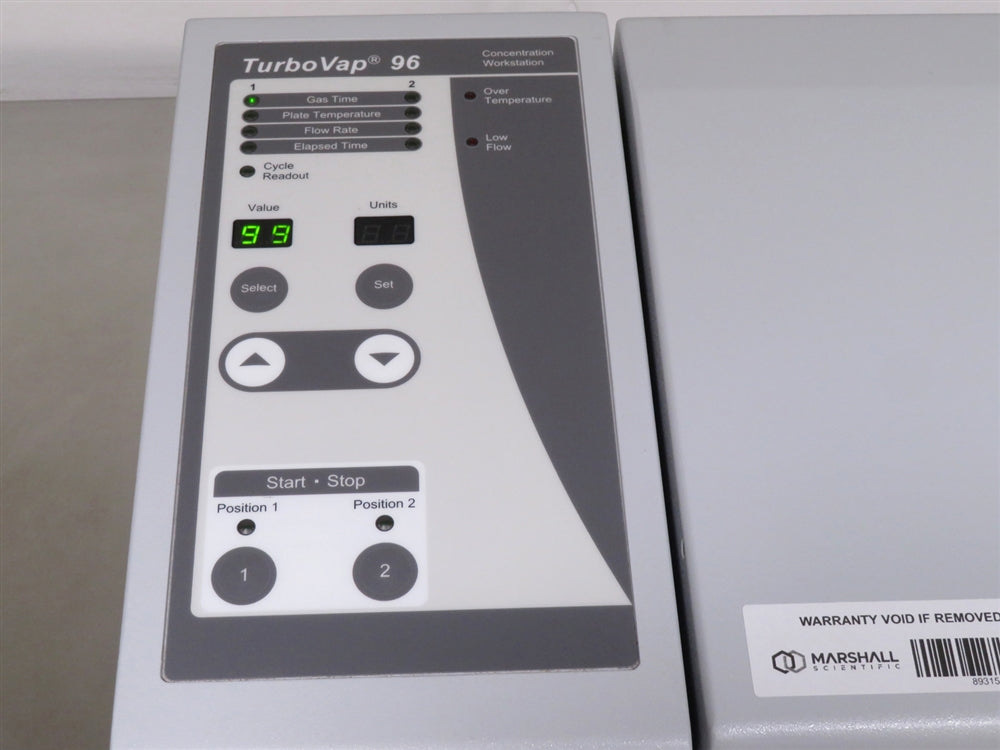

- Intuitive interface allows easy adjustment of time and temperature settings
- Easy-to-clean nozzles reduce maintenance requirements
- Compatible with standard and deepwell microplates
- Suitable for pharmaceutical, environmental, forensic, and genomic applications

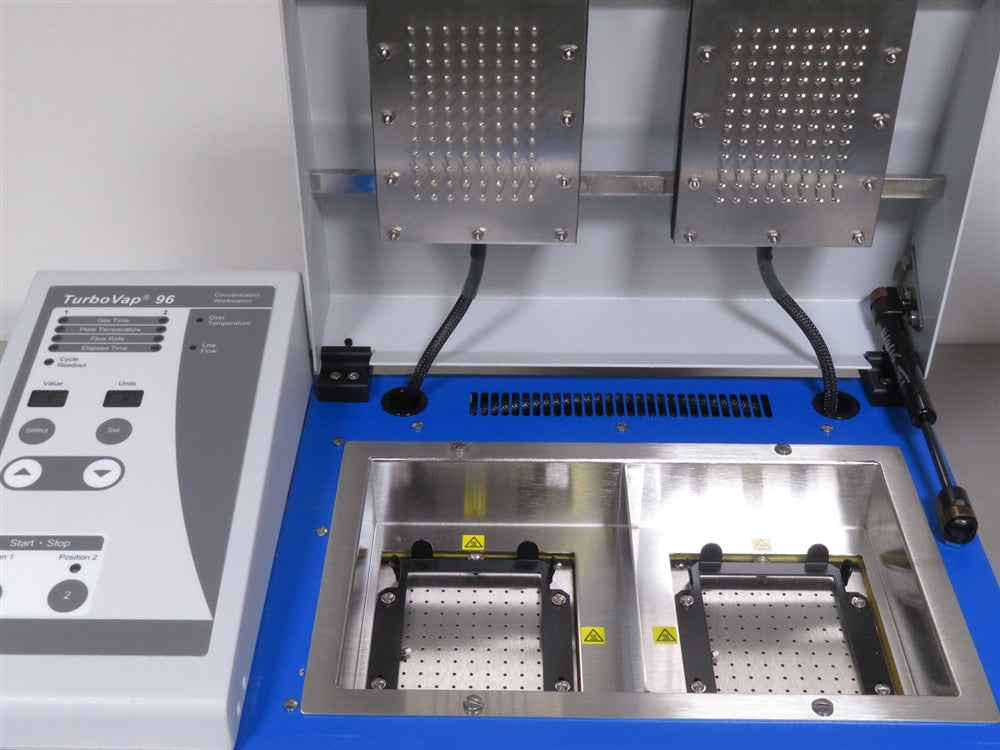

The system utilizes patented gas vortex shearing technology to achieve rapid evaporation under mild thermal conditions. When the cover is closed, gas nozzles align with each well, creating a helical flow that promotes consistent evaporation across all samples. Combined with directed heated airflow beneath the plates, this design enhances evaporation efficiency while maintaining sample integrity. With minimal maintenance requirements and easy-to-clean components, the Biotage TurboVap 96 Evaporator w/ Manifolds provides a reliable solution for applications including pharmaceutical analysis, environmental testing, forensic workflows, and genomic or proteomic sample preparation.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Biotage TurboVap 96 Evaporator w/ Manifolds includes:
The Biotage TurboVap 96 Evaporator w/ Manifolds includes:
- > Gas Manifolds
- > Microplate Adapters
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
- > Please Note: Inert nitrogen gas supply with two stage regulator is not included and required for operation.
Biotage TurboVap 96 Evaporator w/ Manifolds Specifications
| Capacity | 2 x 96-Well Microplates |
| Gas Flow Rate | 5 to 99 standard cubic feet/hour (SCFH) |
| Temperature Range | Ambient to 80°C |
| Required Gas Supply Inlet Pressure | 30 to 80 psi |
| Timer Range | 1 to 99 minutes with a one-second resolution |
| Overall Dimensions (W x D x H) | 23.5 x 12.5 x 12 in. (59.7 cm x 31.8 x 30.5 cm) |
| Weight | 50 lb. (22.7 kg) |
| Electrical Requirements | 100-120V, 60Hz, 6A |
Blowdown Evaporator Inspection and Recertification Checklist
- Verify internal power supply output for correct voltage to ensure stable and accurate performance
- Confirm fuse holder is secured firmly, preventing movement or disconnection
- Inspect glass window for any cracks or chips, maintaining structural integrity and visibility
- Assess power-up diagnostics, display, and push wheel buttons for full functionality
- Ensure pressure gauge and regulator are operating accurately and within specified ranges
- Test and align all nozzle manifolds, clearing any blockages to optimize spray performance
- Check all tubing for leaks, confirming secure attachment to manifolds to prevent pressure loss
- Verify all control panel connections are secure, with no frayed or torn wiring that could impact safety
- Confirm fan operation to maintain appropriate internal cooling, replacing if performance is inadequate
- Test evaporative cooling functionality, ensuring performance below ambient temperature
- Test heating bath accuracy, confirming precise temperature alignment with set points
- Verify PSI stability, confirming that pressure is steady and adjustable as needed
- Ensure cosmetic condition is within standards, free from damage impacting function or appearance
Technician Inspection and Recertification Checklist: Blowdown Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify internal power supply output voltage | Completed | |
| Confirm fuse holder is secured | Completed | |
| Inspect glass window for cracks or chips | Completed | |
| Assess power-up diagnostics, display, and push wheel buttons | Completed | |
| Ensure pressure gauge and regulator functionality | Completed | |
| Test and align all nozzle manifolds, clear blockages | Completed | |
| Check tubing for leaks and secure attachment to manifolds | Completed | |
| Verify secure control panel connections and check wiring | Completed | |
| Confirm fan operation, replace if needed | Completed | |
| Test evaporative cooling below ambient temperature | Completed | |
| Confirm heating bath temperature accuracy | Completed | |
| Verify PSI stability and adjustability | Completed | |
| Ensure cosmetic condition meets standards | Completed |
