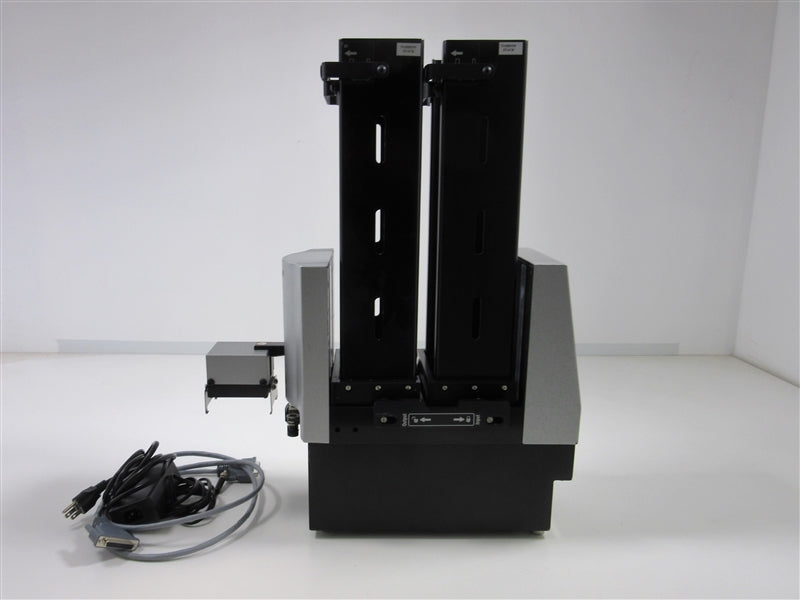

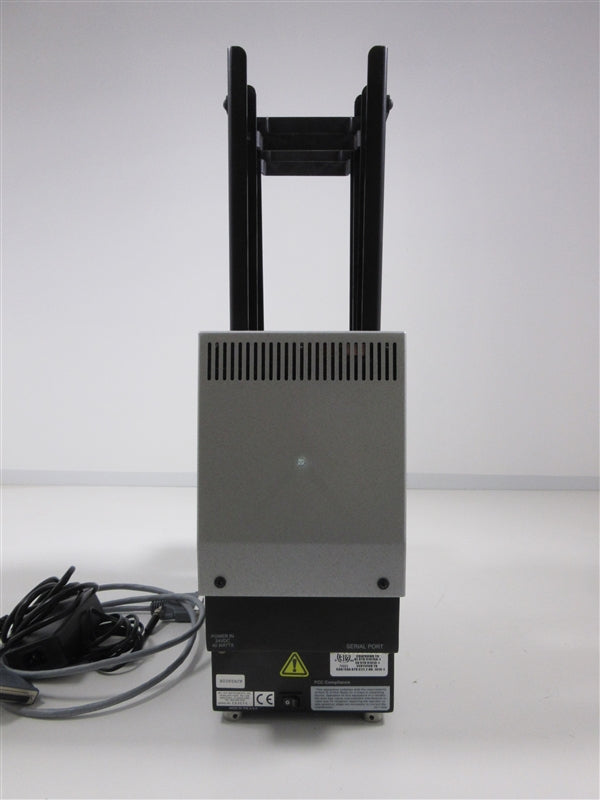

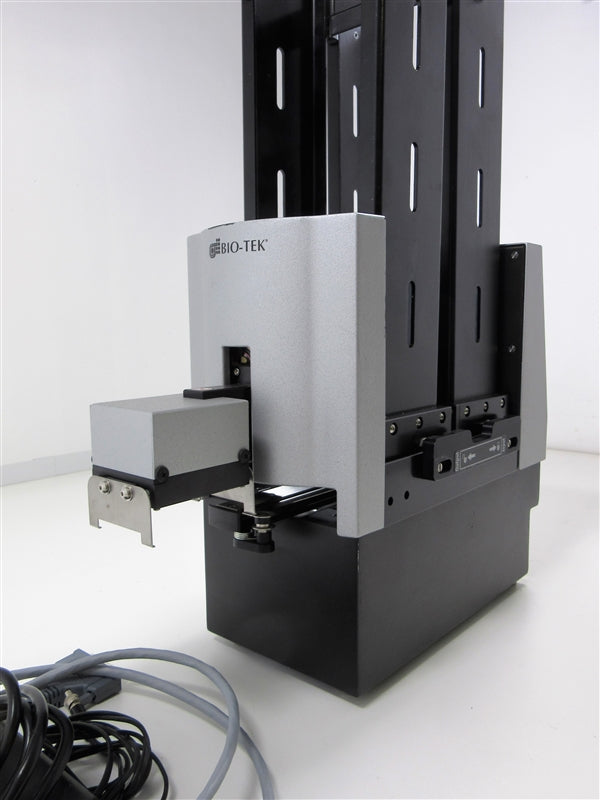

BioTek BioStack Microplate Stacker
Microplate Types
ANSI/SBS Standard & Low Profile 96, 384, & 1536-well
Microplate Capacity
Accepts 10-, 30-, and 50-Plate Stacks
Processing Speed
< 33 Seconds
- Enhances productivity by automating routine assay workflows
- Integrates seamlessly with BioTek washers, dispensers, detectors, and imaging systems
- Features convenient re-stacking for full automation of endpoint and kinetic processes
- Ideal for a variety of applications including absorbance, fluorescence, luminescence assays, ELISA, and cell-based assays
- Accommodates ANSI/SBS standard and low profile microplates with a maximum plate height of 14.6 mm
The BioTek BioStack Microplate Stacker provides automation to routine to increase throughput and enhance productivity, accommodating assay workflows for 96-well and 384-well plates in BioTek washers, dispensers, detectors, and imaging systems. The BioStack offers convenient re-stacking for complete automation of endpoint and kinetic processes. Recommended applications include: absorbance, fluorescence, and luminescence assays; ELISA; and cell-based assays.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The BioTek BioStack Microplate Stacker includes:
- > Serial Cable
- > 30 x Microplate Stackers
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
BioTek BioStack Microplate Stacker Specifications
|
Microplate Types |
ANSI/SBS Standard and low profile 96, 384, and 1536 wells; maximum plate height of 14.6 mm |
|
Microplate Capacity |
10-, 30-, and 50-plate stacks are removable and interchangeable; 96-/384-well plates: up to 50 plates; 1536-well plates: up to 75 plates |
|
Processing Speed (Plate Exchange Time) |
<33 seconds |
|
Overall Dimensions (W x D) |
7 x 18.5 in (18 x 47 cm) height varies depending on connected
instruments and stacks used
|
- Install new waste and buffer bottles to ensure proper fluid containment and system functionality.
- Integrate a new pump into the system, verifying compatibility and secure connections.
- Verify that the power supply and PCB output the correct voltages for reliable component operation.
- Conduct a self-test on the microplate washer, evaluating all operational parameters.
- Inspect the X-axis motor belt for signs of wear, such as tears, frays, or breakages, replacing if necessary.
- Examine dispense and aspirate tubes for any damage that could affect fluid flow accuracy.
- Confirm internal pump functionality, replacing seals as needed to maintain optimal performance.
- Inspect all internal wiring for frays, tears, or breakages, addressing any faults for electrical safety.
- Verify functionality of all internal and external sensors, ensuring accurate readings across the unit.
- Disinfect the unit using an appropriate disinfection cycle to ensure sterility and safety.
- Check that residual aspiration levels are within the manufacturer’s specified limits for accuracy.
- Conduct a final cosmetic inspection to verify that all external surfaces meet appearance standards.
Technician Inspection and Recertification Checklist: Microplate Washer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Install new waste and buffer bottles | Completed | |
| Integrate new pump into system, verifying secure connections | Completed | |
| Verify power supply and PCB output correct voltages | Completed | |
| Conduct microplate washer self-test and evaluate results | Completed | |
| Inspect X-axis motor belt for wear, replacing if necessary | Completed | |
| Examine dispense and aspirate tubes for any damage | Completed | |
| Confirm internal pump functionality, replace seals as needed | Completed | |
| Inspect internal wiring for frays, tears, or breakages | Completed | |
| Verify functionality of all internal and external sensors | Completed | |
| Disinfect unit with appropriate disinfection cycle | Completed | |
| Check residual aspiration levels meet specifications | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
