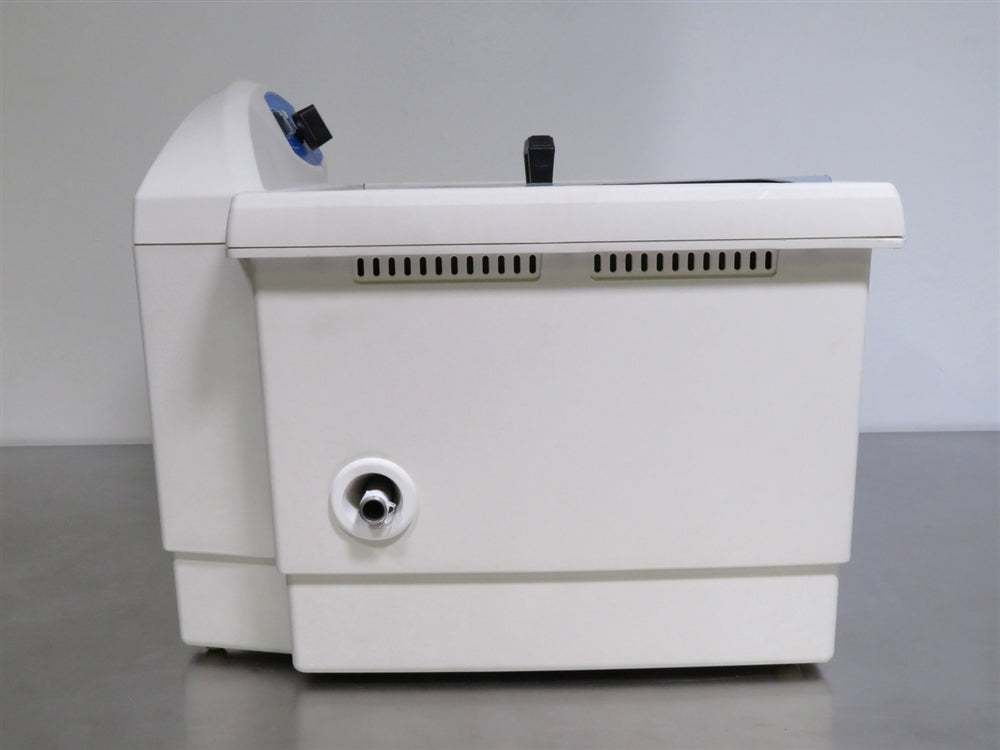

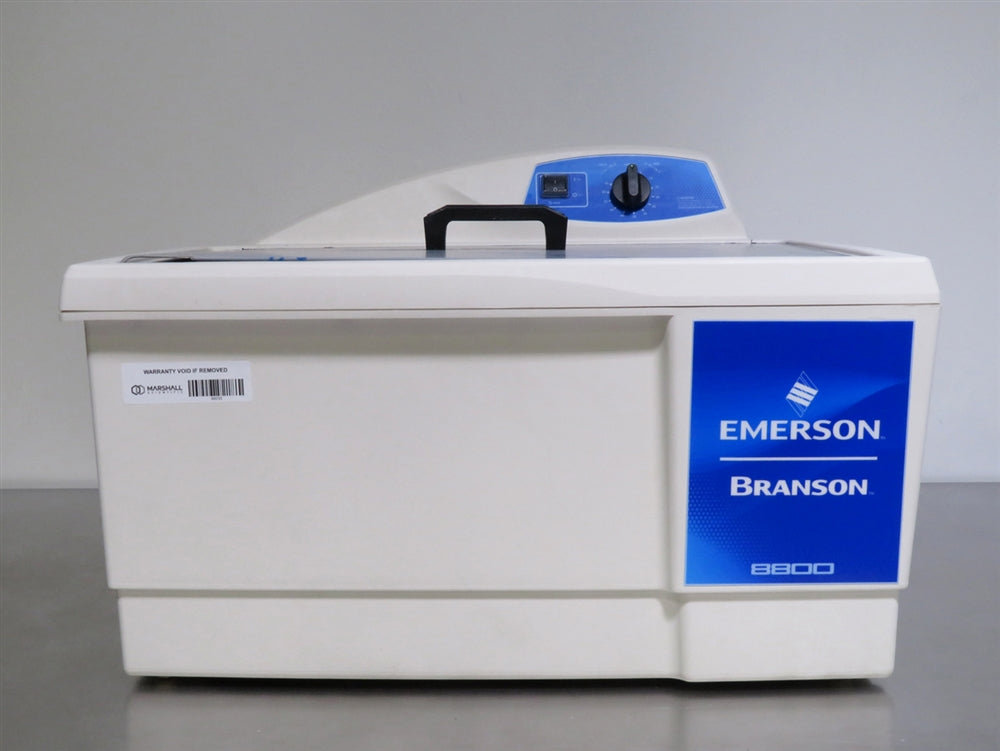

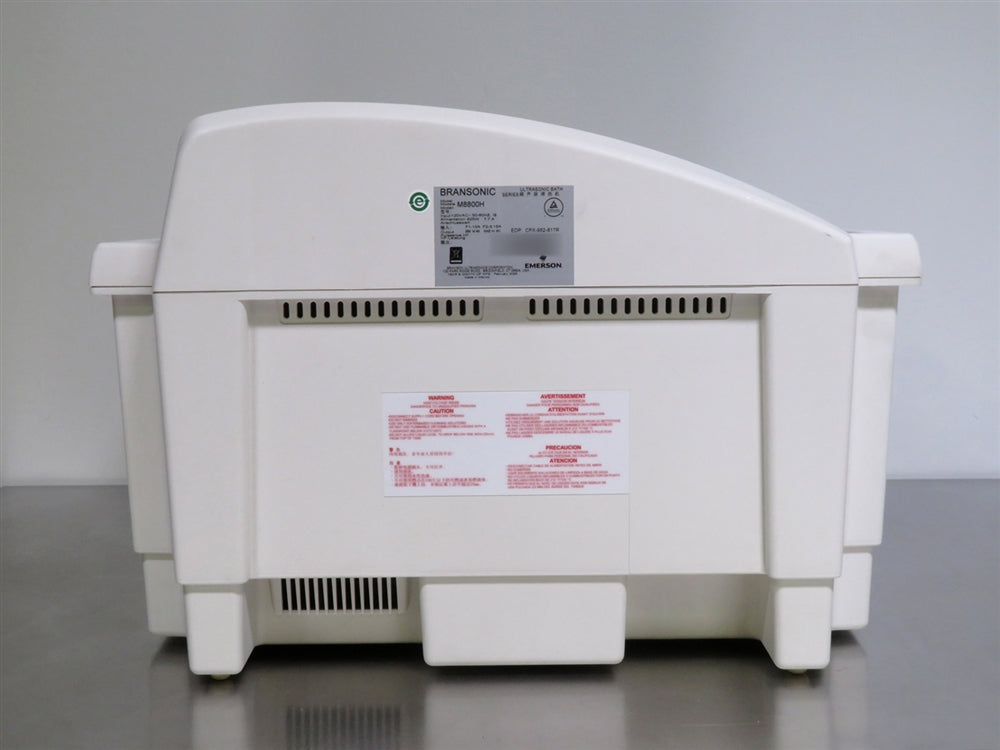

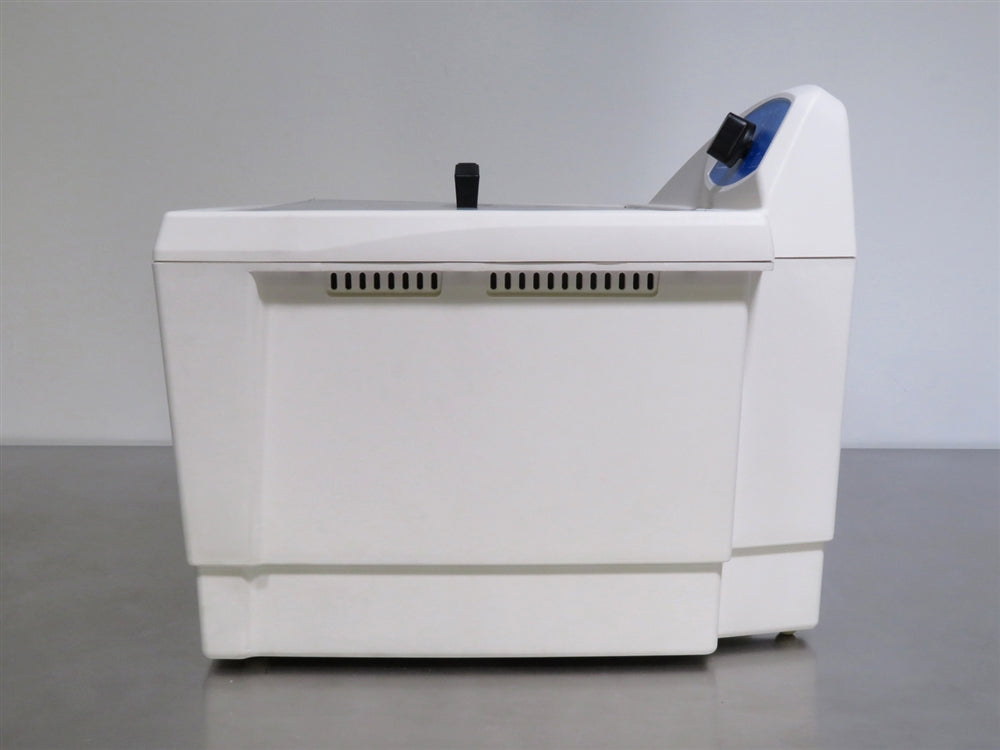

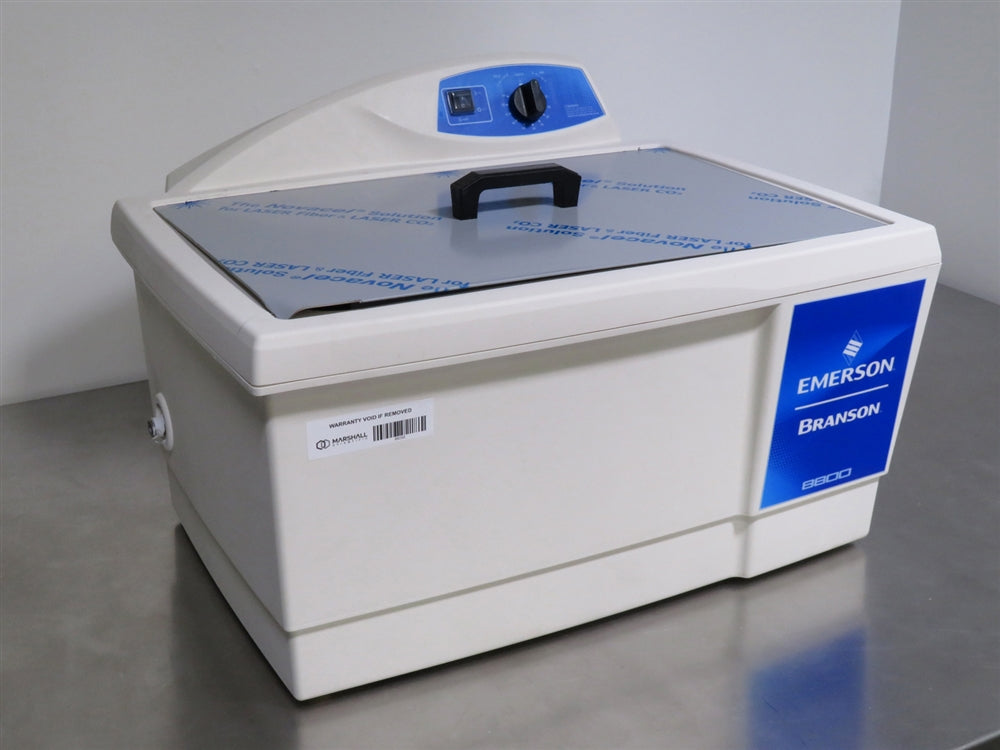

Branson M8800H Heated Ultrasonic Cleaner
Frequency
40 kHz
Tank Capacity
20.8L (5.5 gallons)
Temperature Range
69°C (156.2°F)
Features
- 60-minute mechanical timer with continuous operation mode for flexible cycle control
- Sweep technology provides even cavitation and consistent cleaning throughout the tank
- Rugged industrial transducers deliver reliable long-term performance
- Automatic power tracking maintains stable ultrasonic activity as load or liquid conditions change
- Chemical-resistant plastic body ensures durability in demanding cleaning environments

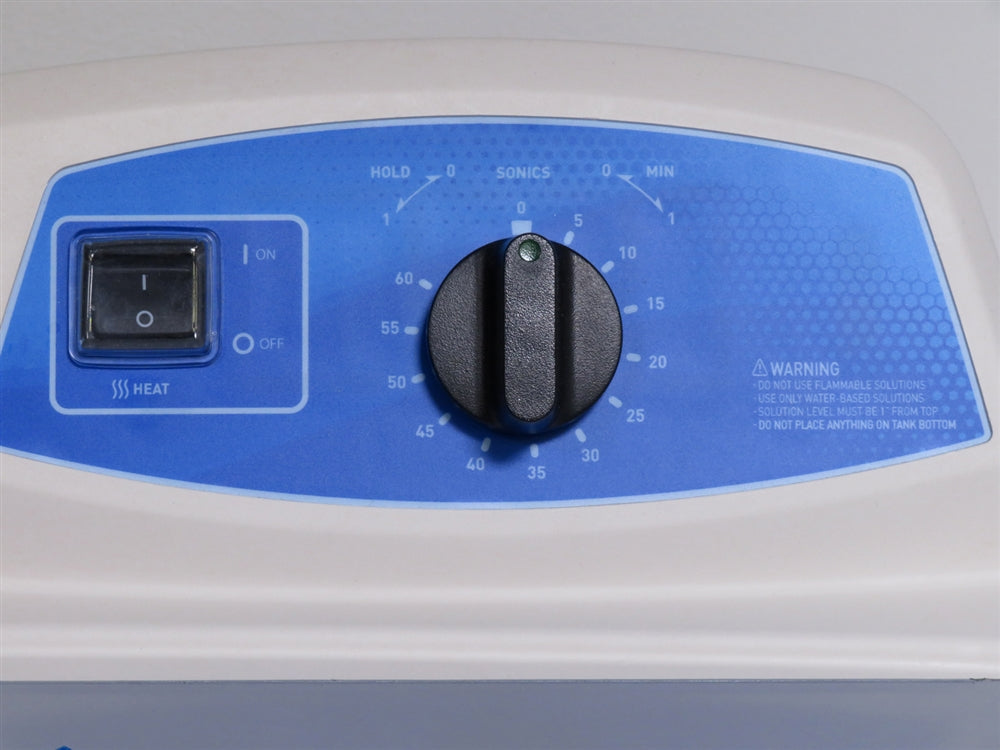

- Raised control tower panel keeps controls protected from splashes and cleaning solutions
- Integrated tank drain allows quick and convenient fluid changes
- Spacious tank footprint accommodates larger components or multiple items
The Branson M8800H Heated Ultrasonic Cleaner provides powerful, reliable cleaning with a large 20.8 L tank and rugged 40 kHz industrial transducers. Its sweep frequency design eliminates standing waves to ensure consistent cavitation across the entire bath, while automatic power tracking adjusts output as liquid level, temperature, or load conditions change. The heated MH configuration supports temperatures up to 69°C, making it well-suited for applications requiring enhanced cleaning performance. A 60-minute mechanical timer and continuous-run option offer straightforward operation for both quick cycles and extended cleaning needs.

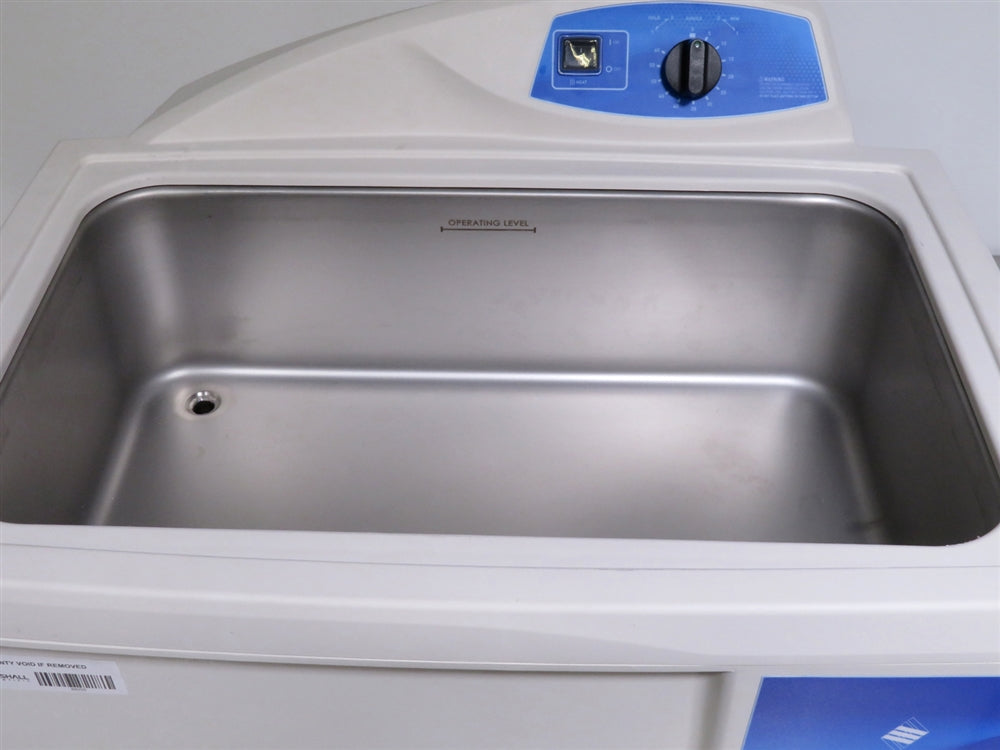

Built for durability and ease of use, the M8800H features a chemical-resistant plastic exterior and a raised control tower panel that keeps controls safely above the tank. Its integrated tank drain simplifies solution changes, and the spacious 19.5 x 11.5 x 6 in. stainless-steel tank accommodates larger components or multiple items at once. Operating at 120V with a compact footprint and 26 lb weight, this model delivers dependable ultrasonic cleaning performance for laboratories, manufacturing environments, and service centers.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Branson M8800H Heated Ultrasonic Cleaner includes:
The Branson M8800H Heated Ultrasonic Cleaner includes:
- > Tank Cover
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Branson M8800H Heated Ultrasonic Cleaner Specifications
| Capacity | 20.8L (5.5 gallons) |
| Timer | 0 to 60 minutes |
| Frequency | 40 kHz |
| Temperature Range | 69°C (156.2°F) |
| Tank Dimensions (L x W x D) | 19.5 x 11.5 x 6 in. (49.5 x 29.2 x 15.2 cm) |
| Overall Dimensions (L x W x D) | 23.5 x 18.3 x 15.4 in. (59.7 x 46.5 x 39.2 cm) |
| Weight | 26 lb. (11.8 kg) |
| Electrical Requirements | 120V, 50/60Hz, 7.7A, 925W |
Downloads
Click Here to View all the Technical Specs for the Branson M8800H Heated Ultrasonic Cleaner
