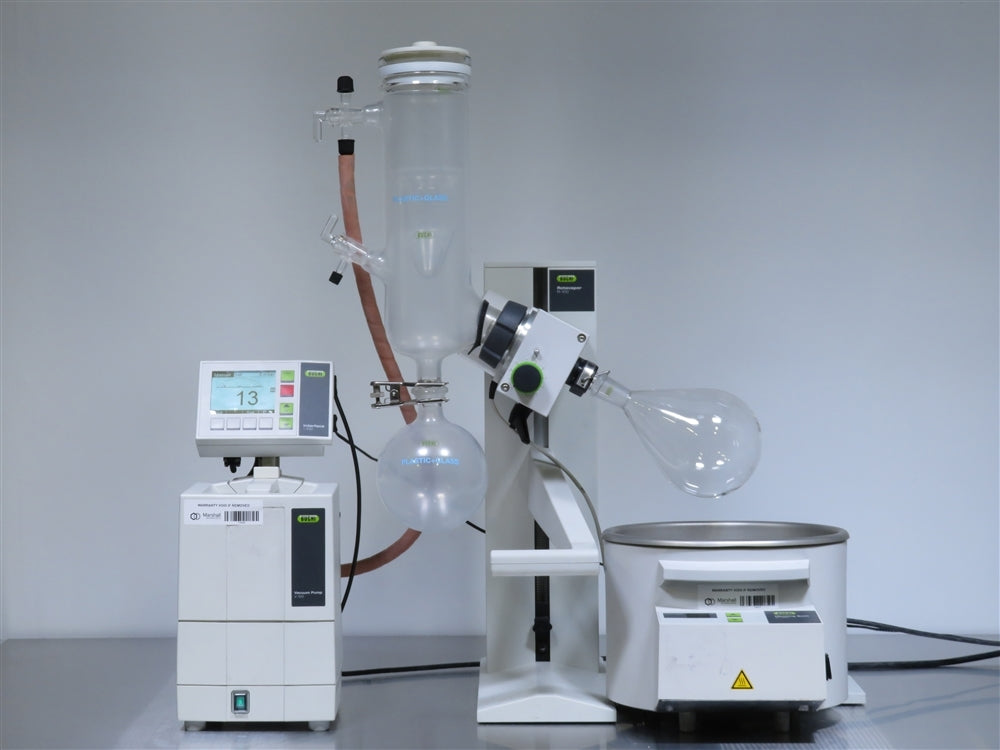

Buchi R-100 Rotavapor System with Chiller

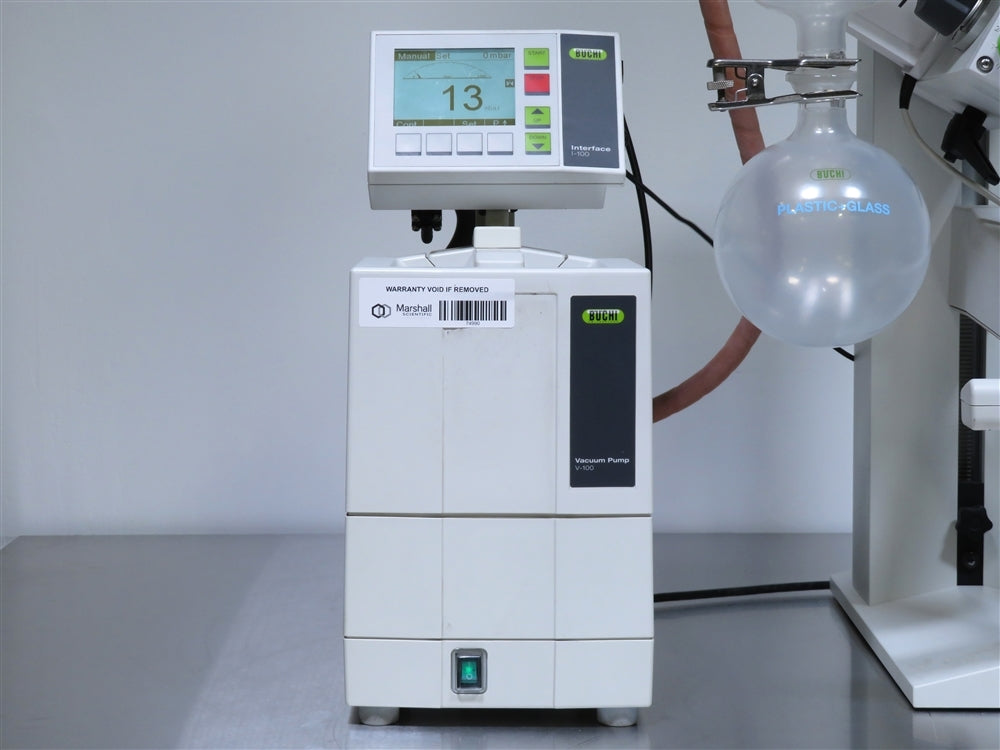

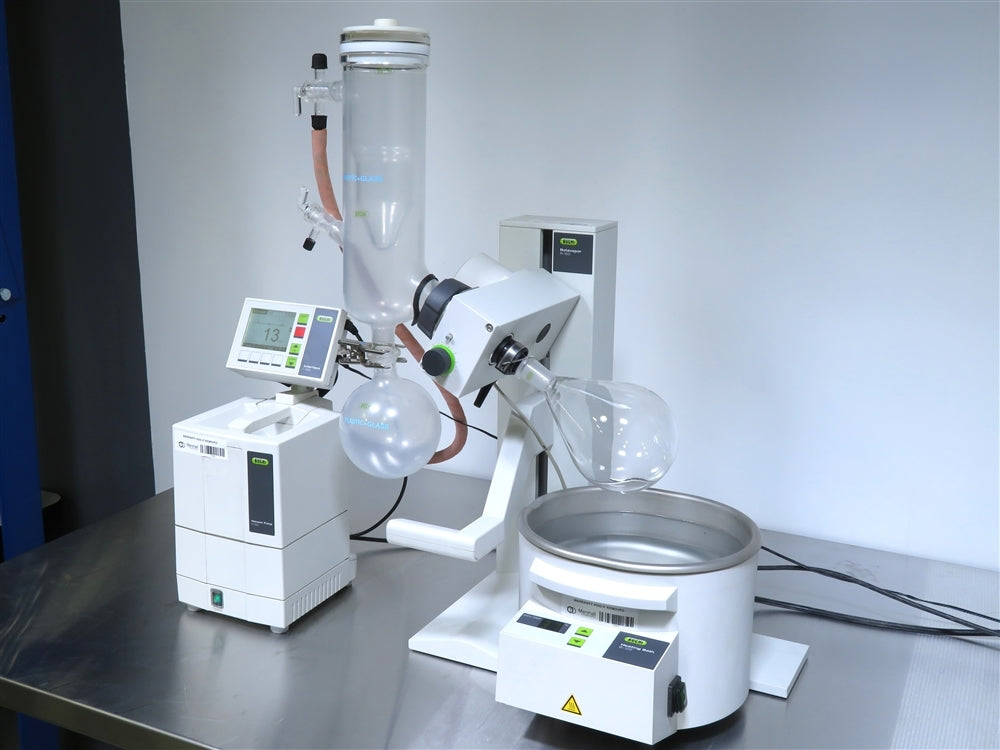

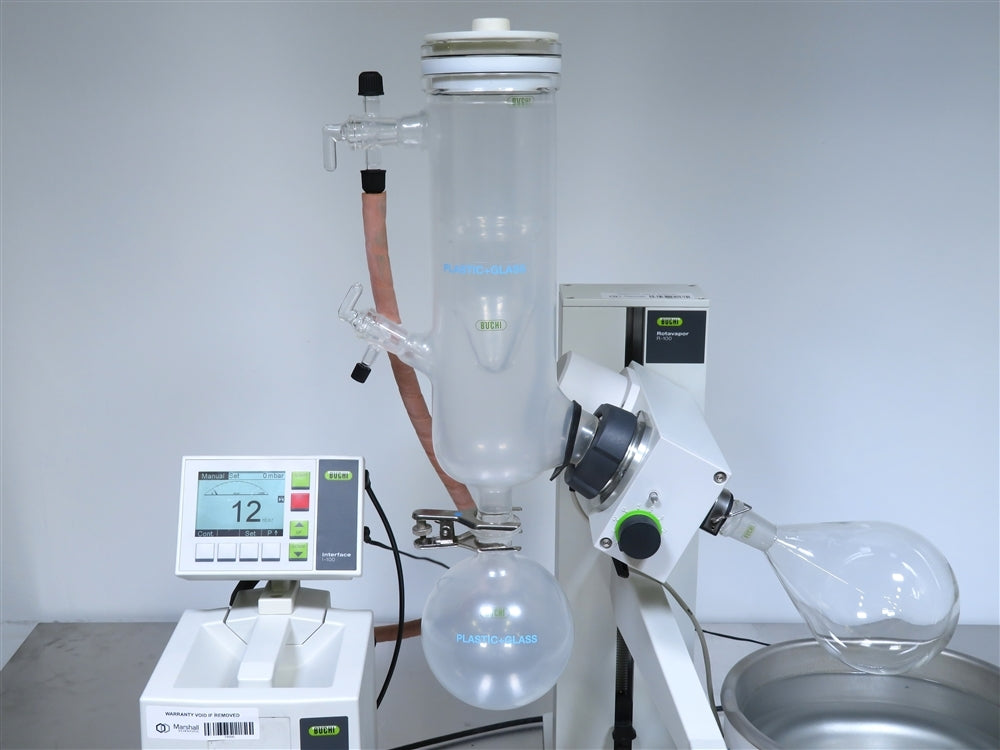

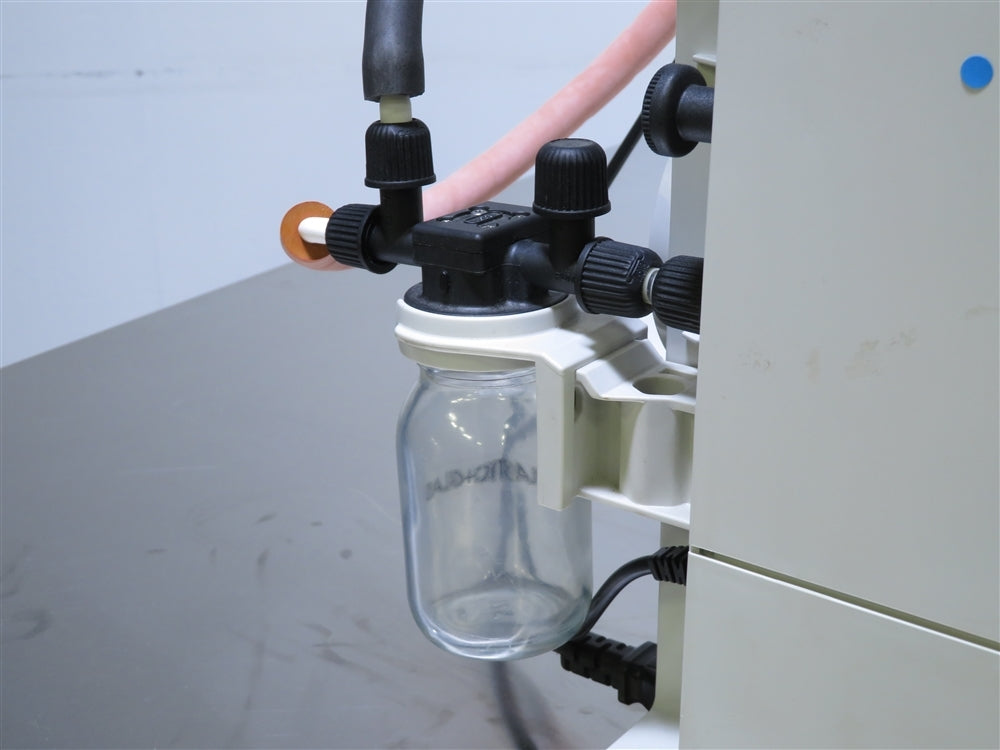

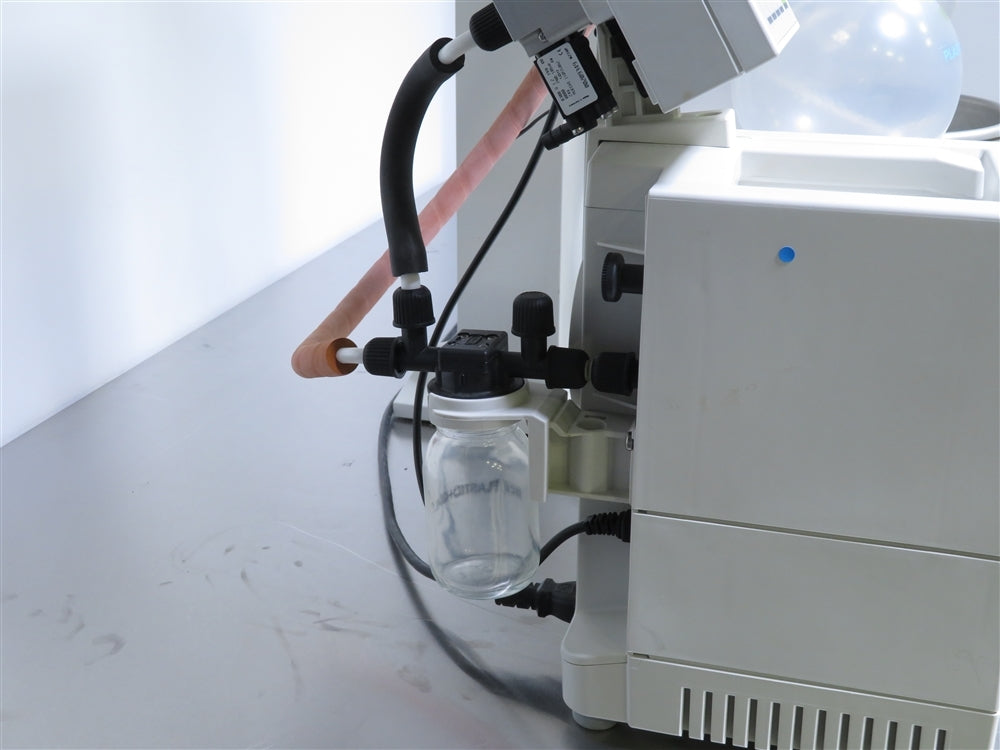

The Buchi R-100 Rotavapor System with Chiller is an advanced solution for high-speed, single-stage distillations with minimal stress on samples. It includes the versatile Buchi B-100 Heating Bath, which offers digital temperature control from 20°C to 95°C and a 4L capacity. The system’s modular design allows for customization with various glassware assemblies, enhancing its adaptability for different laboratory needs. Key features of the R-100 Rotavapor include a rotation speed range of 20 to 280 rpm and a pressure tolerance of up to 6 bar on the condenser coil. The accompanying V-100 Vacuum Pump delivers impressive performance with a final vacuum of less than 10 mbar and a pumping volume of 1.5 m³/h, along with a power consumption of 150W. This pump, combined with the system's multifunctional valve unit, ensures precise vacuum control and efficient operation.

The system is also equipped with the Buchi I-100 Interface, enhancing vacuum control and monitoring with a measurement range of 0 to 1,400 mbar and accuracy of ± 2 mbar post-calibration. It features automatic hysteresis adjustment or manual setting from 1 to 500 mbar, with a regulating range of 0 to 1,100 mbar, and consumes 30W of power. To complement the Rotavapor system, the Buchi F-105 Chiller provides reliable cooling with a temperature range of -10°C to 25°C, accuracy of ± 1°C, and cooling capacity of 530W.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Buchi R-100 Rotavapor System with Chiller Specifications

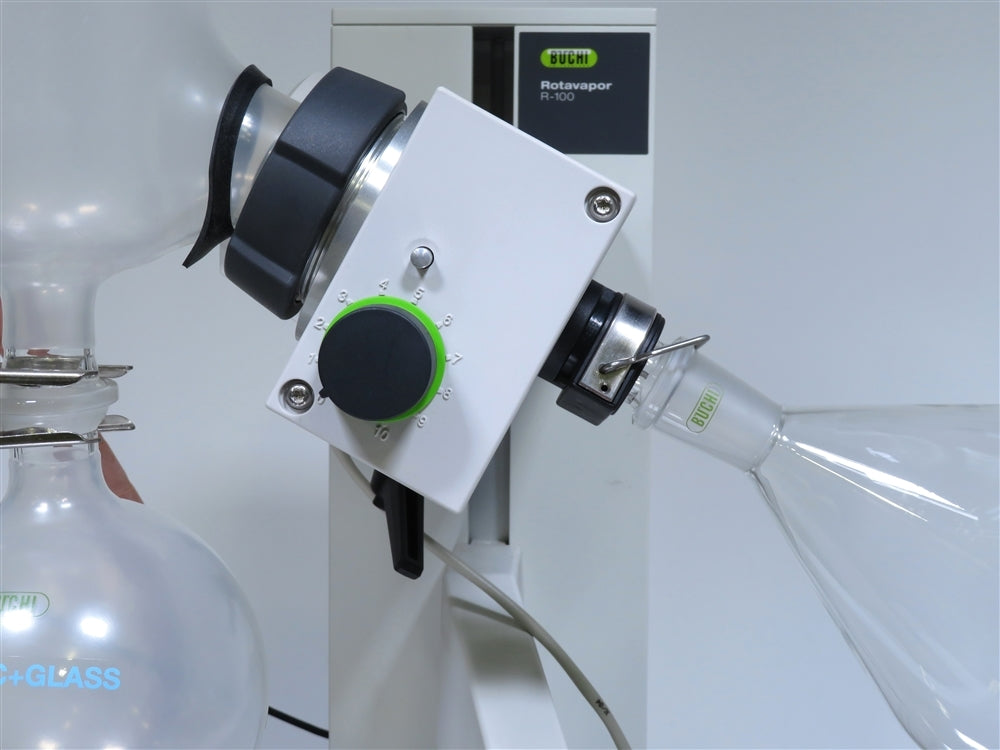

Buchi R-100 Rotavapor System Specifications
Rotation Speed	20 to 280 rpm
Temperature Control	20 ° to 95°C
Bath Capacity	4L
Pressure Load on Condenser Coil	Max 6 bar

V-100 Vacuum Pump Specifications
Final Vacuum Possible	< 10 mbar
Pumping Volume	1.5mᶟ/h
Power Consumption	150 W

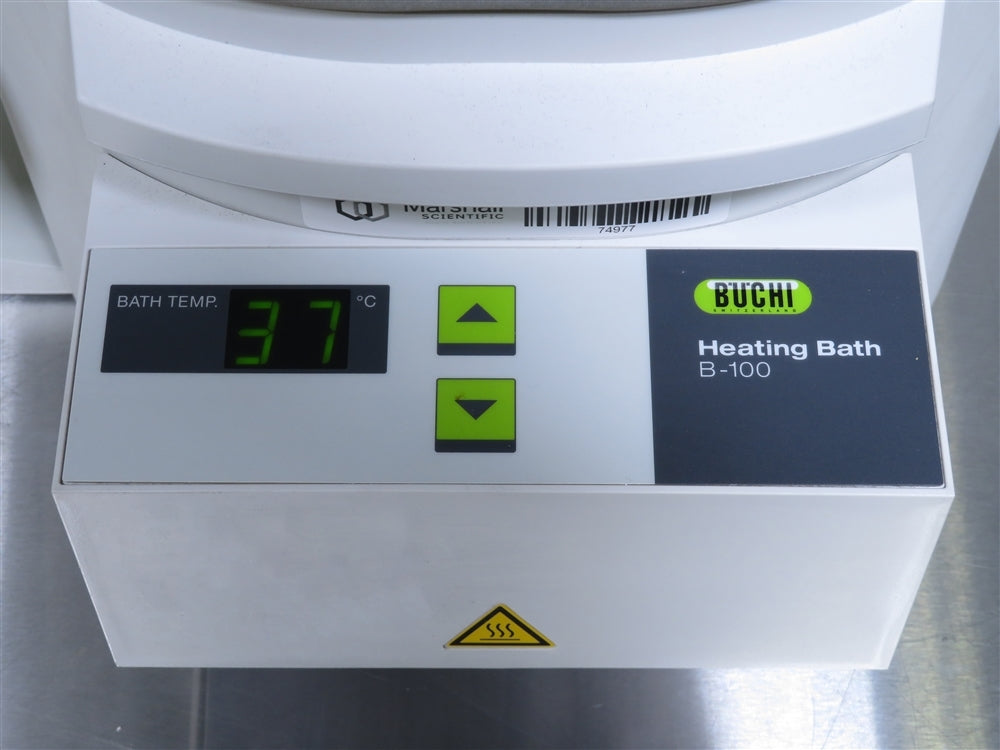

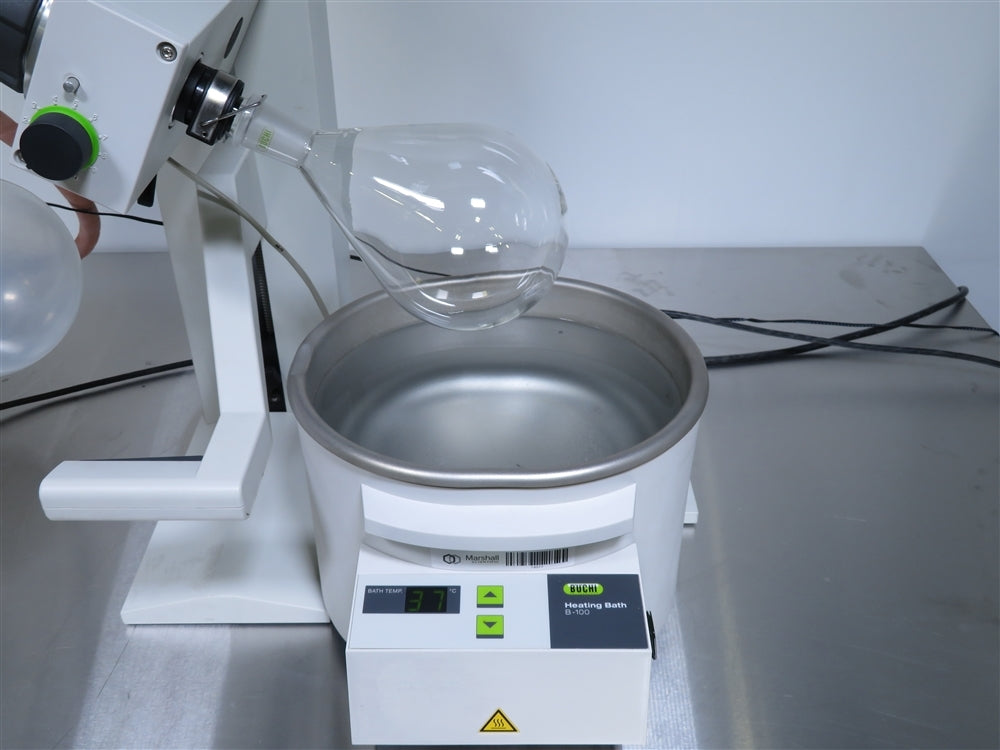

B-100 Heating Bath Specifications
Control	Analog Control Knobs
Temperature Range	20 to 95 °C
Temperature Accuracy	+ 1°C

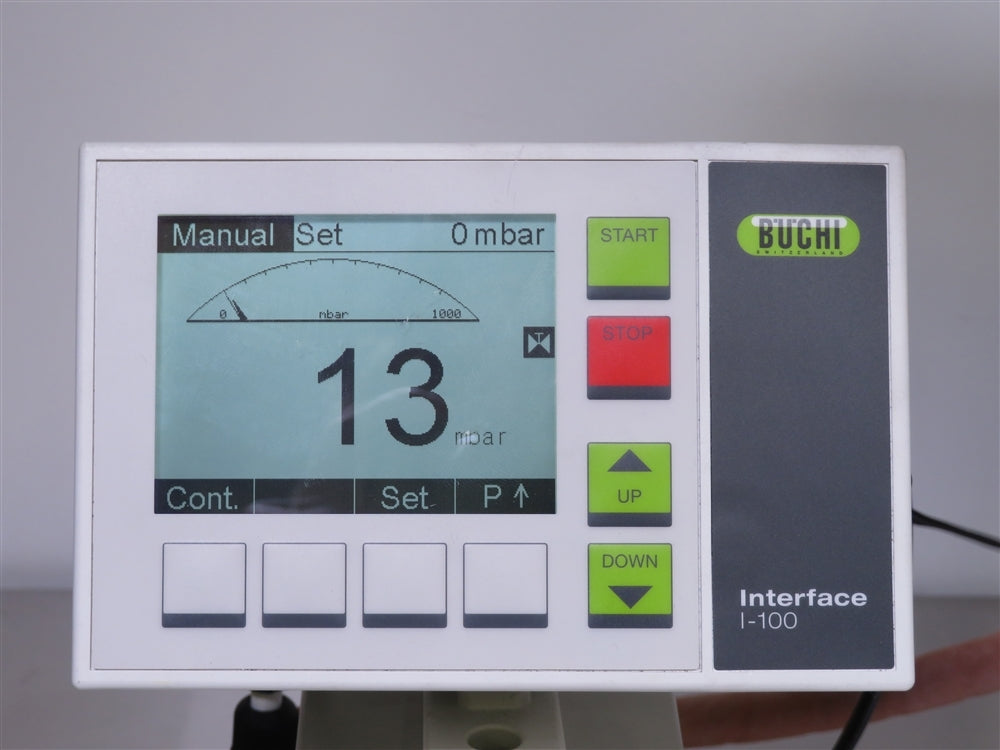

Buchi I-100 Interface Specifications
Vacuum Measurement Range	0 to 1,400 mbar
Vacuum Measurement Accuracy	± 2 mbar (after calibration at constant temperature)
Hysteresis	Automatic or 1 to 500 mbar
Regulating Range	0 to 1,100 mbar
Power Consumption	30W

Buchi F-105 Chiller Specifications
Temperature Range	-10°C to 25°C
Temperature Stability	± 1°C
Cooling Capacity	530W
Maximum Flow Rate	2.5L/min (0.66 gpm)
Electrical Requirements	115V, 60Hz, 8A
