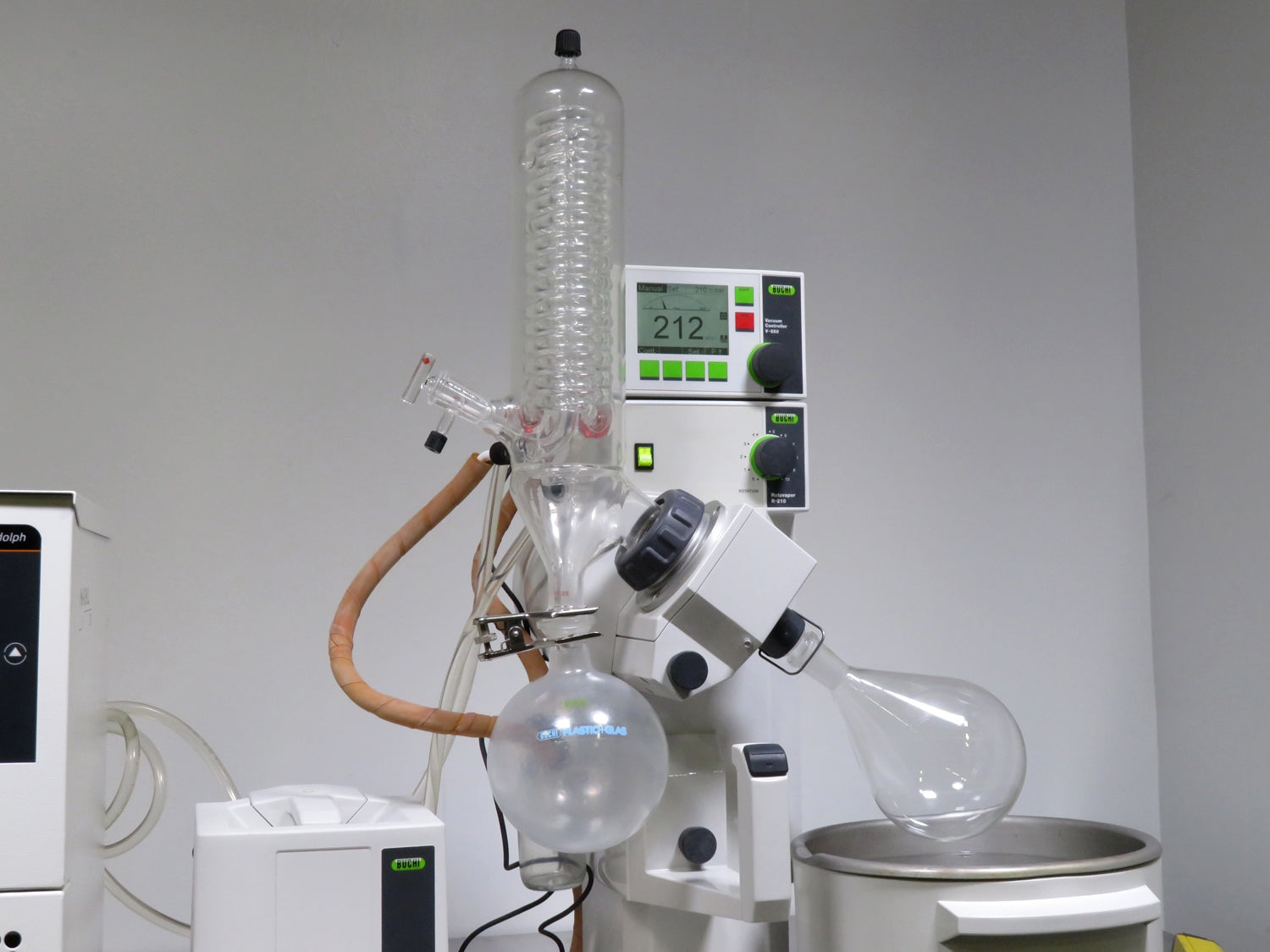

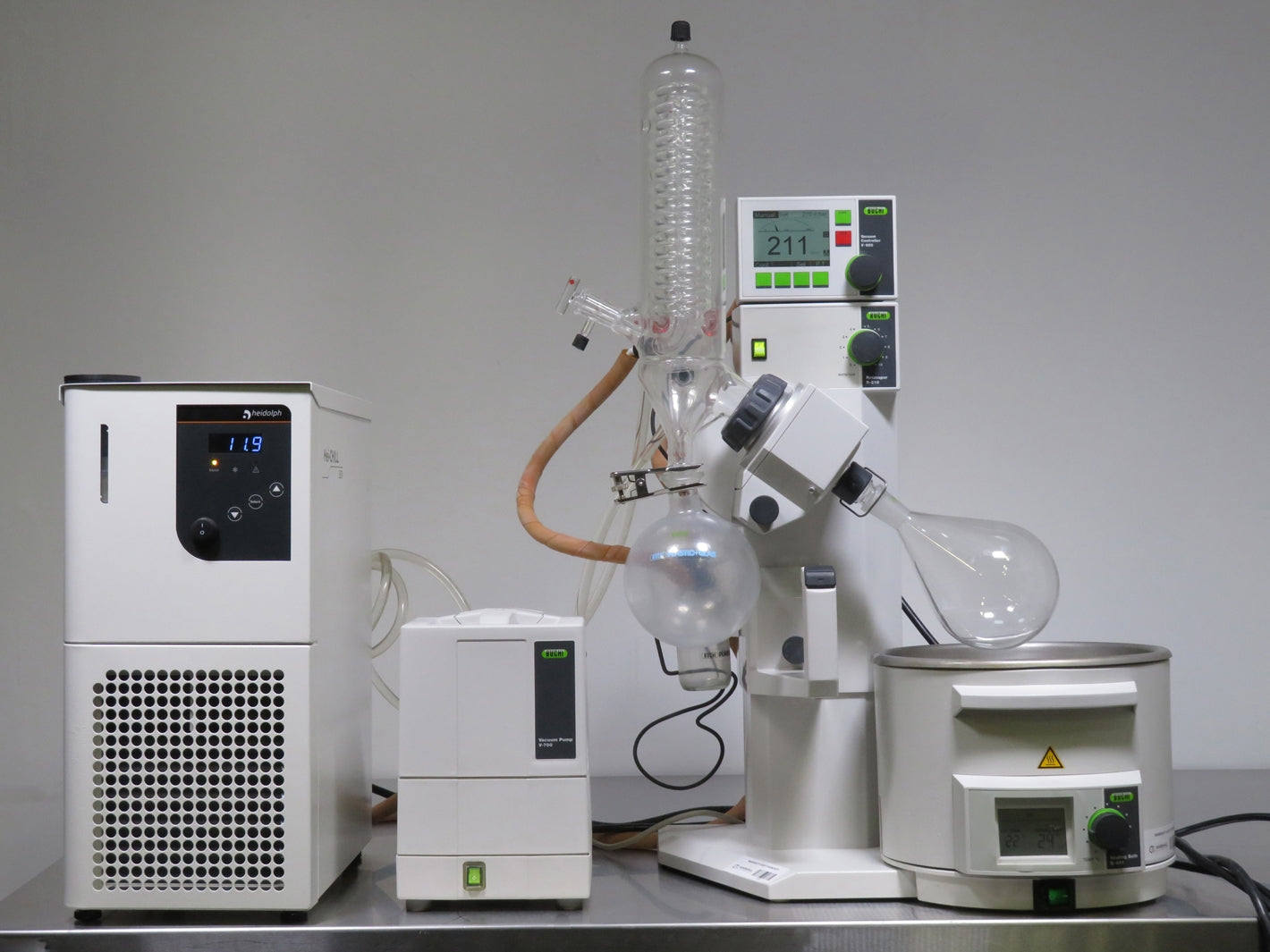

Buchi R-210 Rotavapor System with Chiller
Rotation Speed
20 to 280 rpm
Temperature Range
-20° to 170°C
Flask Size
50 to 4000 mL
- Integrated design combining vacuum controller, pump, and recirculating chiller for streamlined operation

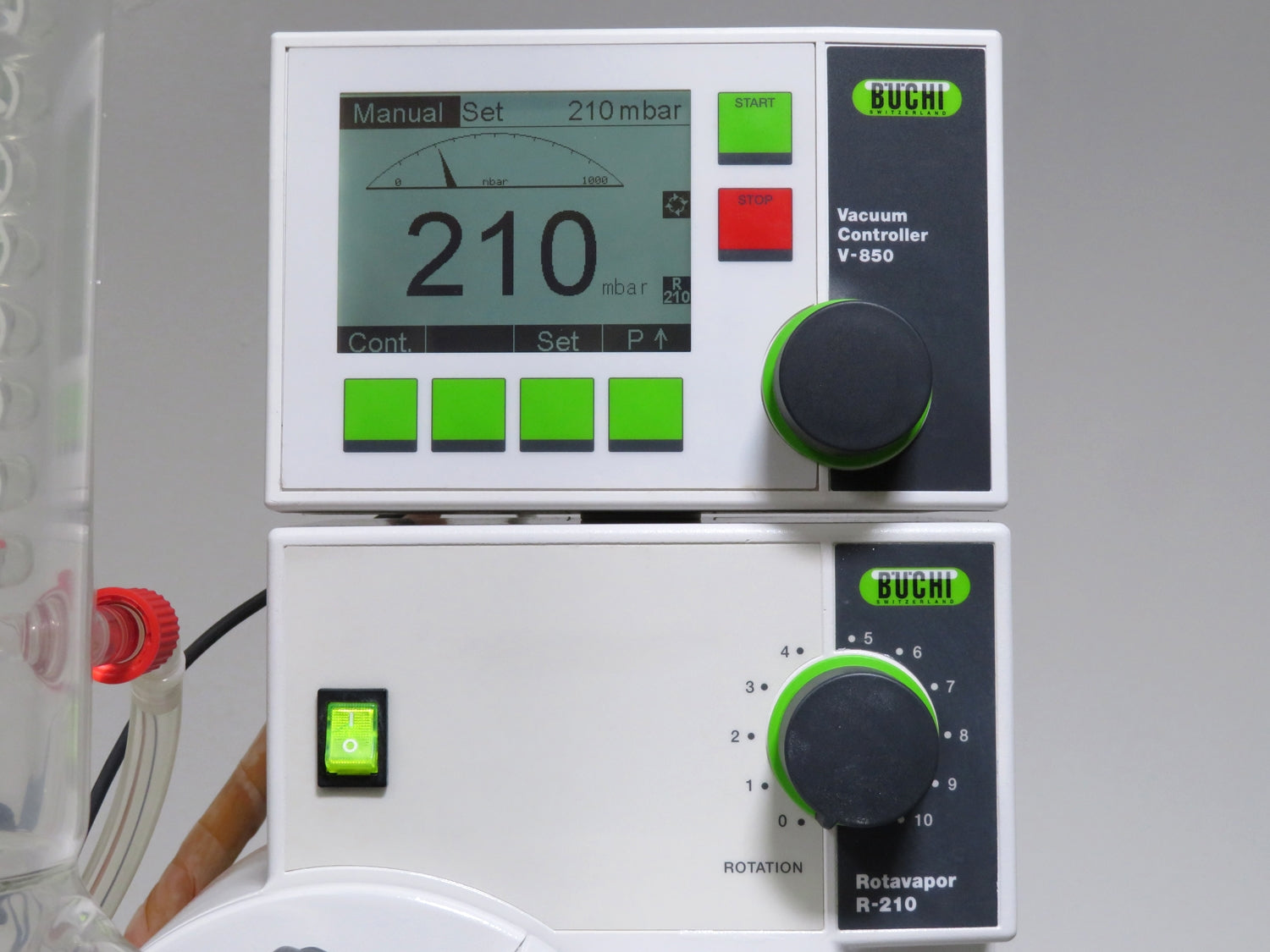

- V-850 vacuum controller with pressure regulation, solvent library, timer function, and USB interface for data transfer

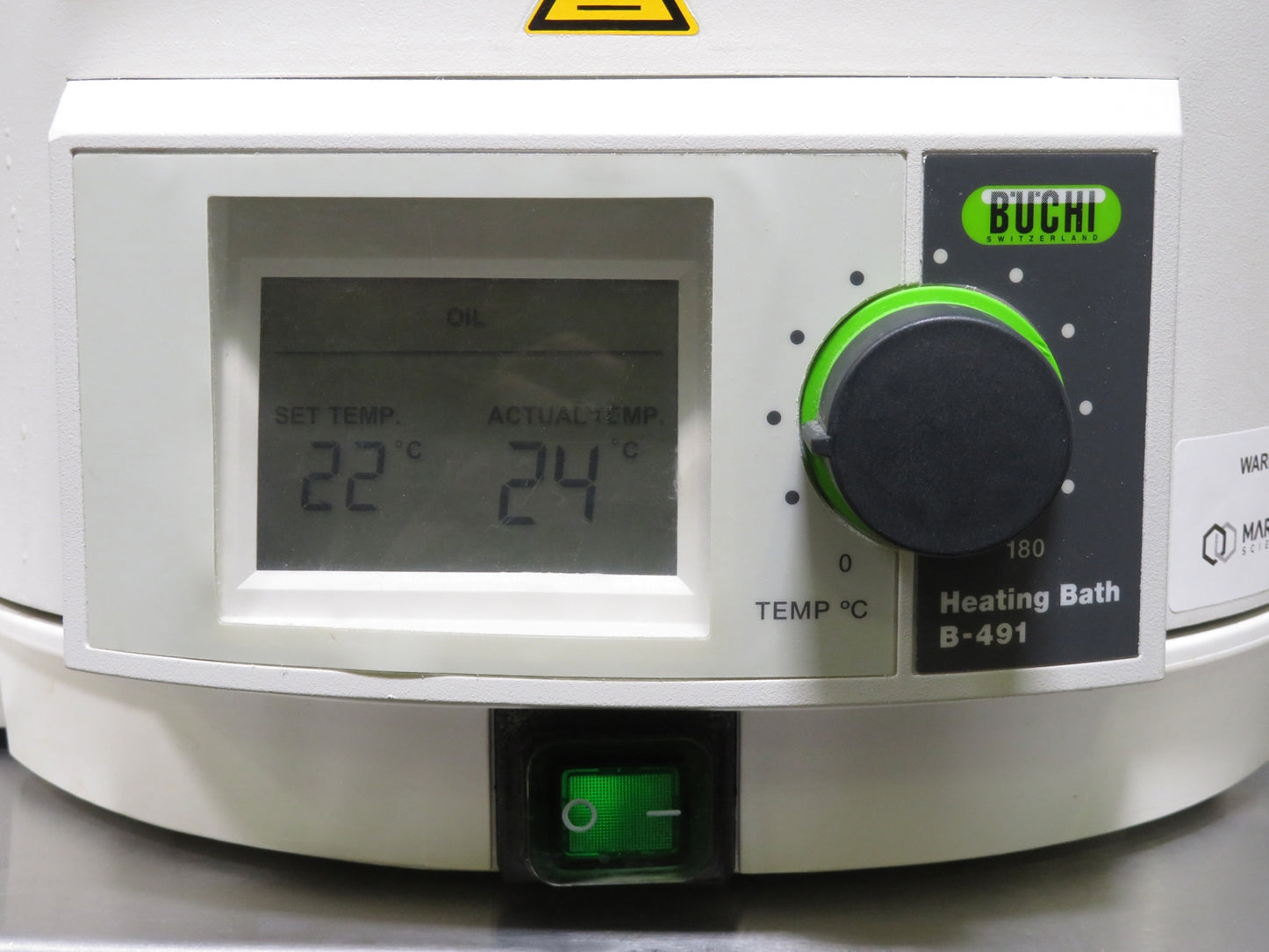

- B-491 heating bath with 4L capacity, quick heating capabilities, and LCD digital display for precise control
- Compact and space-saving with dimensions of 21.6 x 21.6 x 22.6 in
- V-700 vacuum pump features a brushless DC motor and low noise levels (40–52 dBA) for quiet operation
- Compatible with a variety of laboratory applications, including distillation and sample extractions
- Durable construction with user-friendly controls for reliable and consistent performance
The Buchi Rotavap System can be used for a multitude of applications from distilling solutions, to medical marijuana sample extraction.
All of our equipment is fully tested to perform at factory
specifications before being shipped.
The Buchi R-210 Rotavapor System with Chiller includes:
- > Coil Glassware

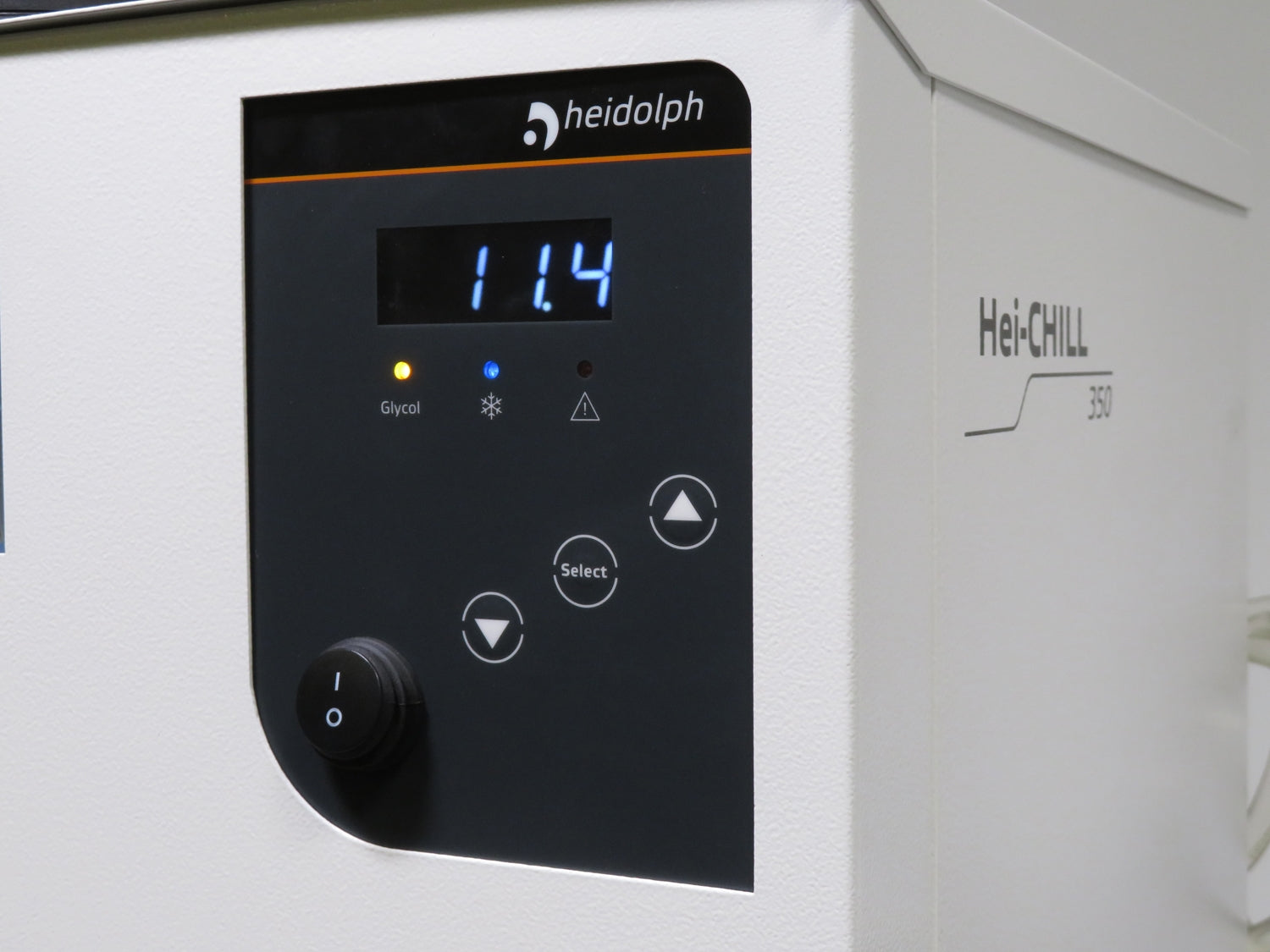

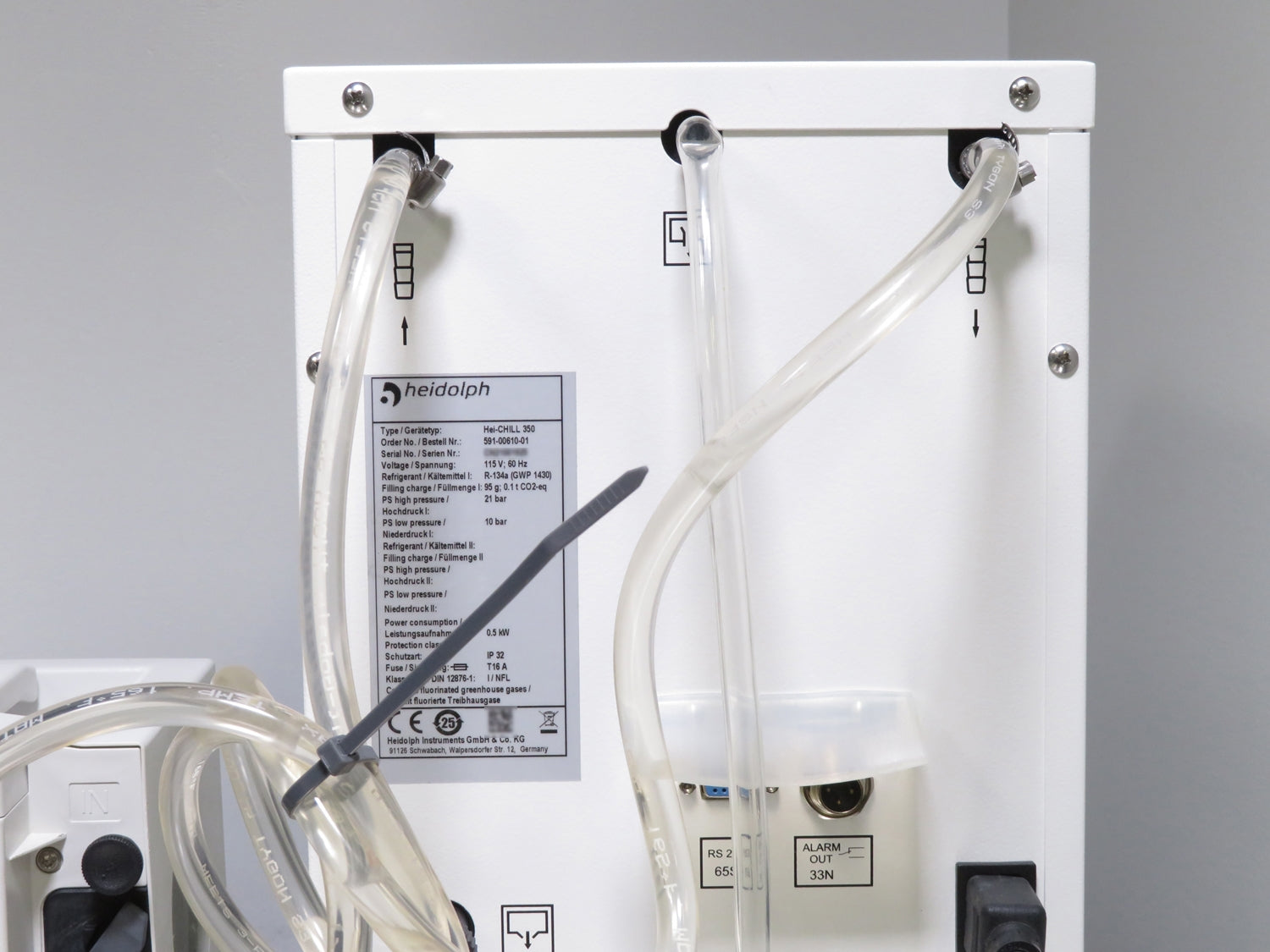

- > Recertified Buchi F-105 Chiller, 530W or Brand-New Polyscience BA06A1G3-310A13C Chiller, 900W (Additional $1,500.00)

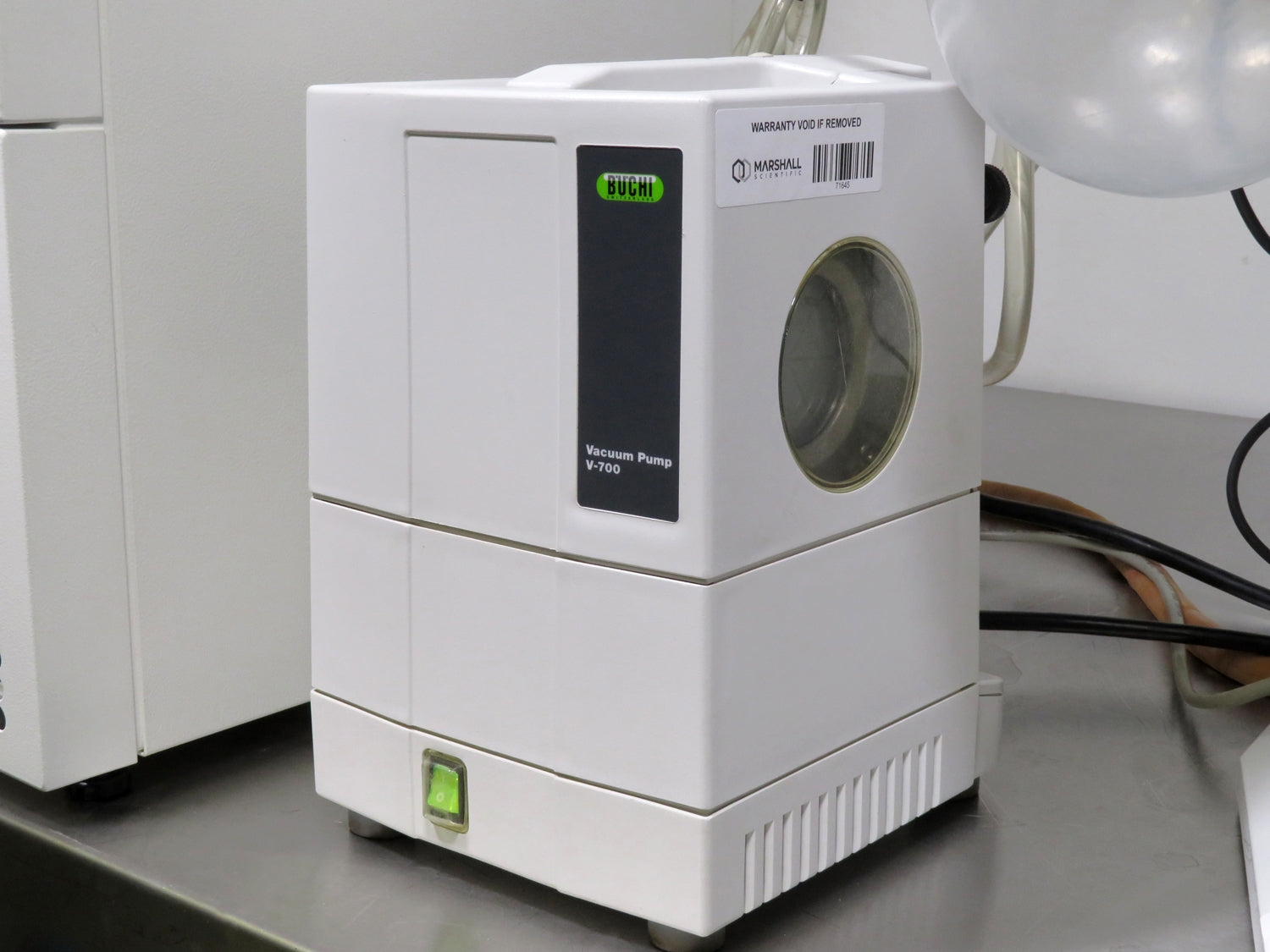

- > V-700 Vacuum Pump
- > V-850 Vacuum Controller

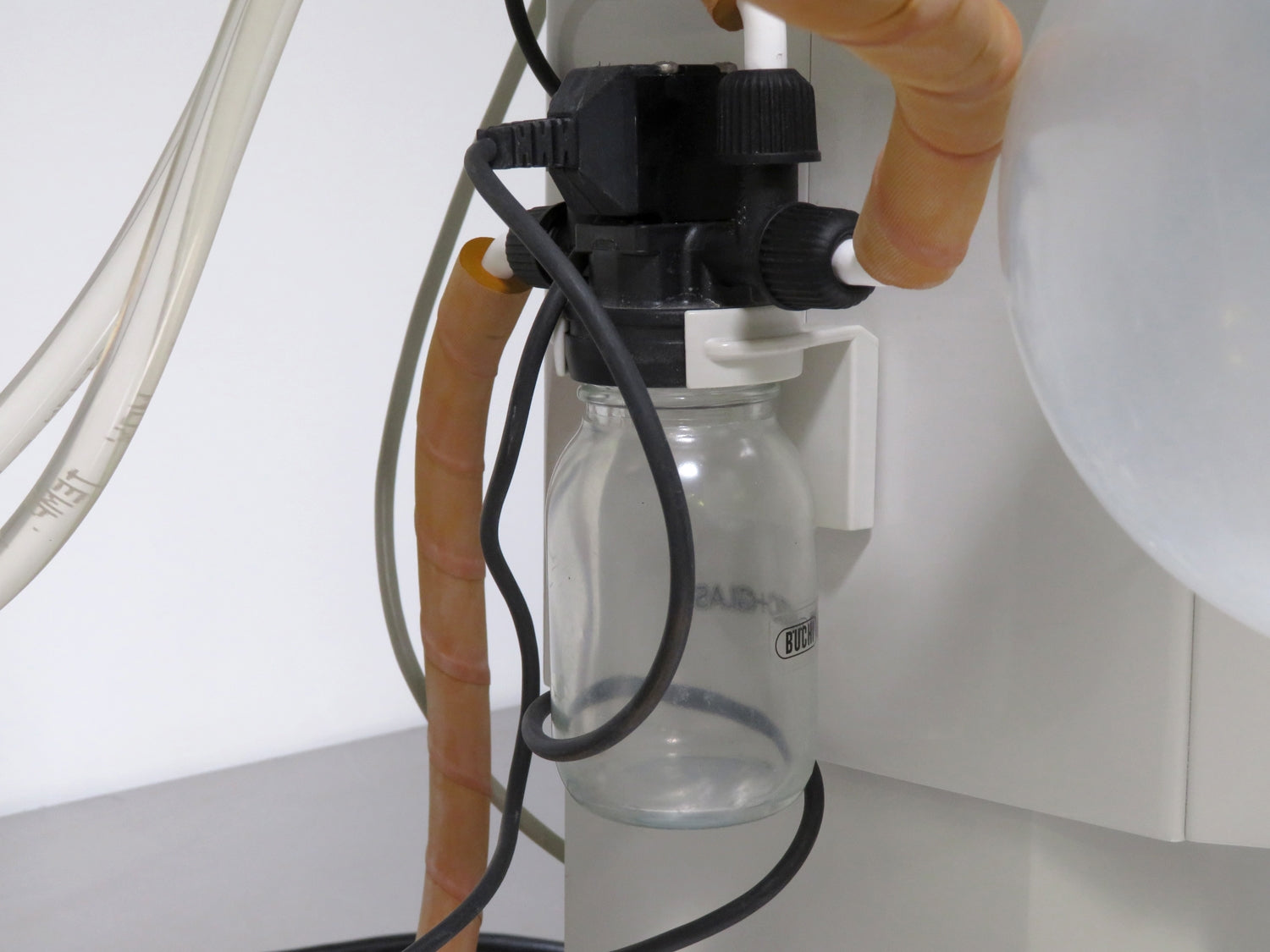

- > Valve Solenoid Module

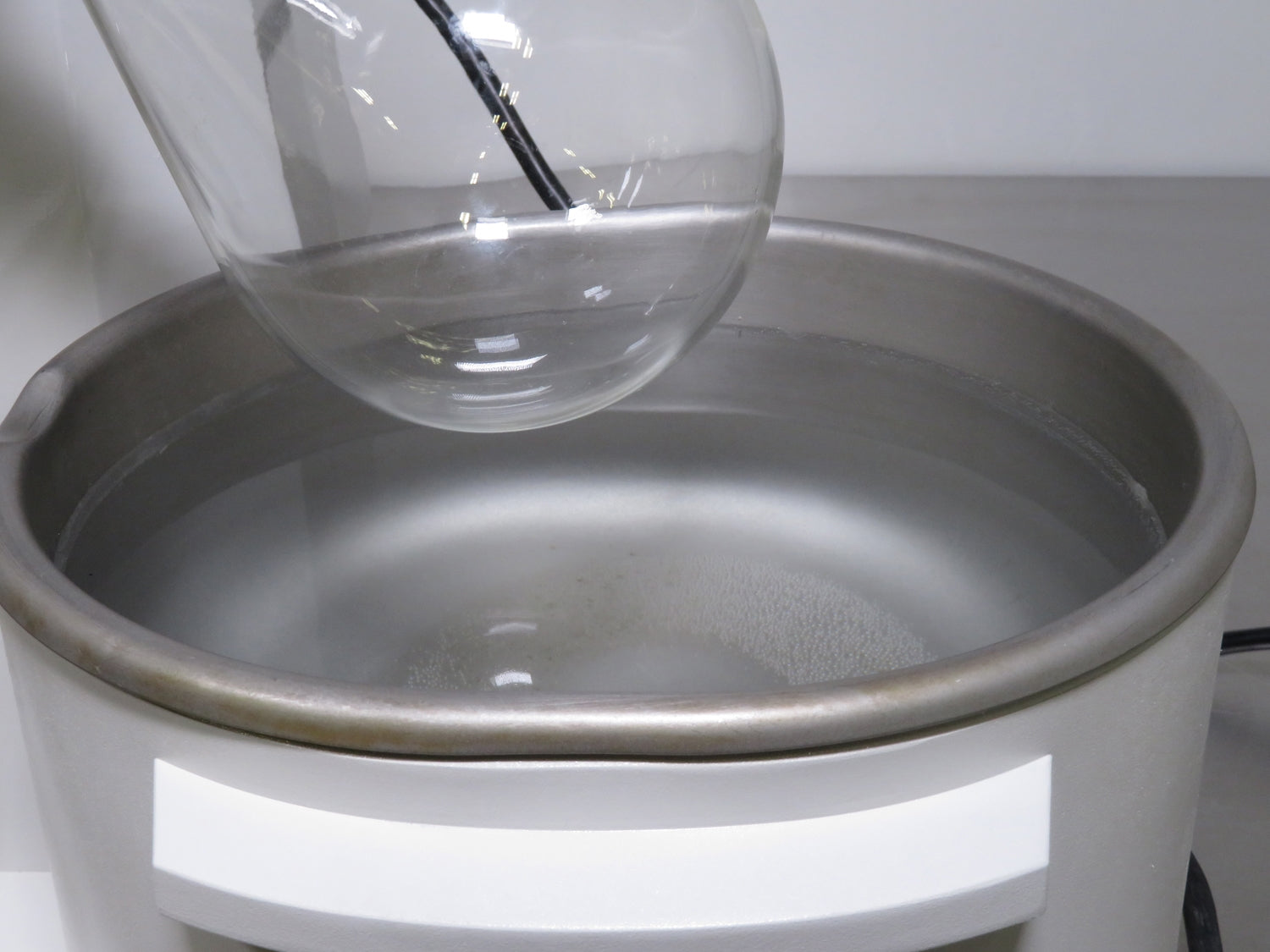

- > B-491 Heating Bath

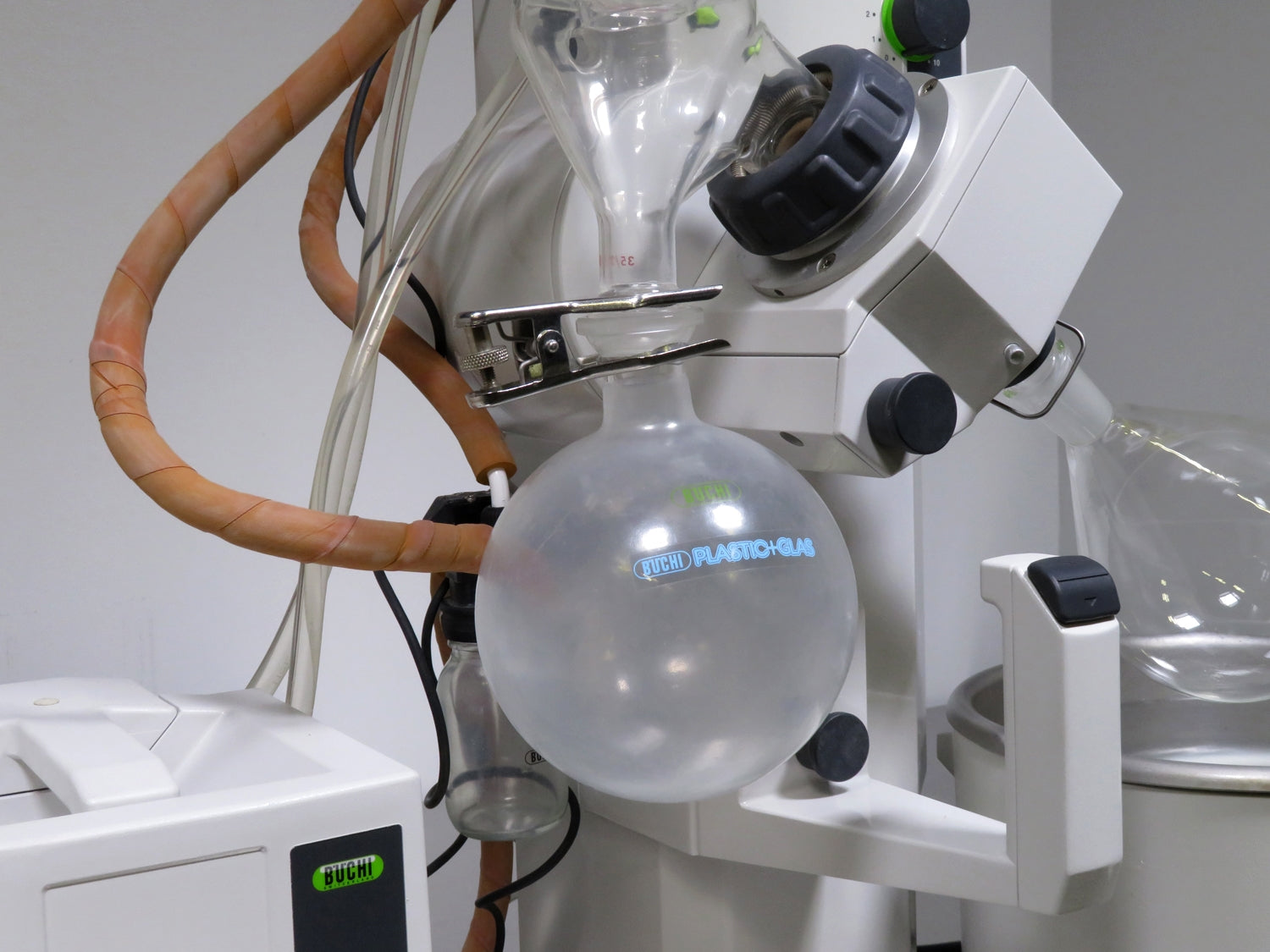

- > 1L Receiving Flask

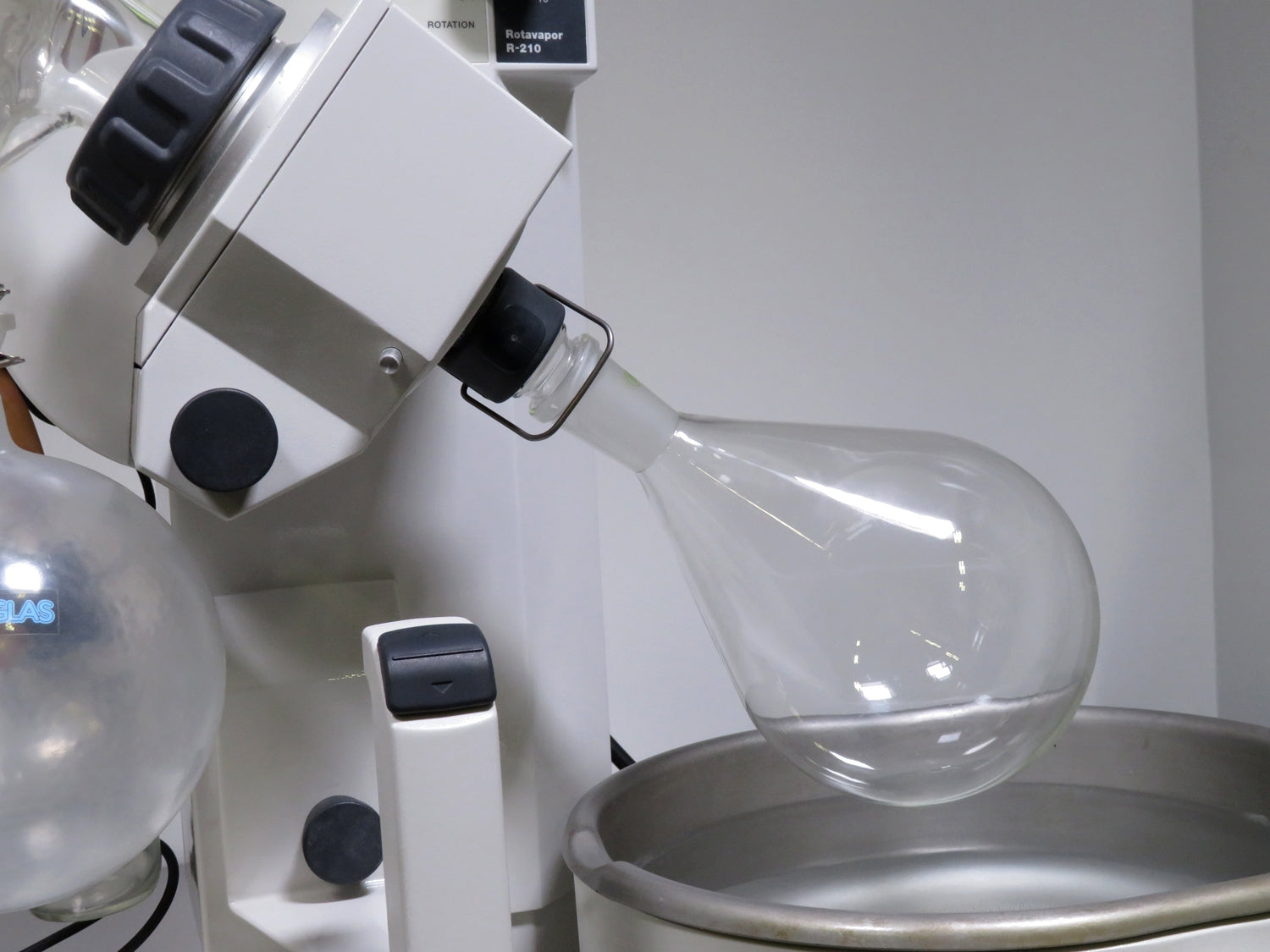

- > 1L Evaporating Flask
- > All Necessary Power Cords, Tubing, Wires and Connectors
- > Full 180 Day Parts and Labor Warranty
Buchi R-210 Rotavapor System with Chiller Specifications
|
Buchi R-210 Rotavapor System Specifications
|
|
|
Flask Size
|
50 to 4000 mL
|
|
Dimensions (L x W x H)
|
21.6 x 21.6 x 22.6 in ( 55 x 55 x 57.5 cm)
|
|
Maximum Flask Capacity
|
6.6 lbs (3 kg)
|
|
Rotation Speed
|
20 to 280 rpm
|
|
Temperature Range
|
-20° to 170°C
|
|
Electrical
|
100-120V, 50/60Hz, 60W
|
|
Buchi V-850 Vacuum Controller Specifications
|
|
|
Measurement Range
|
1400 – 0 mbar
|
|
Control Range
|
1100 – 0 mbar
|
|
Measuring Principle
|
Capacitive, independent of gas type, absolute pressure gauge / sensor
made from aluminum oxide-ceramic
|
|
Measuring Accuracy
|
±2 mbar (± 1 digit) - after calibration at constant temperature
|
|
Vacuum Concentration
|
GL 14
|
|
Temperature Compensation
|
0.07 mbar/K
|
|
Hysteresis
|
Automatic or 1 – 500 mbar
|
|
|
|
|
Display |
LCD Digital Display |
|
Control |
Analog Control Knobs |
|
Temperature range |
20 to 180°C |
|
Temperature Accuracy |
+ 1ºC |
|

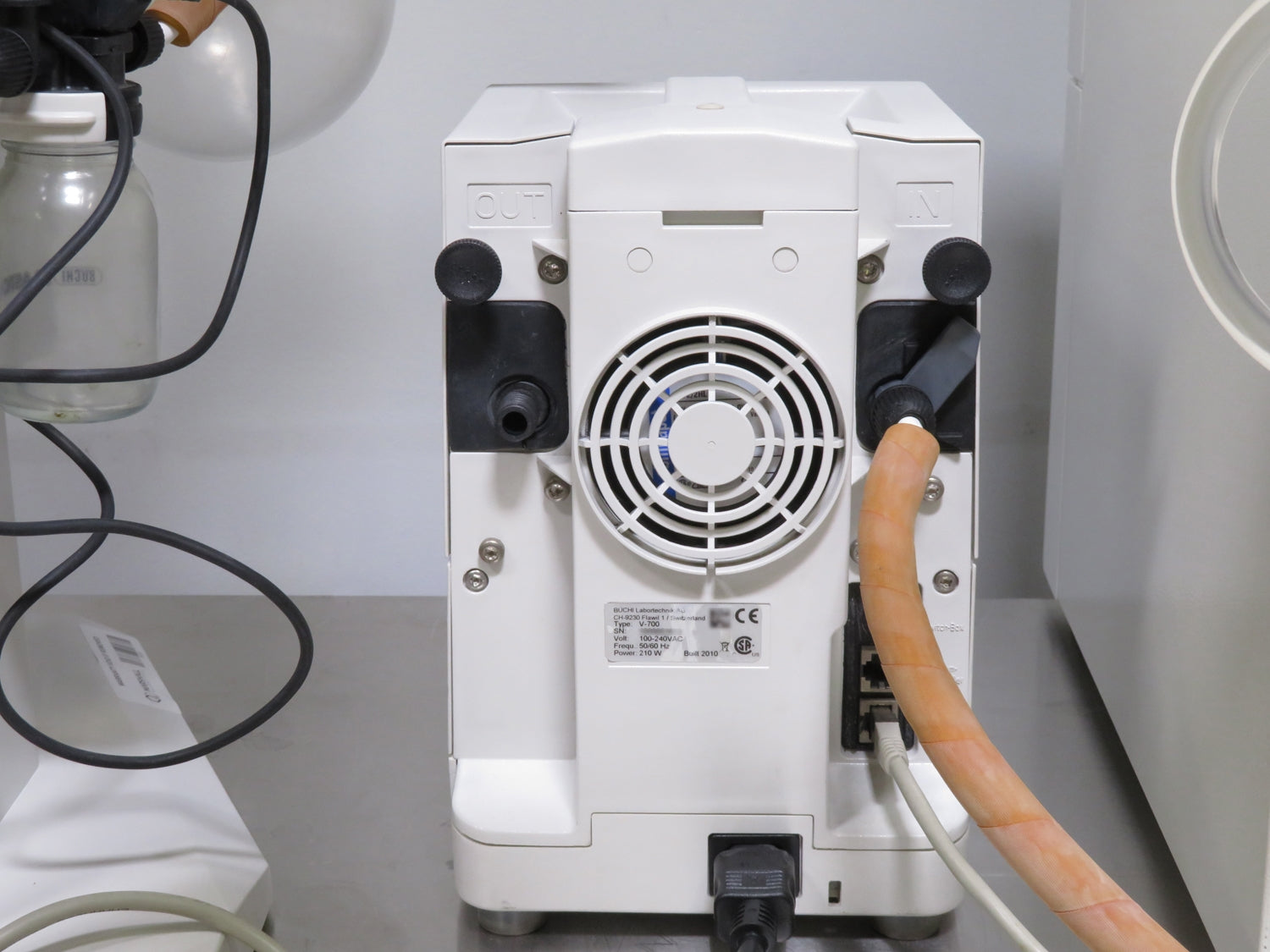

V-700 Vacuum Pump Specifications |
|
|
Capacity |
1.8 m3 /h* |
|
Number of steps (heads) |
2 (2) |
|
Final Vacuum ( Absolute) |
<10mbar |
|
Final vacuum with gas ballast |
24mbar |
|
Connection |
GL14 |
|
Power Consumption |
210 watts |
|
Electrical requirements |
100-240V 50/60Hz |
|
Pump motor |
DC brushless |
|
Nominal speed |
Max. 1600 min -1 |
|
Sound Level |
40—52dbA |
|
|
|
| Temperature Range | -10°C to 25°C |
| Temperature Stability | ± 1°C |
| Cooling Capacity | 530W |
| Maximum Flow Rate | 2.5L/min (0.66 gpm) |
| Electrical Requirements | 115V, 60Hz, 8A |
- Inspect all glassware for chips or cracks, reapplying vacuum grease to stopcocks to ensure a secure seal
- Examine displays, replacing any dim or dead pixels to maintain clear visibility
- Verify drive motor RPM using a tachometer for accurate rotational speed
- Confirm the ease of raising and lowering the tower, lubricating as needed for smooth operation
- Check the Woulff bottle for any leaks or structural breakages, ensuring airtight performance
- Disassemble and inspect the vacuum pump, cleaning and replacing seals or components as necessary
- Inspect internal wiring for each component, checking for any frays, cuts, or potential breakages
- Examine all hoses, hose barbs, and seals for signs of wear or leaks, ensuring integrity
- Inspect the vapor duct seal and replace if compromised to maintain vacuum efficiency
- Verify and calibrate the vacuum controller for accurate pressure regulation
- Confirm all hoses and cables are securely fastened to prevent disconnections or leaks
- Check heat bath temperatures against settings to ensure precise thermal control
- Confirm the final system vacuum level meets manufacturer specifications
- Ensure cosmetic condition meets standards, with no damage impacting function or appearance
Technician Inspection and Recertification Checklist: Rotary Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect all glassware for chips or cracks, apply vacuum grease to stopcocks | Completed | |
| Examine displays and replace dim/dead pixels | Completed | |
| Verify drive motor RPM with tachometer | Completed | |
| Confirm ease of raising/lowering tower, lubricate if needed | Completed | |
| Check Woulff bottle for leaks or structural issues | Completed | |
| Disassemble and inspect vacuum pump, clean/replace parts as needed | Completed | |
| Inspect internal wiring for frays, cuts, or breakages | Completed | |
| Examine hoses, hose barbs, and seals for leaks | Completed | |
| Inspect vapor duct seal, replace if compromised | Completed | |
| Verify and calibrate vacuum controller | Completed | |
| Confirm hoses and cables are securely fastened | Completed | |
| Check heat bath temperatures for accurate control | Completed | |
| Confirm final system vacuum level meets specifications | Completed | |
| Ensure cosmetic condition meets standards | Completed |
