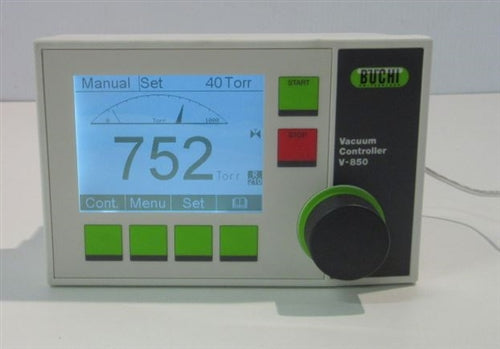

Buchi V-850 Vacuum Controller
Measurement Range
0 to 1,400 mbar
Control Range
0 to 1,100 mbar
Measuring Accuracy
±2 mbar

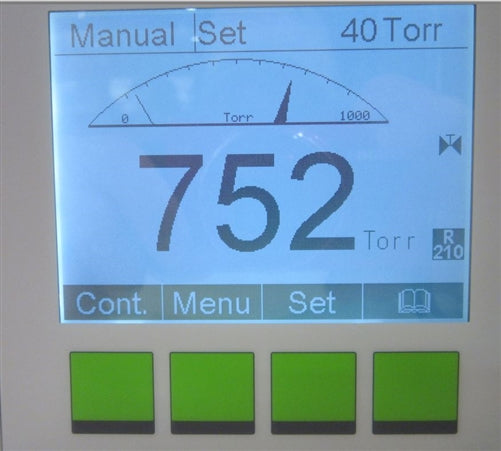

- Equipped with a single control knob and a large graphic display screen, featuring intuitive menu guidance in six selectable languages.
- Offers both valve-based control and the new speed control technology when used with Vacuum Pump V-700/V-710.
- Includes a comprehensive solvent database to assist in process optimization.
- Features a timer for process termination, enhancing operational precision.

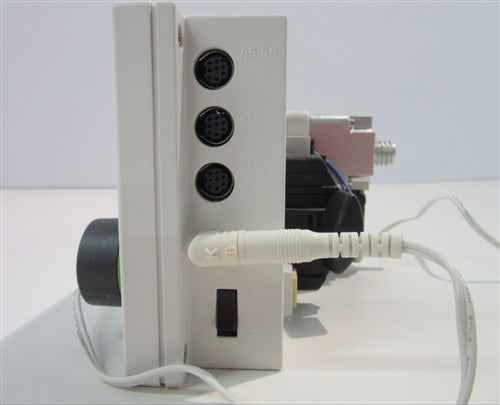

- Equipped with a USB port and RS-232/RS-485 interfaces for easy data transfer and integration with other systems.
- Includes an integrated aeration valve and a precision pressure sensor that are resistant to chemicals, making it suitable for various lab applications.
The Buchi V-850 Vacuum Controller is a stand alone valve unit for operation with external vacuum systems, such as the Buchi V-700 vacuum pump which works with the R-210 rotovap system. The easy-to-operate V-850 units are equipped with a single control knob and a large graphic display screen with intuitive menu guidance and six selectable language options. The controller features a solvent database, a timer function for process termination, and a LabVac function for control of laboratory vacuum systems. Units are equipped with a USB port and RS-232/RS-485 interfaces. The integrated aeration valve and the precision pressure sensor are resistant to chemicals, making the controller suitable for numerous applications in the lab.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Buchi V-850 Vacuum Controller includes:
- > Interface Cable
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Buchi V-850 Vacuum Controller Specifications
|
Weight |
700g |
|
Measurement range |
1400 – 0 mbar |
|
Control range |
1100 – 0 mbar |
|
Measuring principle |
Capacitive, independent of gas type, absolute pressure
gauge / sensor made from aluminum oxide-ceramic |
|
Measuring Accuracy |
± 2 mbar (± 1 digit) - after calibration at constant temperature |
|
Vacuum Concentration |
GL 14 |
|
Temperature Compensation |
0.07 mbar/K |
|
Magnetic valve supply |
24 V |
|
Power consumption |
10 W |
|
Power connections |
30 VDC, Rotavapor R-210 / R-215, Vacuum Pump
V-700 / V-710, power pack |
|
Approvals |
CE, CSA |
|
Frequency |
50/60 Hz |
|
Hysteresis |
Automatic or 1 – 500 mbar |
Click Here to View the Technical Specs for the V-850
