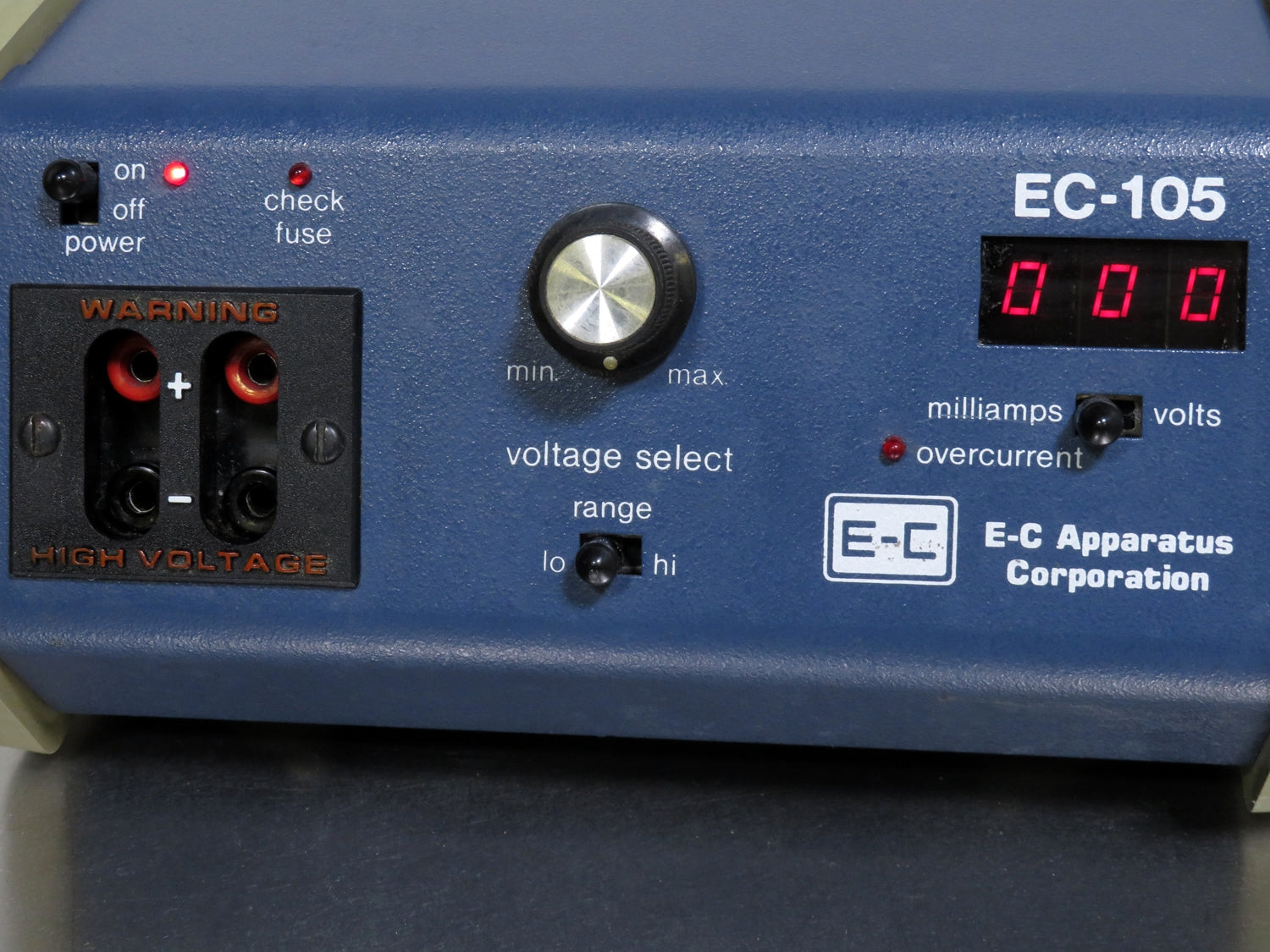

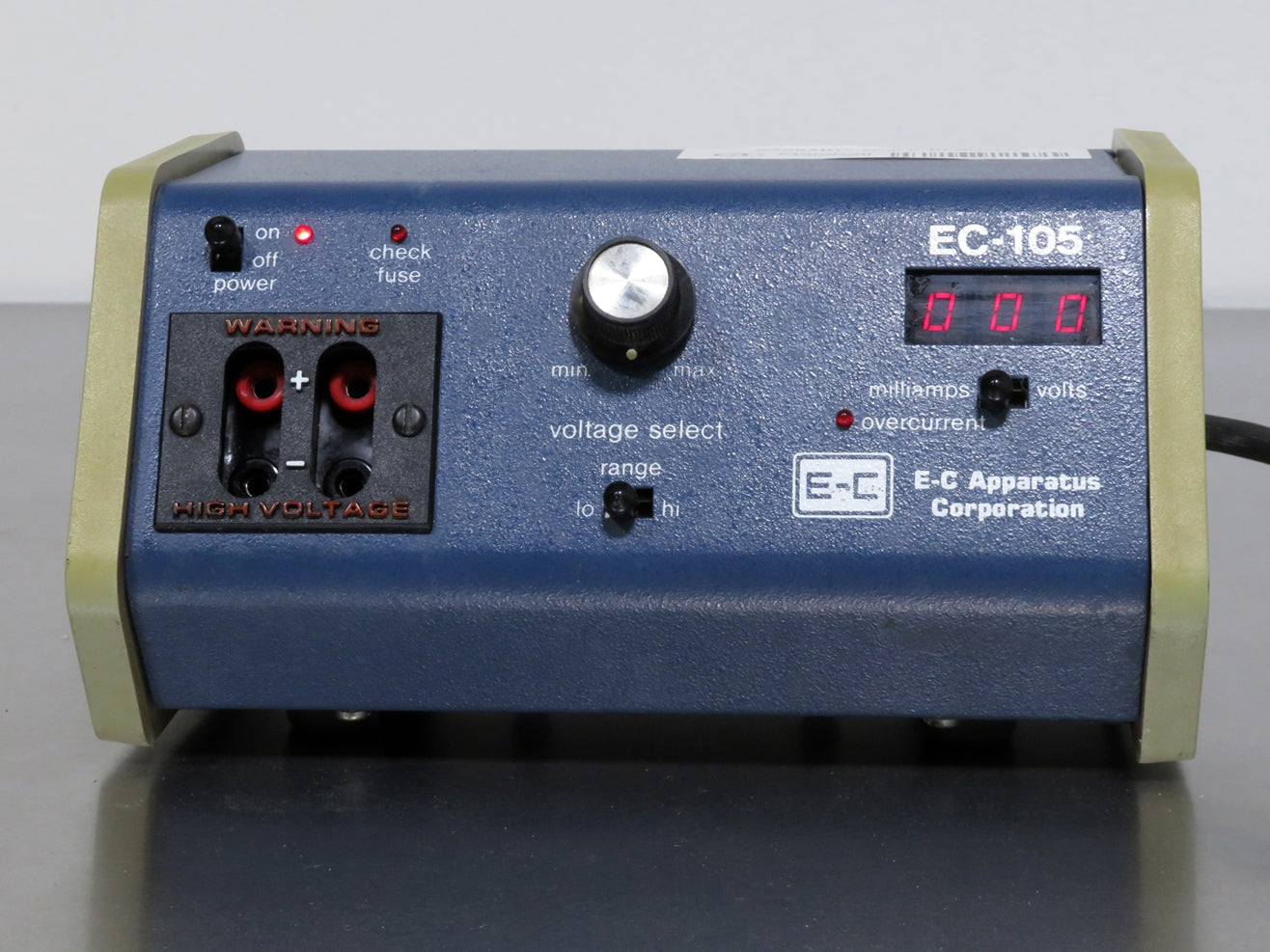

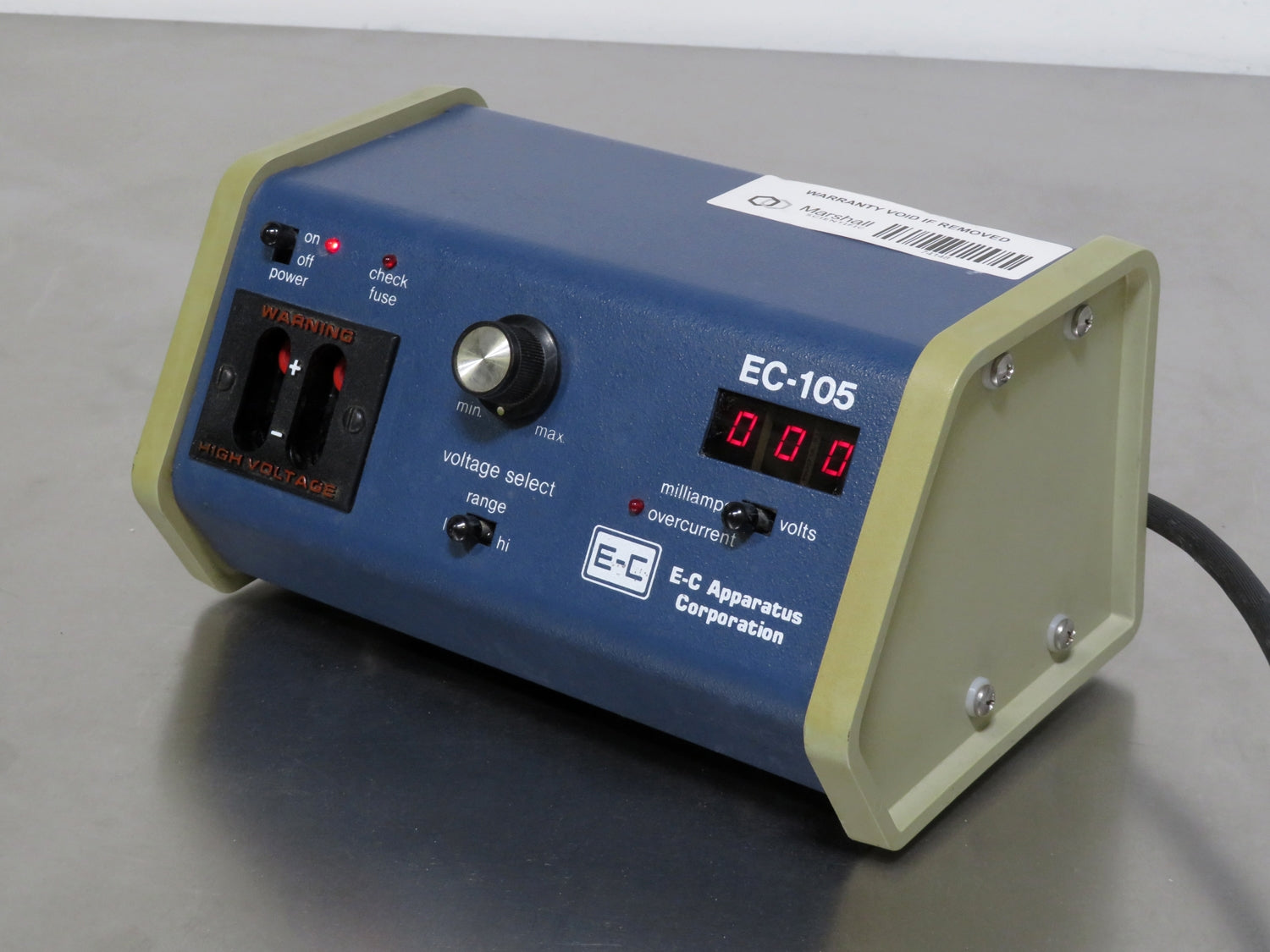

EC-105 Electrophoresis Power Supply
Maximum Voltage
250V
Low Voltage Setting Range
20-130V (increments of 10V)
High Voltage Setting Range
140-250V (increments of 10V)
Features
- Maximum Voltage Output of 250V for versatile electrophoresis applications
- Adjustable Low Voltage Setting from 20-130V in 10V increments
- Adjustable High Voltage Setting from 140-250V in 10V increments
- Maximum Current Capacity of 300mA at 150-250V and 500mA below 150V
- LCD Display for clear monitoring of either current or voltage
- Precision Control allows for accurate adjustments in voltage and current settings
- Designed for Reliability in electrophoresis and other laboratory applications
INCLUDED:
The EC-105 Electrophoresis Power Supply includes:
The EC-105 Electrophoresis Power Supply includes:
- > Power Cord
- > Calibration
- > Full 180 Day Parts and Labor Warranty
EC-105 Electrophoresis Power Supply Specifications
|
Maximum Voltage
|
250V
|
|
Low voltage setting range
|
20-130V (increments of 10V)
|
|
High voltage setting range
|
140-250V (increments of 10V)
|
|
Max. Current
|
300mA @ 150-250V, 500mA below 150V
|
|
Display
|
LCD, either current or voltage |
Electrophoresis Power Supply Inspection and Recertification Checklist
- Verify internal power supply output for correct voltage in alignment with equipment specifications
- Inspect LED display for any dim or dead pixels, ensuring optimal readability
- Examine internal wiring and connections, checking for any rips, tears, or compromised insulation
- Ensure fan is clean and fully operational to maintain adequate cooling
- Test PCB test points for proper voltage output, confirming consistent circuit performance
- Validate functionality of all buttons and switches, ensuring responsive control
- Measure and confirm constant voltage, amplitude, and wattage using precise resistance values
- Cross-check displayed voltage with multimeter readings for accuracy
- Monitor for rapid resistance changes, software errors, and power fluctuations
- Inspect line cord for any signs of wear, cuts, or damage impacting safety
- Confirm cosmetic condition meets quality standards, free of any damage affecting functionality or aesthetics
Technician Inspection and Recertification Checklist: Electrophoresis Power Supplies
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify internal power supply output voltage | Completed | |
| Inspect LED display for dim or dead pixels | Completed | |
| Examine internal wiring for rips or tears | Completed | |
| Ensure fan is clean and fully operational | Completed | |
| Test PCB test points for voltage accuracy | Completed | |
| Validate functionality of buttons and switches | Completed | |
| Confirm constant voltage, amplitude, and wattage with resistance | Completed | |
| Cross-check displayed voltage with multimeter | Completed | |
| Monitor for rapid resistance changes and power fluctuations | Completed | |
| Inspect line cord for wear or damage | Completed | |
| Confirm cosmetic condition meets quality standards | Completed |
