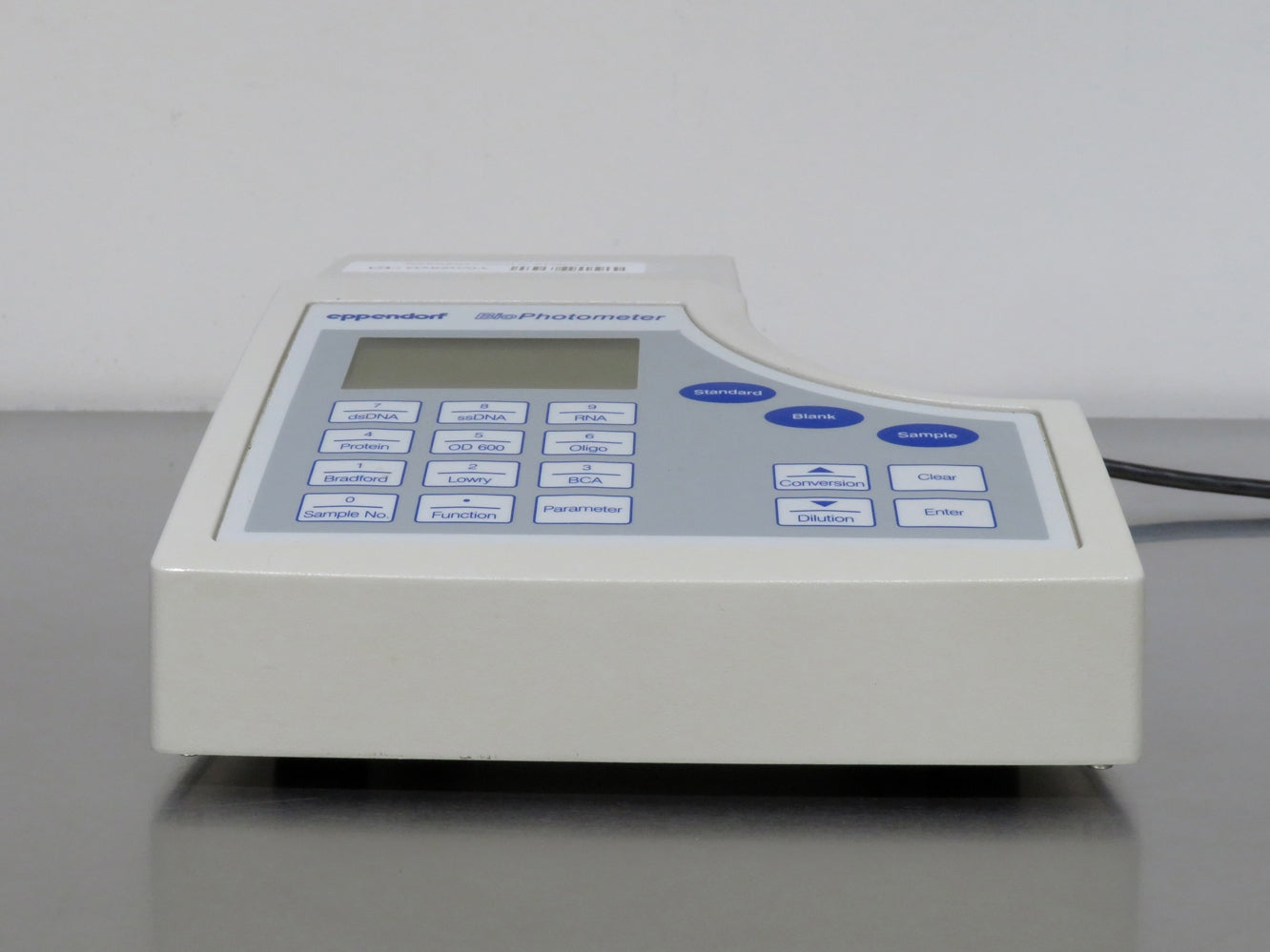

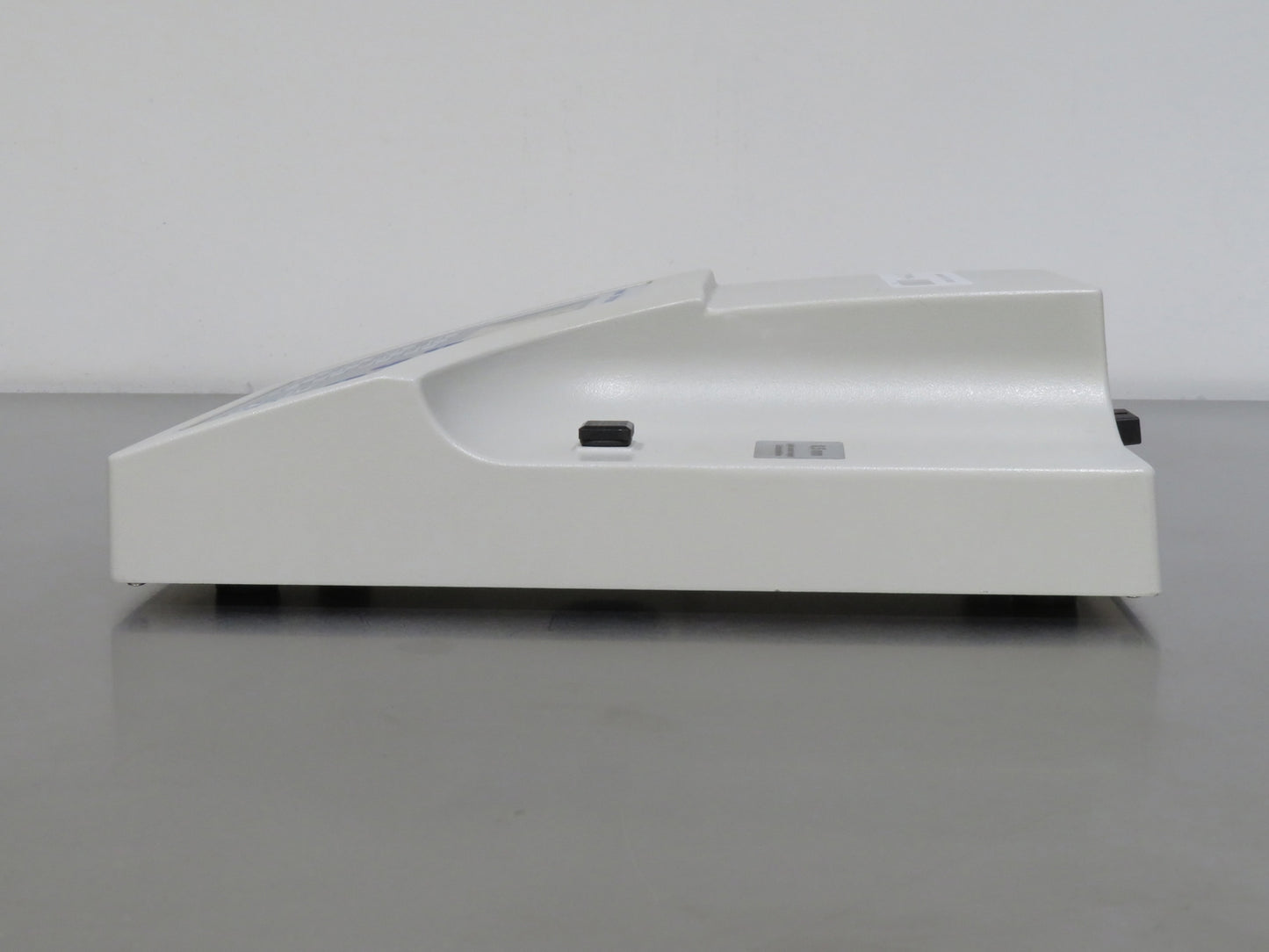

Eppendorf BioPhotometer Model #6131
Measuring Wavelengths
Xe 230, 260, 280, 320, 562, 595 nm
Accuracy of Reading
0.001 A
Wavelength Random Error
≤ 0.1 nm
- Rapid, simple, and convenient measurement for nucleic acids, proteins, and bacteria density
- Single-beam photometer with reference beam and fixed wavelengths
- Efficient and reliable operation in the lab with exceptional repeatability
- High-quality components ensure operating reliability
- Metal housing for stability
- Optical system: Absorption single-beam photometer with reference beam and several fixed wavelengths
The Eppendorf BioPhotometer Model #6131 is a versatile, single-beam photometer designed for rapid, simple, and convenient measurement of nucleic acids, proteins, and bacterial densities using photometric principles. Equipped with a xenon flash lamp, it offers fixed wavelengths at 230, 260, 280, 320, 562, and 595 nm and features a holographic concave grating for precise spectral dispersion. Its program-controlled wavelength selection and low spectral bandwidth—5 nm for lower wavelengths and 7 nm for higher wavelengths—combine with minimal systematic and random errors to deliver exceptional measurement accuracy, with a reading precision of 0.001 A and stray-light levels below 0.05%. Enhanced by 12 preprogrammed, modifiable method programs and high-quality silicium photodiodes for sensitive detection, this bio-photometer provides outstanding reliability and repeatability. All of these features are housed in a robust metal casing that ensures long-term operating stability, making it an indispensable tool for any laboratory.
The Eppendorf BioPhotometer Model #6131 is fully tested to perform at factory specifications before being shipped.
The Eppendorf BioPhotometer Model #6131 includes:
- > Calibration Certificate
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Eppendorf BioPhotometer Model #6131 Specifications
| Wavelength Range (Fixed) | Xe 230, 260, 280, 320, 562, 595 nm |
| Spectral Bandwidth |
5 nm at 230 to 320 nm 7 nm at 562 to 595 nm |
| Wavelength Selection | Method-dependent, program controlled |
| Wavelength Systematic Error |
± 1 nm at 230 to 280 nm ± 2 nm at 320 to 595 |
| Wavelength Random Error |
≤ 0.002 A at 0 A ≤ 0.005 A at 1 A |
| Photometric Random Error |
≤ 0.002 A at 0 A ≤ 0.005 A at 1 A |
| Photometric Systematic Error | ± 1% at 1 A |
| Optical System | Absorption single-beam photometer with reference beam and several fixed wavelengths |
| Irradiation Source | Xenon flash lamp |
| Spectral Dispersion | Holographic concave grating |
| Accuracy of Reading | 0.001 A |
| Stray-Light Proportion | < 0.05% |
| Radiation Detector | Silicium Photo Diodes |
| Memory | 12 preprogrammed, modifiable method programs |
| Dimensions (W x H x D) | 7.9 x 12.6 x 3.9 in. (20 x 32 x 10 cm) |
| Weight | 6.6 lb. (3 kg) |

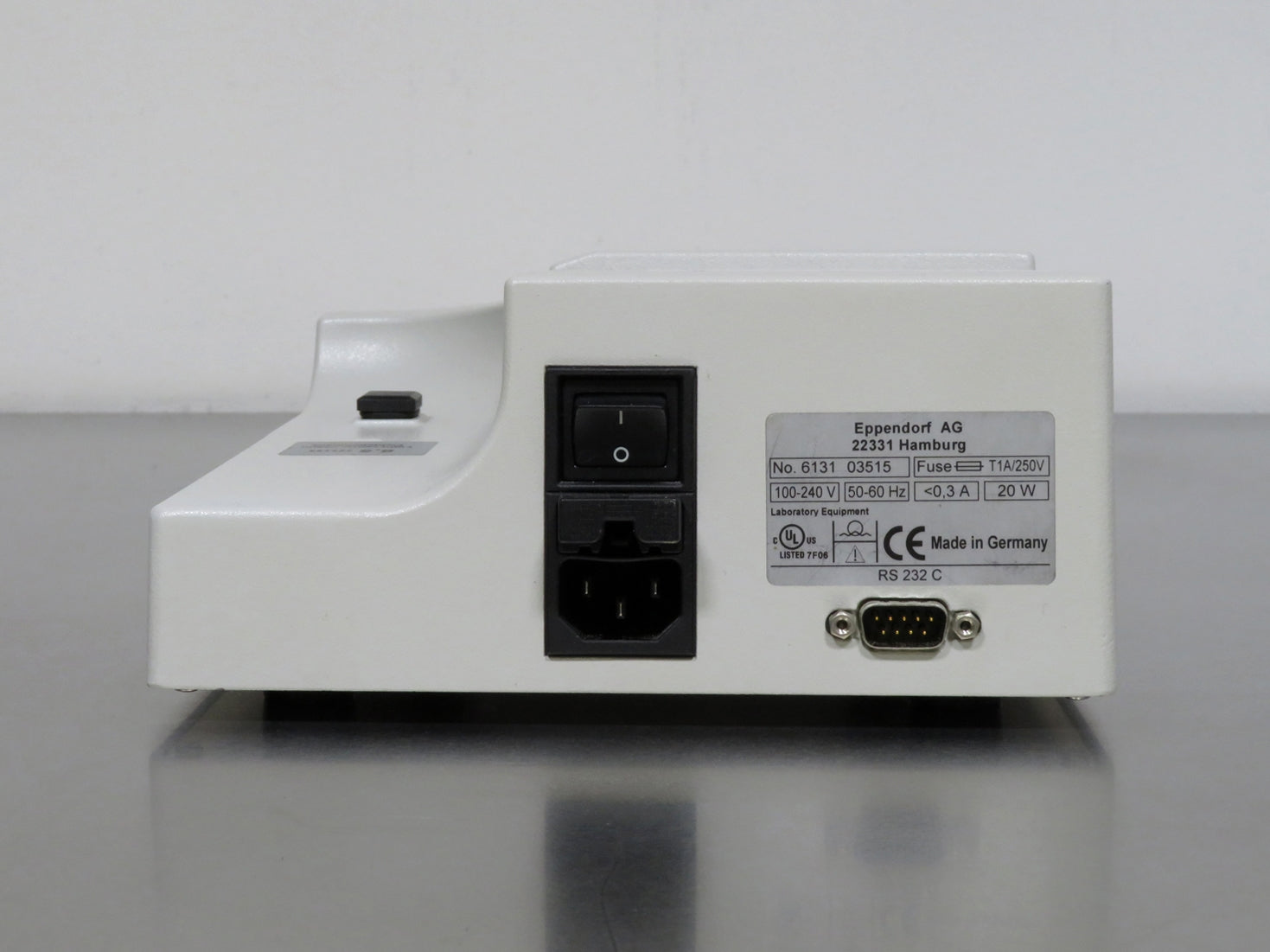

| Electrical Requirements | 100 to 240V, 50/60Hz, <0.3 A, 20W |
- Confirm the power supply and PCB output correct, stable voltages across all required connections
- Inspect the display for any dim or dead pixels; replace affected components to maintain full visual clarity and operational accuracy
- Verify full functionality of all buttons, ensuring precise and responsive input control
- Check the XY assembly for proper movement and alignment; thoroughly clean all railings, removing any debris or contaminants
- Confirm stable software communication and connection between the instrument and PC, addressing any connectivity issues
- Inspect and clean or replace all filters as required to ensure optimal airflow and performance
- Examine internal wiring and electrical connections for any breaks, disconnections, or tears; replace or secure any compromised wiring
- Test the lamp’s full functionality, replacing it if any performance issues, dimming, or faults are detected
- Execute the necessary validation protocol, documenting completion with a date on a calibration/verification certificate
- Perform and verify appropriate updates to the PC operating system for compatibility and security
- Conduct a thorough cosmetic inspection, ensuring all external components meet quality and aesthetic standards
Technician Inspection and Recertification Checklist: Instruments
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm stable, correct voltage outputs from power supply and PCB | Completed | |
| Inspect display for dim or dead pixels; replace as needed | Completed | |
| Verify functionality of all buttons for precise, responsive control | Completed | |
| Check XY assembly for proper movement; clean railings to remove debris | Completed | |
| Confirm stable software communication between instrument and PC | Completed | |
| Inspect and clean or replace filters to maintain optimal performance | Completed | |
| Examine internal wiring for damage; replace or secure compromised connections | Completed | |
| Test lamp functionality; replace if dimming or faults are detected | Completed | |
| Execute validation protocol and document on calibration/verification certificate | Completed | |
| Update PC operating system for compatibility and security | Completed | |
| Conduct cosmetic inspection to ensure quality of external components | Completed |
